CL-755-BT

CL-755-BT

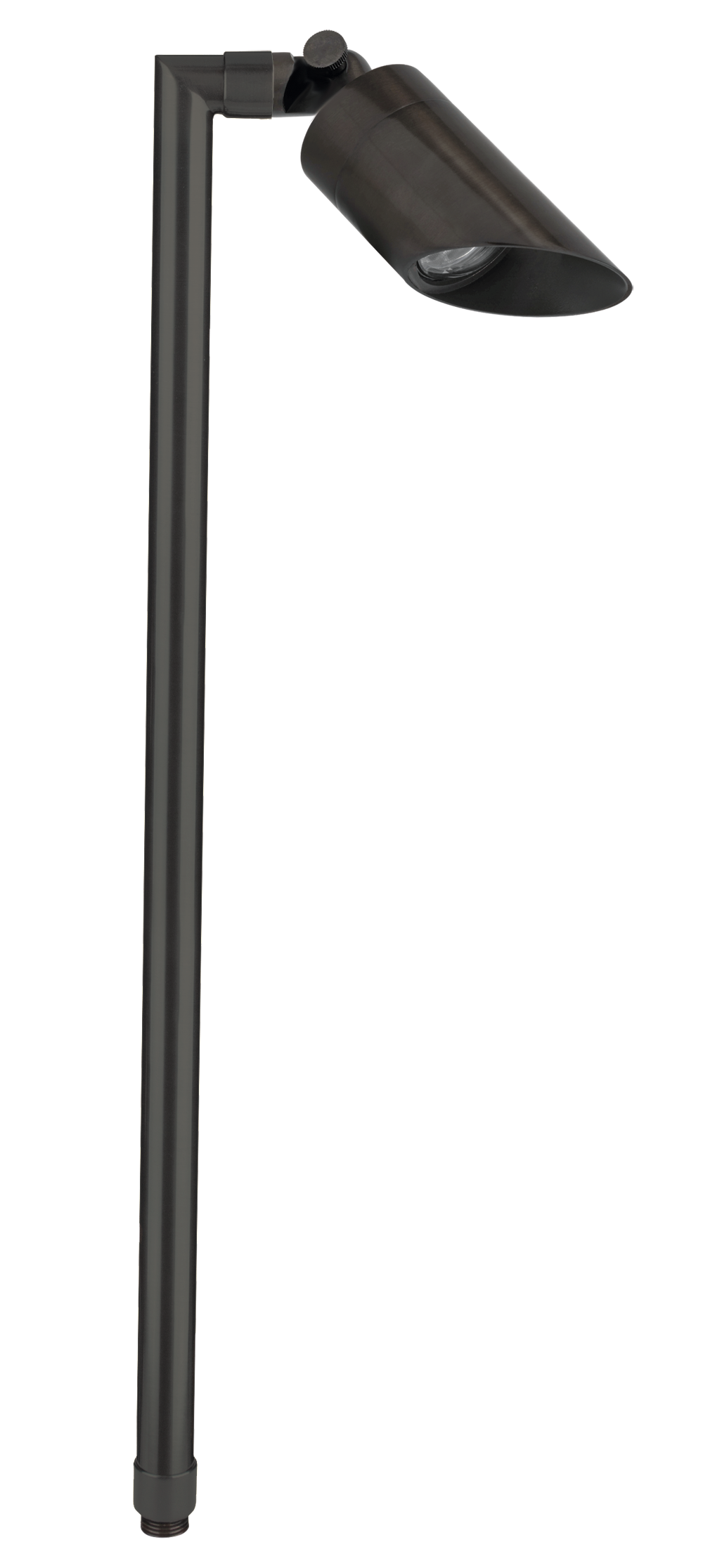

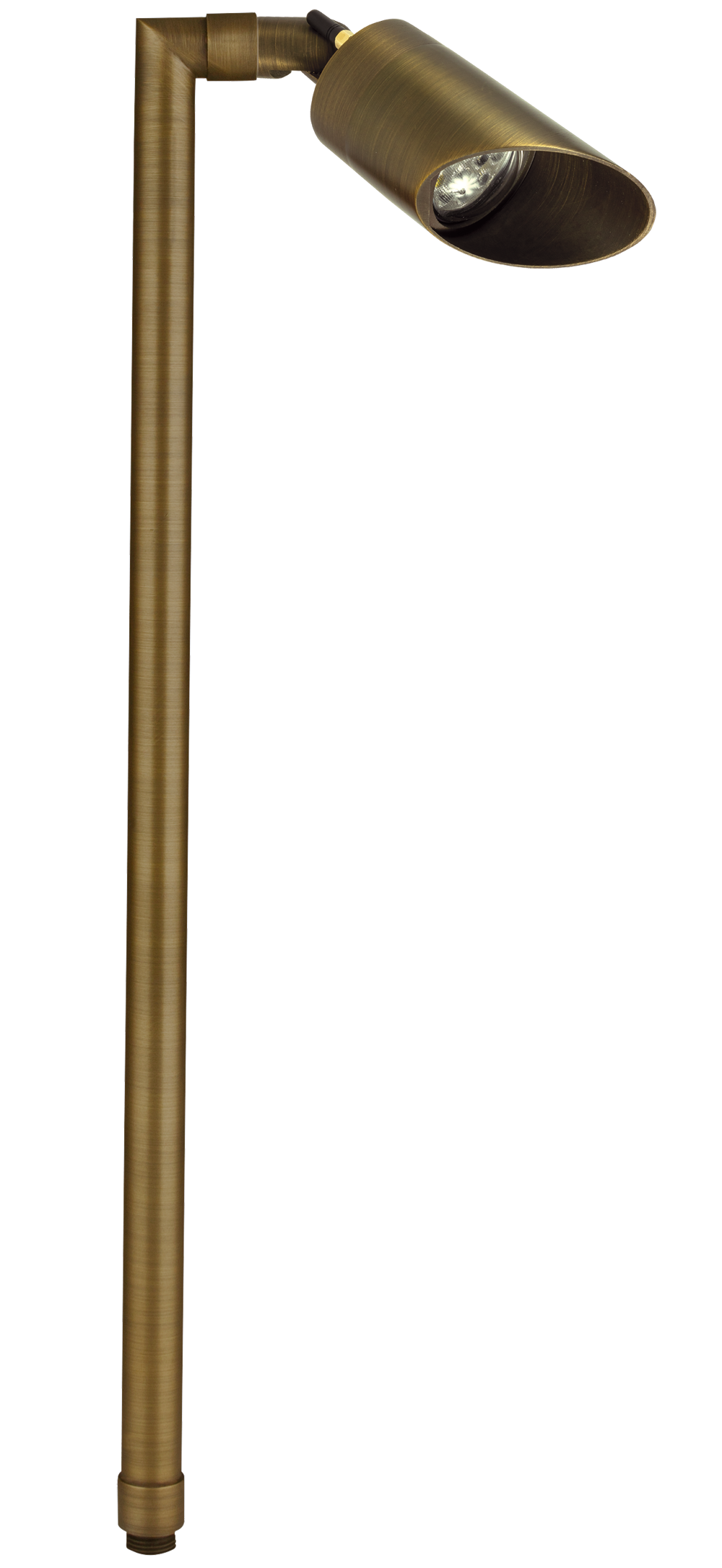

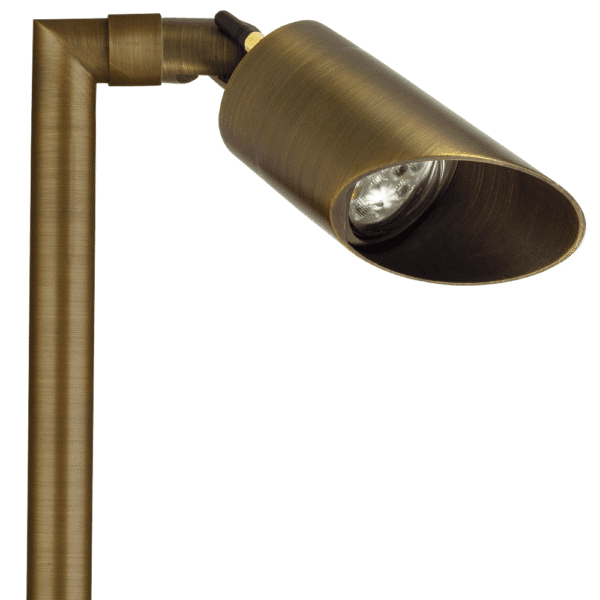

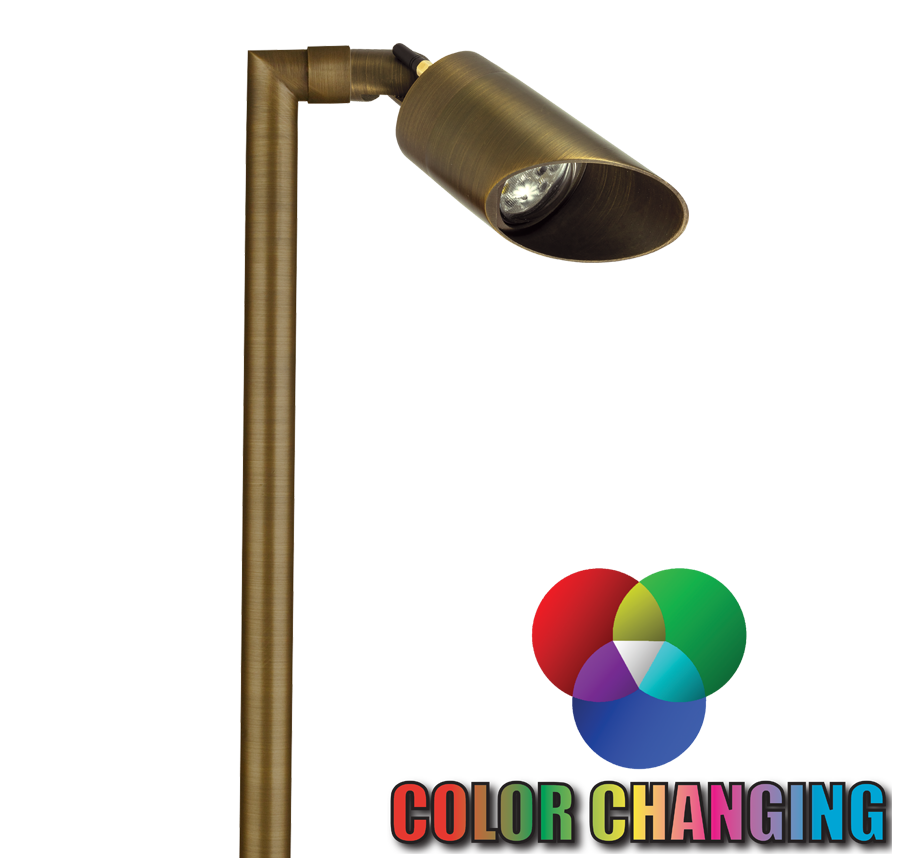

Smart RGB-WW Bluetooth Single & Dual Head Shroud Path Light available in Brass with Antique Bronze & Gun Metal color finishes.

Material: Brass
Style: Smart RGB-WW Bluetooth Single & Dual Head Shroud Path Light
Description: Smart RGB-WW Bluetooth Single Head Shroud Path Light
Lamp Type: Integrated LED
Lamp Supplied: 1W-6W LED
Mounting Supplied: Plastic Ground Spike
Grade: Architectural

Dimensions

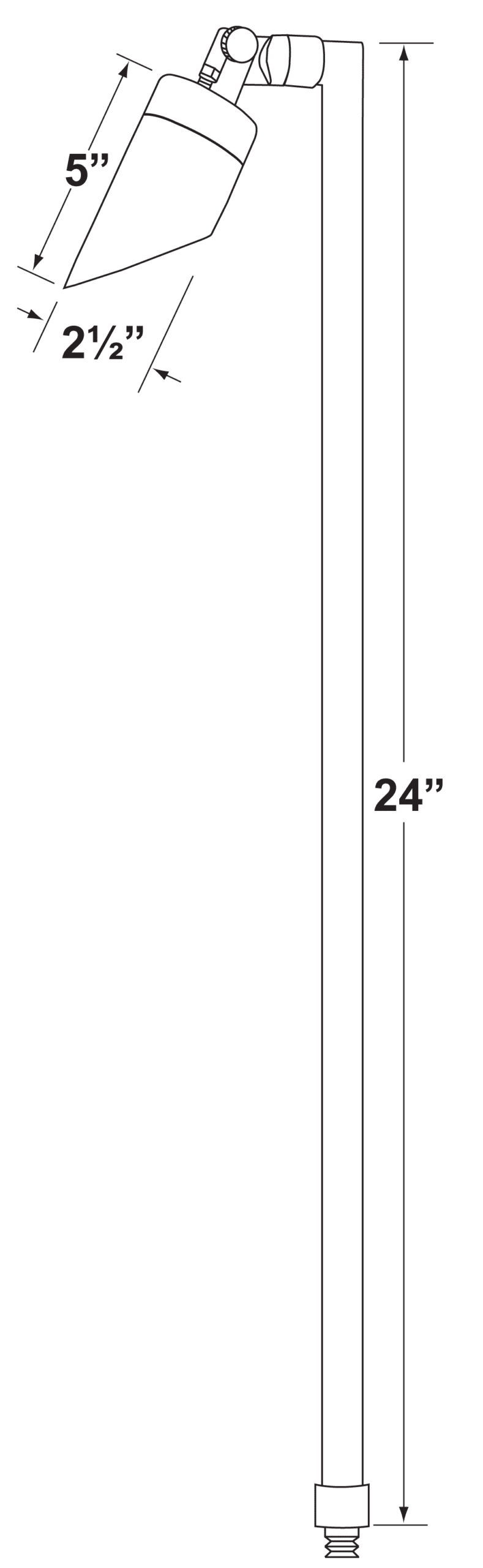

Dimensions: 2½"W x 5" L (Head)
Ship Wight LBS: 4

Spec Sheet

Product NameSpec Sheet
CL-755-BT-T-AB download
CL-755-BT-T-GM download
Housing : Corrosion Resistant Cast Brass.
Lens : Clear, Tempered, Flat Glass Lens. Standard 38 deg. beam spread reflector, with 15 & 60 deg. options also included.
Fixture Socket : Replacable 1-6W RGB-CCT LED module.
Lamp : 12V, 6 Watt, 15-450 lumens, CCT: 2700K, 3000K, 4000K, 5000K, Unlimited RGB
Wiring : Fixture is prewired with a 10ft 18-2 SPT2-W direct burial cord. Wire connector sold seperately. Universal connector (CX-839) or silicone filled wire nut (CX-854) may be ordered.
Gasket: Silicone double gasketed for water-tight sealing.
Knuckle : Adjustable cast brass knuckle with thumb screw and 1/2" NPT threaded male hub on bottom.
Mounting : Standard injection molded 8.5in large spike with 1/2" NPT threaded female hub on bottom.
Electrical : Voltage range with LED module is 10-15V. Remote 12 Volt transformer is required. See transformers and accessories for variety of options and choices.

No matching lamps found.

Fixture Finish Finish Color Lamp
CL-755-BTAntique BronzeSee lamp guide suffix
Gun Metal
Example: CL-755-BT
