CL-660
CL-660

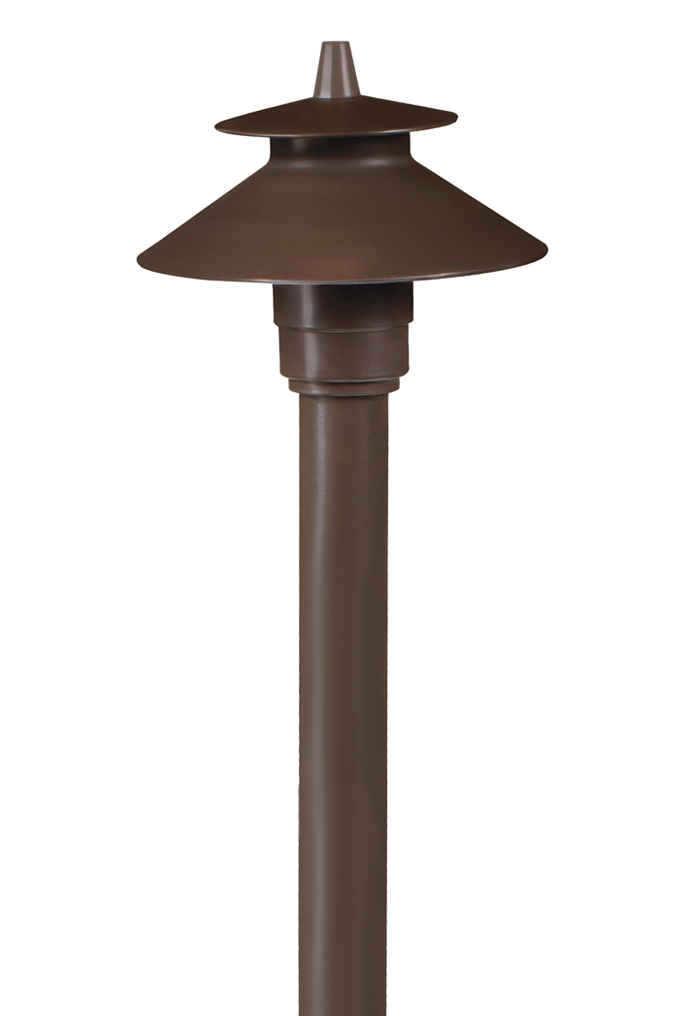

Aluminum 18″ Mini Umbrella Path Light Finished in Black or Bronze. 12″ Stem also available
Material: Aluminum
Description: Mini umbrella path light
Lamp Type: T3
Mounting Supplied: Plastic ground spike
Grade: Architectural
Dimensions
Size: 4” Dia x 21” High
Ship Weight LBS: 1
Downloads
Housing : Die-cast aluminum shade and stem.
STEM : 18" Cast aluminum pipe with ½” NPT on bottom. 12" stem also available
Lens : Clear tempered glass, cover over lamp providing sprinkler water protection.
Socket : Top grade fixed ceramic bi-pin socket. Easy tool free lamp access.
Lamp : 12V T3 LED. Available in 3W Bluetooth mesh smart RGB-WW; 2W, 2.5W LED or without lamp. Find the Lamp tab above for more information.
Wiring : Fixture is prewired with a 3ft 18-2 SPT2-W direct burial cord. Wire connector sold separately. Quick-locking connectors (CX-LOC) are available from Corona Lighting. See accessories for details
Mounting : Standard injection molded with ½" NPT threaded female hub.
Electrical : Voltage range for BT lamps are 9-17V, LED are 8-21V. Remote 12 Volt transformer is required. Visit the transformers page for our line of options
WARRANTY : Five (5) year warranty on fixture housing against manufacturer’s defects.
| Lamp Number | Watts | Beam Spread | Spread Text | Beam Lumen | Color Temp | Light Color | Rated Hours | Halogen Equiv |
|---|---|---|---|---|---|---|---|---|
| L-EDT3-2W-CCT (717 Series Only) | 0.5-2 | 360º | 10-200 | 2200K-5700 | Tunable White | 50,000 | 20 Watt Halogen | |
| L-EDT3-3W-CCT | 0.5-3 | 360º | 10-250 | 2200K-5700 | Tunable White | 50,000 | 20 Watt Halogen | |
| L-EDT3-2W-BT (717 Series Only) | 0.5-2 | 360º | 10-200 | 2200K-5700K | Color Changing | 50,000 | 20 Watts Halogen | |
| L-EDT3-3W-BT | 0.5-3 | 360º | 10-200 | 2200K-5700 | Color Changing | 50,000 | 20 Watt Halogen | |
| L-EDT3-2W | 2 | 360° | 200 | 2700K | Warm White | 25,000 | 25 Watt Halogen | |
| L-EDT3-2W-3K | 2 | 360° | 210 | 3000K | Cool White | 25,000 | 20 Watt Halogen | |
| L-EDT3-AM | 2 | 360° | 170 | 2000K | Amber | 25,000 | 20 Watt Halogen | |
| L-EDT3-2.5W | 2.5 | 180° | 240 | 2700K | Warm White | 25,000 | 40 Watt Halogen | |
| L-EDT3-2.5W-3K | 2.5 | 180° | 250 | 3000K | Cool White | 25,000 | 20 Watt Halogen |
Cable Connector
| Part # | Description |
|---|---|
| CX-LOC | Quick-Locking Wire Connector, 2 pack |
Ground Spikes
| Part # | Description |
|---|---|
| CX-640-BK | 6” Aluminum Spike, Male Hub, Finishes: BK |
| CX-642 | 8½”h x ½”w ABS Spike, Finishes: BK, BZ |
| CX-643-BZ | 8½”h x 3”w ABS Spike, Finishes: BZ |
| CX-646 | 8”h x ½”w ABS Spike, Finishes: BK, BZ |
| CX-647-BK | 10½”h x 3”w Heavy Duty ABS Spike Finishes, Finishes: BK |
| CX-650-BZ | 8½”h x 3”w Slotted ABS Spike with Brass Threads, Finishes: BZ |
Mounting Canopies
| Part # | Description |
|---|---|
| CX-705B | Brass Flat Canopy, Finishes: AB, BK, BR, GM, SI, |
| CX-709 | Aluminum Raised Canopy , Finishes: BK, BZ, GT, SI, WH |
| CX-709B | Brass Canopy, Finishes: AB, BK, BR, GM, SI, |
| CX-718 | 5” Aluminum Canopy , 3-hole, Finishes: BK, BZ |
| CX-718B | 5” Brass Canopy, 3-hole, Finishes: AB, GM, SI |
| CX-719B | Brass Tree Bracket, Finishes: AB, BK, BR, GM, SI |
| CX-721 | Aluminum Tree Canopy, w/Rubber strap 15”-22”, Finishes: BK, BZ, GR, GT, RT, VG, WH |
| CX-721B | Brass Tree Canopy, w/ Rubber strap 15”-22”.Finishes: AB, BK |
| CX-722 | Aluminum Tree Canopy, w/Rubber Strap, 22"- 33”, Finishes: BK, BZ, GR, GT, RT, VG, WH |
| CX-722B | Brass Tree Canopy, w/Rubber Strap, 22"- 33”, Finishes: AB, BK |
| CX-723 | Aluminum Tree Canopy, w/Rubber Strap, 31"- 45”, Finishes: BK, BZ, GR, GT, RT, VG, WH |
| CX-723B | Brass Tree Canopy,w/ Rubber Strap, 31"- 45”, Finishes: AB, BK |
Mounting Pedestal
| Part # | Description |
|---|---|
| CX-603-BK | 3" PVC Mounting Pedestal, BK |
| CX-621-BK | 1" PVC Cap, BK |
| CX-622-BK | 2" PVC Cap, BK |
| CX-624-BK | 3" PVC Cap, Female Brass Hub, BK |
Mounting Posts
| Part # | Description |
|---|---|
| CX-678 | 24” Aluminum Single Head Post, Finishes: BK, BZ, SI |
| CX-678B | 24” Brass Single Head Post, Finishes: AB, GM,SI |
| CX-678C | 24” Copper Single Head Post, Finishes: RC |
| CX-679 | 24” Aluminum Double Head Post, Finishes: BK,BZ, SI |
| CX-679B | 24” Brass Double Head Post, Finishes: AB, GM, SI |
| CX-679C | 24” Copper Double Head Post, RC |
| CX-690 | 18” Aluminum Single Head Post, Finishes: BK, BZ, SI |
| CX-690B | 18” Brass Single Head Post, Finishes: AB, GM, SI |
| CX-690C | 18” Copper Single Head Post, Finishes: RC |
| CX-693 | 18” Aluminum Double Head Post, Finishes: BK, BZ, SI |
| CX-693B | 18” Brass Double Head Post, Finishes: AB, GM, SI |
| CX-693C | 18” Copper Double Head Post, Finishes: RC |
Mounting Risers
| Part # | Description |
|---|---|
| CX-671 | 6” Aluminum Riser, Finishes: BK, BZ, GR, GT, RT, VG, WH |
| CX-672 | 12” Aluminum Riser, Finishes: BK, BZ, GR, GT, RT, VG, WH |
| CX-673 | 18” Aluminum Riser, Finishes: BK, BZ, GR, GT, RT, VG, WH |
| CX-682B | 6” Brass Riser, Finishes: AB, GM |
| CX-682C | 6” Copper Riser, Finishes: RC |
| CX-683B | 12” Brass Riser, Finishes: AB, GM |
| CX-683C | 12” Copper Riser, Finishes: RC |
| CX-684B | 18” Brass Riser, Finishes: AB, GM |
| CX-684C | 18" Copper Riser, Finishes: RC |
| CX-685B | 24” Brass Riser, Finishes: AB, GM |
| CX-686C | 24" Copper Riser, Finishes: RC |
| CX-782B-BK | 6” Brass Riser, Finishes: BK |
| CX-783B-BK | 12” Brass Riser, Finishes: BK |
| CX-784B-BK | 18” Brass Riser, Finishes: BK |
| CX-785B-BK | 24” Brass Riser, Finishes: BK |
| Fixture | Finish | Finish Color | Lamp |
|---|---|---|---|
| CL-660 | Black | See lamp guide suffix | |
| Bronze | |||
| Example: | CL-660 | ||
