CL-647C
CL-647C

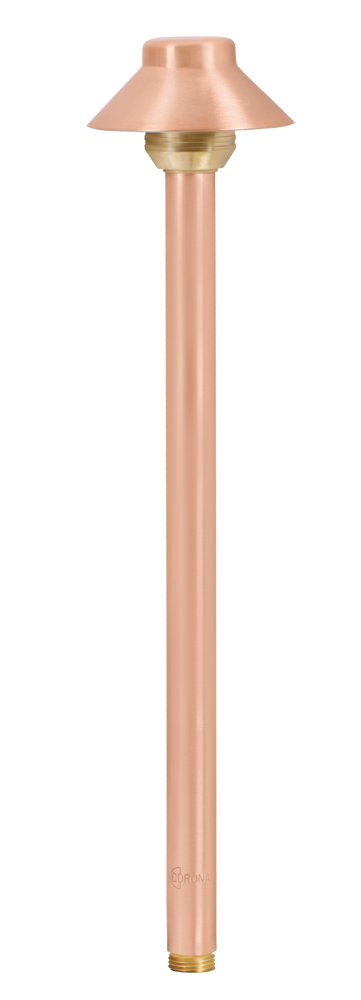

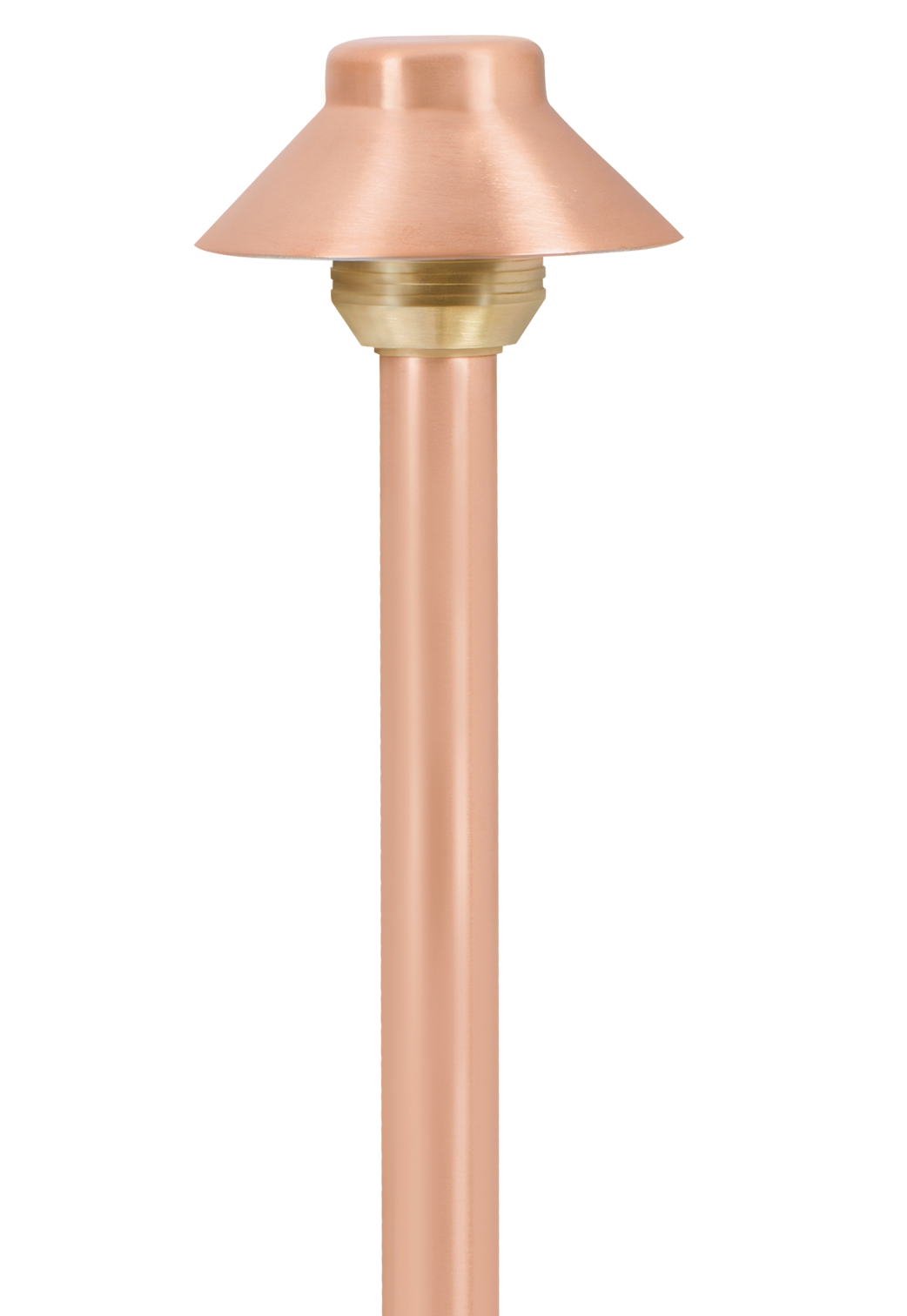

Mini Orient Path Light available in Copper with Raw Copper color finish.
Material: Copper
Style: Mini Orient Path Light
Description: Mini Orient Path Light
Lamp Type: T3
Lamp Supplied: No Lamp
Mounting Supplied: Plastic Ground Spike
Grade: Architectural
Dimensions
Dimensions: 3½” Dia x 16¼” High
Ship Wight LBS: 3
Spec Sheet
| Product Name | Spec Sheet |
|---|---|
| CL-647C | download |
Housing : Solid Copper 3.5in shade, with Standard 24in Stem.
Lens : Frosted polycarbonate, cover over lamp providing sprinkler water protection.
Fixture Socket : Top grade fixed ceramic bi-pin socket. Easy tool free lamp access.
Lamp : 12V, T3, 20W (halogen) max.
Wiring : Fixture is prewired with a 3ft 18-2 SPT2-W direct burial cord. Wire connector available seperately. Universal connector (CX-839) or silicone filled wire nut (CX-854) may be ordered.
Gasket: N/A
Knuckle : N/A
Mounting : Standard injection molded with 1/2" NPT threaded female hub.
Electrical : Voltage range with LED lamp is 9-17V. Remote 12 Volt transformer is required. See transformers and accessories for variety of options and choices.
| Lamp Number | Watts | Beam Spread | Spread Text | Beam Lumen | Color Temp | Light Color | Rated Hours | Halogen Equiv |
|---|---|---|---|---|---|---|---|---|
| L-EDT3-2W | 2 | 360° | 360 Deg. | 200 | 2700K | Warm White | 25,000 | 25 Watt Halogen |
| L-EDT3-2W-3K | 2 | 360° | 360 Deg. | 210 | 3000K | Cool White | 25,000 | 20 Watt Halogen |
| L-EDT3-AM | 2 | 360° | 360 Deg. | 170 | 2000K | Amber | 25,000 | 20 Watt Halogen |
| L-EDT3-2.5W | 2.5 | 180° | 180 Deg. | 240 | 2700K | Warm White | 25,000 | 40 Watt Halogen |
| L-EDT3-2.5W-3K | 2.5 | 180° | 180 Deg. | 250 | 3000K | Cool White | 25,000 | 20 Watt Halogen |
| Fixture | Finish | Finish Color | Lamp |
|---|---|---|---|
| CL-647C | Raw Copper | See lamp guide suffix | |
| Example: | CL-647C | ||
