CL-639

CL-639

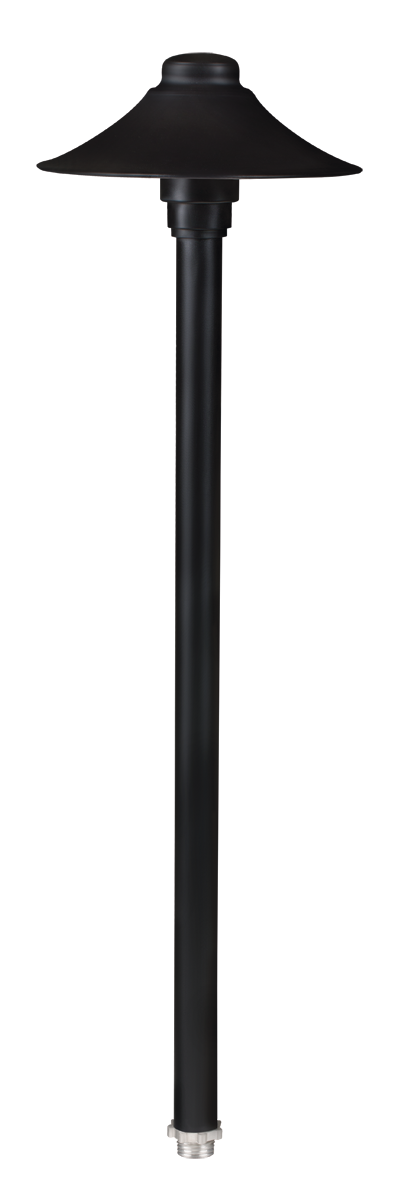

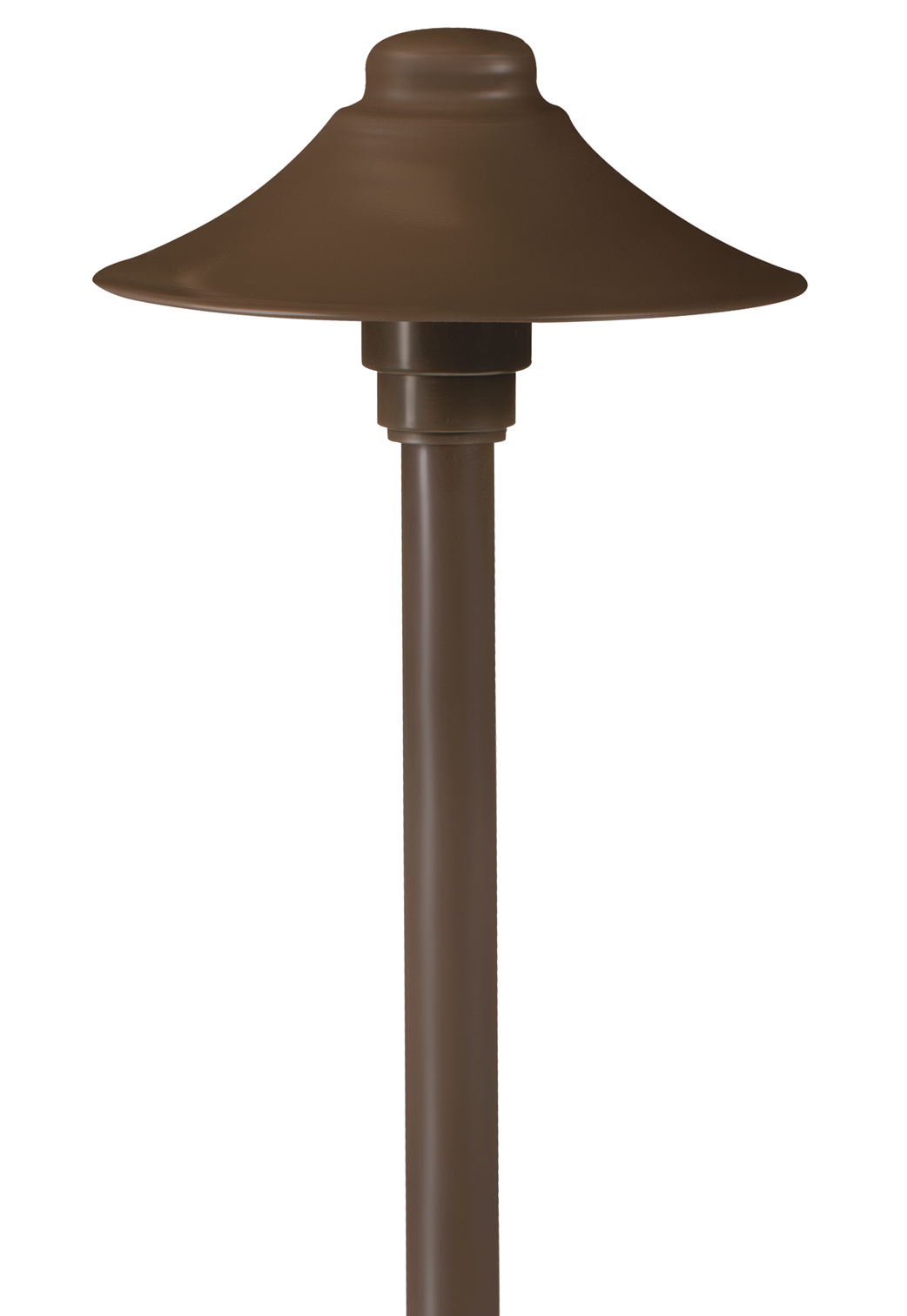

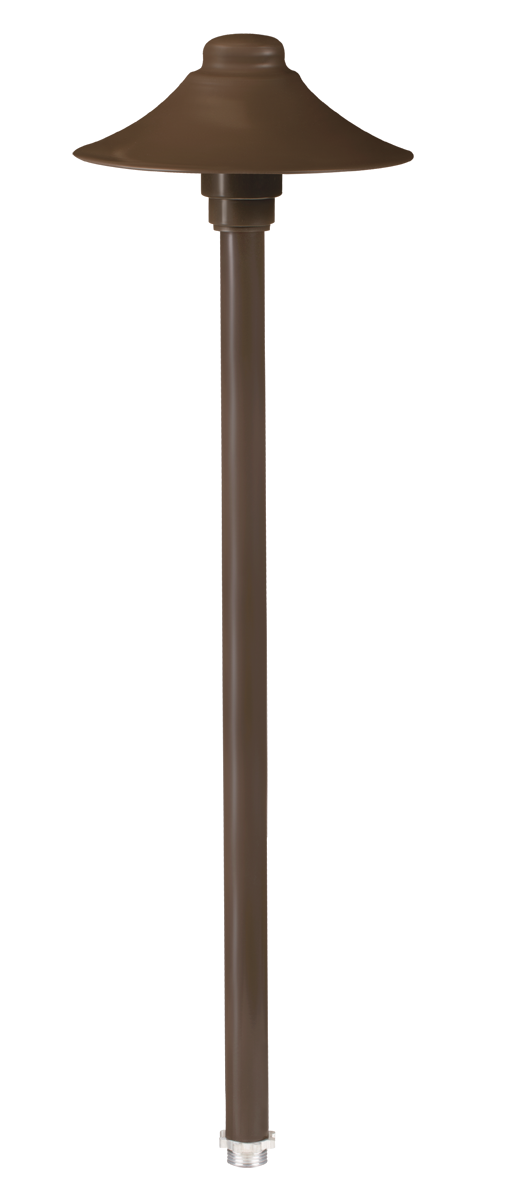

Umbrella, 18″ Stem Path Light available in Aluminum with Black & Bronze color finishes.

Material: Aluminum
Style: Umbrella, 18" Stem Path Light
Description: Umbrella Path Light
Lamp Type: T3
Lamp Supplied: No Lamp
Mounting Supplied: Plastic Ground Spike
Grade: Architectural

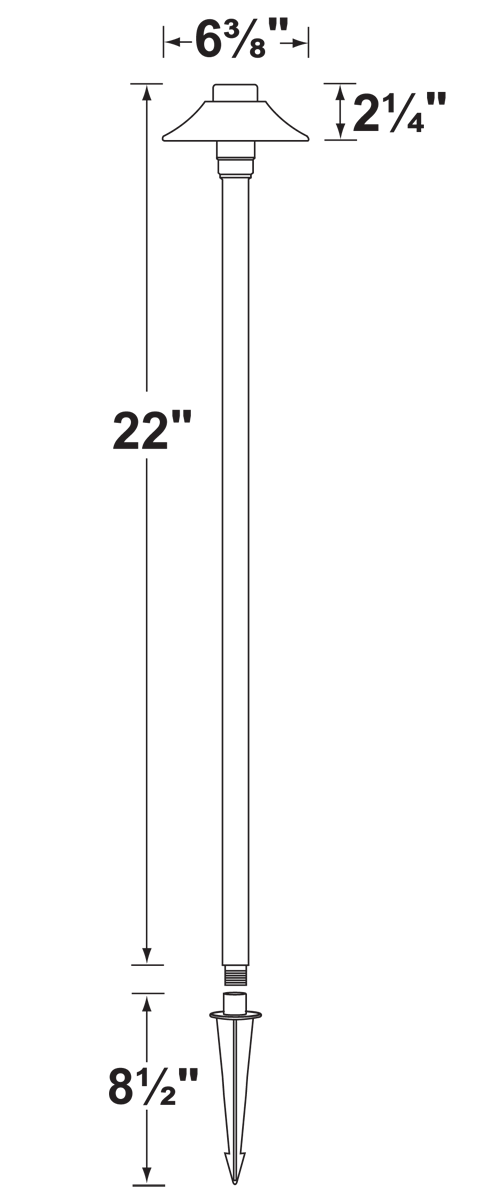

Dimensions

Dimensions: 6⅜” Dia x 22” High
Ship Wight LBS: 1

Spec Sheet

Product NameSpec Sheet
CL-639 download
Housing : Die-cast Aluminum, with Standard 18in Stem.
Lens : Clear tempered glass, cover over lamp providing sprinkler water protection.
Fixture Socket : Top grade fixed ceramic bi-pin socket. Easy tool free lamp access.
Lamp : 12V, T3, 20W (halogen) max.
Wiring : Fixture is prewired with a 3ft 18-2 SPT2-W direct burial cord. Wire connector available seperately. Universal connector (CX-839) or silicone filled wire nut (CX-854) may be ordered.
Gasket: N/A
Knuckle : N/A
Mounting : Standard injection molded with 1/2" NPT threaded female hub.
Electrical : Voltage range with LED lamp is 9-17V. Remote 12 Volt transformer is required. See transformers and accessories for variety of options and choices.
Lamp NumberWattsBeam SpreadSpread TextBeam LumenColor Temp Light Color Rated Hours Halogen Equiv
L-EDT3-2W2360°360 Deg.2002700KWarm White25,00025 Watt Halogen
L-EDT3-2W-3K2360°360 Deg.2103000KCool White25,00020 Watt Halogen
L-EDT3-AM2360°360 Deg.1702000KAmber25,00020 Watt Halogen
L-EDT3-2.5W2.5180°180 Deg.2402700KWarm White25,00040 Watt Halogen
L-EDT3-2.5W-3K2.5180°180 Deg.2503000KCool White25,00020 Watt Halogen
Fixture Finish Finish Color Lamp
CL-639BlackSee lamp guide suffix
Bronze
Example: CL-639
