CL-806-F
CL-806-F

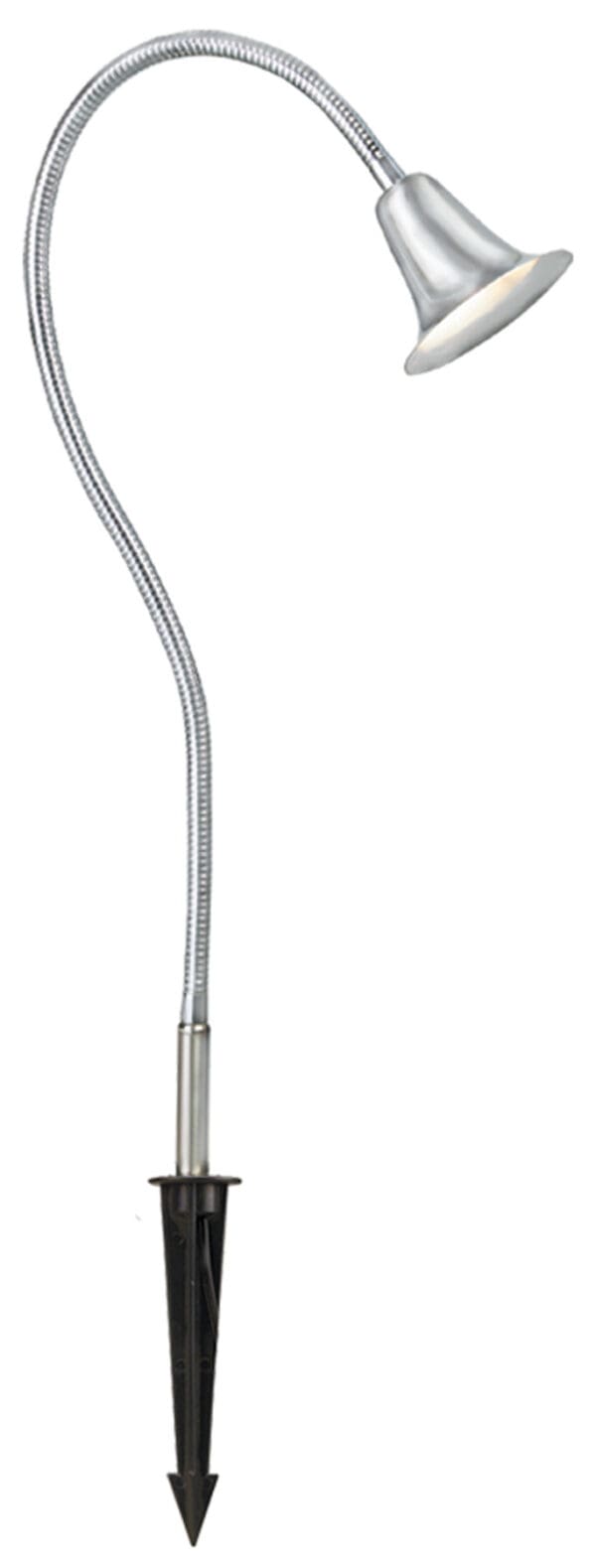

Stake Mount Flex Bell Garden Light available in Brass with Silver Plated color finish.
Material: Aluminum
Description: Stake Mount Flex Bell Garden Light
Lamp Type: SCB
Lamp Supplied: No Lamp
Mounting Supplied: Plastic Ground Spike
Grade: Value
Dimensions
Size: 4⅝” Dia x 3¾” Length (Head)
Ship Weight LBS: 2
Downloads
| Product Name | Spec Sheets |
|---|---|
| CL-806-F | download |
Housing : Die-Cast Aluminum
Lens : No Lens.
Socket : Top grade fixed S.C. Bayonet socket.
Lamp : 12V, SCB, 20W (halogen) max.
Wiring : Fixture is prewired with a 3ft direct burial cable. Wire connector sold seperately. Universal connector (CX-839) and silicone filled wire nut (CX-854) are available.
Mounting : Standard injection-molded ground spike with 1/2" NPT hub on bottom.
Electrical : Voltage range with LED lamp is 9-17V. Remote 12 Volt transformer is required. See transformers and accessories for variety of options and choices.
WARRANTY : One (1) year warranty on fixture housing against manufacturer’s defects. date of Corona Lighting invoice.
| Lamp Number | Watts | Beam Spread | Spread Text | Beam Lumen | Color Temp | Light Color | Rated Hours | Halogen Equiv |
|---|---|---|---|---|---|---|---|---|
| L-EDBA-3W-BT | 0.5 - 3W | 360º | 360 Deg. | 10-200 | 2200K-5700K | Color Changing | 50,000 | |
| L-EDBA-2W | 2 | 360° | 360 Deg. | 200 | 2700K | Warm White | 25,000 | 20 Watt Halogen |
| L-EDBA-2W-3K | 2 | 360° | 360 Deg. | 210 | 3000K | Cool White | 25,000 | 20 Watt Halogen |
| L-EDBA-AM | 2 | 360° | 360 Deg. | 170 | 2000K | Amber | 25,000 | 20 Watt Halogen |
| L-EDBA-2.5W | 2.5 | 180° | 180 Deg. | 240 | 2700K | Warm White | 25,000 | 35 Watt Halogen |
| L-EDBA-2.5W-3K | 2.5 | 180° | 180 Deg. | 250 | 3000K | Cool White | 25,000 | 20 Watt Halogen |
| Fixture | Finish | Finish Color | Lamp |
|---|---|---|---|
| CL-806-F | Silver Plated | See lamp guide suffix | |
| Example: | CL-806-F | ||
