CL-803-D

Name: CL-803-D
SKU: CL-803-D
Availability: InStock

CL-803-D

Canopy Mount Flex Tulip BBQ Light available in Aluminum with Black color finish.

Fixture Finish

Black

Fixture Number

CL-803-D-BK

Clear

Material: Aluminum

Description: Canopy Mount Flex Tulip BBQ Light

Lamp Type: MR-16

Lamp Supplied: No Lamp

Mounting Supplied: Round Canopy

Grade: Architectural

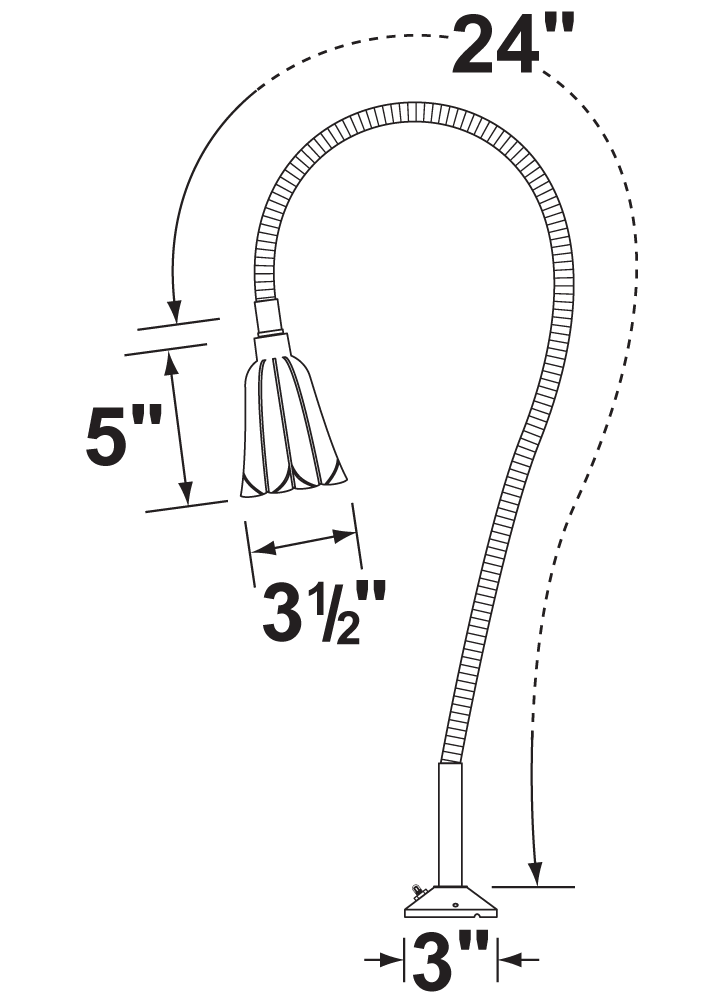

Dimensions

Size: 3½” Dia x 5” Length (Head)

Ship Weight LBS: 2

Downloads

Document Name	PDF File
CL-803-D	download

Fixture

Lamps

Accessories

Housing : Die-cast aluminum.

Lens : Clear, tempered and heat resistant glass.

Socket : Top grade, bi-pin socket.

Lamp : 12V, MR-16, 35W (halogen) max.

Wiring : Fixture is prewired with a 3ft direct burial cable. Wire connector sold seperately. Universal connector (CX-839) and silicone filled wire nut (CX-854) are available.

Mounting : 3” round aluminum base canopy with on/off push button covered by rubber boot.

Electrical : Voltage range with LED lamp is 9-17V. Remote 12 Volt transformer is required. See transformers and accessories for variety of options and choices.

WARRANTY : Five (5) year warranty on fixture housing against manufacturer’s defects. date of Corona Lighting invoice.

Lamp Number	Watts	Beam Spread	Spread Text	Beam Lumen	Color Temp	Light Color	Rated Hours	Halogen Equiv
L-ED16-5W-BT	1W-5W (7.5VA)	38º (15º / 60º incld)	Flood standard (SP/ WF incld)	25-530	2200K-5700K	Color Changing	50,000
L-ED16-3W-SP	3.5	15° SP	Spot	270	2700K	Warm White	50,000	25 Watt Halogen
L-ED16-3W-FL	3.5	45° FL	Flood	270	2700K	Warm White	50,000	25 Watt Halogen
L-ED16-3W-WF	3.5	60° WF	Wide Flood	270	2700K	Warm White	50,000	25 Watt Halogen
L-ED16-5W-VT	5	45° FL	Flood	200	NULL	Violet	50,000	25 Watt Halogen
L-ED16-5W-SP	5	15° SP	Spot	350	2700K	Warm White	50,000	40 Watt Halogen
L-ED16-5W-FL	5	45° FL	Flood	350	2700K	Warm White	50,000	40 Watt Halogen
L-ED16-5W-WF	5	60° WF	Wide Flood	350	2700K	Warm White	50,000	40 Watt Halogen
L-ED16-COB5W-SP	5	15° SP	Spot	450	2700K	Warm White	50,000	50 Watt Halogen
L-ED16-COB5W-FL	5	38° FL	Flood	450	2700K	Warm White	50,000	50 Watt Halogen
L-ED16-COB5W-WF	5	60° WF	Wide Flood	450	2700K	Warm White	50,000	50 Watt Halogen
L-ED16-COB5W-SP3K	5	15° SP	Spot	470	3000K	Cool White	50,000	50 Watt Halogen
L-ED16-COB5W-FL3K	5	38° FL	Flood	470	3000K	Cool White	50,000	50 Watt Halogen
L-ED16-COB5W-WF3K	5	60° WF	Wide Flood	470	3000K	Cool White	50,000	50 Watt Halogen
L-ED16-6W-SP	6	15° SP	Spot	600	2700K	Warm White	50,000	75 Watt Halogen
L-ED16-6W-FL	6	38° FL	Flood	600	2700K	Warm White	50,000	75 Watt Halogen
L-ED16-6W-WF	6	60° WF	Wide Flood	600	2700K	Warm White	50,000	75 Watt Halogen
L-ED16-6W-SP-3K	6	15° SP	Spot	600	3000K	Cool White	50,000	75 Watt Halogen
L-ED16-6W-FL-3K	6	38° FL	Flood	600	3000K	Cool White	50,000	75 Watt Halogen
L-ED16-6W-WF-3K	6	60° WF	Wide Flood	600	3000K	Cool White	50,000	75 Watt Halogen

Cable Connector

Part #	Description
CX-LOC	Quick-Locking Wire Connector, 2 pack

Ground Spikes

Part #	Description
CX-640-BK	6” Aluminum Spike, Male Hub, Finishes: BK
CX-642	8½”h x ½”w ABS Spike, Finishes: BK, BZ
CX-643-BZ	8½”h x 3”w ABS Spike, Finishes: BZ
CX-646	8”h x ½”w ABS Spike, Finishes: BK, BZ
CX-647-BK	10½”h x 3”w Heavy Duty ABS Spike Finishes, Finishes: BK
CX-650-BZ	8½”h x 3”w Slotted ABS Spike with Brass Threads, Finishes: BZ

Mounting Canopies

Part #	Description
CX-705B	Brass Flat Canopy, Finishes: AB, BK, BR, GM, SI,
CX-709	Aluminum Raised Canopy , Finishes: BK, BZ, GT, SI, WH
CX-709B	Brass Canopy, Finishes: AB, BK, BR, GM, SI,
CX-718	5” Aluminum Canopy , 3-hole, Finishes: BK, BZ
CX-718B	5” Brass Canopy, 3-hole, Finishes: AB, GM, SI
CX-719B	Brass Tree Bracket, Finishes: AB, BK, BR, GM, SI
CX-721	Aluminum Tree Canopy, w/Rubber strap 15”-22”, Finishes: BK, BZ, GR, GT, RT, VG, WH
CX-721B	Brass Tree Canopy, w/ Rubber strap 15”-22”.Finishes: AB, BK
CX-722	Aluminum Tree Canopy, w/Rubber Strap, 22"- 33”, Finishes: BK, BZ, GR, GT, RT, VG, WH
CX-722B	Brass Tree Canopy, w/Rubber Strap, 22"- 33”, Finishes: AB, BK
CX-723	Aluminum Tree Canopy, w/Rubber Strap, 31"- 45”, Finishes: BK, BZ, GR, GT, RT, VG, WH
CX-723B	Brass Tree Canopy,w/ Rubber Strap, 31"- 45”, Finishes: AB, BK

Mounting Pedestal

Part #	Description
CX-603-BK	3" PVC Mounting Pedestal, BK
CX-621-BK	1" PVC Cap, BK
CX-622-BK	2" PVC Cap, BK
CX-624-BK	3" PVC Cap, Female Brass Hub, BK

Mounting Posts

Part #	Description
CX-678	24” Aluminum Single Head Post, Finishes: BK, BZ, SI
CX-678B	24” Brass Single Head Post, Finishes: AB, GM,SI
CX-678C	24” Copper Single Head Post, Finishes: RC
CX-679	24” Aluminum Double Head Post, Finishes: BK,BZ, SI
CX-679B	24” Brass Double Head Post, Finishes: AB, GM, SI
CX-679C	24” Copper Double Head Post, RC
CX-690	18” Aluminum Single Head Post, Finishes: BK, BZ, SI
CX-690B	18” Brass Single Head Post, Finishes: AB, GM, SI
CX-690C	18” Copper Single Head Post, Finishes: RC
CX-693	18” Aluminum Double Head Post, Finishes: BK, BZ, SI
CX-693B	18” Brass Double Head Post, Finishes: AB, GM, SI
CX-693C	18” Copper Double Head Post, Finishes: RC

Mounting Risers

Part #	Description
CX-671	6” Aluminum Riser, Finishes: BK, BZ, GR, GT, RT, VG, WH
CX-672	12” Aluminum Riser, Finishes: BK, BZ, GR, GT, RT, VG, WH
CX-673	18” Aluminum Riser, Finishes: BK, BZ, GR, GT, RT, VG, WH
CX-682B	6” Brass Riser, Finishes: AB, GM
CX-682C	6” Copper Riser, Finishes: RC
CX-683B	12” Brass Riser, Finishes: AB, GM
CX-683C	12” Copper Riser, Finishes: RC
CX-684B	18” Brass Riser, Finishes: AB, GM
CX-684C	18" Copper Riser, Finishes: RC
CX-685B	24” Brass Riser, Finishes: AB, GM
CX-686C	24" Copper Riser, Finishes: RC
CX-782B-BK	6” Brass Riser, Finishes: BK
CX-783B-BK	12” Brass Riser, Finishes: BK
CX-784B-BK	18” Brass Riser, Finishes: BK
CX-785B-BK	24” Brass Riser, Finishes: BK

Fixture	Finish	Finish Color	Lamp
CL-803-D		Black	See lamp guide suffix
Example:	CL-803-D

CL-803-D

CL-803-D

Dimensions
