CL-495-BK
CL-495-BK

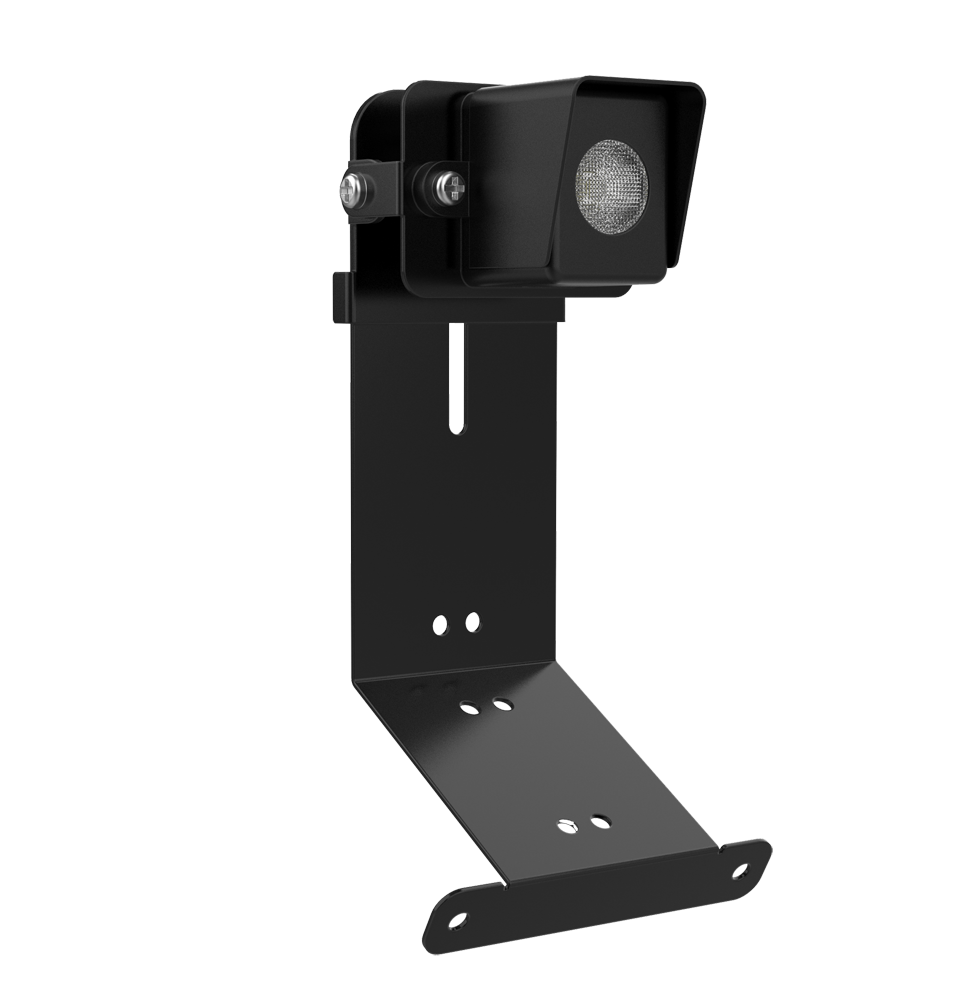

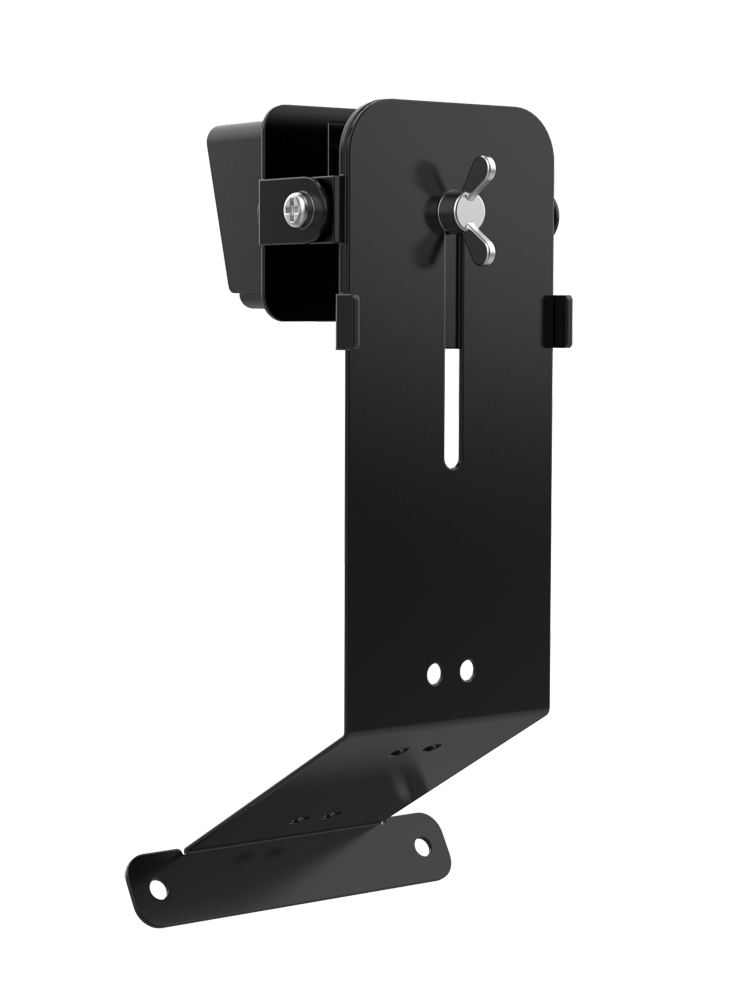

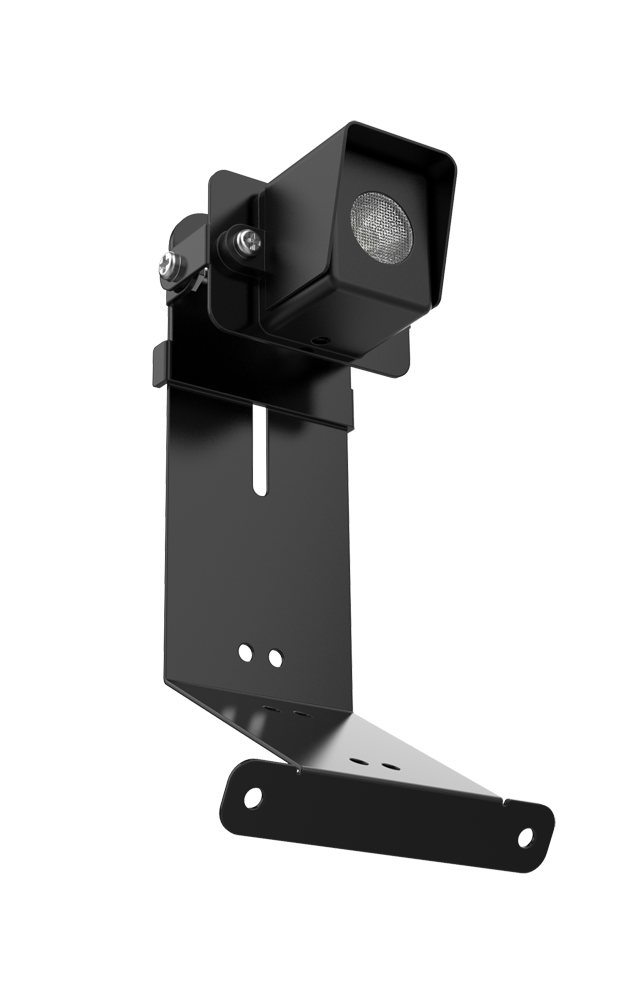

Black Brass 3W mini beam light, with stainless steel adjustable gutter mount
Material: Cast Brass
Description: Black Stainless Steel Adjustable Gutter Mount Bracket
Lamp Type: LED Module
Light Source: Integrated LED module, Wattage: 3W, Beam
Spread: 45º. Light Output: 230 Lumens
Color Temperature 2700K/3000K adjustable with
Switch button.
Mounting Supplied: Black 304 Stainless Steel adjustable (degree & position) mounting bracket. Slides up and down, 1¾” max movement and tilts up to 45º
Grade: Architectural

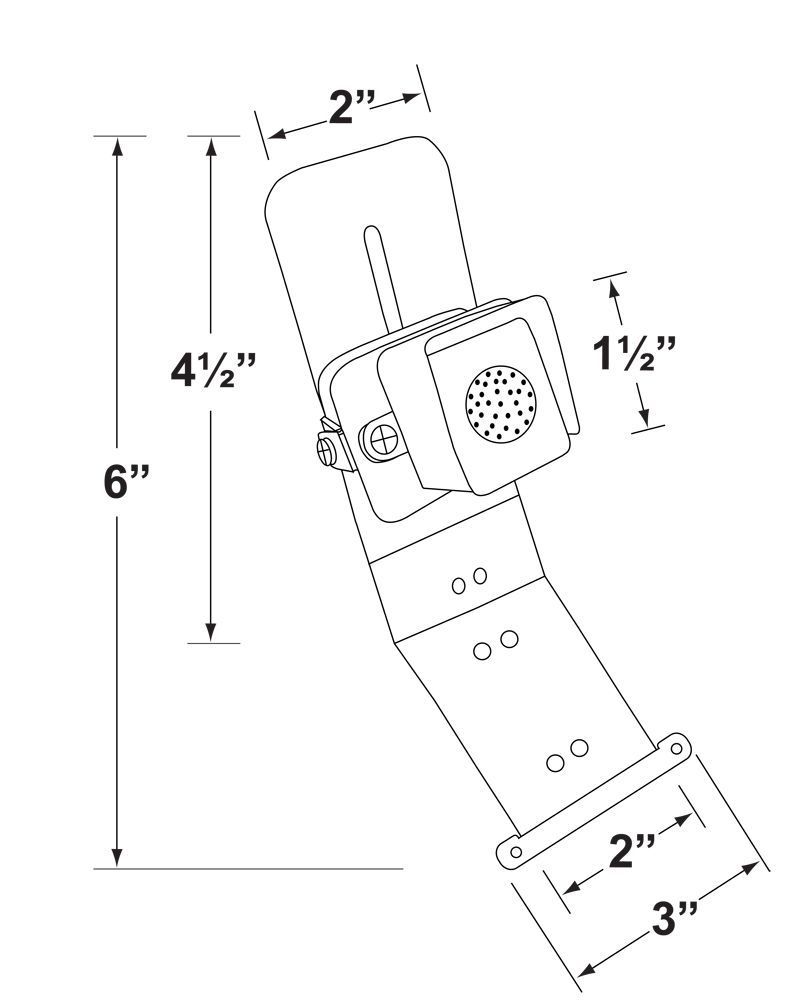

Dimensions
Size: 2” W x 6” H
Ship Weight LBS: 1.5
Downloads
Housing : Corrosion resistant cast brass
Lamp : 3W Integrated LED module
RATING : IP68
Wiring : Fixture is prewired with a 10ft SPT-1W wire. Wire
connector sold separately.
Quick-locking connectors (CX-LOC) are available,
see below for information
Mounting : Black 304 Stainless Steel adjustable (degree & position) mounting bracket. Slides up and down, 1¾” max movement and tilts up to 45º
APPLICATIONS : Suitable for the top of structures like dormers and
other architectural areas
Glare shield & adjustable bracket are included.
Electrical : 3W LED is dimmable. A remote 12V magnetic
transformer is required. Options are available from
Corona Lighting, see Transformers page for details. Not for use with electronic
transformers. Voltage range for LED module is: 9-17V
Ambient temperature: -22ºF to 176ºF CRI: >85
WARRANTY : 10 year warranty, with a rated life of 50,000 hours
No matching lamps found.
Cable Connector
| Part # | Description |
|---|---|
| CX-LOC | Quick-Locking Wire Connector, 2 pack |
Mounting Canopies
| Part # | Description |
|---|---|
| CX-705B | Brass Flat Canopy, Finishes: AB, BK, BR, GM, SI, |
| CX-709 | Aluminum Raised Canopy , Finishes: BK, BZ, GT, SI, WH |
| CX-709B | Brass Canopy, Finishes: AB, BK, BR, GM, SI, |
| CX-718 | 5” Aluminum Canopy , 3-hole, Finishes: BK, BZ |
| CX-718B | 5” Brass Canopy, 3-hole, Finishes: AB, GM, SI |
| CX-719B | Brass Tree Bracket, Finishes: AB, BK, BR, GM, SI |
| CX-721 | Aluminum Tree Canopy, w/Rubber strap 15”-22”, Finishes: BK, BZ, GR, GT, RT, VG, WH |
| CX-721B | Brass Tree Canopy, w/ Rubber strap 15”-22”.Finishes: AB, BK |
| CX-722 | Aluminum Tree Canopy, w/Rubber Strap, 22"- 33”, Finishes: BK, BZ, GR, GT, RT, VG, WH |
| CX-722B | Brass Tree Canopy, w/Rubber Strap, 22"- 33”, Finishes: AB, BK |
| CX-723 | Aluminum Tree Canopy, w/Rubber Strap, 31"- 45”, Finishes: BK, BZ, GR, GT, RT, VG, WH |
| CX-723B | Brass Tree Canopy,w/ Rubber Strap, 31"- 45”, Finishes: AB, BK |
| Fixture | Finish | Finish Color | Lamp |
|---|---|---|---|
| CL-495-BK | Black Brass | See lamp guide suffix | |
| Example: | CL-495-BK | ||
