CL-220
CL-220

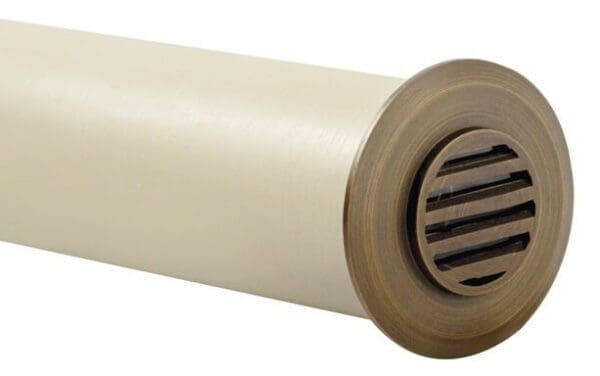

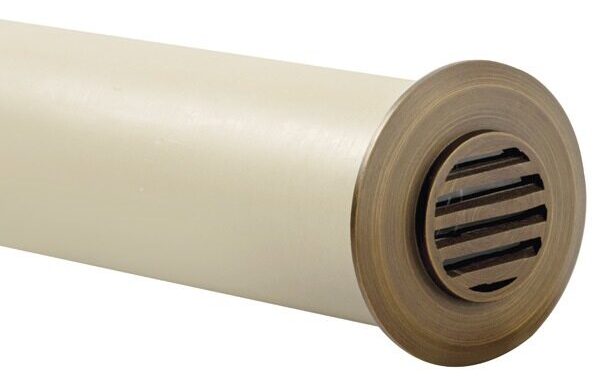

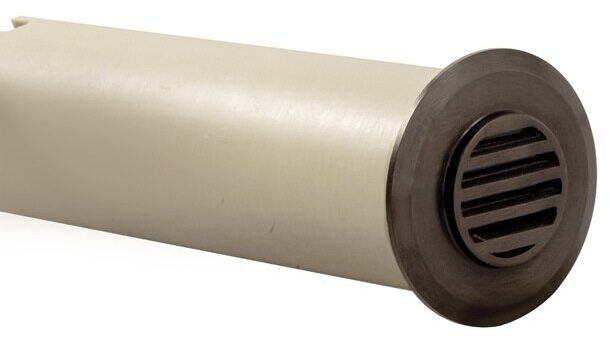

Integrated LED Multi Purpose Specialty Light with a Brass Louvered Faceplate, Housed in a PVC Sleeve, Finished in Antique Bronze, Gun Metal or Silver Plated.
Material: Brass
Description: Louvered multi-purpose Specialty Light
Lamp Type: Removable LED Module
Light Source: 3W Integrated LED
Mounting Supplied: PVC Sleeve
Grade: Architectural

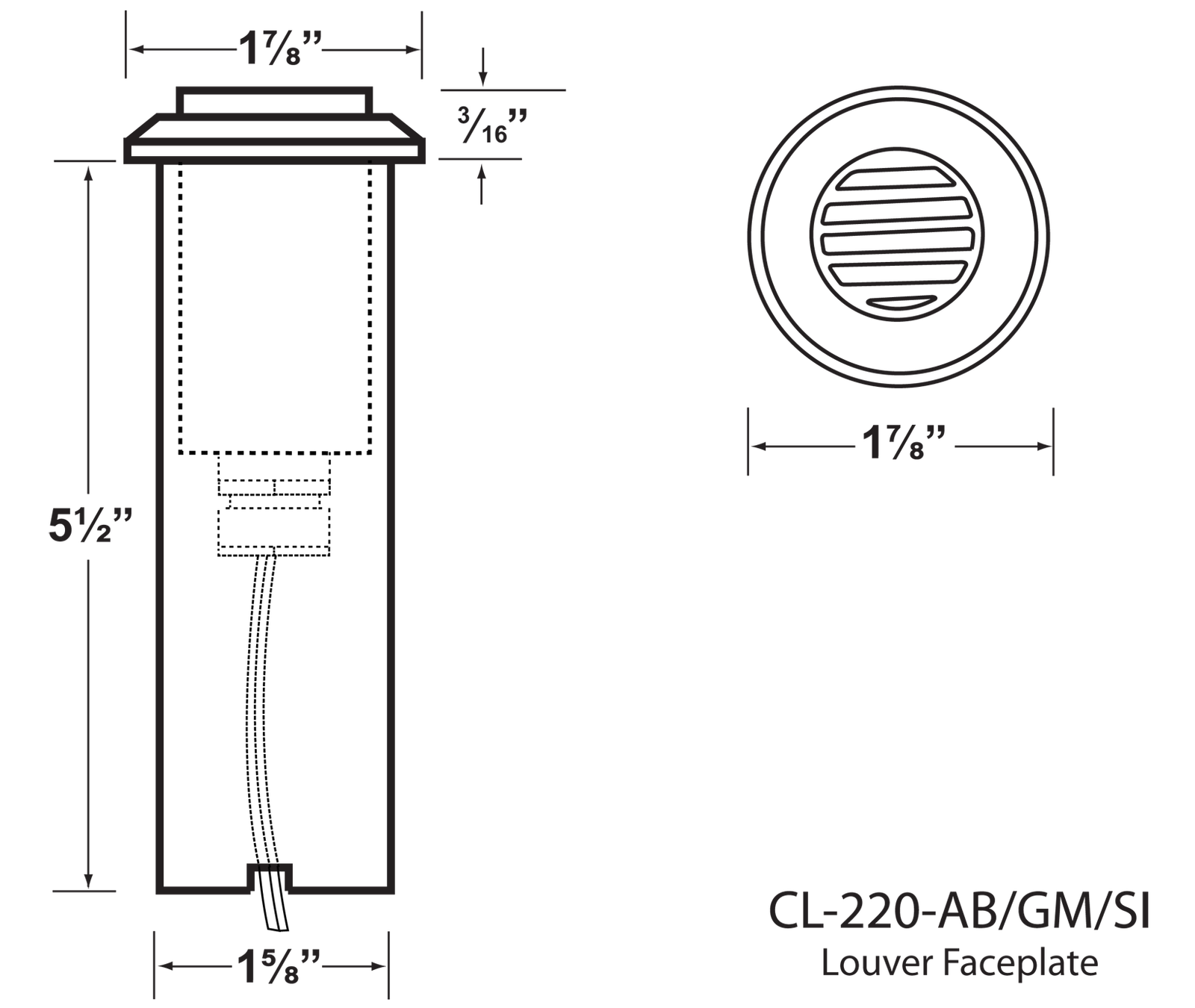

Dimensions
Size: 1⅞” Dia x 5½” Deep
Ship Weight LBS: 1
Downloads
Housing : Heavy duty resistant cast brass with PVC sleeve.
Lens : Clear and heat resistant tempered flat glass with 7 color filters included.
Socket : Integrated CREE LED module.
Lamp : 12V, 3 Watt, 210 lumens, 120º. beam spread, 3000K, 20W halogen equivalent.
Wiring : Fixture is prewired with a 18-2 20ft SPT-1W direct burial cord, pre-stripped for easy connection. Wire connector sold separately. Quick-locking connectors (CX-LOC) are available from Corona Lighting. See Accessories for details
Mounting : Recessed flush mount (Multi-Purpose)
APPLICATIONS : Best used in concrete, brick, or other masonry surfaces and small fountains.
Electrical : Integrated CREE LED module is dimmable. A remote 12V magnetic transformer is required. Not for use with electronic transformers. Visit the transformers page for our line of options. Proper grease/lubricant is suggested on threaded parts during installation process
WARRANTY : Ten (10) years warranty on fixture housing against manufacturer’s defects.
No matching lamps found.
Cable Connector
| Part # | Description |
|---|---|
| CX-LOC | Quick-Locking Wire Connector, 2 pack |
Mounting Canopies
| Part # | Description |
|---|---|
| CX-705B | Brass Flat Canopy, Finishes: AB, BK, BR, GM, SI, |
| CX-709 | Aluminum Raised Canopy , Finishes: BK, BZ, GT, SI, WH |
| CX-709B | Brass Canopy, Finishes: AB, BK, BR, GM, SI, |
| CX-718 | 5” Aluminum Canopy , 3-hole, Finishes: BK, BZ |
| CX-718B | 5” Brass Canopy, 3-hole, Finishes: AB, GM, SI |
| CX-719B | Brass Tree Bracket, Finishes: AB, BK, BR, GM, SI |
| CX-721 | Aluminum Tree Canopy, w/Rubber strap 15”-22”, Finishes: BK, BZ, GR, GT, RT, VG, WH |
| CX-721B | Brass Tree Canopy, w/ Rubber strap 15”-22”.Finishes: AB, BK |
| CX-722 | Aluminum Tree Canopy, w/Rubber Strap, 22"- 33”, Finishes: BK, BZ, GR, GT, RT, VG, WH |
| CX-722B | Brass Tree Canopy, w/Rubber Strap, 22"- 33”, Finishes: AB, BK |
| CX-723 | Aluminum Tree Canopy, w/Rubber Strap, 31"- 45”, Finishes: BK, BZ, GR, GT, RT, VG, WH |
| CX-723B | Brass Tree Canopy,w/ Rubber Strap, 31"- 45”, Finishes: AB, BK |
| Fixture | Finish | Finish Color | Lamp |
|---|---|---|---|
| CL-220 | Antique Bronze | See lamp guide suffix | |
| Gun Metal | |||
| Silver Plated | |||
| Example: | CL-220 | ||
