CL-495-BT
CL-495-BT

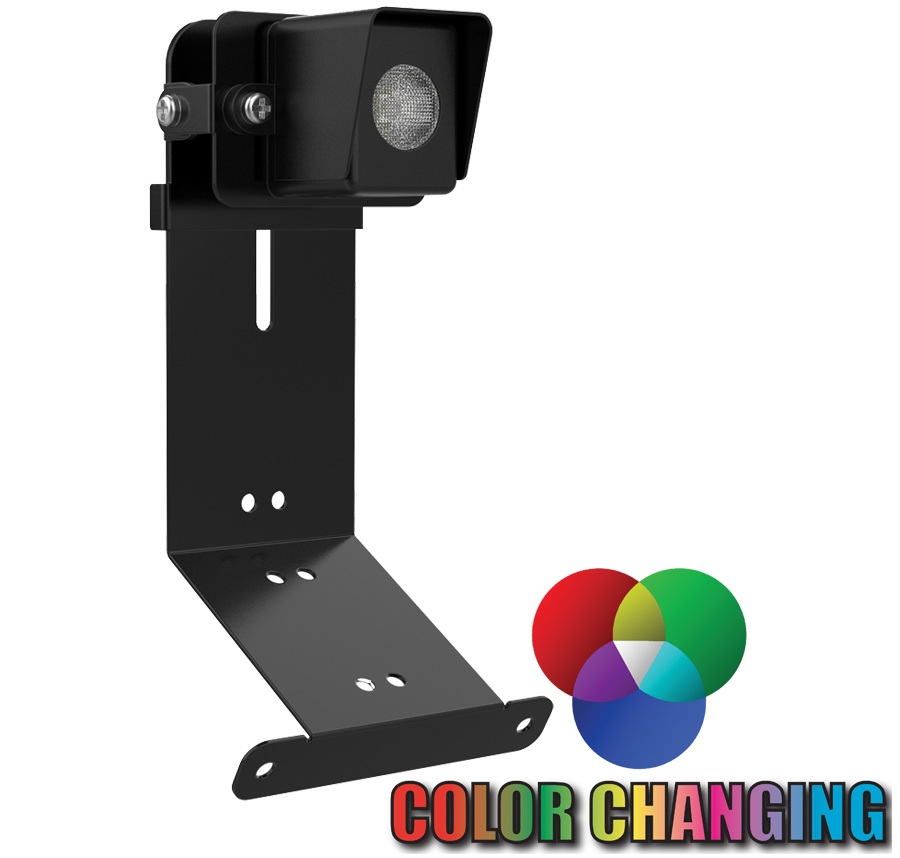

Black Brass Fiat Lux smart RGB-WW 1-2W Mini Beam light, with Stainless Steel adjustable gutter mounting
Material: Cast Brass
Description: 1-2W Brass RGB Bluetooth Mesh Adjustable Gutter Light
Light Source: Integrated 1-2W RGB LED module. Lumen output is between 15LM - 100LM. 45º beam spread
Mounting Supplied: Black 304 Stainless Steel adjustable (degree & position) mounting bracket. Slides up and down, 1¾” max movement and tilts up to 45º
Grade: Architectural
Dimensions
Size: 2” W x 6” H
Ship Weight LBS: 1.5
Downloads
Housing : Corrosion resistant cast brass
CONNECTION: Bluetooth mesh, range extender (CX-BTE) is highly recommended, see below for details.
RATING : IP68
Wiring : Fixture is prewired with a 10ft SPT-1W wire. Wire connector sold separately. Quick-locking connectors (CX-LOC) are available, see accessories for information.
Mounting : Black 304 Stainless Steel adjustable (degree & position) mounting bracket.
APPLICATIONS : Suitable for the top of structures like dormers and
other architectural areas
Glare shield & adjustable bracket are included.
Electrical : A remote 12V magnetic transformer is required. Go to the Transformers page for our range of options. Not for use with electronic transformers. Voltage range for LED module is: 9-17V (2.5VA), Ambient temperature: -22ºF to 176ºF CRI: >85 Proper grease/lubricant is suggested on threaded parts during installation process.
WARRANTY : 10 year warranty, with a rated life of 50,000 hours.
No matching lamps found.
Cable Connector
| Part # | Description |
|---|---|
| CX-LOC | Quick-Locking Wire Connector, 2 pack |
Fiat Lux Accessories
| Part # | Description |
|---|---|
| CX-BTE | Bluetooth Mesh Range Extender, transmission range: 260 ft |
| CX-BTG | Wireless Bluetooth Mesh Gateway |
Mini Beam Brackets
| Part # | Description |
|---|---|
| CX-MINI-BASE | Stainless Steel, Directional/Underwater Bracket, Compatible with the CL-MINI & CL-MINI-BT Only |
| CX-GUTT-BASE | Stainless Steel, Degree & Position Adjustable Bracket, Black. Compatible with the CL-MINI & CL-MINI-BT Only |
Mounting Canopies
| Part # | Description |
|---|---|
| CX-705B | Brass Flat Canopy, Finishes: AB, BK, BR, GM, SI, |
| CX-709 | Aluminum Raised Canopy , Finishes: BK, BZ, GT, SI, WH |
| CX-709B | Brass Canopy, Finishes: AB, BK, BR, GM, SI, |
| CX-718 | 5” Aluminum Canopy , 3-hole, Finishes: BK, BZ |
| CX-718B | 5” Brass Canopy, 3-hole, Finishes: AB, GM, SI |
| CX-719B | Brass Tree Bracket, Finishes: AB, BK, BR, GM, SI |
| CX-721 | Aluminum Tree Canopy, w/Rubber strap 15”-22”, Finishes: BK, BZ, GR, GT, RT, VG, WH |
| CX-721B | Brass Tree Canopy, w/ Rubber strap 15”-22”.Finishes: AB, BK |
| CX-722 | Aluminum Tree Canopy, w/Rubber Strap, 22"- 33”, Finishes: BK, BZ, GR, GT, RT, VG, WH |
| CX-722B | Brass Tree Canopy, w/Rubber Strap, 22"- 33”, Finishes: AB, BK |
| CX-723 | Aluminum Tree Canopy, w/Rubber Strap, 31"- 45”, Finishes: BK, BZ, GR, GT, RT, VG, WH |
| CX-723B | Brass Tree Canopy,w/ Rubber Strap, 31"- 45”, Finishes: AB, BK |
| Fixture | Finish | Finish Color | Lamp |
|---|---|---|---|
| CL-495-BT | Black Brass | See lamp guide suffix | |
| Example: | CL-495-BT | ||
