CL-100

CL-100

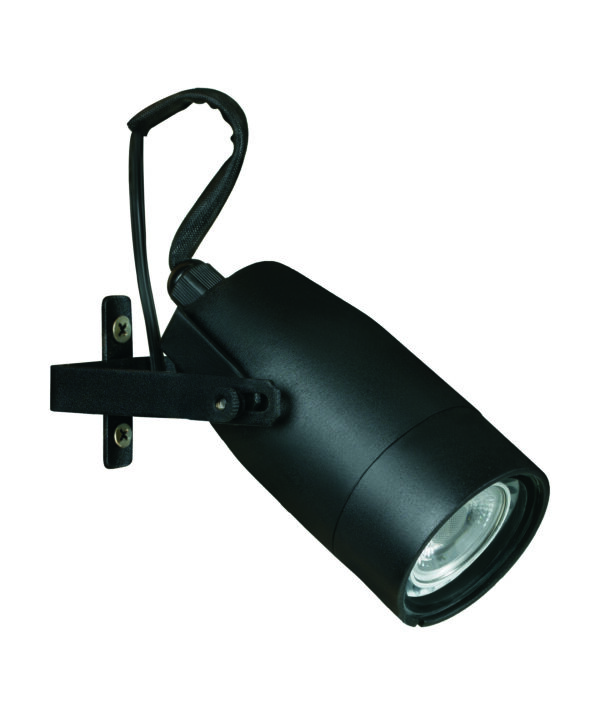

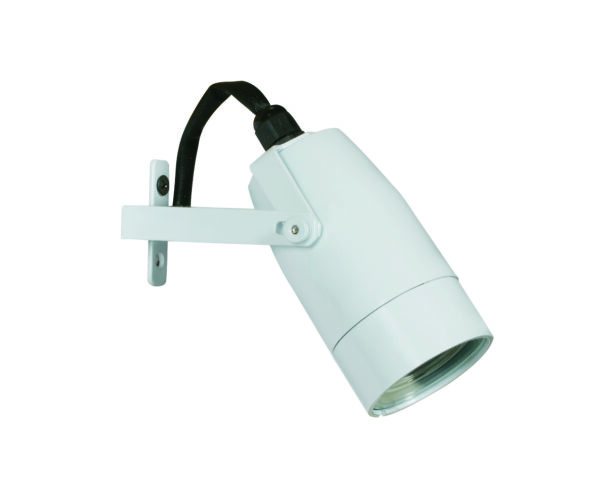

Adjustable Down Light available in Aluminum with Black, Bronze & White color finishes.

Material: Aluminum
Style: Adjustable Down Light
Description: Adjustable Yoke Bracket Bullet Light
Lamp Type: MR-16
Lamp Supplied: No Lamp
Mounting Supplied: Aluminum Adjustable Yoke and Bracket
Grade: Architectural

Dimensions

Dimensions: 3" Dia x 4¾" Length
Ship Wight LBS: 1

Spec Sheet

Product NameSpec Sheet
CL-100 download
Housing : Diecast copper-free aluminum.
Lens : Clear, tempered and heat-resistant flat glass lens.
Fixture Socket : Top grade loose bi-pin socket, with spring loaded design.
Lamp : 12V, MR-16, 35W (halogen) max.
Wiring : Fixture is prewired with a 3ft 18-2 SPT1-W direct burial cord. Wire connector sold seperately. Universal connector (CX-839) or silicone filled wire nut (CX-854) may be ordered.
Gasket: Silicone double gasketed for water tight sealing.
Mounting : Diecast aluminum yoke, with mounting bracket. Fully adjustable for horizonal and vertical alignment.
Electrical : Voltage range with LED lamp is 9-17V. Remote 12 Volt transformer is required. See transformers and accessories for variety of options and choices.
Lamp NumberWattsBeam SpreadSpread TextBeam LumenColor Temp Light Color Rated Hours Halogen Equiv
L-ED16-3W-FL3.545° FLFlood2702700KWarm White50,00025 Watt Halogen
L-ED16-3W-WF3.560° WFWide Flood2702700KWarm White50,00025 Watt Halogen
L-ED16-3W-SP3.515° SPSpot2702700KWarm White50,00025 Watt Halogen
L-ED16-5W-SP515° SPSpot3502700KWarm White50,00040 Watt Halogen
L-ED16-5W-FL545° FLFlood3502700KWarm White50,00040 Watt Halogen
L-ED16-5W-WF560° WFWide Flood3502700KWarm White50,00040 Watt Halogen
L-ED16-COB5W-SP515° SPSpot4502700KWarm White50,00050 Watt Halogen
L-ED16-COB5W-FL538° FLFlood4502700KWarm White50,00050 Watt Halogen
L-ED16-COB5W-WF560° WFWide Flood4502700KWarm White50,00050 Watt Halogen
L-ED16-COB5W-SP3K515° SPSpot4703000KCool White50,00050 Watt Halogen
L-ED16-COB5W-FL3K538° FLFlood4703000KCool White50,00050 Watt Halogen
L-ED116-COB5W-WF3K560° WFWide Flood4703000KCool White50,00050 Watt Halogen
L-ED16-6W-SP615° SPSpot6002700KWarm White50,00075 Watt Halogen
L-ED16-6W-FL638° FLFlood6002700KWarm White50,00075 Watt Halogen
L-ED16-6W-WF660° WFWide Flood6002700KWarm White50,00075 Watt Halogen
L-ED16-6W-SP-3K615° SPSpot6003000KCool White50,00075 Watt Halogen
L-ED16-6W-FL-3K638° FLFlood6003000KCool White50,00075 Watt Halogen
L-ED16-6W-WF-3K660° WFWide Flood6003000KCool White50,00075 Watt Halogen
Fixture Finish Finish Color Lamp
CL-100BlackSee lamp guide suffix
Bronze
White
Example: CL-100
