CL-MINI-BT
CL-MINI-BT

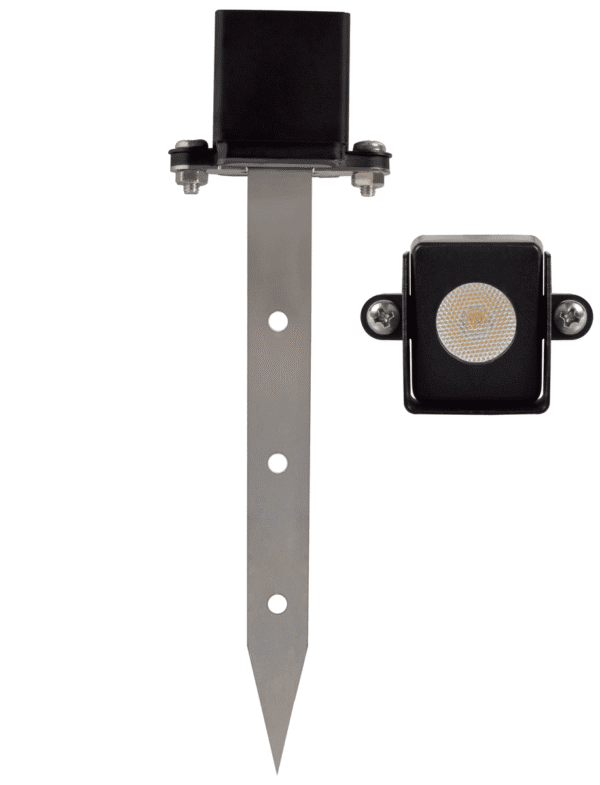

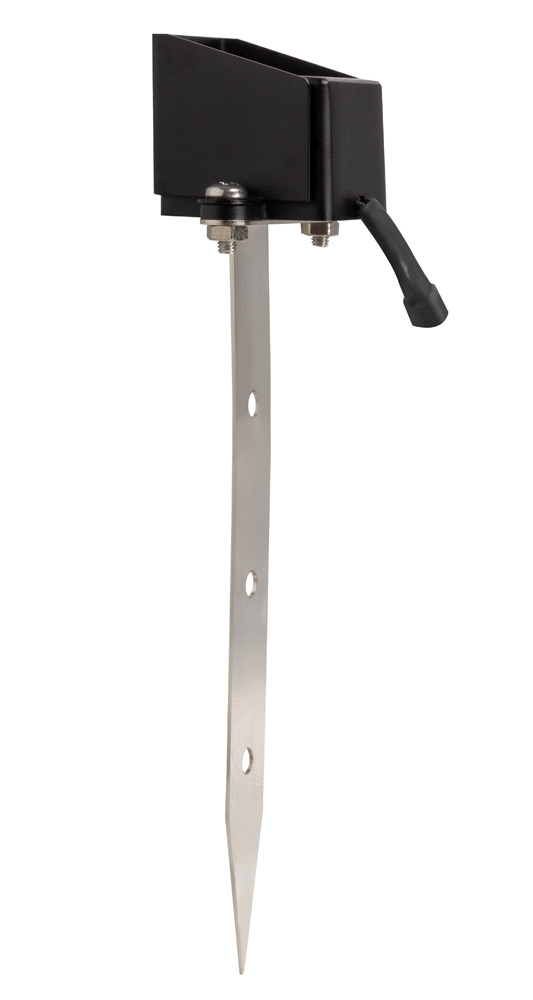

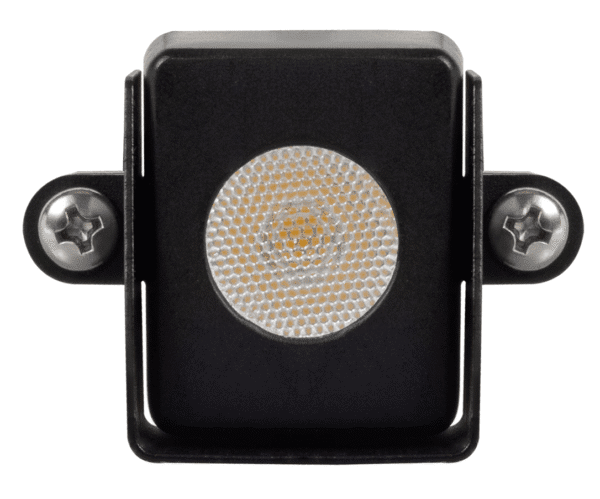

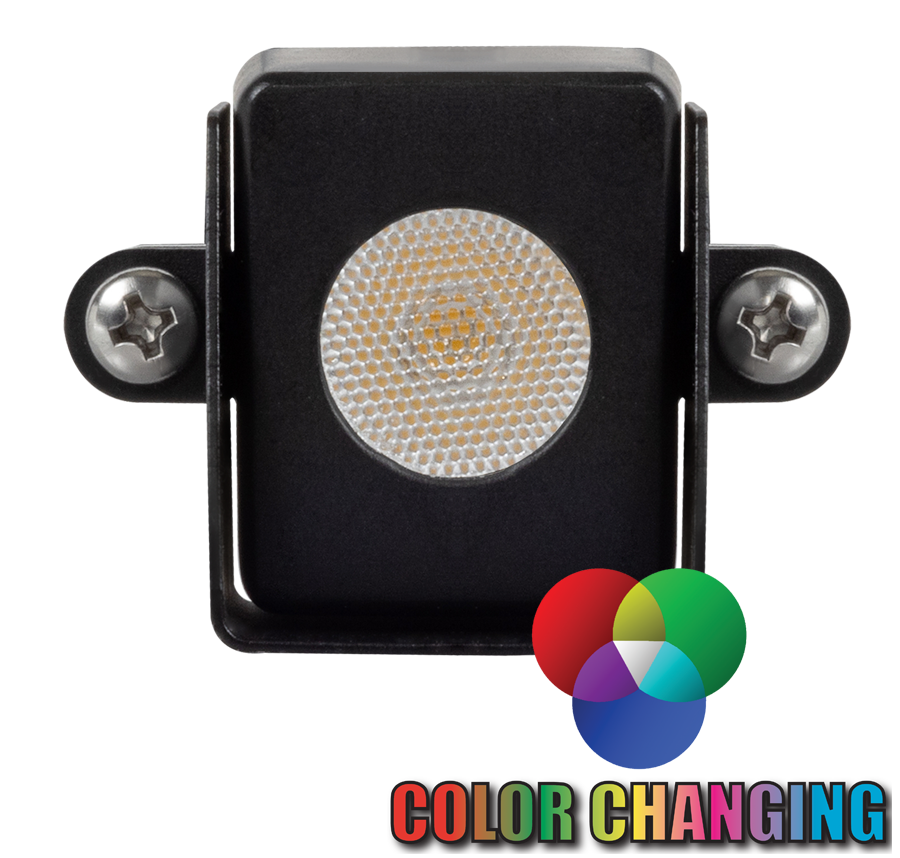

Brass Fiat Lux smart RGB-WW mini light with 6″ stainless steel stake and glare shield, in a Black Brass finish.
Material: Brass
Description: RGB-WW Bluetooth LED Mini Stake Light
Lamp Type: Replaceable LED capsule.
Lamp Supplied: 1-2W LED module
Mounting Supplied: Optional 6” stainless steel stake
Grade: Architectural
Dimensions

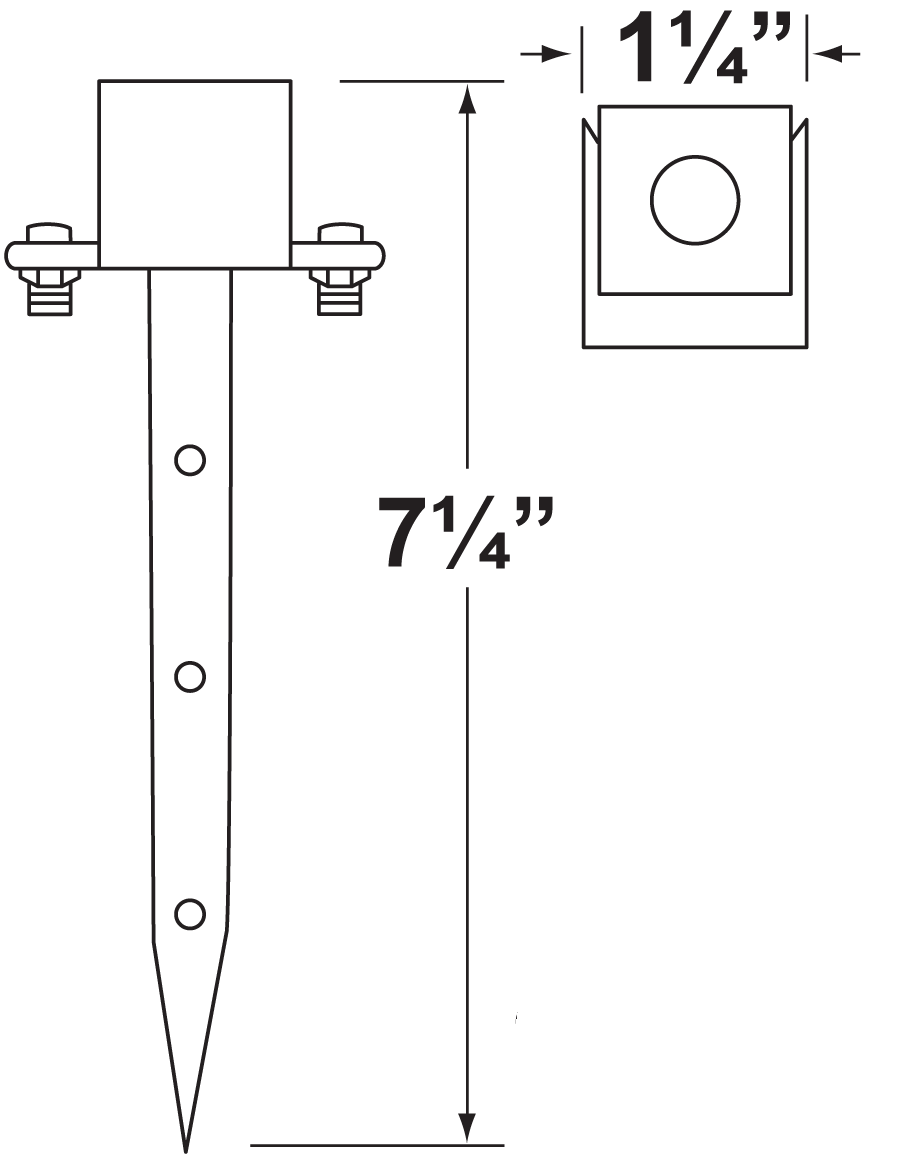

Size: 1¼” W x 7¼” L
Ship Weight LBS: 1
Downloads
Housing : Corrosion resistant cast brass
Socket : Replaceable LED module
Lamp : 1-2W RGB LED module. Lumen output is between 15LM - 100LM. 45º beam spread
CONNECTION: Bluetooth Mesh Technology, Range Extender (CX-BTE) is highly recommended. See Accessories tab for information
RATING : IP68
Wiring : Fixture is prewired with a 10ft SPT-1W wire.
Wire connector sold separately. Quick-locking connectors (CX-LOC) are available from Corona Lighting. See accessories for more information
Mounting : Optional 6” stainless steel stake
APPLICATIONS : Suitable for fountains, ponds, waterfalls, stone lanterns, rock beds, underneath steps, etc.
Any place a small beam of light is needed. Do not use in swimming pools, lakes or spas.
Electrical : A remote 12V magnetic transformer is required.
Visit transformers page for our line of options.
Not for use with electronic transformers.
Voltage range for LED module is: 9-17V (2.5VA), Ambient temperature: -22ºF to 176ºF, CRI: >85
WARRANTY : 10 year warranty, with a rated life of 50,000 hours.
No matching lamps found.
Cable Connector
| Part # | Description |
|---|---|
| CX-LOC | Quick-Locking Wire Connector, 2 pack |
Fiat Lux Accessories
| Part # | Description |
|---|---|
| CX-BTE | Bluetooth Mesh Range Extender, transmission range: 260 ft |
| CX-BTG | Wireless Bluetooth Mesh Gateway |
Ground Spikes
| Part # | Description |
|---|---|
| CX-640-BK | 6” Aluminum Spike, Male Hub, Finishes: BK |
| CX-642 | 8½”h x ½”w ABS Spike, Finishes: BK, BZ |
| CX-643-BZ | 8½”h x 3”w ABS Spike, Finishes: BZ |
| CX-646 | 8”h x ½”w ABS Spike, Finishes: BK, BZ |
| CX-647-BK | 10½”h x 3”w Heavy Duty ABS Spike Finishes, Finishes: BK |
| CX-650-BZ | 8½”h x 3”w Slotted ABS Spike with Brass Threads, Finishes: BZ |
Mounting Brackets
| Part # | Description |
|---|---|
| CX-679-T-BK | Aluminum Double Bracket, ½ NPT, Black |
| CX-679-T-BZ | Aluminum Double Bracket, ½ NPT, Bronze |
| CX-679-T-SI | Aluminum Double Bracket, ½ NPT, Silver |
| CX-679B-T-AB | Brass Double Bracket, ½ NPT, Antique Bronze |
| CX-679B-T-BR | Brass Double Bracket, ½ NPT, Natural Brass |
| CX-679B-T-GM | Brass Double Bracket, ½ NPT, Gun Metal |
| CX-700 | Aluminum Bracket, ½ NPT, BK– Black, BZ– Bronze, GR– Green, GT– Granite, RT– Rust, VG– Verde Green, WH– White |
| CX-704 | Aluminum Bracket, ½ NPT,BK– Black, BZ– Bronze, GR– Green, GT– Granite, RT– Rust, VG– Verde Green, WH– White |
Mounting Canopies
| Part # | Description |
|---|---|
| CX-705B | Brass Flat Canopy, Finishes: AB, BK, BR, GM, SI, |
| CX-709 | Aluminum Raised Canopy , Finishes: BK, BZ, GT, SI, WH |
| CX-709B | Brass Canopy, Finishes: AB, BK, BR, GM, SI, |
| CX-718 | 5” Aluminum Canopy , 3-hole, Finishes: BK, BZ |
| CX-718B | 5” Brass Canopy, 3-hole, Finishes: AB, GM, SI |
| CX-719B | Brass Tree Bracket, Finishes: AB, BK, BR, GM, SI |
| CX-721 | Aluminum Tree Canopy, w/Rubber strap 15”-22”, Finishes: BK, BZ, GR, GT, RT, VG, WH |
| CX-721B | Brass Tree Canopy, w/ Rubber strap 15”-22”.Finishes: AB, BK |
| CX-722 | Aluminum Tree Canopy, w/Rubber Strap, 22"- 33”, Finishes: BK, BZ, GR, GT, RT, VG, WH |
| CX-722B | Brass Tree Canopy, w/Rubber Strap, 22"- 33”, Finishes: AB, BK |
| CX-723 | Aluminum Tree Canopy, w/Rubber Strap, 31"- 45”, Finishes: BK, BZ, GR, GT, RT, VG, WH |
| CX-723B | Brass Tree Canopy,w/ Rubber Strap, 31"- 45”, Finishes: AB, BK |
Mounting Pedestal
| Part # | Description |
|---|---|
| CX-603-BK | 3" PVC Mounting Pedestal, BK |
| CX-621-BK | 1" PVC Cap, BK |
| CX-622-BK | 2" PVC Cap, BK |
| CX-624-BK | 3" PVC Cap, Female Brass Hub, BK |
Mounting Posts
| Part # | Description |
|---|---|
| CX-678 | 24” Aluminum Single Head Post, Finishes: BK, BZ, SI |
| CX-678B | 24” Brass Single Head Post, Finishes: AB, GM,SI |
| CX-678C | 24” Copper Single Head Post, Finishes: RC |
| CX-679 | 24” Aluminum Double Head Post, Finishes: BK,BZ, SI |
| CX-679B | 24” Brass Double Head Post, Finishes: AB, GM, SI |
| CX-679C | 24” Copper Double Head Post, RC |
| CX-690 | 18” Aluminum Single Head Post, Finishes: BK, BZ, SI |
| CX-690B | 18” Brass Single Head Post, Finishes: AB, GM, SI |
| CX-690C | 18” Copper Single Head Post, Finishes: RC |
| CX-693 | 18” Aluminum Double Head Post, Finishes: BK, BZ, SI |
| CX-693B | 18” Brass Double Head Post, Finishes: AB, GM, SI |
| CX-693C | 18” Copper Double Head Post, Finishes: RC |
Mounting Risers
| Part # | Description |
|---|---|
| CX-671 | 6” Aluminum Riser, Finishes: BK, BZ, GR, GT, RT, VG, WH |
| CX-672 | 12” Aluminum Riser, Finishes: BK, BZ, GR, GT, RT, VG, WH |
| CX-673 | 18” Aluminum Riser, Finishes: BK, BZ, GR, GT, RT, VG, WH |
| CX-682B | 6” Brass Riser, Finishes: AB, GM |
| CX-682C | 6” Copper Riser, Finishes: RC |
| CX-683B | 12” Brass Riser, Finishes: AB, GM |
| CX-683C | 12” Copper Riser, Finishes: RC |
| CX-684B | 18” Brass Riser, Finishes: AB, GM |
| CX-684C | 18" Copper Riser, Finishes: RC |
| CX-685B | 24” Brass Riser, Finishes: AB, GM |
| CX-686C | 24" Copper Riser, Finishes: RC |
| CX-782B-BK | 6” Brass Riser, Finishes: BK |
| CX-783B-BK | 12” Brass Riser, Finishes: BK |
| CX-784B-BK | 18” Brass Riser, Finishes: BK |
| CX-785B-BK | 24” Brass Riser, Finishes: BK |
| Fixture | Finish | Finish Color | Lamp |
|---|---|---|---|
| CL-MINI-BT | Black Brass | See lamp guide suffix | |
| Example: | CL-MINI-BT | ||
