CL-515
CL-515
Lensed Bullet Light available in Aluminum with Black, Bronze, Granite, White, Rust & Verde Green color finishes.
Material: Aluminum
Style: Lensed Bullet Light
Description: Lensed Bullet Spot Light
Lamp Type: MR-16
Lamp Supplied: No Lamp
Mounting Supplied: Plastic Ground Spike
Grade: Value
Product Name | Spec Sheet |
---|---|
CL-515 | download |
Housing : Die-cast aluminum.
Lens : Clear, tempered, and heat resistant glass with silicone gasket.
Fixture Socket : Top grade fixed ceramic bi-pin socket, with retension clip.
Lamp : 12V, MR-16, 35W (halogen) max.
Wiring : Fixture is prewired with a 3-ft 18-2 SPT2-W direct burial cord. Wire connector available seperately. Universal connector (CX-839) or silicone filled wire nut (CX-854) may be ordered.
Gasket: Silicone o-ring seals faceplate to housing providing weather-tight protection.

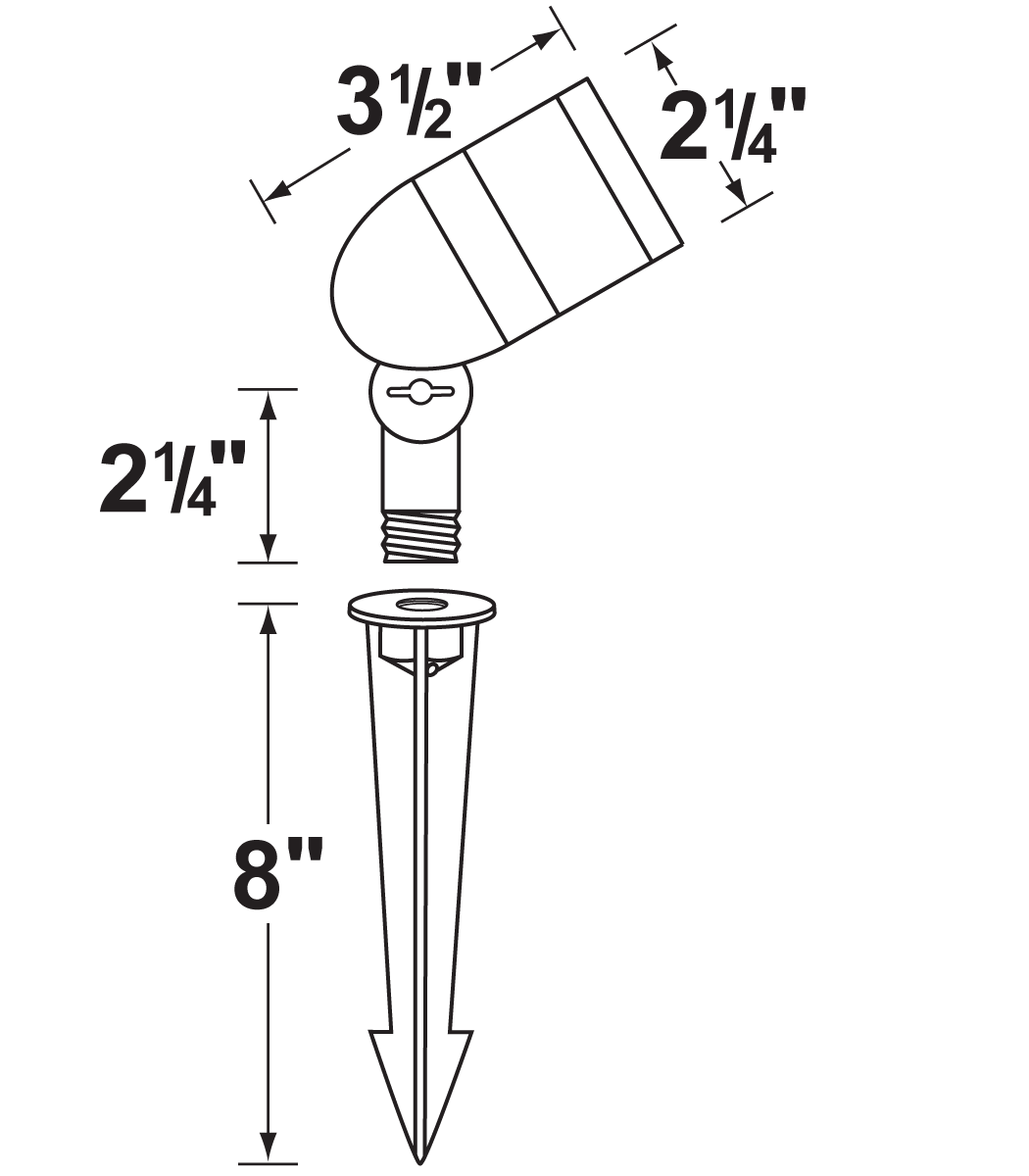

Knuckle : Adjustable die-cast aluminum knuckle with phillips shaped screw and 1/2" NPT threaded make hub on bottom.
Mounting : 8” Black ABS spike with 1/2" NPT threaded female hub.
Electrical : Voltage range with LED lamp is 9-17V. Remote 12 Volt transformer is required. See transformers and accessories for variety of options and choices.
Lamp Number | Watts | Beam Spread | Spread Text | Beam Lumen | Color Temp | Light Color | Rated Hours | Halogen Equiv |
---|---|---|---|---|---|---|---|---|
L-ED16-3W-FL | 3.5 | 45° FL | Flood | 270 | 2700K | Warm White | 50,000 | 25 Watt Halogen |
L-ED16-3W-WF | 3.5 | 60° WF | Wide Flood | 270 | 2700K | Warm White | 50,000 | 25 Watt Halogen |
L-ED16-3W-SP | 3.5 | 15° SP | Spot | 270 | 2700K | Warm White | 50,000 | 25 Watt Halogen |
L-ED16-5W-SP | 5 | 15° SP | Spot | 350 | 2700K | Warm White | 50,000 | 40 Watt Halogen |
L-ED16-5W-FL | 5 | 45° FL | Flood | 350 | 2700K | Warm White | 50,000 | 40 Watt Halogen |
L-ED16-5W-WF | 5 | 60° WF | Wide Flood | 350 | 2700K | Warm White | 50,000 | 40 Watt Halogen |
L-ED16-COB5W-SP | 5 | 15° SP | Spot | 450 | 2700K | Warm White | 50,000 | 50 Watt Halogen |
L-ED16-COB5W-FL | 5 | 38° FL | Flood | 450 | 2700K | Warm White | 50,000 | 50 Watt Halogen |
L-ED16-COB5W-WF | 5 | 60° WF | Wide Flood | 450 | 2700K | Warm White | 50,000 | 50 Watt Halogen |
L-ED16-COB5W-SP3K | 5 | 15° SP | Spot | 470 | 3000K | Cool White | 50,000 | 50 Watt Halogen |
L-ED16-COB5W-FL3K | 5 | 38° FL | Flood | 470 | 3000K | Cool White | 50,000 | 50 Watt Halogen |
L-ED116-COB5W-WF3K | 5 | 60° WF | Wide Flood | 470 | 3000K | Cool White | 50,000 | 50 Watt Halogen |
L-ED16-6W-SP | 6 | 15° SP | Spot | 600 | 2700K | Warm White | 50,000 | 75 Watt Halogen |
L-ED16-6W-FL | 6 | 38° FL | Flood | 600 | 2700K | Warm White | 50,000 | 75 Watt Halogen |
L-ED16-6W-WF | 6 | 60° WF | Wide Flood | 600 | 2700K | Warm White | 50,000 | 75 Watt Halogen |
L-ED16-6W-SP-3K | 6 | 15° SP | Spot | 600 | 3000K | Cool White | 50,000 | 75 Watt Halogen |
L-ED16-6W-FL-3K | 6 | 38° FL | Flood | 600 | 3000K | Cool White | 50,000 | 75 Watt Halogen |
L-ED16-6W-WF-3K | 6 | 60° WF | Wide Flood | 600 | 3000K | Cool White | 50,000 | 75 Watt Halogen |
Fixture | Finish | Finish Color | Lamp |
---|---|---|---|

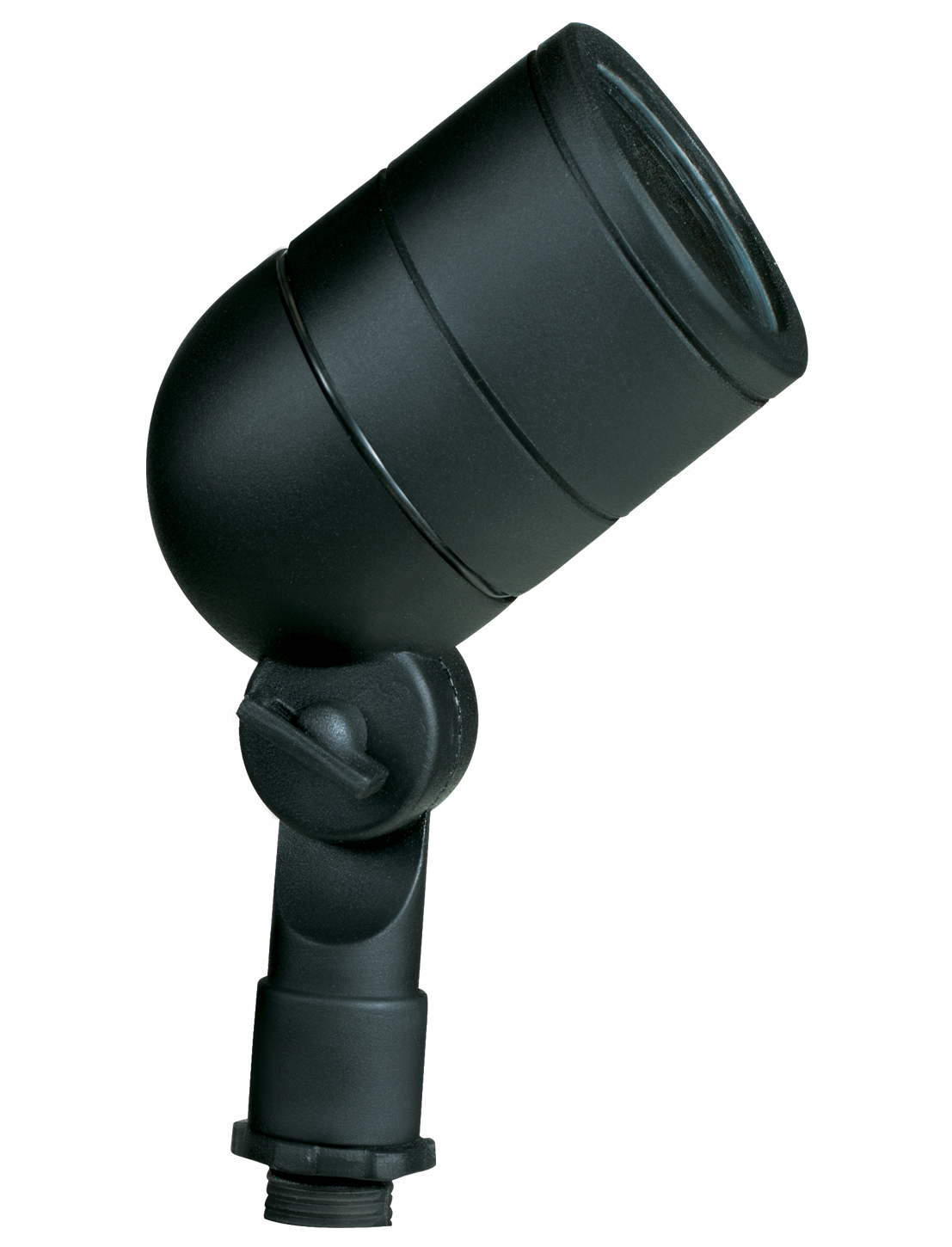

CL-515 | Black | See lamp guide suffix | |

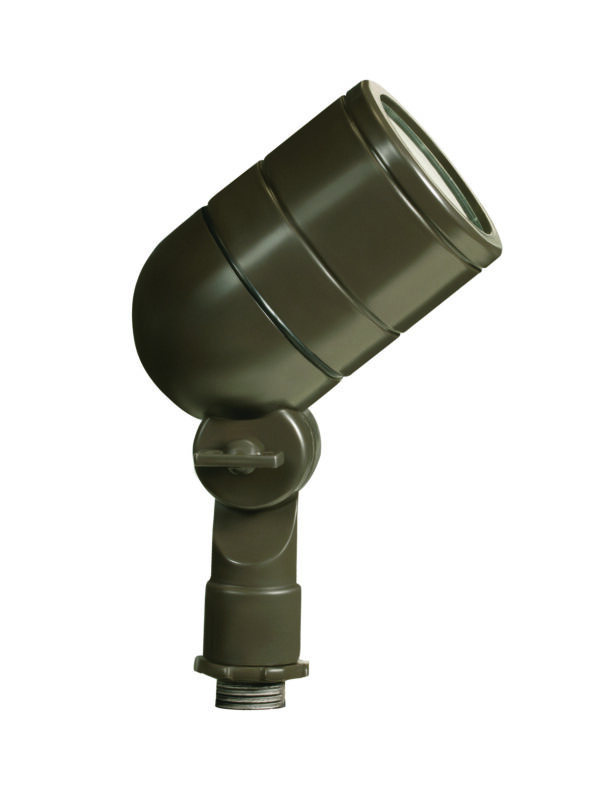

Bronze | |||
Granite | |||

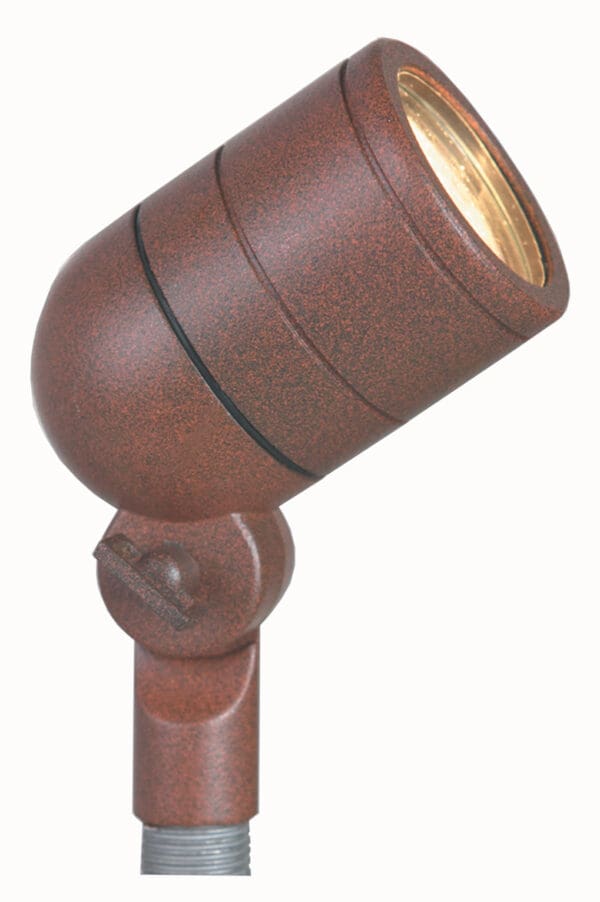

Rust | |||
White | |||
Example: | CL-515 |
