CL-519B
CL-519B

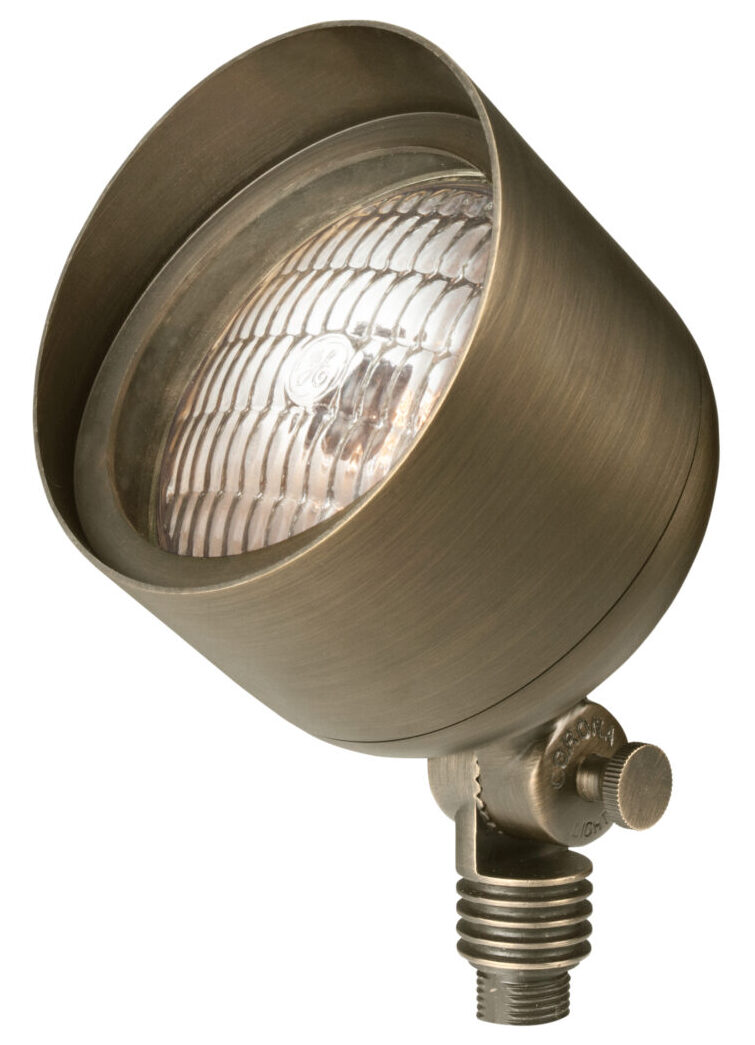

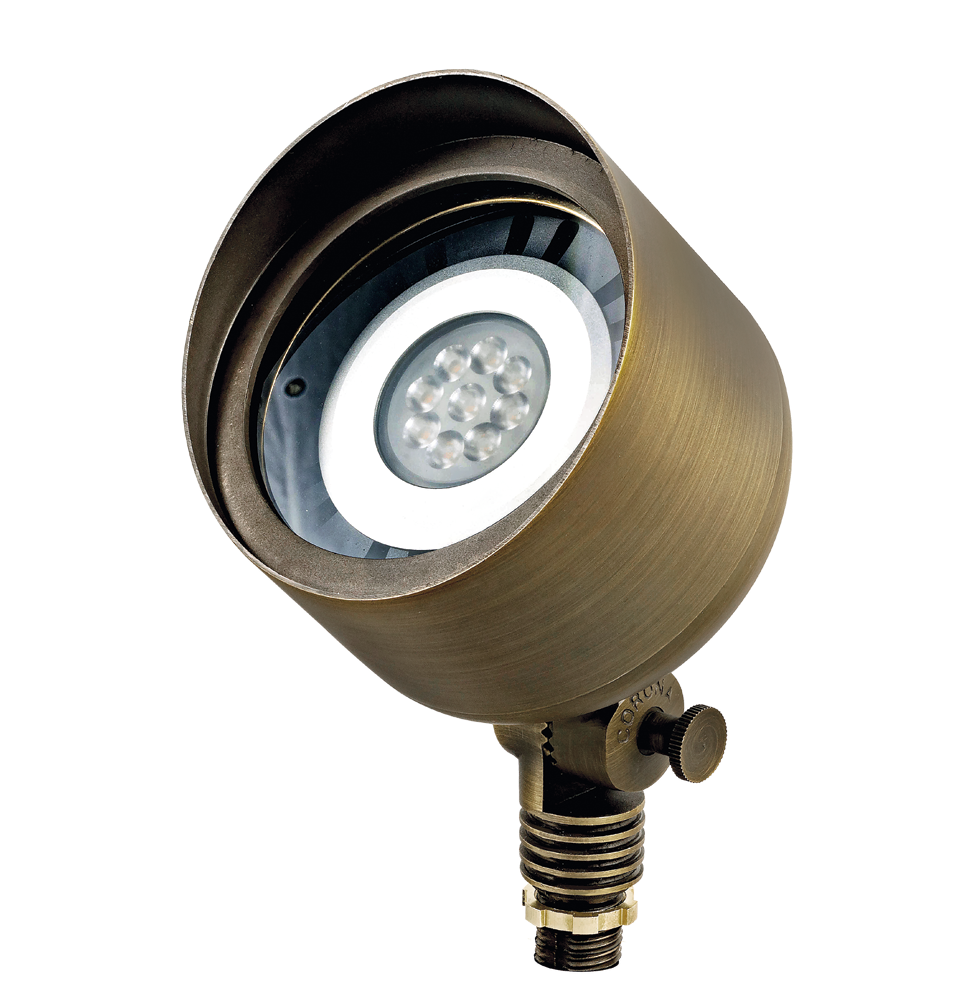

Brass PAR36 Bullet Flood Light Finished in Antique Bronze.
Material: Brass
Description: Large brass PAR36 flood Light
Lamp Type: PAR-36
Mounting Supplied: Plastic ground spike
Grade: Architectural
Dimensions
Size: 4⅝" Dia x 4⅞" Length
Ship Weight LBS: 4
Downloads
Housing : Corrosion resistant Cast Brass.
Lens : Clear and heat resistant flat glass
Socket : PAR36 scew terminal.
Lamp : 12V, Par 36 LED Available in 15W Bluetooth mesh smart RGB-WW; LED 6W, 13W or without lamp. Find lamp tab above for more information.
Wiring : Fixture is prewired with a 3-ft 18-2 SPT2-W direct burial cord. Wire connector sold separately. Quick-locking connectors (CX-LOC) are available from Corona Lighting. See accessories for details
Knuckle : Adjustable cast brass, with thumb screw and ½" NPT threaded male hub on bottom.
Mounting : Standard injection molded with ½" NPT threaded female hub.
Electrical : A remote 12V transformer is required. Visit the transformers page for our line of options. Voltage range for lamps are 9-17V. Proper grease/lubricant is suggested on threaded parts during installation process.
WARRANTY : Limited lifetime warranty on fixture housing against manufacturer’s defects.
| Lamp Number | Watts | Beam Spread | Spread Text | Beam Lumen | Color Temp | Light Color | Rated Hours | Halogen Equiv |
|---|---|---|---|---|---|---|---|---|
| L-ED36-15W-CCT | 0.2W-15W | 38º (15º/60º/100º) | Flood (Spot/Wide Flood) | 25-1200 | 2200K-5700K CCT | Tunable White | 50,000 | 10 Watts Halogen |
| L-ED36-15W-BT | 1-15 | 38º (15º/60º/100º) | Flood (Spot/Wide Flood) | 25-1200 | 2200K-5700K | Color Changing | 50,000 | 100 Watts Halogen |
| L-ED36-15W-ADJ | 5/10/15 | 38º (15º/60º/100º) | Flood (Spot/Wide Flood) | 450/800/1200 | 2000K-3000K | White | 50,000 | 40/75/100 Watt Halogen |
| L-ED36-6WEC-FL-3K | 6W | 38º FL | Flood | 700LM | 3000K | Cool White | 50,000 | 35W |
| L-ED36-6WEC-FL | 6W | 38º FL | Flood | 630 | 2700K | Warm White | 50,000 | 35W |
| L-ED36-6W-FL | 6 | 45° FL | Flood | 610 | 2700K | Warm White | 50,000 | 35 Watt Halogen |
| L-ED36-6W-WF | 6 | 60° WF | Wide Flood | 610 | 2700K | Warm White | 50,000 | 35 Watt Halogen |
| L-ED36-13W-FL | 13 | 45° FL | Flood | 1150 | 2700K | Warm White | 50,000 | 75 Watt Halogen |
| L-ED36-13W-WF | 13 | 60° WF | Wide Flood | 1150 | 2700K | Warm White | 50,000 | 75 Watt Halogen |
Cable Connector
| Part # | Description |
|---|---|
| CX-LOC | Quick-Locking Wire Connector, 2 pack |
Ground Spikes
| Part # | Description |
|---|---|
| CX-640-BK | 6” Aluminum Spike, Male Hub, Finishes: BK |
| CX-642 | 8½”h x ½”w ABS Spike, Finishes: BK, BZ |
| CX-643-BZ | 8½”h x 3”w ABS Spike, Finishes: BZ |
| CX-646 | 8”h x ½”w ABS Spike, Finishes: BK, BZ |
| CX-647-BK | 10½”h x 3”w Heavy Duty ABS Spike Finishes, Finishes: BK |
| CX-650-BZ | 8½”h x 3”w Slotted ABS Spike with Brass Threads, Finishes: BZ |
Mounting Brackets
| Part # | Description |
|---|---|
| CX-679-T-BK | Aluminum Double Bracket, ½ NPT, Black |
| CX-679-T-BZ | Aluminum Double Bracket, ½ NPT, Bronze |
| CX-679-T-SI | Aluminum Double Bracket, ½ NPT, Silver |
| CX-679B-T-AB | Brass Double Bracket, ½ NPT, Antique Bronze |
| CX-679B-T-BR | Brass Double Bracket, ½ NPT, Natural Brass |
| CX-679B-T-GM | Brass Double Bracket, ½ NPT, Gun Metal |
| CX-700 | Aluminum Bracket, ½ NPT, BK– Black, BZ– Bronze, GR– Green, GT– Granite, RT– Rust, VG– Verde Green, WH– White |
| CX-704 | Aluminum Bracket, ½ NPT,BK– Black, BZ– Bronze, GR– Green, GT– Granite, RT– Rust, VG– Verde Green, WH– White |
Mounting Canopies
| Part # | Description |
|---|---|
| CX-705B | Brass Flat Canopy, Finishes: AB, BK, BR, GM, SI, |
| CX-709 | Aluminum Raised Canopy , Finishes: BK, BZ, GT, SI, WH |
| CX-709B | Brass Canopy, Finishes: AB, BK, BR, GM, SI, |
| CX-718 | 5” Aluminum Canopy , 3-hole, Finishes: BK, BZ |
| CX-718B | 5” Brass Canopy, 3-hole, Finishes: AB, GM, SI |
| CX-719B | Brass Tree Bracket, Finishes: AB, BK, BR, GM, SI |
| CX-721 | Aluminum Tree Canopy, w/Rubber strap 15”-22”, Finishes: BK, BZ, GR, GT, RT, VG, WH |
| CX-721B | Brass Tree Canopy, w/ Rubber strap 15”-22”.Finishes: AB, BK |
| CX-722 | Aluminum Tree Canopy, w/Rubber Strap, 22"- 33”, Finishes: BK, BZ, GR, GT, RT, VG, WH |
| CX-722B | Brass Tree Canopy, w/Rubber Strap, 22"- 33”, Finishes: AB, BK |
| CX-723 | Aluminum Tree Canopy, w/Rubber Strap, 31"- 45”, Finishes: BK, BZ, GR, GT, RT, VG, WH |
| CX-723B | Brass Tree Canopy,w/ Rubber Strap, 31"- 45”, Finishes: AB, BK |
Mounting Pedestal
| Part # | Description |
|---|---|
| CX-603-BK | 3" PVC Mounting Pedestal, BK |
| CX-621-BK | 1" PVC Cap, BK |
| CX-622-BK | 2" PVC Cap, BK |
| CX-624-BK | 3" PVC Cap, Female Brass Hub, BK |
Mounting Posts
| Part # | Description |
|---|---|
| CX-678 | 24” Aluminum Single Head Post, Finishes: BK, BZ, SI |
| CX-678B | 24” Brass Single Head Post, Finishes: AB, GM,SI |
| CX-678C | 24” Copper Single Head Post, Finishes: RC |
| CX-679 | 24” Aluminum Double Head Post, Finishes: BK,BZ, SI |
| CX-679B | 24” Brass Double Head Post, Finishes: AB, GM, SI |
| CX-679C | 24” Copper Double Head Post, RC |
| CX-690 | 18” Aluminum Single Head Post, Finishes: BK, BZ, SI |
| CX-690B | 18” Brass Single Head Post, Finishes: AB, GM, SI |
| CX-690C | 18” Copper Single Head Post, Finishes: RC |
| CX-693 | 18” Aluminum Double Head Post, Finishes: BK, BZ, SI |
| CX-693B | 18” Brass Double Head Post, Finishes: AB, GM, SI |
| CX-693C | 18” Copper Double Head Post, Finishes: RC |
Mounting Risers
| Part # | Description |
|---|---|
| CX-671 | 6” Aluminum Riser, Finishes: BK, BZ, GR, GT, RT, VG, WH |
| CX-672 | 12” Aluminum Riser, Finishes: BK, BZ, GR, GT, RT, VG, WH |
| CX-673 | 18” Aluminum Riser, Finishes: BK, BZ, GR, GT, RT, VG, WH |
| CX-682B | 6” Brass Riser, Finishes: AB, GM |
| CX-682C | 6” Copper Riser, Finishes: RC |
| CX-683B | 12” Brass Riser, Finishes: AB, GM |
| CX-683C | 12” Copper Riser, Finishes: RC |
| CX-684B | 18” Brass Riser, Finishes: AB, GM |
| CX-684C | 18" Copper Riser, Finishes: RC |
| CX-685B | 24” Brass Riser, Finishes: AB, GM |
| CX-686C | 24" Copper Riser, Finishes: RC |
| CX-782B-BK | 6” Brass Riser, Finishes: BK |
| CX-783B-BK | 12” Brass Riser, Finishes: BK |
| CX-784B-BK | 18” Brass Riser, Finishes: BK |
| CX-785B-BK | 24” Brass Riser, Finishes: BK |
| Fixture | Finish | Finish Color | Lamp |
|---|---|---|---|
| CL-519B | Antique Bronze | See lamp guide suffix | |
| Example: | CL-519B | ||
