CL-719B
CL-719B
Tullip Bell Path Light available in Brass with Antique Bronze color finishes.
Material: Brass
Style: Tullip Bell Path Light
Description: Tullip Bell Path Light
Lamp Type: SCB
Lamp Supplied: No Lamp
Mounting Supplied: Plastic Ground Spike
Grade: Architectural

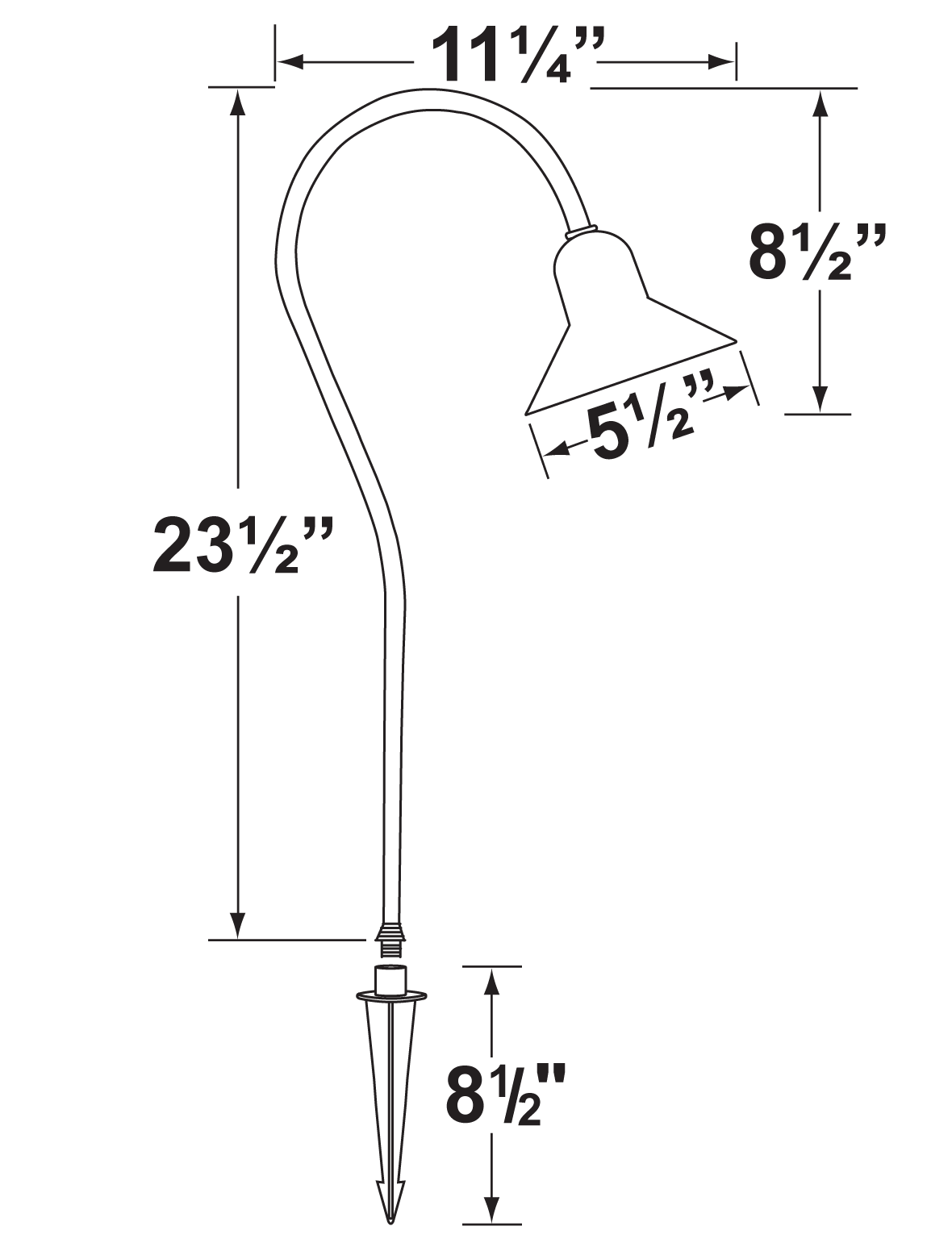

Dimensions
Dimensions: 5½” Dia x 23½” High
Ship Wight LBS: 2
Spec Sheet
| Product Name | Spec Sheet |
|---|---|
| CL-719B | download |
Housing : Solid brass 5.5in shade and tube stem with adjustable brass knuckle.
Lens : Clear and heat resistant glass. Extra frosted lens included.
Fixture Socket : S.C. Bayonet socket, tooless free lamp access.
Lamp : 12V, SCB, 27W (halogen) max
Wiring : Fixture is prewired with a 3ft 18-2 SPT2-W direct burial cord. Wire connector available seperately. Universal connector (CX-839) or silicone filled wire nut (CX-854) may be ordered.
Gasket: N/A
Mounting : Standard injection molded with 1/2" NPT threaded female hub.
Electrical : Voltage range with LED lamp is 9-17V. Remote 12 Volt transformer is required. See transformers and accessories for variety of options and choices.
| Lamp Number | Watts | Beam Spread | Spread Text | Beam Lumen | Color Temp | Light Color | Rated Hours | Halogen Equiv |
|---|---|---|---|---|---|---|---|---|
| L-EDBA-2W | 2 | 360° | 360 Deg. | 200 | 2700K | Warm White | 25,000 | 20 Watt Halogen |
| L-EDBA-2W-3K | 2 | 360° | 360 Deg. | 210 | 3000K | Cool White | 25,000 | 20 Watt Halogen |
| L-EDBA-AM | 2 | 360° | 360 Deg. | 170 | 2000K | Amber | 25,000 | 20 Watt Halogen |
| L-EDBA-2.5W | 2.5 | 180° | 180 Deg. | 240 | 2700K | Warm White | 25,000 | 35 Watt Halogen |
| L-EDBA-2.5W-3K | 2.5 | 180° | 180 Deg. | 250 | 3000K | Cool White | 25,000 | 20 Watt Halogen |
| Fixture | Finish | Finish Color | Lamp |
|---|---|---|---|
| CL-719B | Antique Bronze | See lamp guide suffix | |
| Example: | CL-719B | ||
