CL-646B
CL-646B

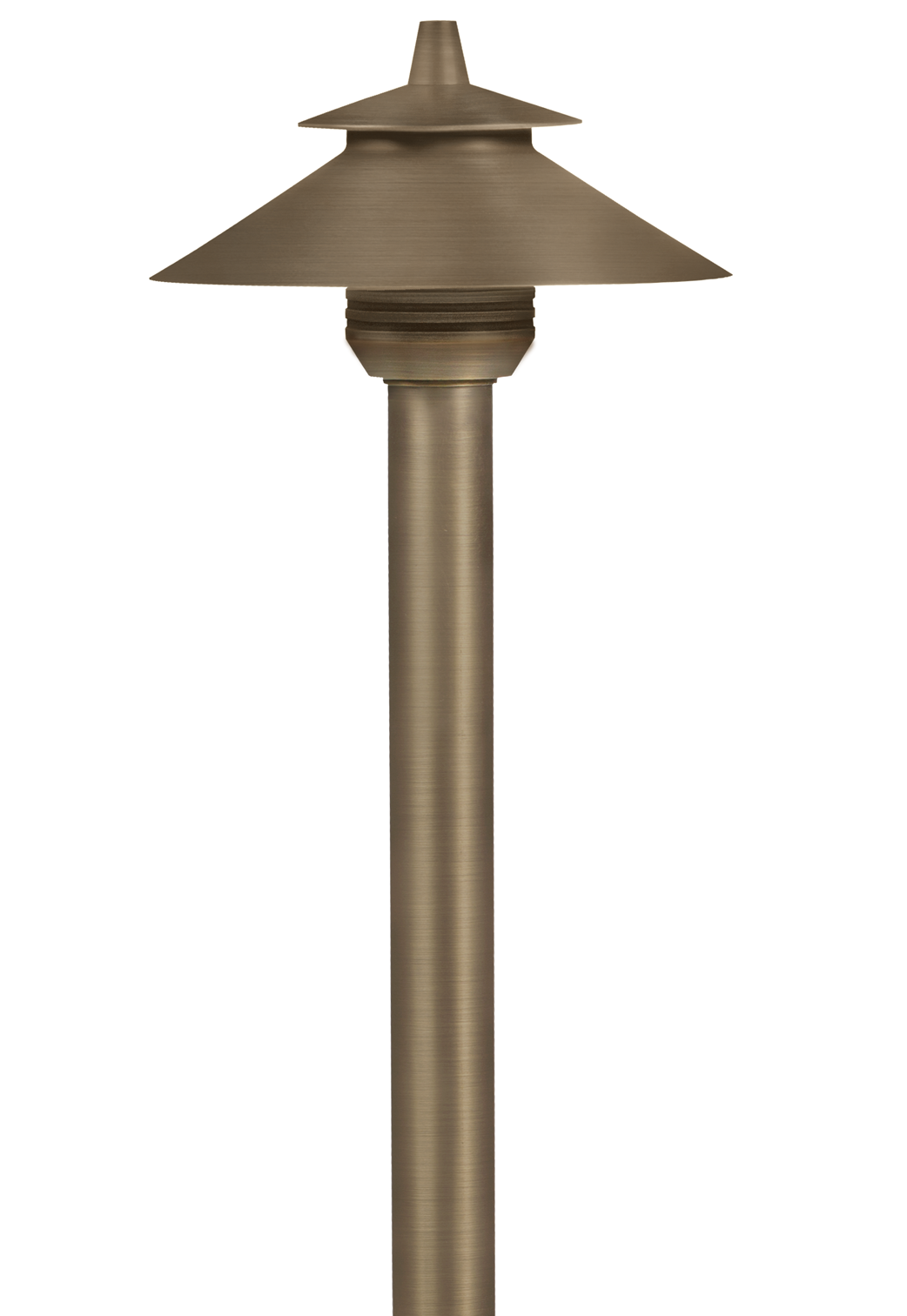

Small Umbrella Path Light available in Brass with Antique Bronze color finishes.
Material: Brass
Style: Small Umbrella Path Light
Description: Small Umbrella Path Light
Lamp Type: T3
Lamp Supplied: No Lamp
Mounting Supplied: Plastic Ground Spike
Grade: Architectural
Dimensions

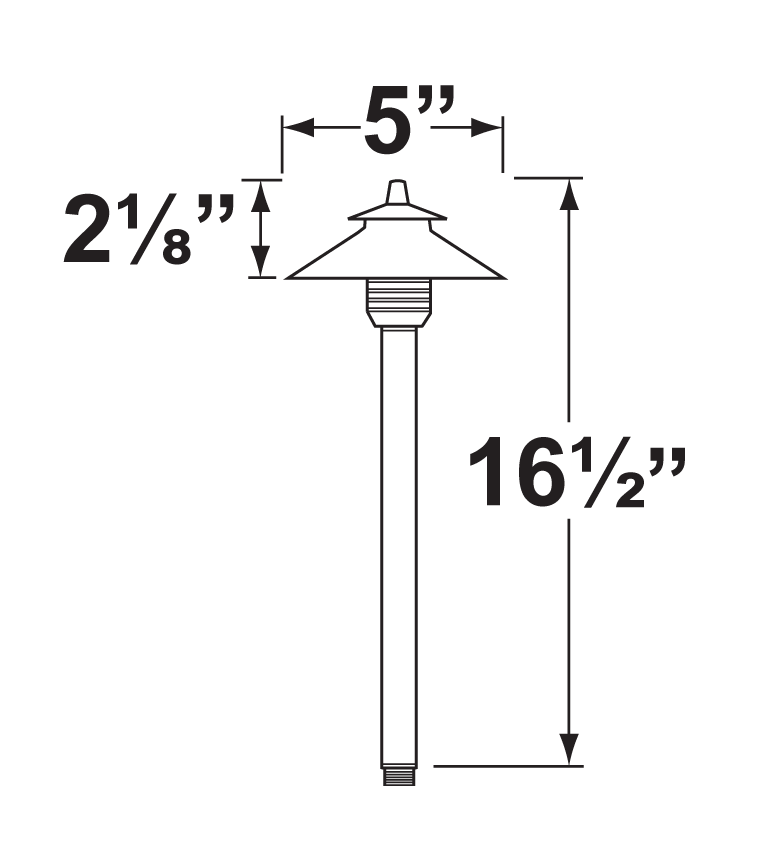

Dimensions: 5” Dia x 16½” High
Ship Wight LBS: 2
Spec Sheet
| Product Name | Spec Sheet |
|---|---|
| CL-646B | download |
Housing : Brass 5in shade, with 16.5in Standard Stem for light control
Lens : Frosted poly carbonate, covers over lamp providing sprinkler water protection.
Fixture Socket : Top grade fixed ceramic bi-pin socket. Easy tool free lamp access.
Lamp : 12V, T3, 20W (halogen) max.
Wiring : Fixture is prewired with a 5-ft 18-2 SPT2-W direct burial cord. Wire connector available seperately. Universal connector (CX-839) or silicone filled wire nut (CX-854) may be ordered.
Gasket: Silicone o-ring gasket seals lens to socket housing for water tight sealing.
Mounting : 8" Standard injection molded spike with 1/2" NPT threaded female hub.
Electrical : Voltage range with LED lamp is 9-17V. Remote 12 Volt transformer is required. See transformers and accessories for variety of options and choices.
| Lamp Number | Watts | Beam Spread | Spread Text | Beam Lumen | Color Temp | Light Color | Rated Hours | Halogen Equiv |
|---|---|---|---|---|---|---|---|---|
| L-EDT3-2W | 2 | 360° | 360 Deg. | 200 | 2700K | Warm White | 25,000 | 25 Watt Halogen |
| L-EDT3-2W-3K | 2 | 360° | 360 Deg. | 210 | 3000K | Cool White | 25,000 | 20 Watt Halogen |
| L-EDT3-AM | 2 | 360° | 360 Deg. | 170 | 2000K | Amber | 25,000 | 20 Watt Halogen |
| L-EDT3-2.5W | 2.5 | 180° | 180 Deg. | 240 | 2700K | Warm White | 25,000 | 40 Watt Halogen |
| L-EDT3-2.5W-3K | 2.5 | 180° | 180 Deg. | 250 | 3000K | Cool White | 25,000 | 20 Watt Halogen |
| Fixture | Finish | Finish Color | Lamp |
|---|---|---|---|
| CL-646B | Antique Bronze | See lamp guide suffix | |
| Example: | CL-646B | ||
