CL-717B
CL-717B

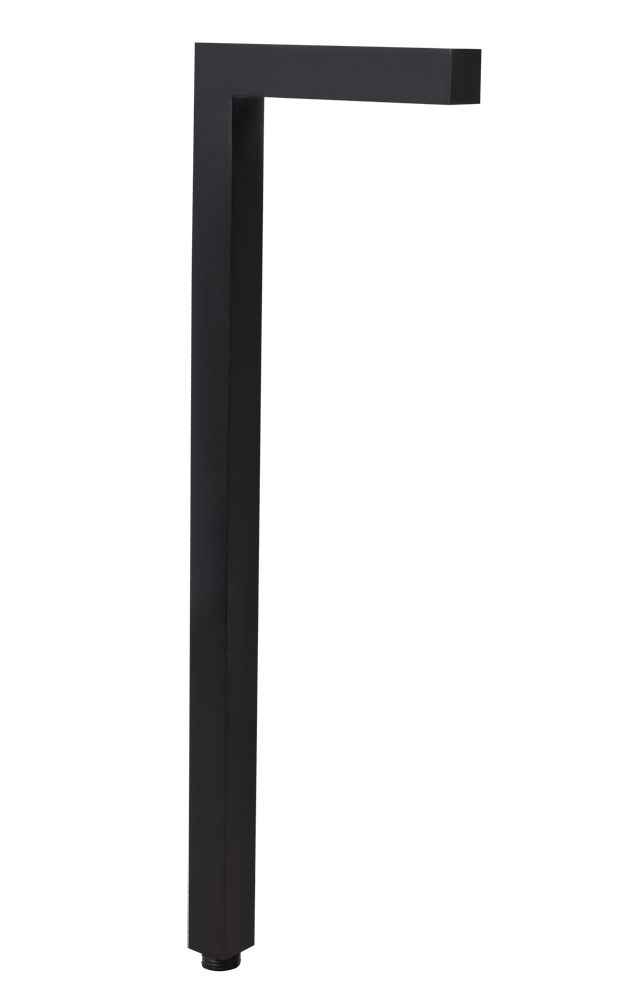

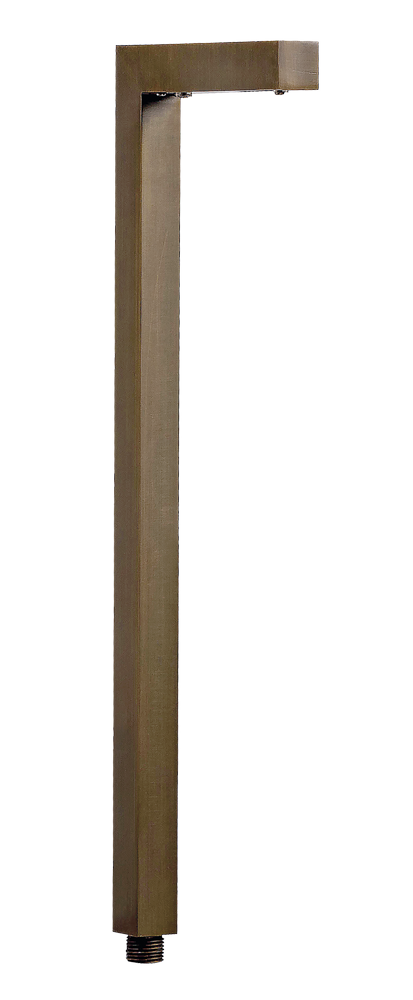

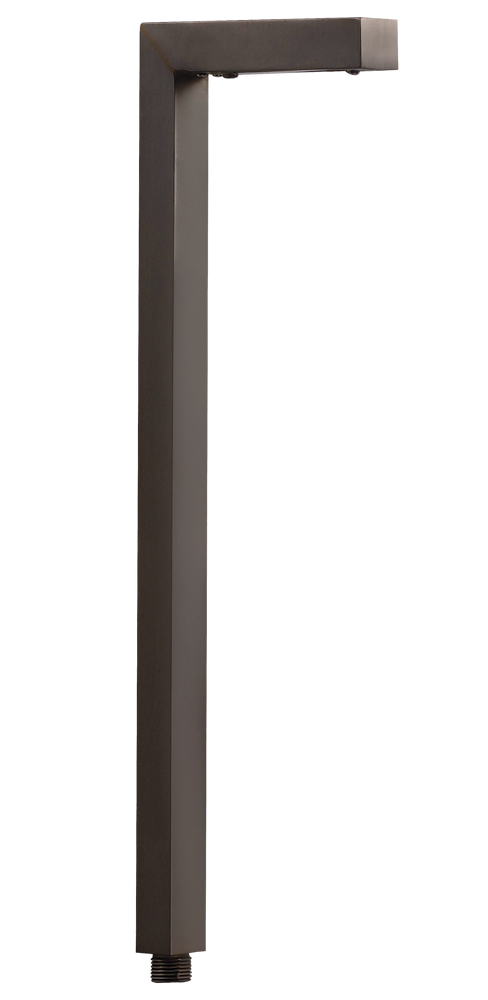

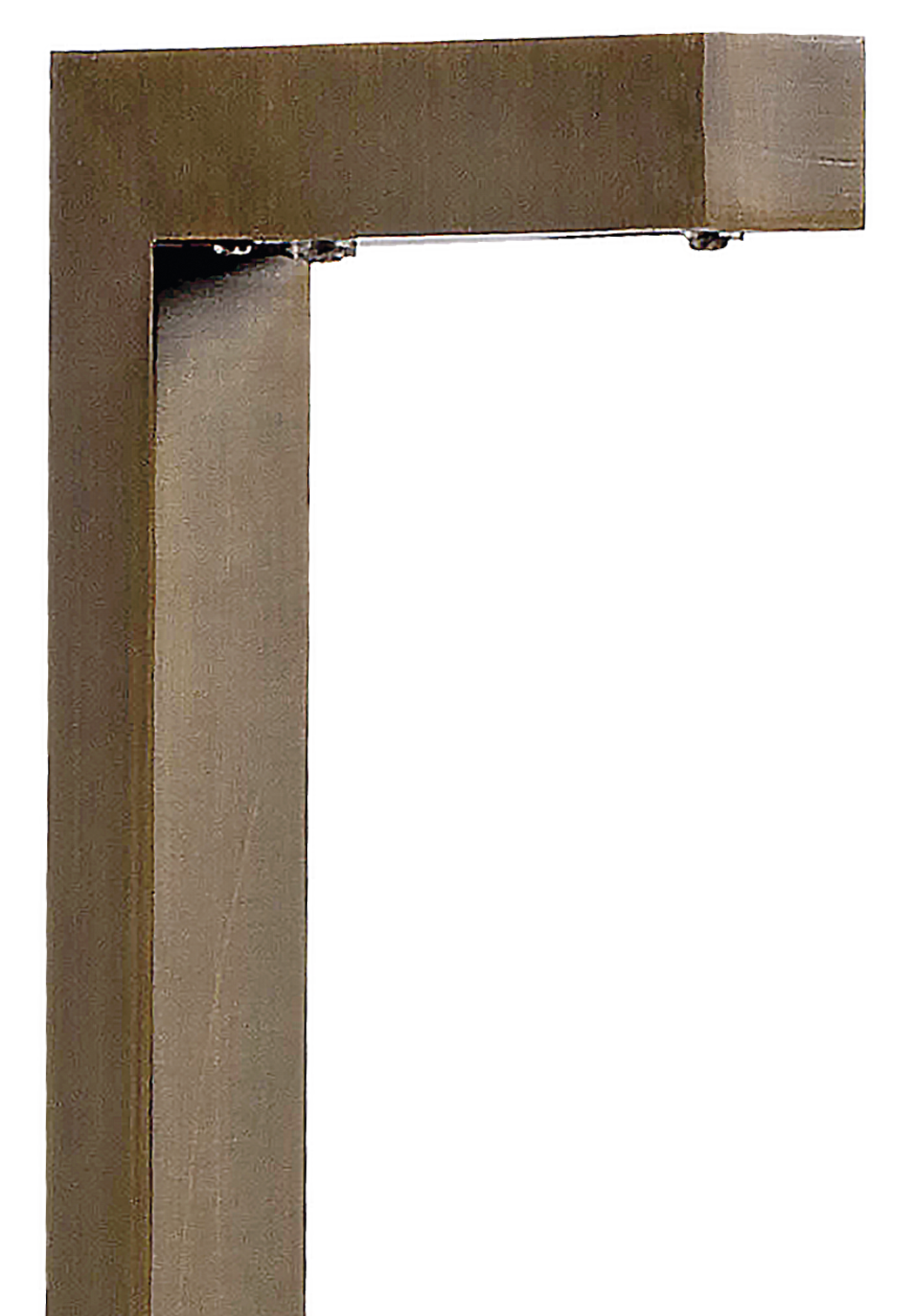

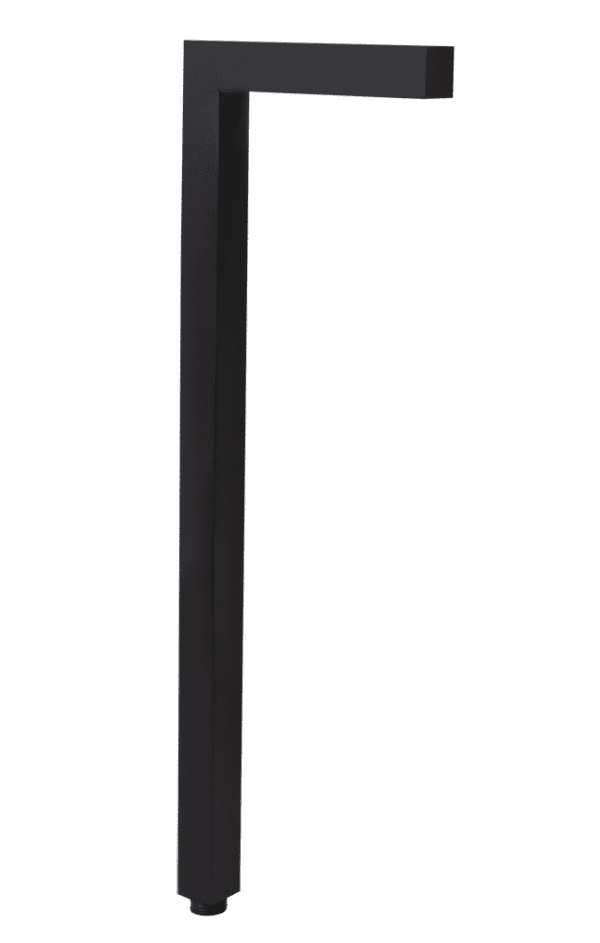

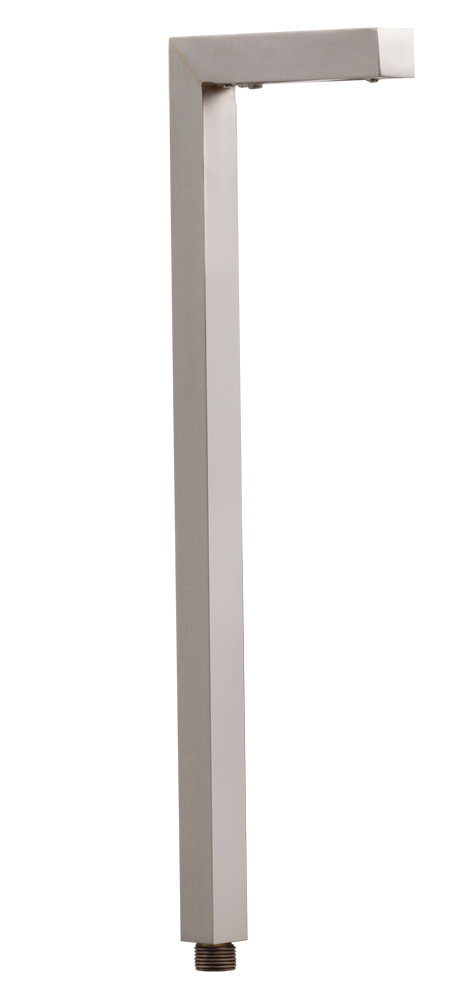

L-Shaped Modern Path Light available in Brass with Antique Bronze, Black Brass, Gun Metal & Silver Plated color finishes.
Material: Brass
Description: L-Shaped Modern Path Light
Lamp Type: T3
Lamp Supplied: No Lamp
Mounting Supplied: Plastic Ground Spike
Grade: Architectural
Dimensions
Size: 6”W x 18”H
Ship Weight LBS: 2
Downloads
Housing : Corrosion resistant solid brass 18in L-shaped design.
Lens : High impact, sandblasted, heat resistant, clear glass. Extra frosted and linear lenses included.
Socket : Top grade fixed ceramic bi-pin socket.
Lamp : 12V, T3, 3W max. LED Only. Not to be used with halogen or Xenon lamps.
Wiring : Fixture is prewired with a 3ft 18-2 SPT2-W direct burial cord. Wire connector available seperately. Universal connector (CX-839) or silicone filled wire nut (CX-854) may be ordered.
Mounting : Standard injection molded with 1/2" NPT threaded female hub.
Electrical : Voltage range with LED lamp is 9-17V. Remote 12 Volt transformer is required. See transformers and accessories for variety of options and choices.
WARRANTY : Limited lifetime warranty on fixture housing against manufacturer’s defects.
| Lamp Number | Watts | Beam Spread | Spread Text | Beam Lumen | Color Temp | Light Color | Rated Hours | Halogen Equiv |
|---|---|---|---|---|---|---|---|---|
| L-EDT3-2W | 2 | 360° | 360 Deg. | 200 | 2700K | Warm White | 25,000 | 25 Watt Halogen |
| L-EDT3-2W-3K | 2 | 360° | 360 Deg. | 210 | 3000K | Cool White | 25,000 | 20 Watt Halogen |
| L-EDT3-AM | 2 | 360° | 360 Deg. | 170 | 2000K | Amber | 25,000 | 20 Watt Halogen |
| L-EDT3-2.5W | 2.5 | 180° | 180 Deg. | 240 | 2700K | Warm White | 25,000 | 40 Watt Halogen |
| L-EDT3-2.5W-3K | 2.5 | 180° | 180 Deg. | 250 | 3000K | Cool White | 25,000 | 20 Watt Halogen |
| Fixture | Finish | Finish Color | Lamp |
|---|---|---|---|
| CL-717B | Antique Bronze | See lamp guide suffix | |
| Black Brass | |||
| Gun Metal | |||
| Silver Plated | |||
| Example: | CL-717B | ||
