CL-649B
CL-649B

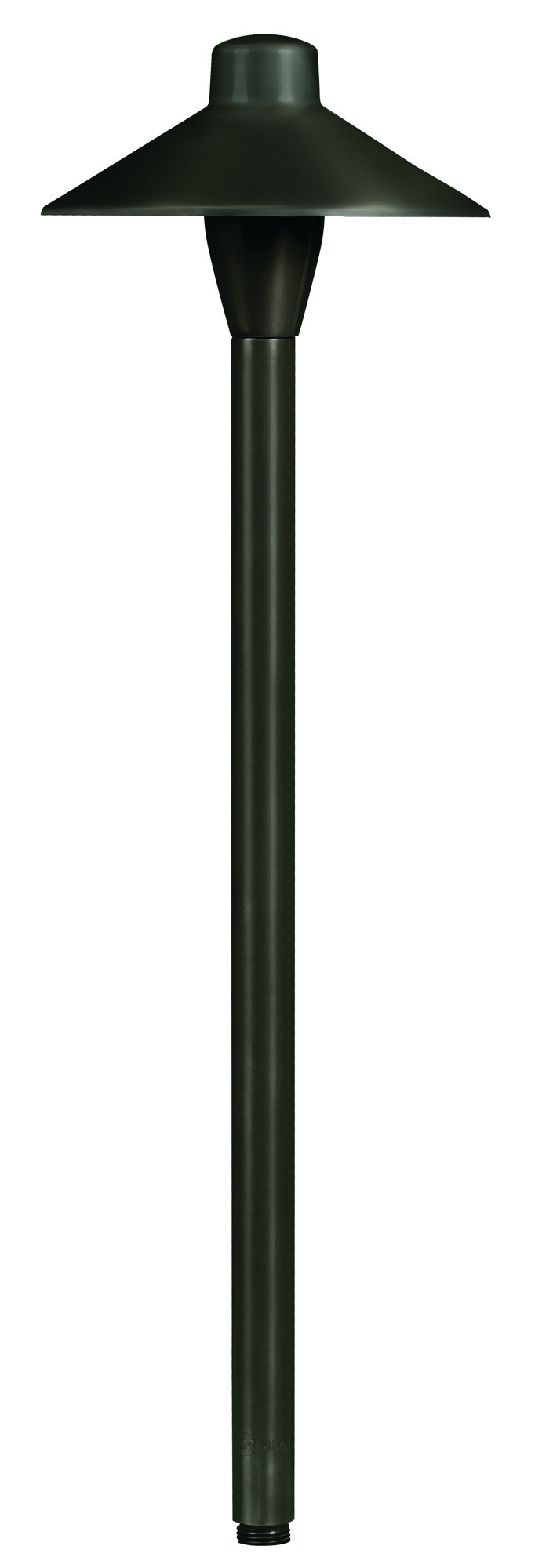

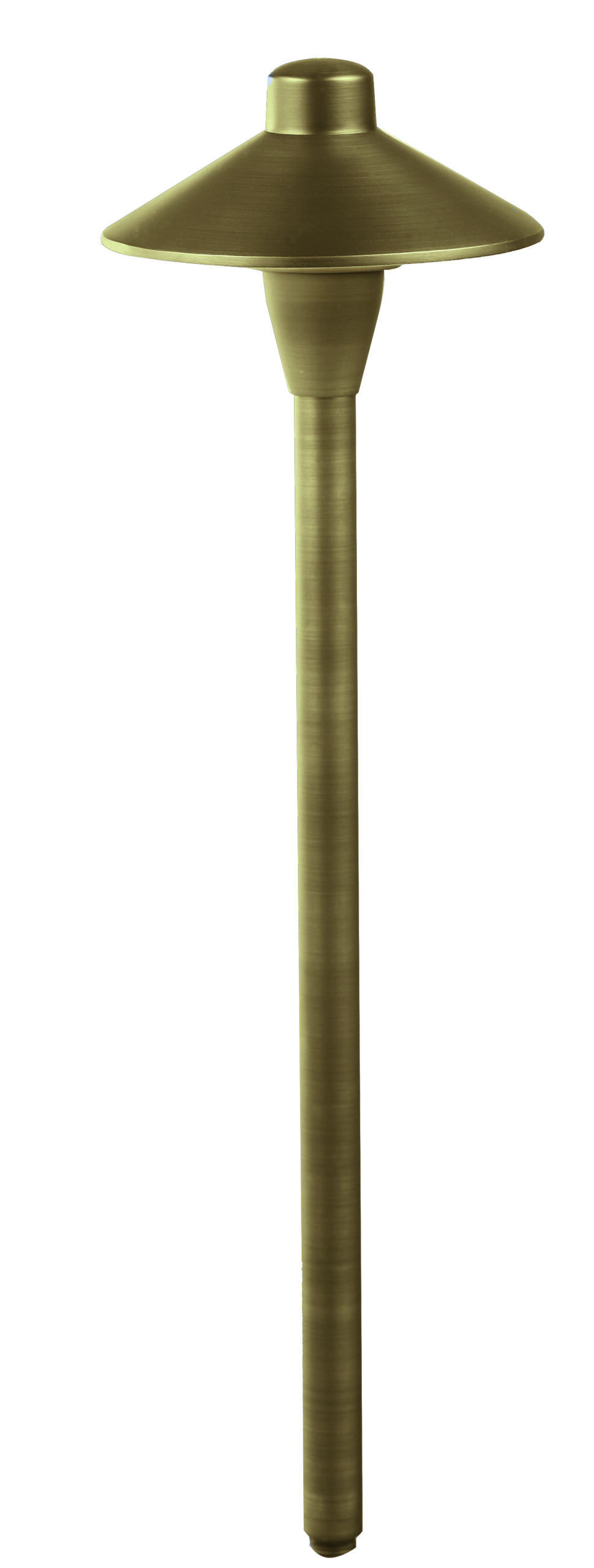

Brass Umbrella 18″ Stem Path Light, finished in Antique Bronze or Gun Metal.
Material: Brass
Description: Umbrella Path Light
Lamp Type: SCB
Mounting Supplied: Plastic Ground Spike
Grade: Architectural
Dimensions

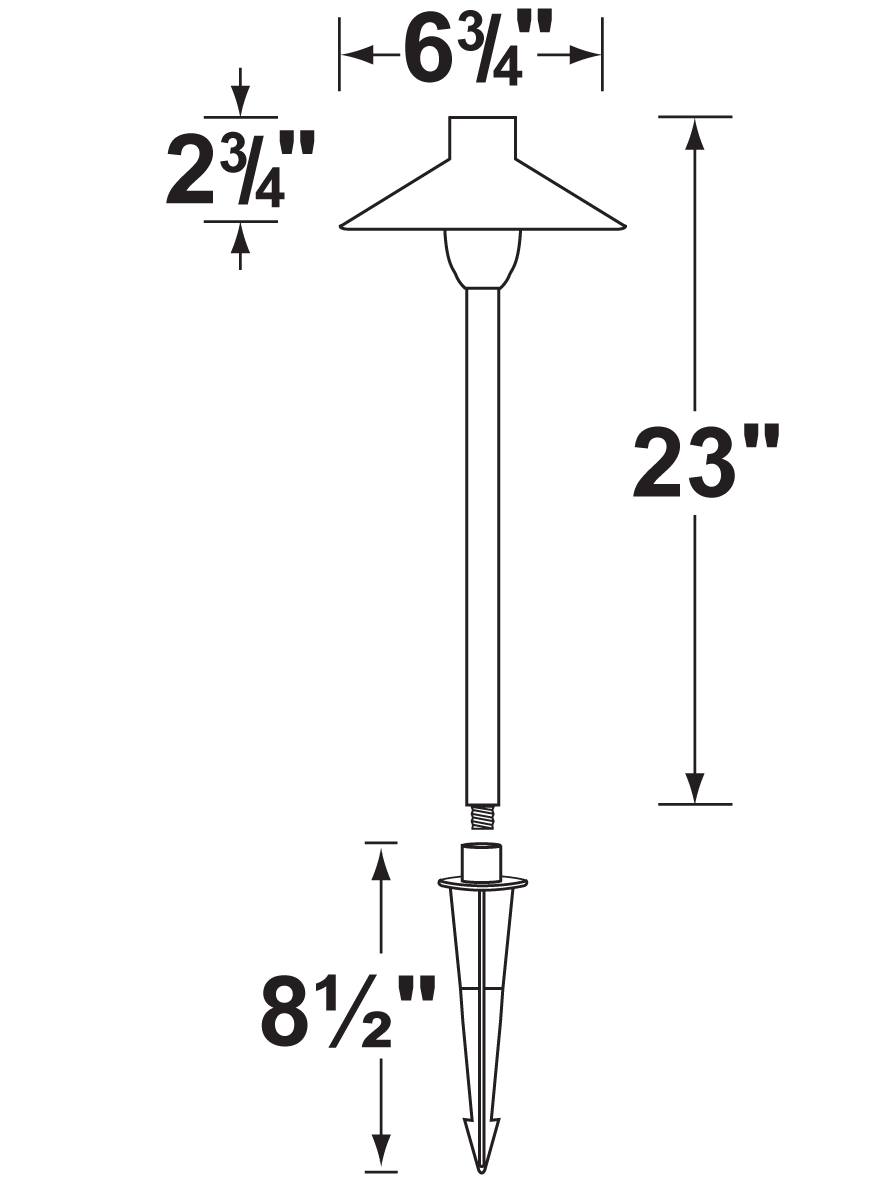

Size: 6¾” Dia x 23” High
Ship Weight LBS: 4
Downloads
Housing : Cast brass shade and stem
STEM : 18" Standard Stem for light control. Stems also available with 12" and 24"
Lens : Clear glass, covers over lamp providing sprinkler water protection. Frosted lens (CX-308-FR) available.
Socket : S.C. Bayonet socket, tooless free lamp access.
Lamp : 12V T3 LED. Available in 3W Bluetooth mesh smart RGB-WW; 2W, 2.5W LED or without lamp. Find the Lamp tab above for more information.
Wiring : Fixture is prewired with a 3ft 18-2 SPT2-W direct burial cord. Wire connector sold separately. Quick-locking connectors (CX-LOC) are available from Corona Lighting. See accessories for details
Mounting : 8" Standard injection molded spike with ½" NPT threaded female hub.
Electrical : Voltage range with LED lamp is 9-17V. Voltage range for BT lamps are 9-17V, LED are 8-21V. A remote 12V transformer is required. Visit the transformers page for our line of options. Proper grease/lubricant is suggested on threaded parts during installation process
WARRANTY : Limited lifetime warranty on fixture housing against manufacturer’s defects.
| Lamp Number | Watts | Beam Spread | Spread Text | Beam Lumen | Color Temp | Light Color | Rated Hours | Halogen Equiv |
|---|---|---|---|---|---|---|---|---|
| L-EDBA-3W-BT | 0.5 - 3W | 360º | 360 Deg. | 10-200 | 2200K-5700K | Color Changing | 50,000 | |
| L-EDBA-2W | 2 | 360° | 360 Deg. | 200 | 2700K | Warm White | 25,000 | 20 Watt Halogen |
| L-EDBA-2W-3K | 2 | 360° | 360 Deg. | 210 | 3000K | Cool White | 25,000 | 20 Watt Halogen |
| L-EDBA-AM | 2 | 360° | 360 Deg. | 170 | 2000K | Amber | 25,000 | 20 Watt Halogen |
| L-EDBA-2.5W | 2.5 | 180° | 180 Deg. | 240 | 2700K | Warm White | 25,000 | 35 Watt Halogen |
| L-EDBA-2.5W-3K | 2.5 | 180° | 180 Deg. | 250 | 3000K | Cool White | 25,000 | 20 Watt Halogen |
| Fixture | Finish | Finish Color | Lamp |
|---|---|---|---|
| CL-649B | Antique Bronze | See lamp guide suffix | |
| Gun Metal | |||
| Example: | CL-649B | ||
