CL-550B
CL-550B

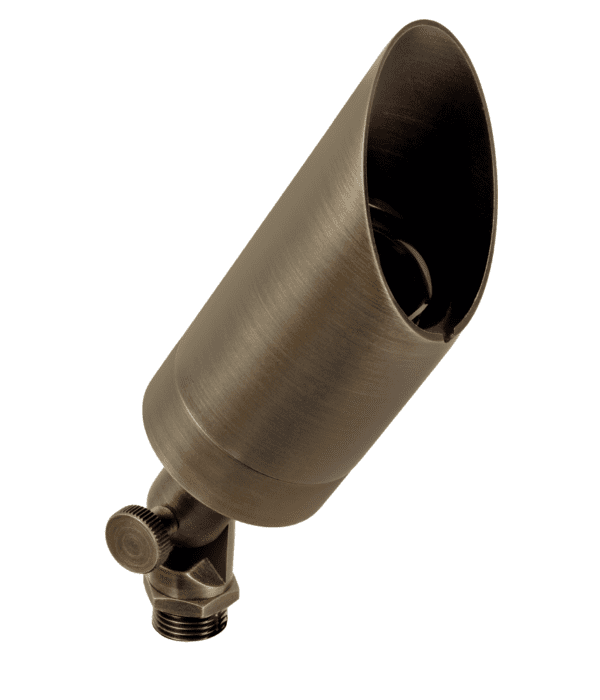

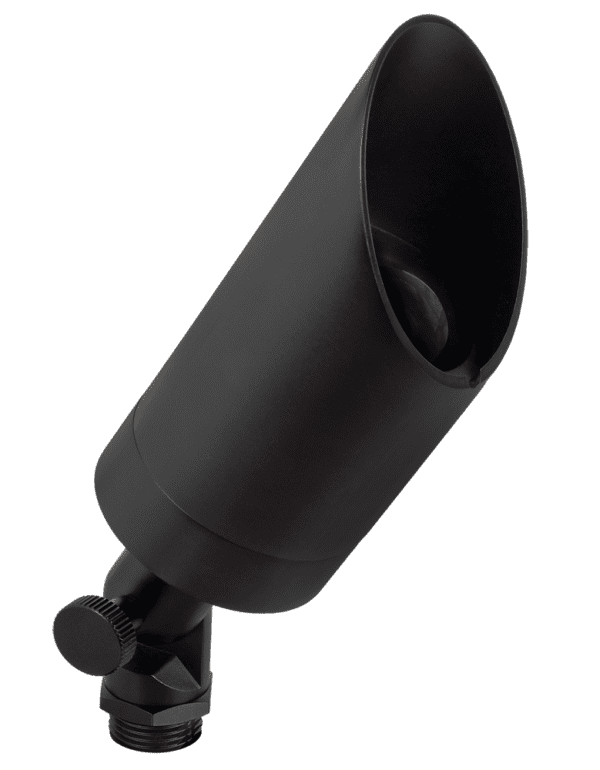

Brass Hooded Bullet Up-Light, available in Antique Bronze, and Black Brass
Material: Brass
Style: Bullet
Description: Brass Bullet Directional Light
Lamp Type: MR-16
Lamp Supplied: No Lamp
Mounting Supplied: Ground Spike
Grade: Architectural
Dimensions

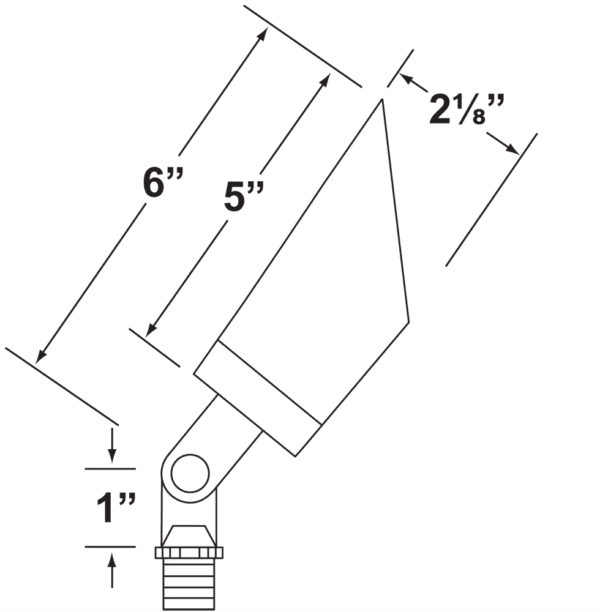

Dimensions: 2⅛” x 6”
Ship Weight LBS: 1.50
Spec Sheets
Housing : Corrosion Resistant Cast Brass.
Lens : Clear and heat resistant convex glass.
Fixture Socket : Top grade fixed ceramic bi-pin socket, with lamp retention clip to securely hold lamp in place
Lamp : 12V, MR-16 LED. Available in LED (3.5W, 5W & 6W) or without lamp. See the Lamps section for more information.
Wiring : Fixture is pre-wired with a 3-ft 18-2 SPT2-W direct burial cord. Wire connector sold separately. Silicone filled direct burial wire nut (CX-854) and quick locking connectors (CX-LOC) are available from Corona Lighting.
Gasket: Silicone double gasket for water tight sealing.
Knuckle : Adjustable cast brass knuckle with thumb screw and ½” NPT threaded male hub on bottom.
Mounting : Standard injection molded spike with ½” NPT threaded female hub.
Electrical : A remote 12V transformer is required. Options are available from Corona Lighting. Voltage range for LED lamps are 9V-17V. See Transformers & Accessories for options.
| Lamp Number | Watts | Beam Spread | Spread Text | Beam Lumen | Color Temp | Light Color | Rated Hours | Halogen Equiv |
|---|---|---|---|---|---|---|---|---|
| L-ED16-3W-FL | 3.5 | 45° FL | Flood | 270 | 2700K | Warm White | 50,000 | 25 Watt Halogen |
| L-ED16-3W-WF | 3.5 | 60° WF | Wide Flood | 270 | 2700K | Warm White | 50,000 | 25 Watt Halogen |
| L-ED16-3W-SP | 3.5 | 15° SP | Spot | 270 | 2700K | Warm White | 50,000 | 25 Watt Halogen |
| L-ED16-5W-SP | 5 | 15° SP | Spot | 350 | 2700K | Warm White | 50,000 | 40 Watt Halogen |
| L-ED16-5W-FL | 5 | 45° FL | Flood | 350 | 2700K | Warm White | 50,000 | 40 Watt Halogen |
| L-ED16-5W-WF | 5 | 60° WF | Wide Flood | 350 | 2700K | Warm White | 50,000 | 40 Watt Halogen |
| L-ED16-COB5W-SP | 5 | 15° SP | Spot | 450 | 2700K | Warm White | 50,000 | 50 Watt Halogen |
| L-ED16-COB5W-FL | 5 | 38° FL | Flood | 450 | 2700K | Warm White | 50,000 | 50 Watt Halogen |
| L-ED16-COB5W-WF | 5 | 60° WF | Wide Flood | 450 | 2700K | Warm White | 50,000 | 50 Watt Halogen |
| L-ED16-COB5W-SP3K | 5 | 15° SP | Spot | 470 | 3000K | Cool White | 50,000 | 50 Watt Halogen |
| L-ED16-COB5W-FL3K | 5 | 38° FL | Flood | 470 | 3000K | Cool White | 50,000 | 50 Watt Halogen |
| L-ED116-COB5W-WF3K | 5 | 60° WF | Wide Flood | 470 | 3000K | Cool White | 50,000 | 50 Watt Halogen |
| L-ED16-6W-SP | 6 | 15° SP | Spot | 600 | 2700K | Warm White | 50,000 | 75 Watt Halogen |
| L-ED16-6W-FL | 6 | 38° FL | Flood | 600 | 2700K | Warm White | 50,000 | 75 Watt Halogen |
| L-ED16-6W-WF | 6 | 60° WF | Wide Flood | 600 | 2700K | Warm White | 50,000 | 75 Watt Halogen |
| L-ED16-6W-SP-3K | 6 | 15° SP | Spot | 600 | 3000K | Cool White | 50,000 | 75 Watt Halogen |
| L-ED16-6W-FL-3K | 6 | 38° FL | Flood | 600 | 3000K | Cool White | 50,000 | 75 Watt Halogen |
| L-ED16-6W-WF-3K | 6 | 60° WF | Wide Flood | 600 | 3000K | Cool White | 50,000 | 75 Watt Halogen |
| Fixture | Finish | Finish Color | Lamp |
|---|---|---|---|
| CL-550B | Antique Bronze | See lamp guide suffix | |
| Black Brass | |||
| Example: | CL-550B | ||
