CL-221
CL-221

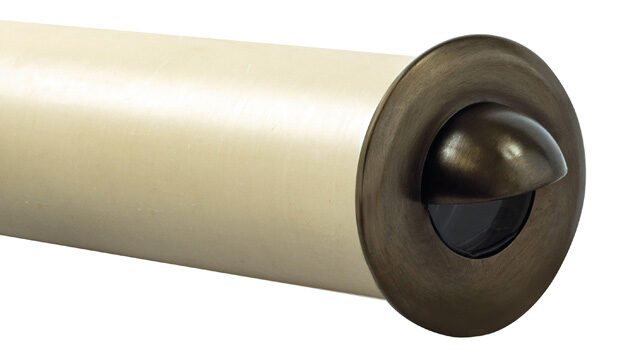

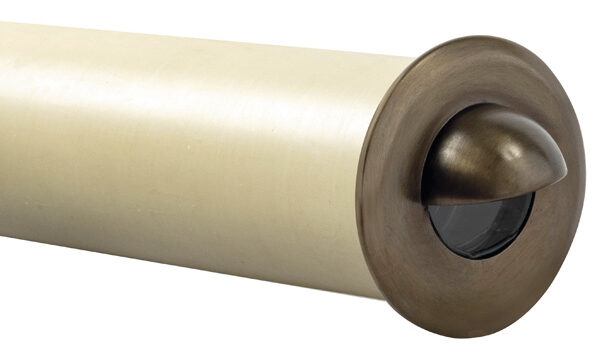

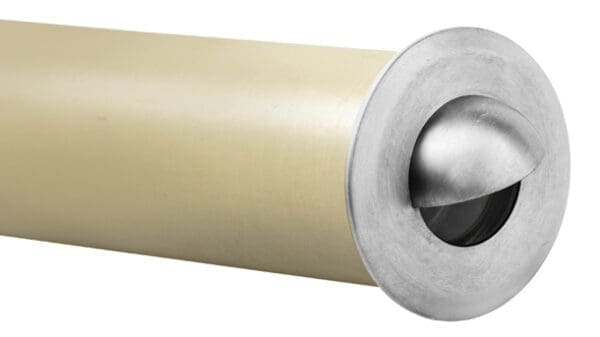

Multi-use Specialty Light with a Brass Half-Moon faceplate housed with a PVC tube, finished in Antique Bronze, Gun Metal or Silver Plated.
Material: Brass
Description: Heavy duty Brass Half-Moon multi-purpose Specialty Light
Lamp Type: Integrated LED
Light Source : 3W Integrated LED
Mounting Supplied: PVC Sleeve
Grade: Architectural

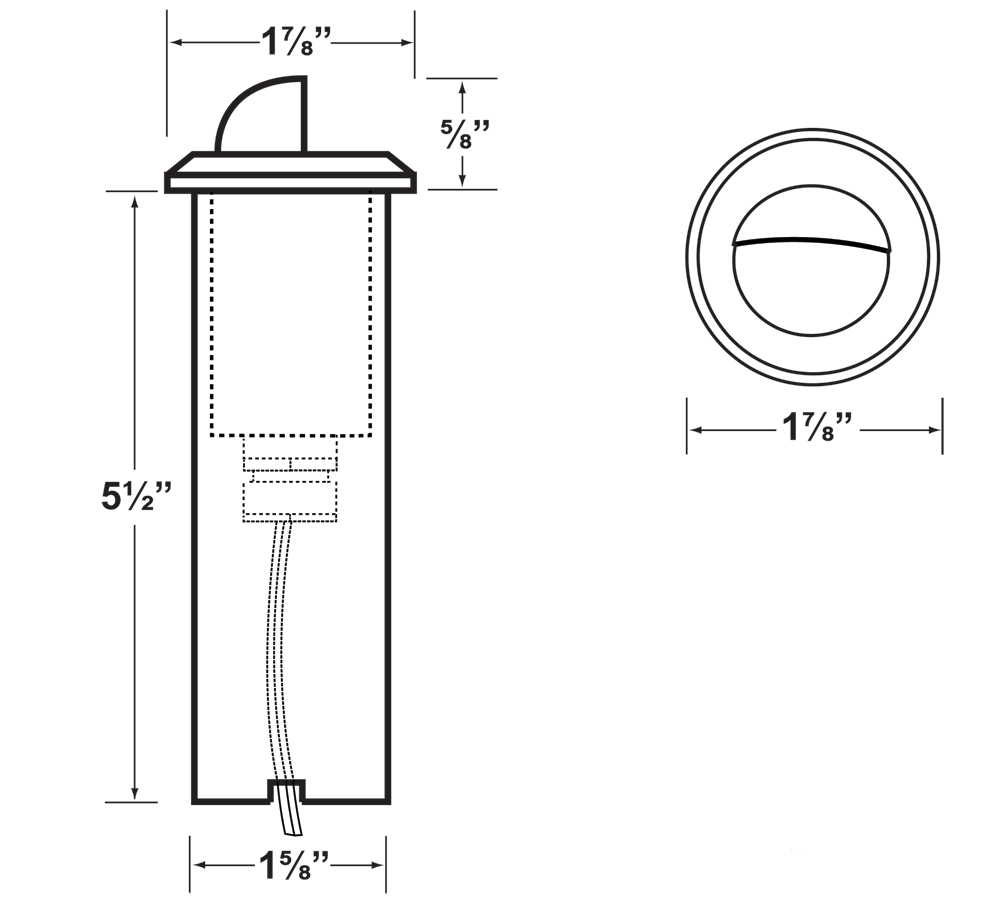

Dimensions
Size: 1⅞” Dia x 5½” Deep
Ship Weight LBS: 1
Downloads
Housing : Heavy duty corrosion resistant cast brass with PVC sleeve.
Lens : Clear and heat resistant tempered flat glass with 7 color filters included.
Socket : Integrated CREE LED module.
Lamp : 12V, 3 Watt, 210 lumens, 120º beam spread, 3000K, 20W halogen equivalent.
Wiring : Fixture is prewired with a 18-2 20ft SPT-1W direct burial cord, pre-stripped for easy connection. Wire connector sold separately. Quick-locking connectors (CX-LOC) are available from Corona Lighting. See accessories for details
Mounting : Recessed flush mount (multi-purpose).
APPLICATIONS : Best used in concrete, brick, or other masonry surfaces and small fountains.
Electrical : Integrated CREE LED module is dimmable. A remote 12V magnetic transformer is required. Visit the transformers page for our line of options. Not for use with electronic transformers.
WARRANTY : Ten (10) years warranty on fixture housing against manufacturer’s defects.
No matching lamps found.
Cable Connector
| Part # | Description |
|---|---|
| CX-LOC | Quick-Locking Wire Connector, 2 pack |
Mounting Tools
| Part # | Description |
|---|---|
| CX-237 | Concrete Pour Kit used with CL-216, CL-217, CL-218, CL-316B, CL-317B, CL-318B, CL-319B, CL-337, CL-338, CL-339, CL-340 |
| Fixture | Finish | Finish Color | Lamp |
|---|---|---|---|
| CL-221 | Antique Bronze | See lamp guide suffix | |
| Gun Metal | |||
| Silver Plated | |||
| Example: | CL-221 | ||
