CL-231
CL-231

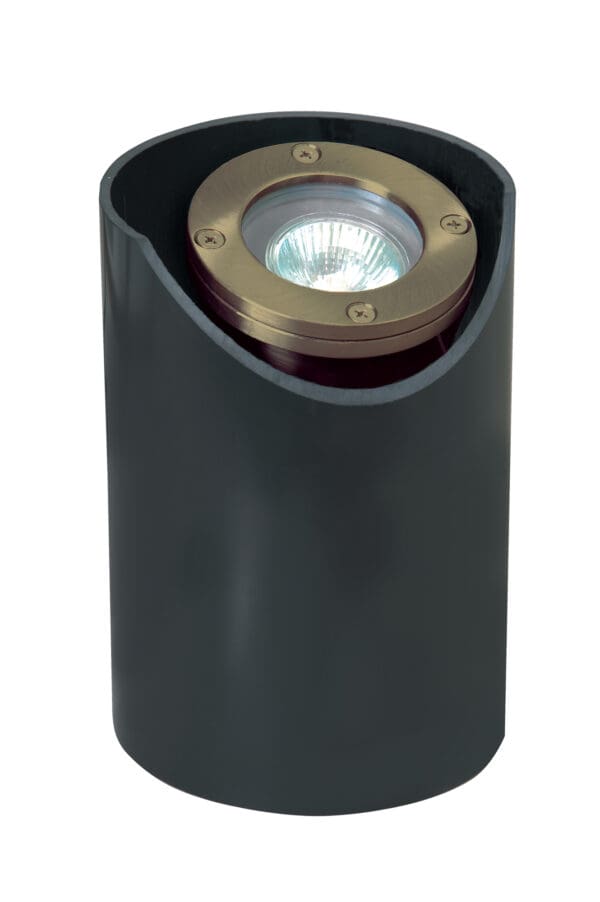

Adjustable Lensed Well Light available in Brass & Stainless Steel with Antique Bronze & 316 Marine Stainless Steel color finishes.
Material: Brass & Stainless Steel
Style: Adjustable Lensed Well Light
Description: Adjustable Lensed Well Light
Lamp Type: MR-16
Lamp Supplied: No Lamp
Mounting Supplied: Direct Burial
Grade: Architectural

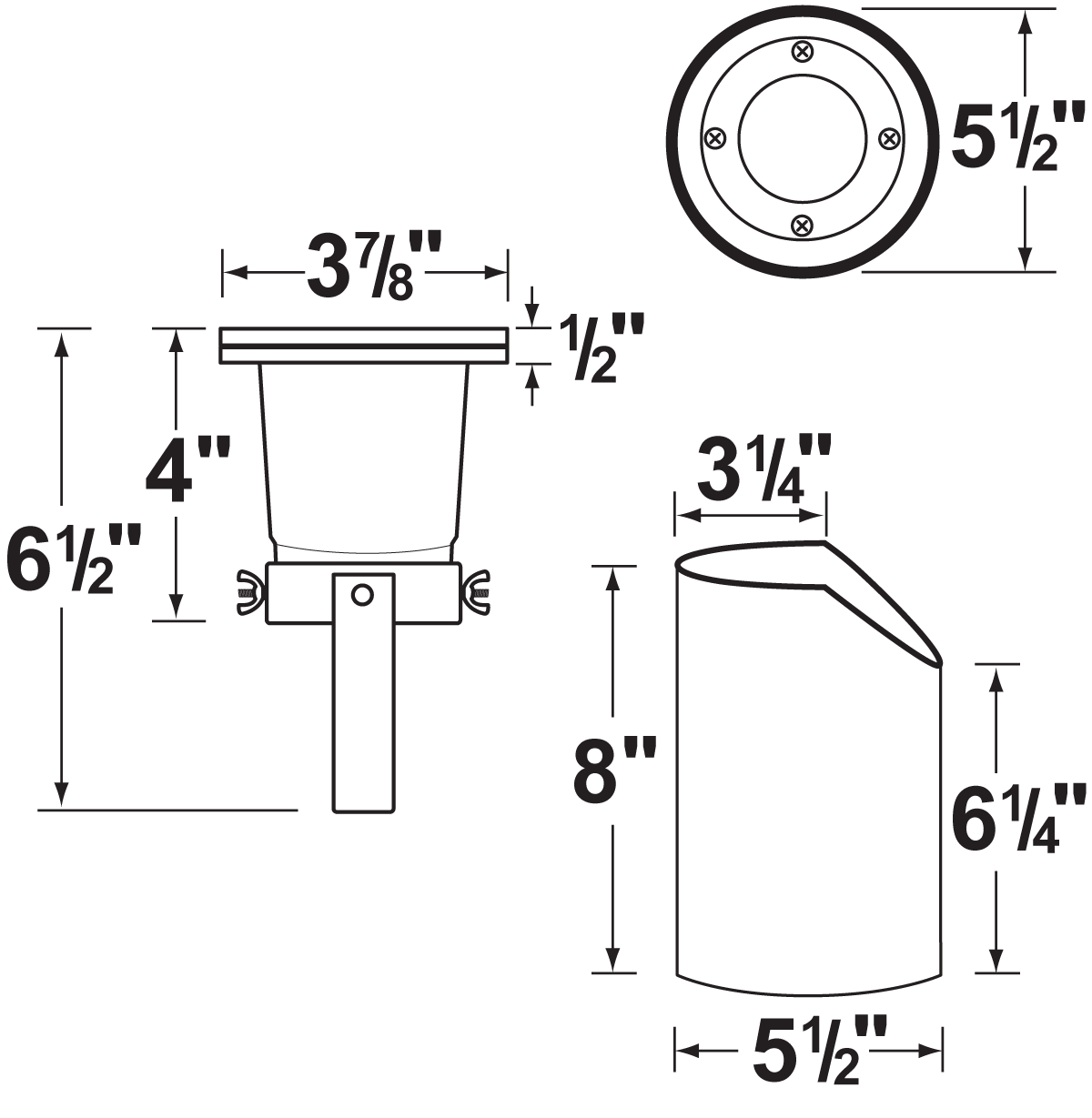

Dimensions
Dimensions: 5½” Dia x 8” Deep
Ship Wight LBS: 5.5
Spec Sheet
Housing : Cast brass & 316 grade stainless steel adjustable fixture, suspended inside a reversible PVC sleeve with both flat and angle-cut options on either end.
Lens : Clear, tempered and head resistant convex glass. Extra flat lens included.
Fixture Socket : Top grade ceramic bi-pin socket with retention clip.
Lamp : 12V MR-16, 50W (halogen) max.
Wiring : Fixture is prewired with a 3-ft 18-2 SPT2-W direct burial cord. Wire connector available seperately. Universal connector (CX-839) or silicone filled wire nut (CX-854) may be ordered.
Gasket: Silicone o-ring gasket, tightly sealing lens to housing to provide weather-tight protection.
Mounting : PVC Sleeve for In-ground direct burial or concrete encasement.
Electrical : Voltage range with LED lamp is 9-17V. Remote 12 Volt transformer is required. See transformers and accessories for variety of options and choices.
| Lamp Number | Watts | Beam Spread | Spread Text | Beam Lumen | Color Temp | Light Color | Rated Hours | Halogen Equiv |
|---|---|---|---|---|---|---|---|---|
| L-ED16-3W-FL | 3.5 | 45° FL | Flood | 270 | 2700K | Warm White | 50,000 | 25 Watt Halogen |
| L-ED16-3W-WF | 3.5 | 60° WF | Wide Flood | 270 | 2700K | Warm White | 50,000 | 25 Watt Halogen |
| L-ED16-3W-SP | 3.5 | 15° SP | Spot | 270 | 2700K | Warm White | 50,000 | 25 Watt Halogen |
| L-ED16-5W-SP | 5 | 15° SP | Spot | 350 | 2700K | Warm White | 50,000 | 40 Watt Halogen |
| L-ED16-5W-FL | 5 | 45° FL | Flood | 350 | 2700K | Warm White | 50,000 | 40 Watt Halogen |
| L-ED16-5W-WF | 5 | 60° WF | Wide Flood | 350 | 2700K | Warm White | 50,000 | 40 Watt Halogen |
| L-ED16-COB5W-SP | 5 | 15° SP | Spot | 450 | 2700K | Warm White | 50,000 | 50 Watt Halogen |
| L-ED16-COB5W-FL | 5 | 38° FL | Flood | 450 | 2700K | Warm White | 50,000 | 50 Watt Halogen |
| L-ED16-COB5W-WF | 5 | 60° WF | Wide Flood | 450 | 2700K | Warm White | 50,000 | 50 Watt Halogen |
| L-ED16-COB5W-SP3K | 5 | 15° SP | Spot | 470 | 3000K | Cool White | 50,000 | 50 Watt Halogen |
| L-ED16-COB5W-FL3K | 5 | 38° FL | Flood | 470 | 3000K | Cool White | 50,000 | 50 Watt Halogen |
| L-ED116-COB5W-WF3K | 5 | 60° WF | Wide Flood | 470 | 3000K | Cool White | 50,000 | 50 Watt Halogen |
| L-ED16-6W-SP | 6 | 15° SP | Spot | 600 | 2700K | Warm White | 50,000 | 75 Watt Halogen |
| L-ED16-6W-FL | 6 | 38° FL | Flood | 600 | 2700K | Warm White | 50,000 | 75 Watt Halogen |
| L-ED16-6W-WF | 6 | 60° WF | Wide Flood | 600 | 2700K | Warm White | 50,000 | 75 Watt Halogen |
| L-ED16-6W-SP-3K | 6 | 15° SP | Spot | 600 | 3000K | Cool White | 50,000 | 75 Watt Halogen |
| L-ED16-6W-FL-3K | 6 | 38° FL | Flood | 600 | 3000K | Cool White | 50,000 | 75 Watt Halogen |
| L-ED16-6W-WF-3K | 6 | 60° WF | Wide Flood | 600 | 3000K | Cool White | 50,000 | 75 Watt Halogen |
| Fixture | Finish | Finish Color | Lamp |
|---|---|---|---|
| CL-231 | Antique Bronze | See lamp guide suffix | |
| Stainless Steel | |||
| Example: | CL-231 | ||
