CL-207

CL-207

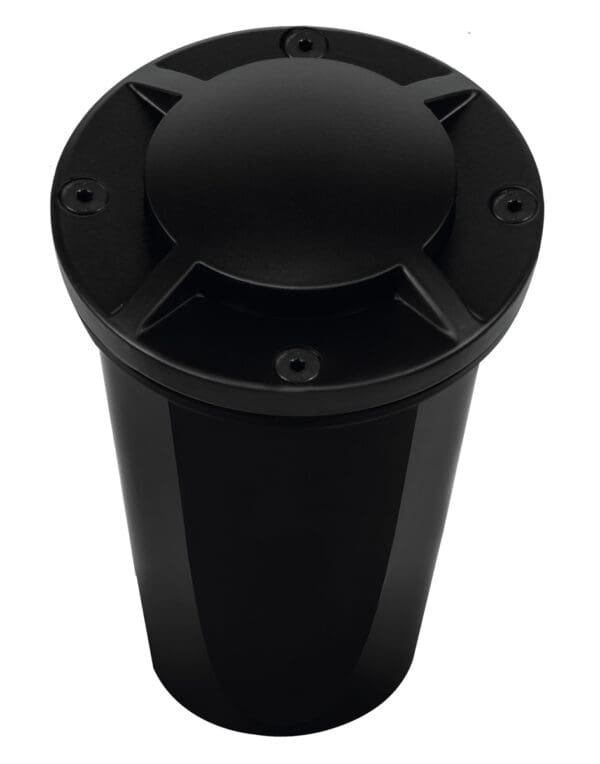

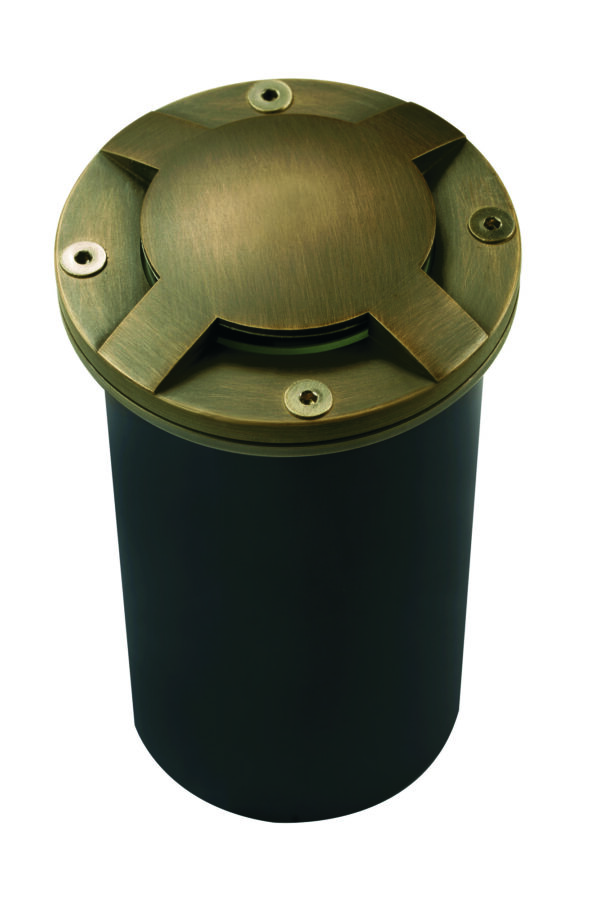

360º 4-Direction Marker Light available in Brass with Antique Bronze color finish.

Material: Brass
Style: 360º 4-Direction Marker Light
Description: 360 deg. Marker Well Light
Lamp Type: MR-16
Lamp Supplied: No Lamp
Mounting Supplied: Direct Burial
Grade: Architectural

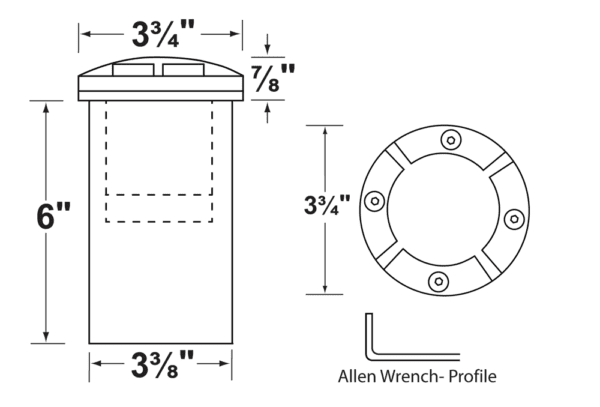

Dimensions

Dimensions: 3¾” Dia x 6⅞” Deep
Ship Wight LBS: 2

Spec Sheet

Product NameSpec Sheet
CL-207 download
Housing : Cast brass fixture mounted with stainless steel retention clips inside PVC sleeve.
Lens : Clear, tempered and heat resistant raised flat glass.
Fixture Socket : Top grade ceramic bi-pin socket with retention clip.
Lamp : 12V MR-16, 50W (halogen) max.
Wiring : Fixture is prewired with a 3-ft 18-2 SPT2-W direct burial cord. Wire connector available seperately. Universal connector (CX-839) or silicone filled wire nut (CX-854) may be ordered.
Gasket: Silicone o-ring gasket, tightly sealing lens to housing to provide weather-tight protection.
Mounting : PVC Sleeve for In-ground direct burial or concrete encasement.
Electrical : Voltage range with LED lamp is 9-17V. Remote 12 Volt transformer is required. See transformers and accessories for variety of options and choices.
Lamp NumberWattsBeam SpreadSpread TextBeam LumenColor Temp Light Color Rated Hours Halogen Equiv
L-ED16-3W-FL3.545° FLFlood2702700KWarm White50,00025 Watt Halogen
L-ED16-3W-WF3.560° WFWide Flood2702700KWarm White50,00025 Watt Halogen
L-ED16-3W-SP3.515° SPSpot2702700KWarm White50,00025 Watt Halogen
L-ED16-5W-SP515° SPSpot3502700KWarm White50,00040 Watt Halogen
L-ED16-5W-FL545° FLFlood3502700KWarm White50,00040 Watt Halogen
L-ED16-5W-WF560° WFWide Flood3502700KWarm White50,00040 Watt Halogen
L-ED16-COB5W-SP515° SPSpot4502700KWarm White50,00050 Watt Halogen
L-ED16-COB5W-FL538° FLFlood4502700KWarm White50,00050 Watt Halogen
L-ED16-COB5W-WF560° WFWide Flood4502700KWarm White50,00050 Watt Halogen
L-ED16-COB5W-SP3K515° SPSpot4703000KCool White50,00050 Watt Halogen
L-ED16-COB5W-FL3K538° FLFlood4703000KCool White50,00050 Watt Halogen
L-ED116-COB5W-WF3K560° WFWide Flood4703000KCool White50,00050 Watt Halogen
L-ED16-6W-SP615° SPSpot6002700KWarm White50,00075 Watt Halogen
L-ED16-6W-FL638° FLFlood6002700KWarm White50,00075 Watt Halogen
L-ED16-6W-WF660° WFWide Flood6002700KWarm White50,00075 Watt Halogen
L-ED16-6W-SP-3K615° SPSpot6003000KCool White50,00075 Watt Halogen
L-ED16-6W-FL-3K638° FLFlood6003000KCool White50,00075 Watt Halogen
L-ED16-6W-WF-3K660° WFWide Flood6003000KCool White50,00075 Watt Halogen
Fixture Finish Finish Color Lamp
CL-207Antique BronzeSee lamp guide suffix
Example: CL-207
