CL-MINI-BT
CL-MINI-BT

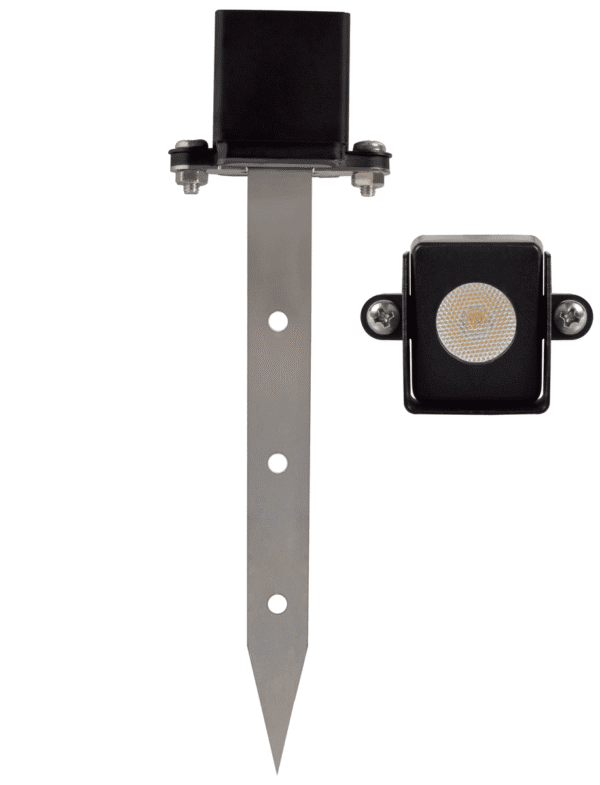

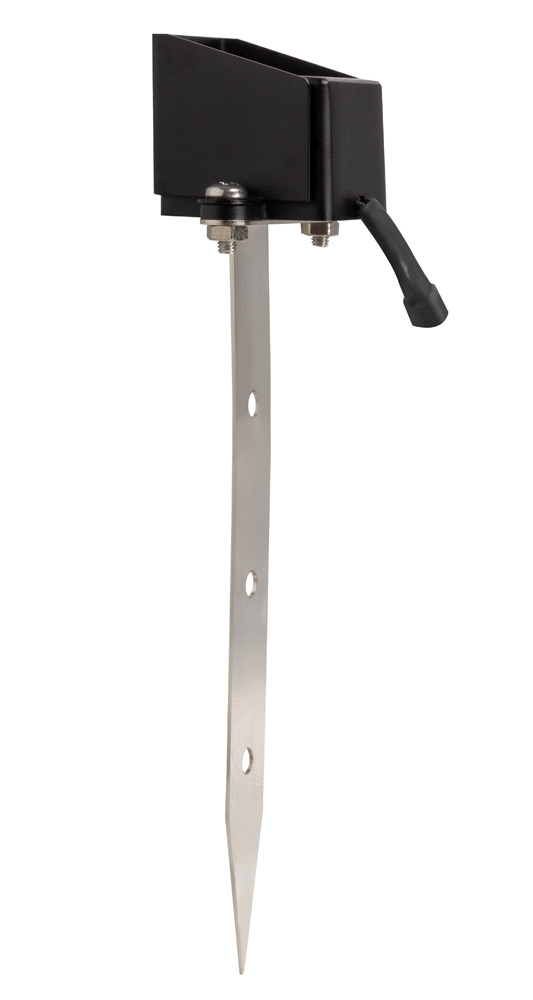

Brass Fiat Lux smart RGB-WW mini light with 6″ stainless steel stake and glare shield, in a Black Brass finish.
Material: Brass
Description: RGB-WW Bluetooth LED Mini Stake Light
Lamp Type: Replaceable LED capsule.
Lamp Supplied: 1-2W LED module
Mounting Supplied: Optional 6” stainless steel stake
Grade: Architectural
Dimensions

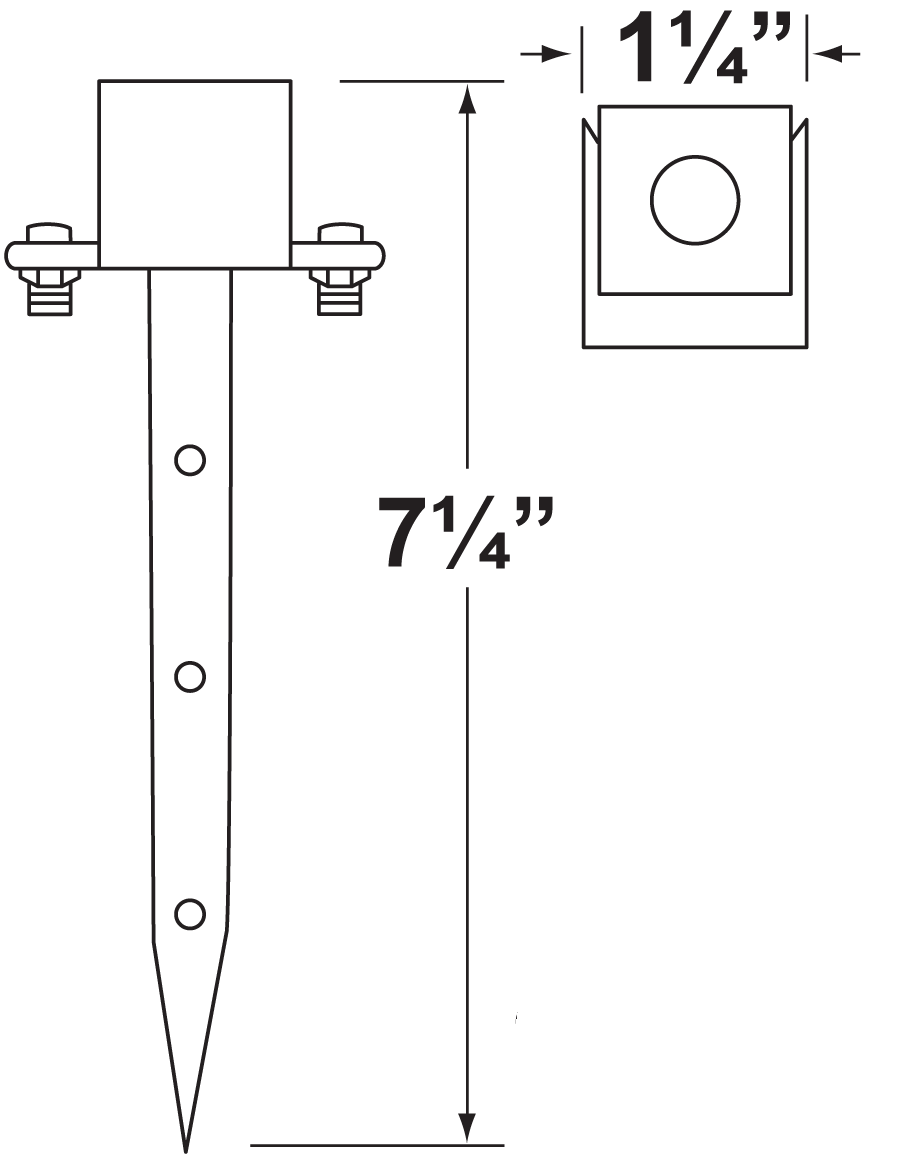

Size: 1¼” W x 7¼” L
Ship Weight LBS: 1
Downloads
Housing : Corrosion resistant cast brass
Socket : Replaceable LED module
Lamp : 1-2W RGB LED module. Lumen output is between 15LM - 100LM. 45º beam spread
CONNECTION: Bluetooth Mesh Technology, Range Extender (CX-BTE) is highly recommended. See Accessories tab for information
RATING : IP68
Wiring : Fixture is prewired with a 10ft SPT-1W wire.
Wire connector sold separately. Quick-locking connectors (CX-LOC) are available from Corona Lighting. See accessories for more information
Mounting : Optional 6” stainless steel stake
APPLICATIONS : Suitable for fountains, ponds, waterfalls, stone lanterns, rock beds, underneath steps, etc.
Any place a small beam of light is needed. Do not use in swimming pools, lakes or spas.
Electrical : A remote 12V magnetic transformer is required.
Visit transformers page for our line of options.
Not for use with electronic transformers.
Voltage range for LED module is: 9-17V (2.5VA), Ambient temperature: -22ºF to 176ºF, CRI: >85
WARRANTY : 10 year warranty, with a rated life of 50,000 hours.
No matching lamps found.
Cable Connector
| Part # | Description |
|---|---|
| CX-LOC | Quick-Locking Wire Connector, 2 pack |
Fiat Lux Accessories
| Part # | Description |
|---|---|
| CX-BTE | Bluetooth Mesh Range Extender, transmission range: 260 ft |
| CX-BTG | Wireless Bluetooth Mesh Gateway |
| Fixture | Finish | Finish Color | Lamp |
|---|---|---|---|
| CL-MINI-BT | Black Brass | See lamp guide suffix | |
| Example: | CL-MINI-BT | ||
