CL-732B

CL-732B

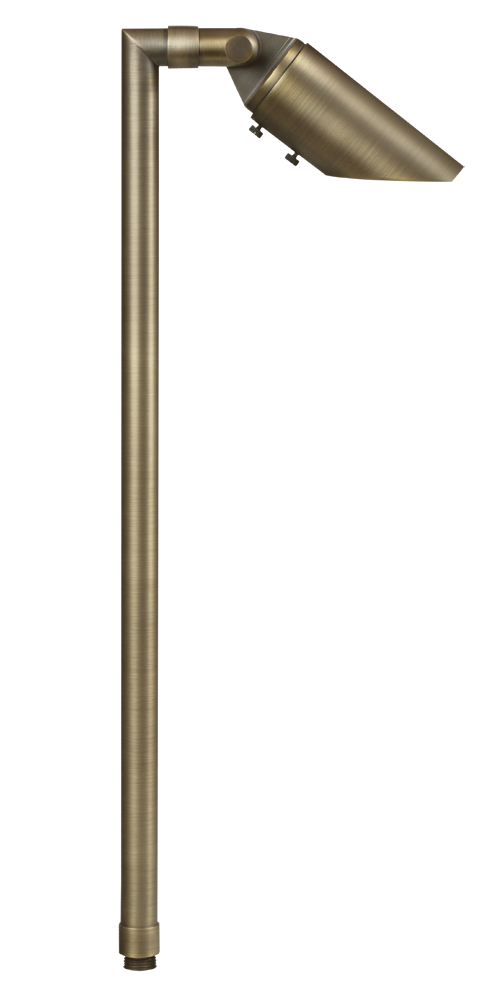

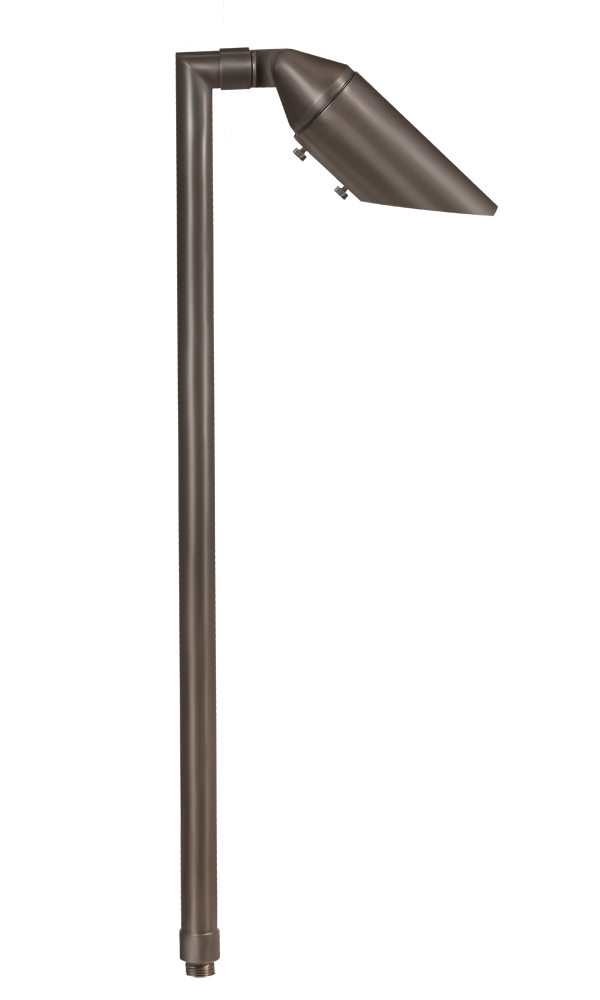

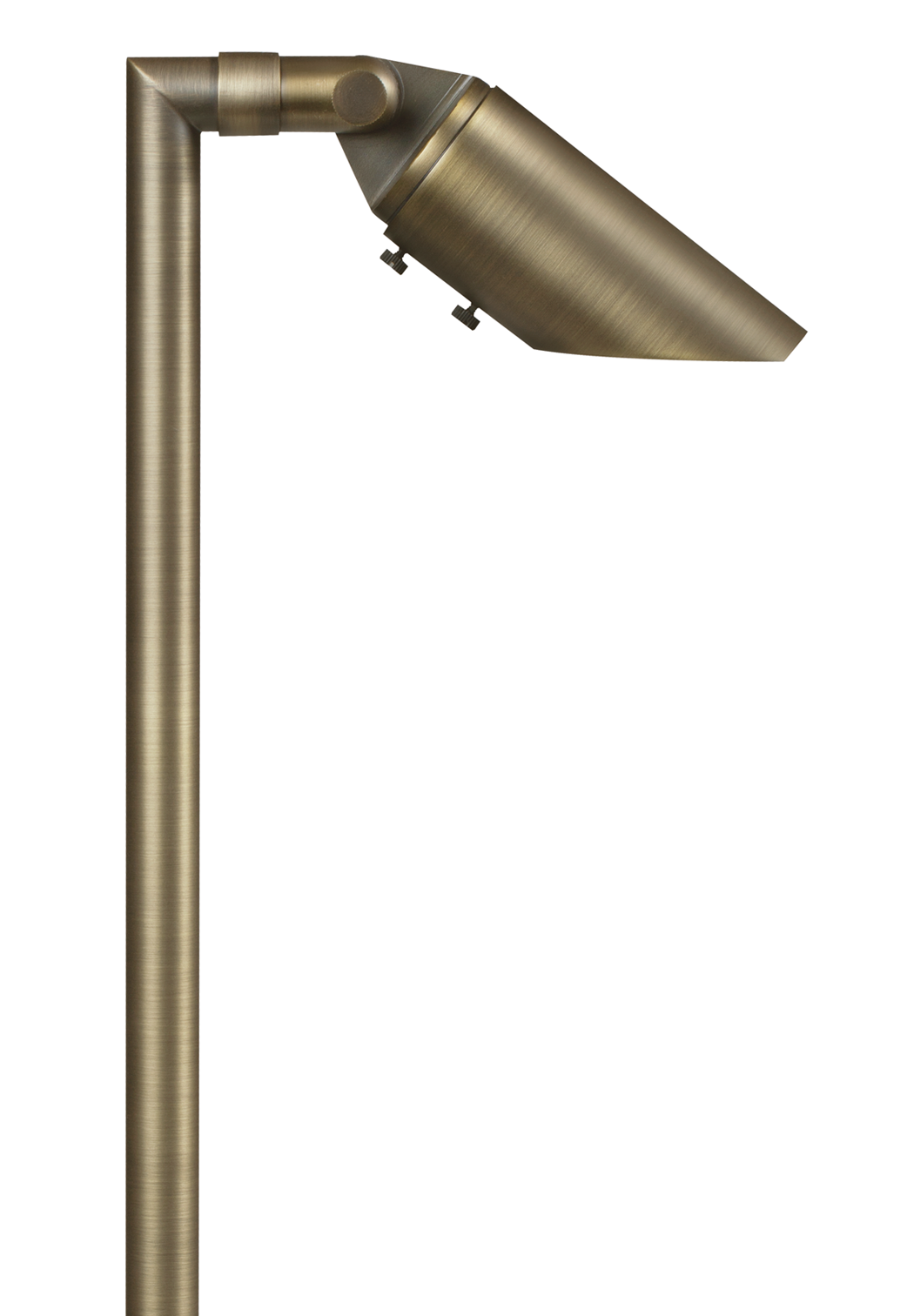

Single & Double Head 24″ Stem Path Light available in Brass with Antique Bronze & Gun Metal color finishes.

Material: Brass
Style: Single & Double Head 24" Stem Path Light
Description: Single & Double Head Path Light
Lamp Type: MR-16
Lamp Supplied: No Lamp
Mounting Supplied: Plastic Ground Spike
Grade: Architectural

Dimensions

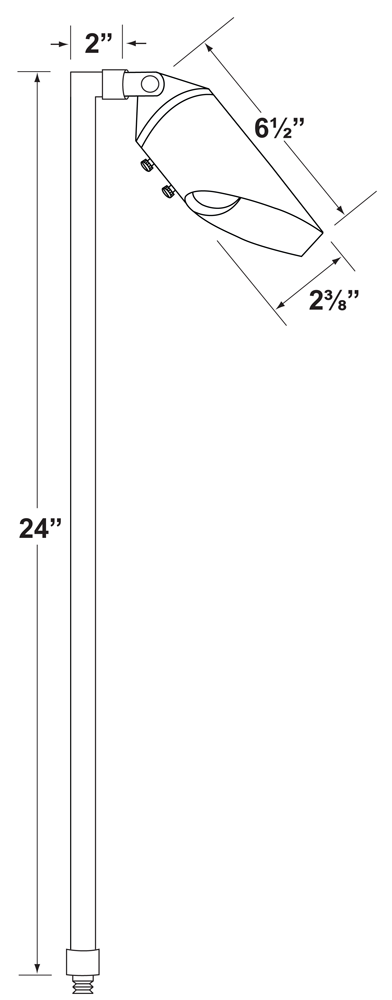

Dimensions: 2⅜” Dia x 24” High
Ship Wight LBS: 4

Spec Sheet

Product NameSpec Sheet
CL-732-B-AB download
CL-732-B-GM download
CL-732-T-AB download
CL-732-T-GM download
Housing : Solid Brass Single head, with 24in Standard Stem. Shroud is adjustable and extendable.
Lens : Clear and heat resistant flat glass.
Fixture Socket : Top grade fixed ceramic bi-pin socket, with retension clip.
Lamp : 12V, MR-16, 50W (halogen) max.
Wiring : Fixture is prewired with a 3ft 18-2 SPT2-W direct burial cord. Wire connector available seperately. Universal connector (CX-839) or silicone filled wire nut (CX-854) may be ordered.
Gasket: Silicone gasket for water tight sealing
Knuckle : Adjustable cast brass knuckle with thumb screw.
Mounting : Standard injection molded with 1/2" NPT threaded female hub.
Electrical : Voltage range with LED lamp is 9-17V. Remote 12 Volt transformer is required. See transformers and accessories for variety of options and choices.
Lamp NumberWattsBeam SpreadSpread TextBeam LumenColor Temp Light Color Rated Hours Halogen Equiv
L-ED16-3W-FL3.545° FLFlood2702700KWarm White50,00025 Watt Halogen
L-ED16-3W-WF3.560° WFWide Flood2702700KWarm White50,00025 Watt Halogen
L-ED16-3W-SP3.515° SPSpot2702700KWarm White50,00025 Watt Halogen
L-ED16-5W-SP515° SPSpot3502700KWarm White50,00040 Watt Halogen
L-ED16-5W-FL545° FLFlood3502700KWarm White50,00040 Watt Halogen
L-ED16-5W-WF560° WFWide Flood3502700KWarm White50,00040 Watt Halogen
L-ED16-COB5W-SP515° SPSpot4502700KWarm White50,00050 Watt Halogen
L-ED16-COB5W-FL538° FLFlood4502700KWarm White50,00050 Watt Halogen
L-ED16-COB5W-WF560° WFWide Flood4502700KWarm White50,00050 Watt Halogen
L-ED16-COB5W-SP3K515° SPSpot4703000KCool White50,00050 Watt Halogen
L-ED16-COB5W-FL3K538° FLFlood4703000KCool White50,00050 Watt Halogen
L-ED116-COB5W-WF3K560° WFWide Flood4703000KCool White50,00050 Watt Halogen
L-ED16-6W-SP615° SPSpot6002700KWarm White50,00075 Watt Halogen
L-ED16-6W-FL638° FLFlood6002700KWarm White50,00075 Watt Halogen
L-ED16-6W-WF660° WFWide Flood6002700KWarm White50,00075 Watt Halogen
L-ED16-6W-SP-3K615° SPSpot6003000KCool White50,00075 Watt Halogen
L-ED16-6W-FL-3K638° FLFlood6003000KCool White50,00075 Watt Halogen
L-ED16-6W-WF-3K660° WFWide Flood6003000KCool White50,00075 Watt Halogen
Fixture Finish Finish Color Lamp
CL-732BAntique BronzeSee lamp guide suffix
Gun Metal
Example: CL-732B
