CL-730B
CL-730B

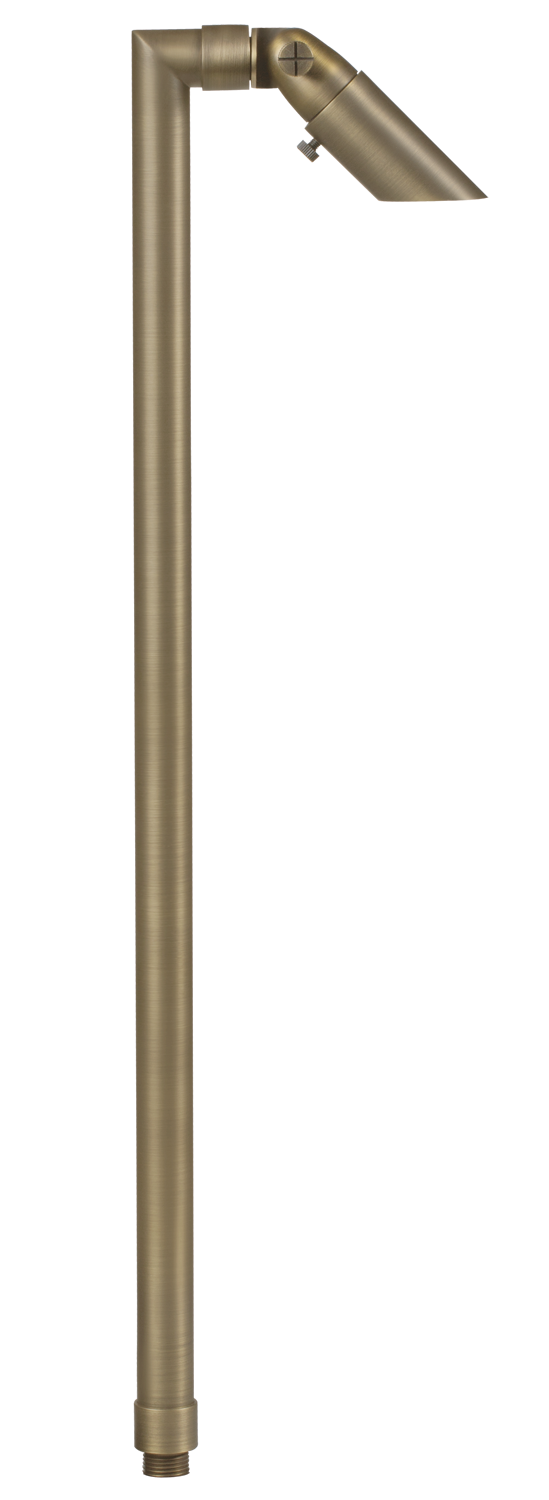

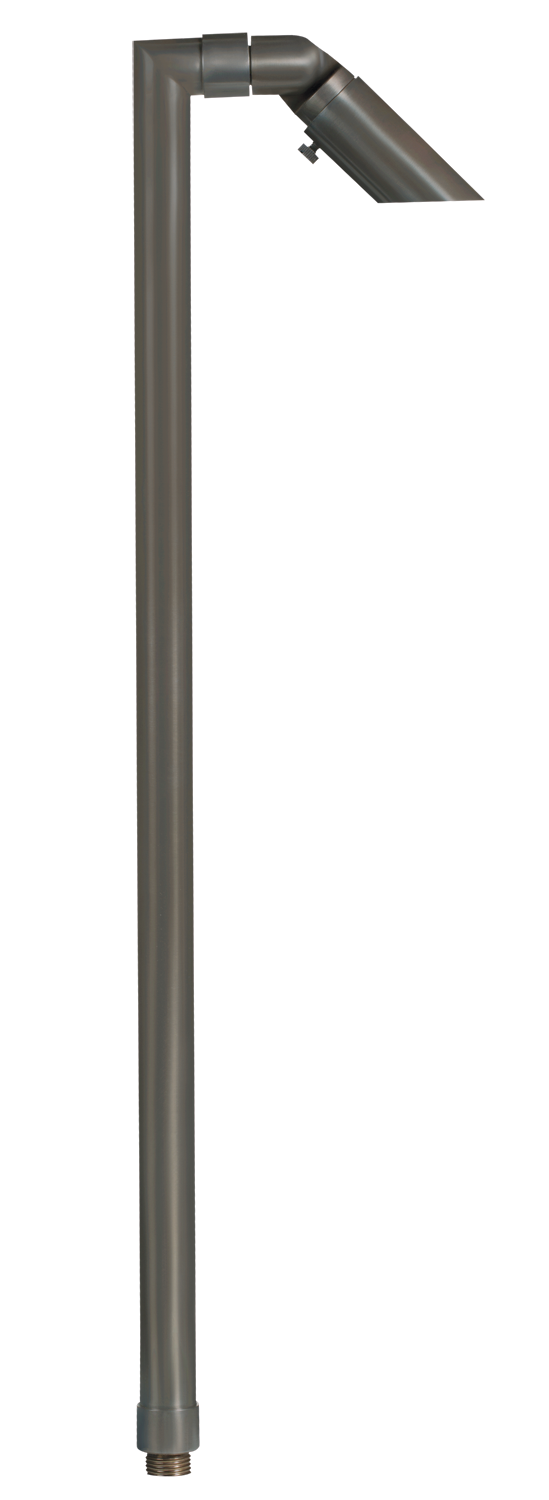

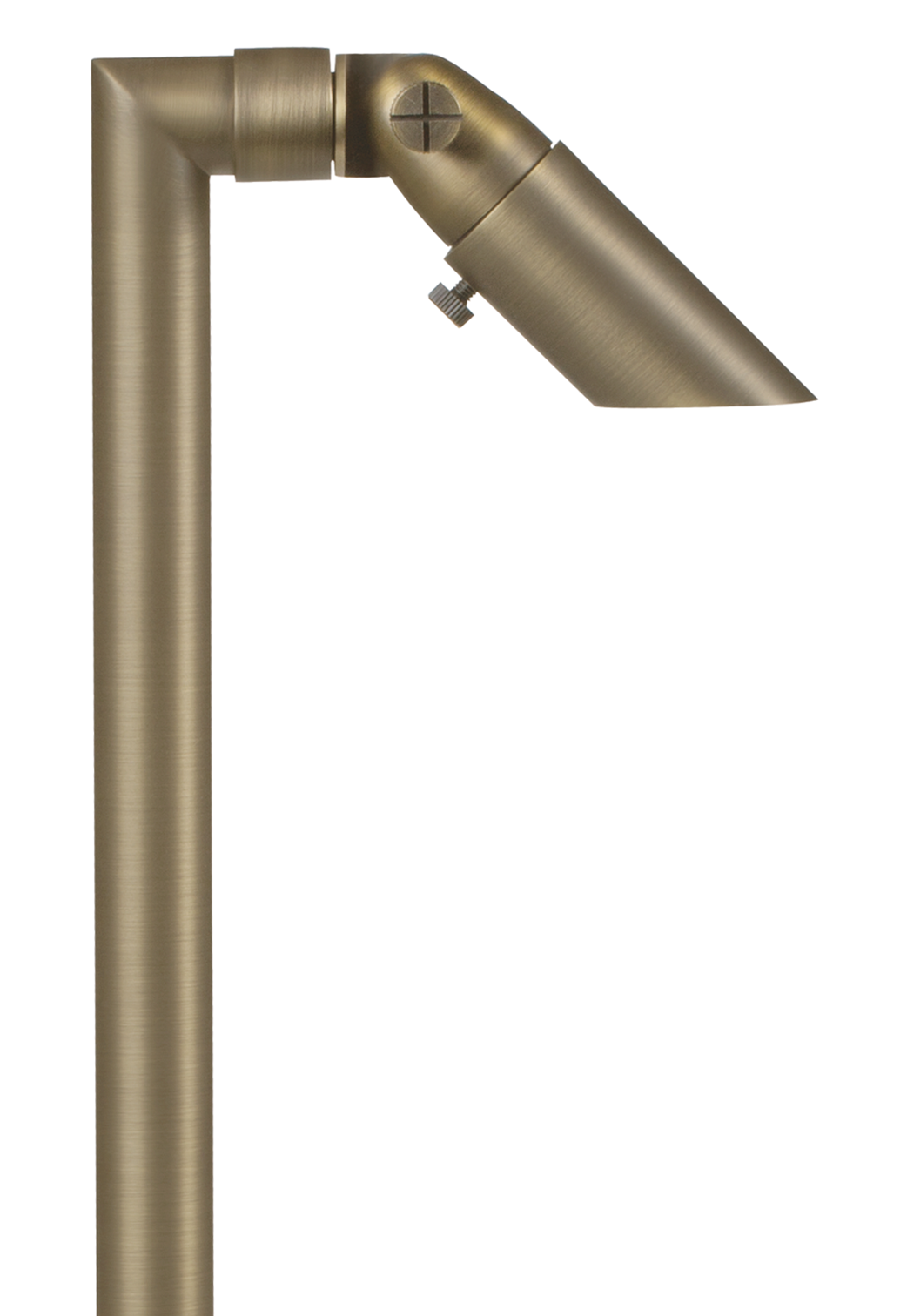

Single Head 18″ or 24″ Stem Path Light available in Brass with Antique Bronze & Gun Metal color finishes.
Material: Brass
Description: Single Head Path Light
Lamp Type: MR-8
Lamp Supplied: No Lamp
Mounting Supplied: Plastic Ground Spike
Grade: Architectural

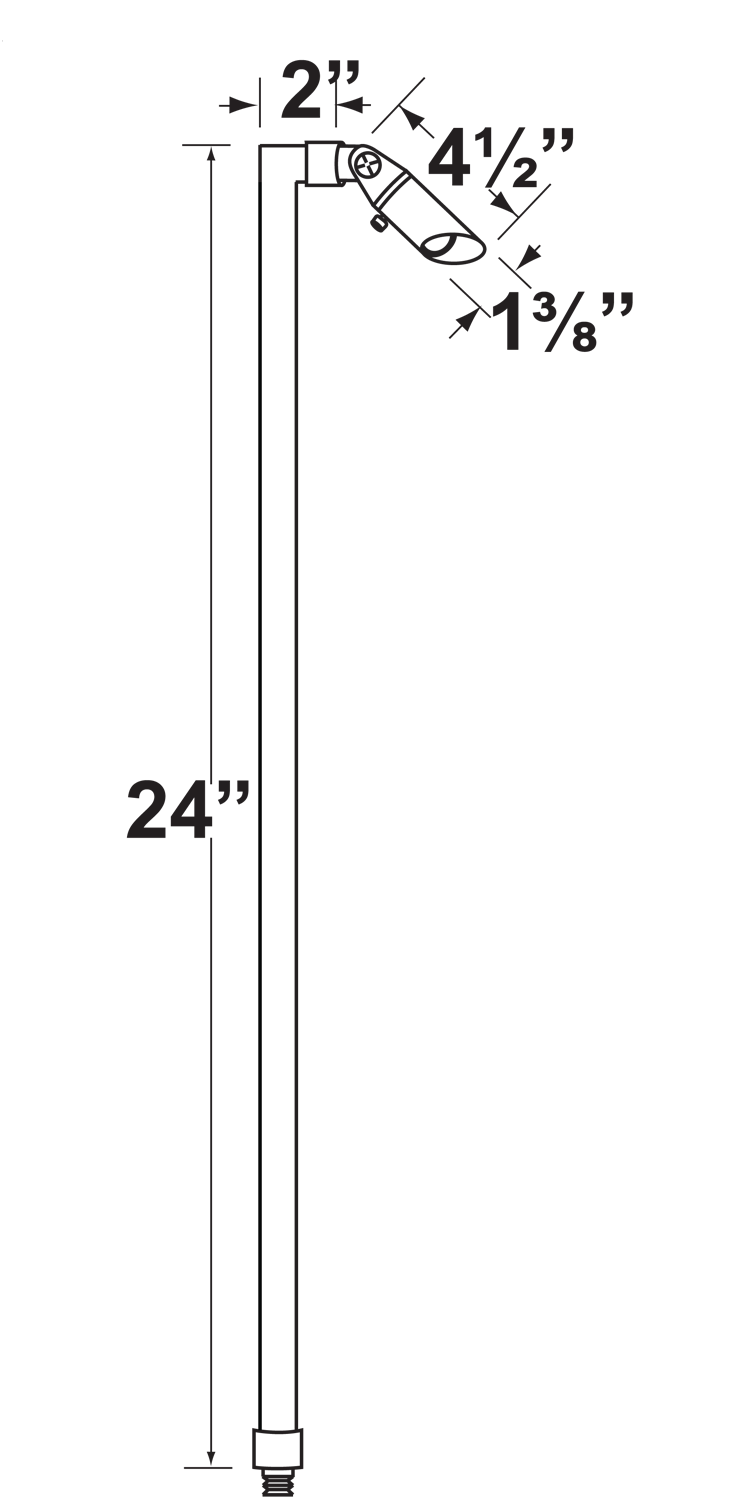

Dimensions
Size: 1⅜” Dia x 24” High
Ship Weight LBS: 3
Downloads
Housing : Solid Brass
Lens : Clear and heat resistant flat glass.
Socket : Top grade fixed ceramic bi-pin socket. Easy tool free lamp access.
Lamp : 12V, MR-8, 20W (halogen) max.
Wiring : Fixture is prewired with a 3ft 18-2 SPT2-W direct burial cord. Wire connector available seperately. Universal connector (CX-839) or silicone filled wire nut (CX-854) may be ordered.
Knuckle : Adjustable cast brass knuckle with thumb screw.
Mounting : Standard injection molded with 1/2" NPT threaded female hub.
Electrical : Voltage range with LED lamp is 9-17V. Remote 12 Volt transformer is required. See transformers and accessories for variety of options and choices.
WARRANTY : Limited lifetime warranty on fixture housing against manufacturer’s defects.
| Lamp Number | Watts | Beam Spread | Spread Text | Beam Lumen | Color Temp | Light Color | Rated Hours | Halogen Equiv |
|---|---|---|---|---|---|---|---|---|
| L-ED8-2.5W | 2.5 | 38° FL | Flood | 180 | 2700K | Warm White | 40,000 | 20 Watt Halogen |
| Fixture | Finish | Finish Color | Lamp |
|---|---|---|---|
| CL-730B | Antique Bronze | See lamp guide suffix | |
| Gun Metal | |||
| Example: | CL-730B | ||
