CL-645-BT

CL-645-BT

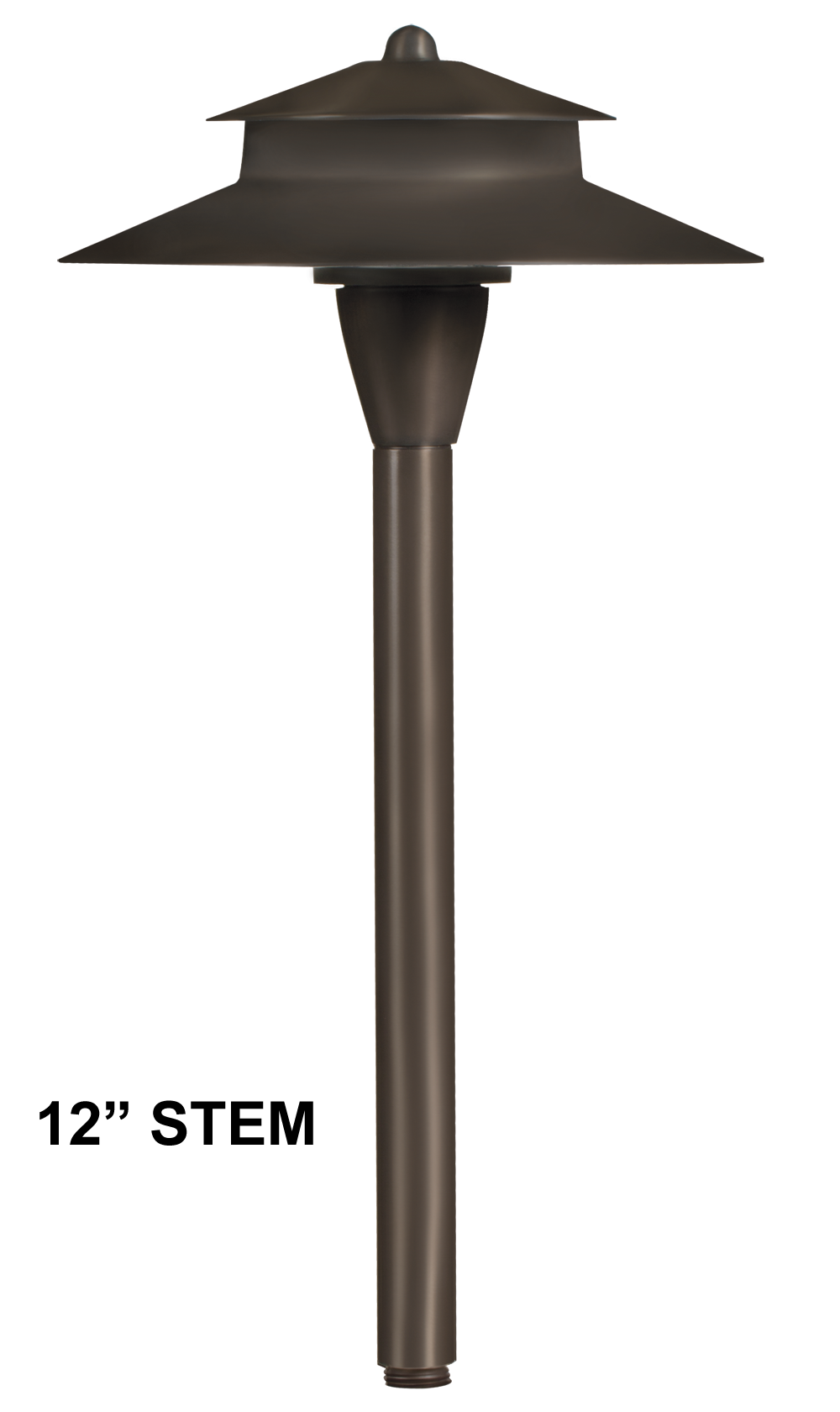

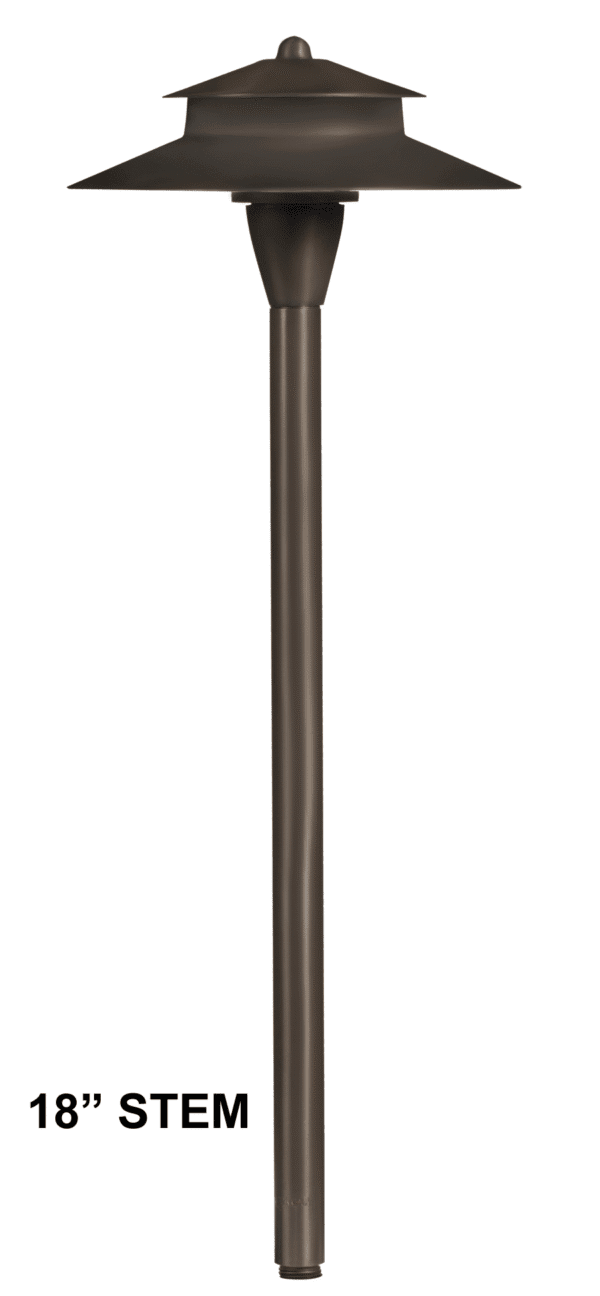

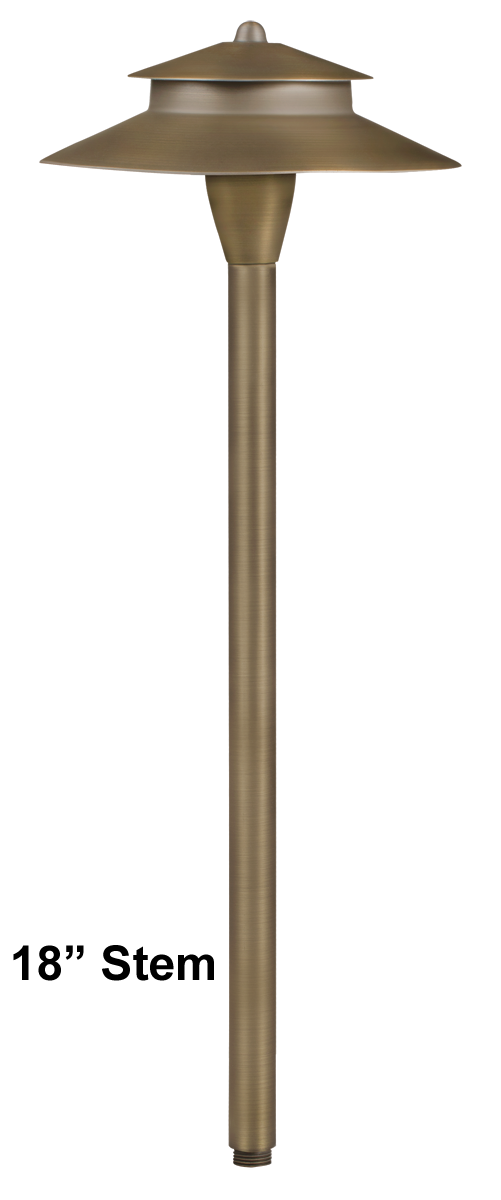

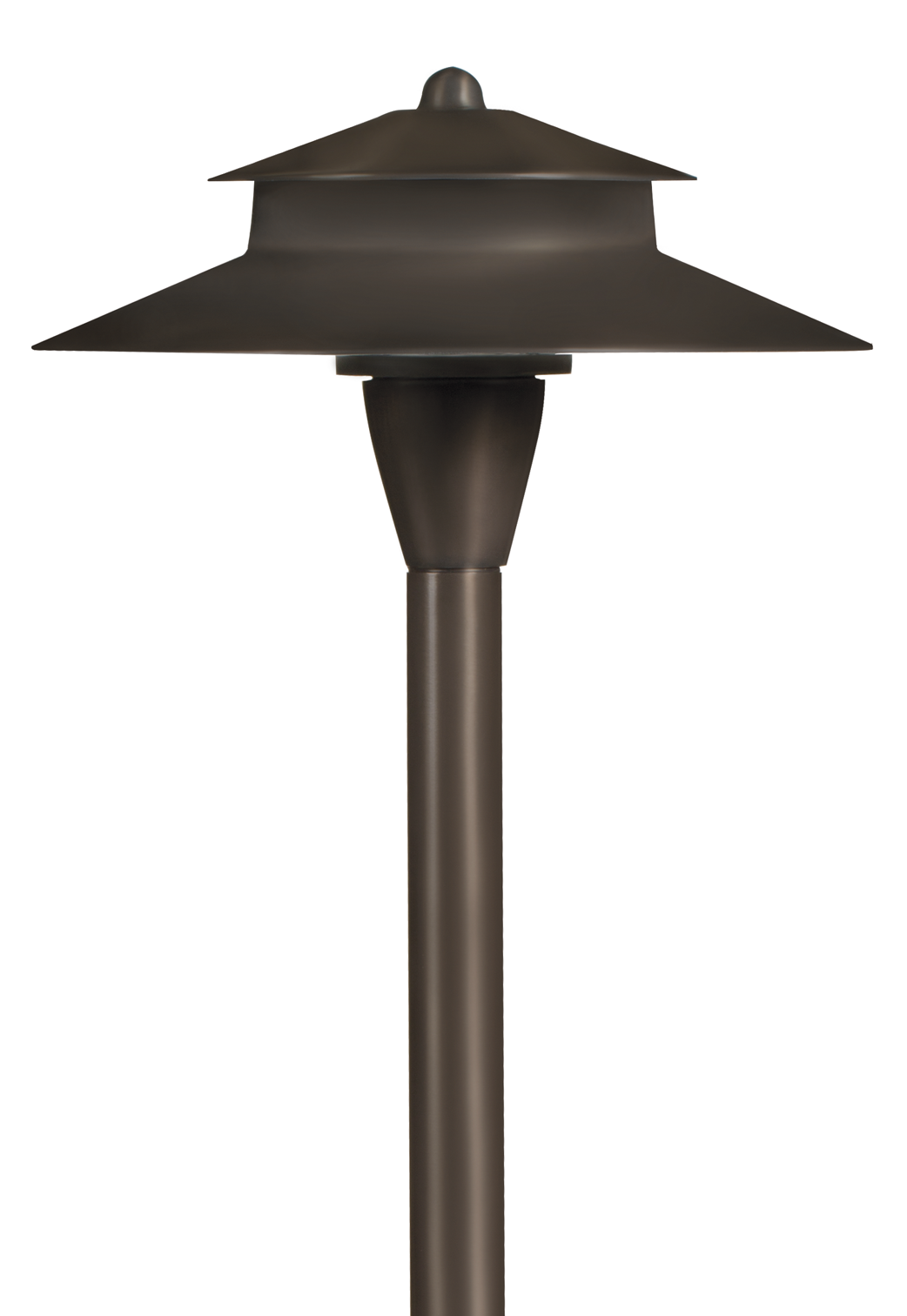

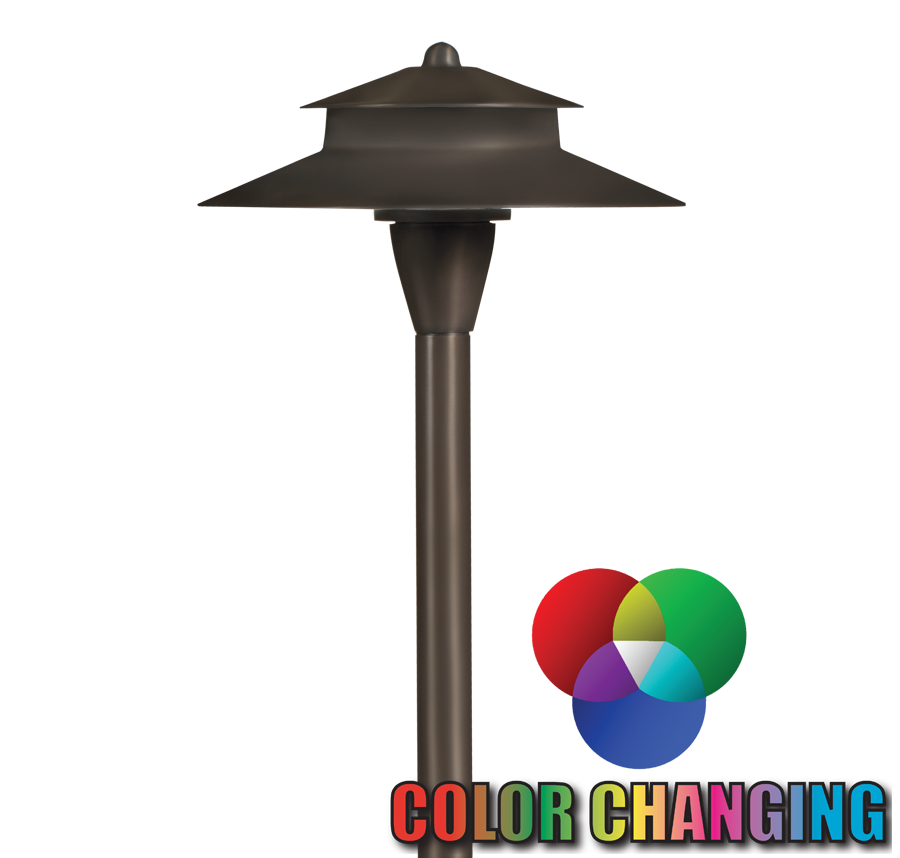

Brass Fiat Lux smart RGB-WW large umbrella Bluetooth Area Light, Available with 18″ and 12″ stems, finished with Antique Bronze or Gun Metal

Material: Die-Cast Brass
Description: Brass RGB-WW Bluetooth Large Umbrella Area Light
Lamp Type: LED Module
Light Source : 1W-5W RGB-WW LED, with 120º beam spread, and light output: 35LM-380 LM
Mounting Supplied: 8.5” large slotted spike with brass threads
Grade: Architectural

Dimensions

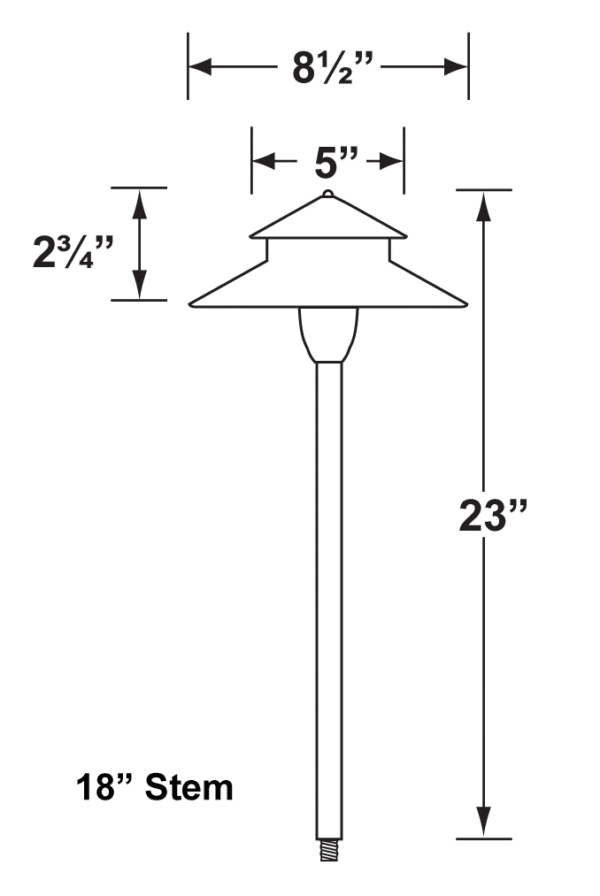

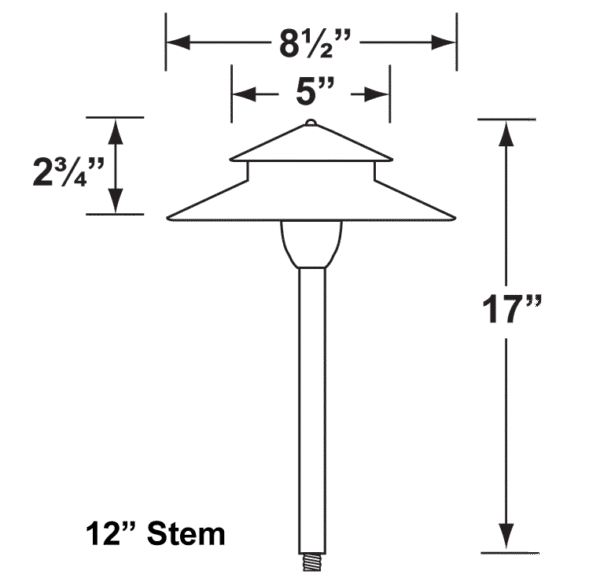

Size: 8½” x 23”(18) 17" (12)
Ship Weight LBS: 5

Downloads

Document NamePDF File
CL-645-BT-AB Specification Sheet download
CL-645-BT-GM Specification Sheet download
CL-645-BT-18 Quick Start Guide download
CL-645-BT-12 Quick Start Guide download
Housing : Die-Cast Brass
STEM : 18” or 12” Cast brass pipe with ½” NPT on bottom.
Lens : Frosted, heat resistant plastic lens
Socket : LED Module
Lamp : Replaceable 1-5W RGB-WW LED
RATING : CRI: >85
Wiring : Fixture is prewired with a 10 Foot UL listed SPT-2W cord, connector sold separately. Quick-locking connectors (CX-LOC) are available from Corona Lighting. See accessories for details
Mounting : 8½” Large slotted spike with brass threads
Electrical : A remote 12V transformer is required. Visit the transformers page for our line of options Options are available from Corona Lighting. Voltage range for LED module is 9V-17V (7.5VA).
WARRANTY : Lifetime warranty on fixture housing. Ten year warranty on replaceable LED module.

No matching lamps found.

FixtureFinishFinish ColorLamp
CL-645-BTAntique BronzeSee lamp guide suffix
Gun Metal
Example:CL-645-BT
