CL-632
CL-632

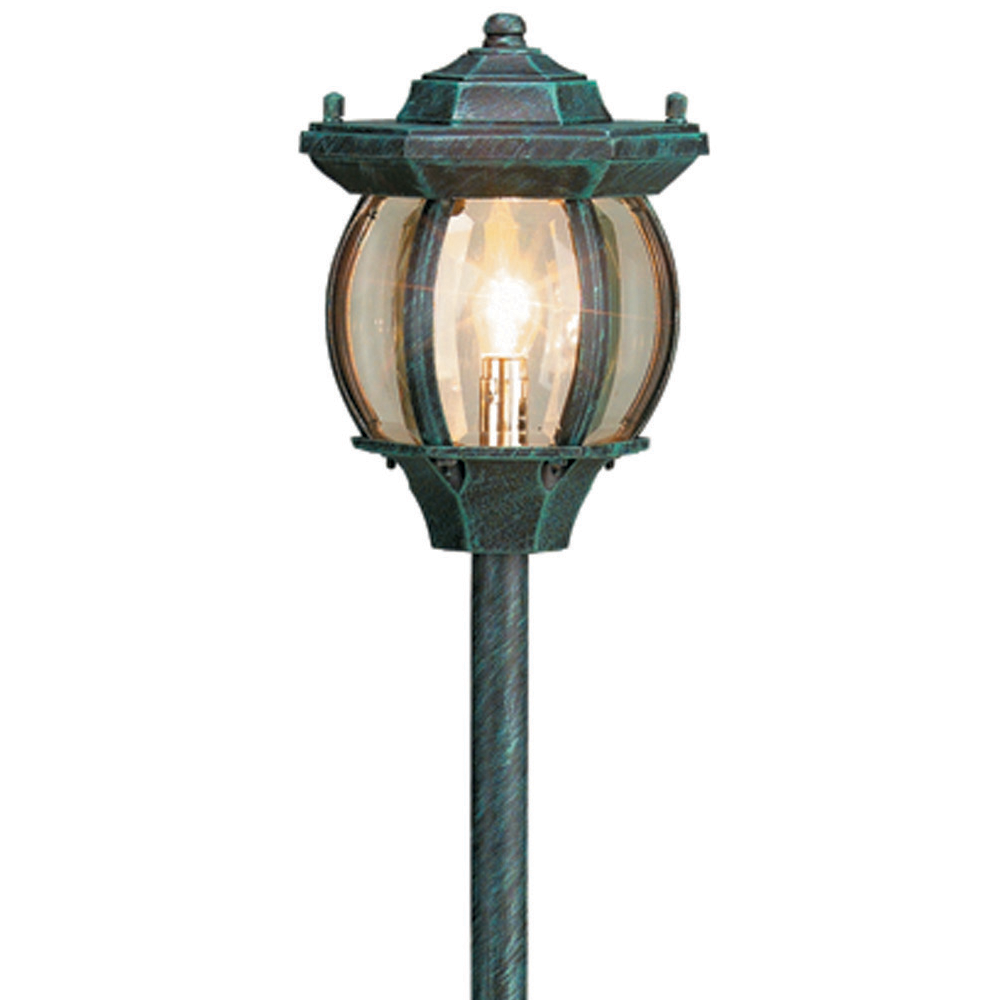

Lantern Light available in Aluminum with Black & Verde Green color finishes.
Material: Aluminum
Description: Lantern Area Light
Lamp Type: SCB
Lamp Supplied: No Lamp
Mounting Supplied: Plastic Ground Spike
Grade: Architectural

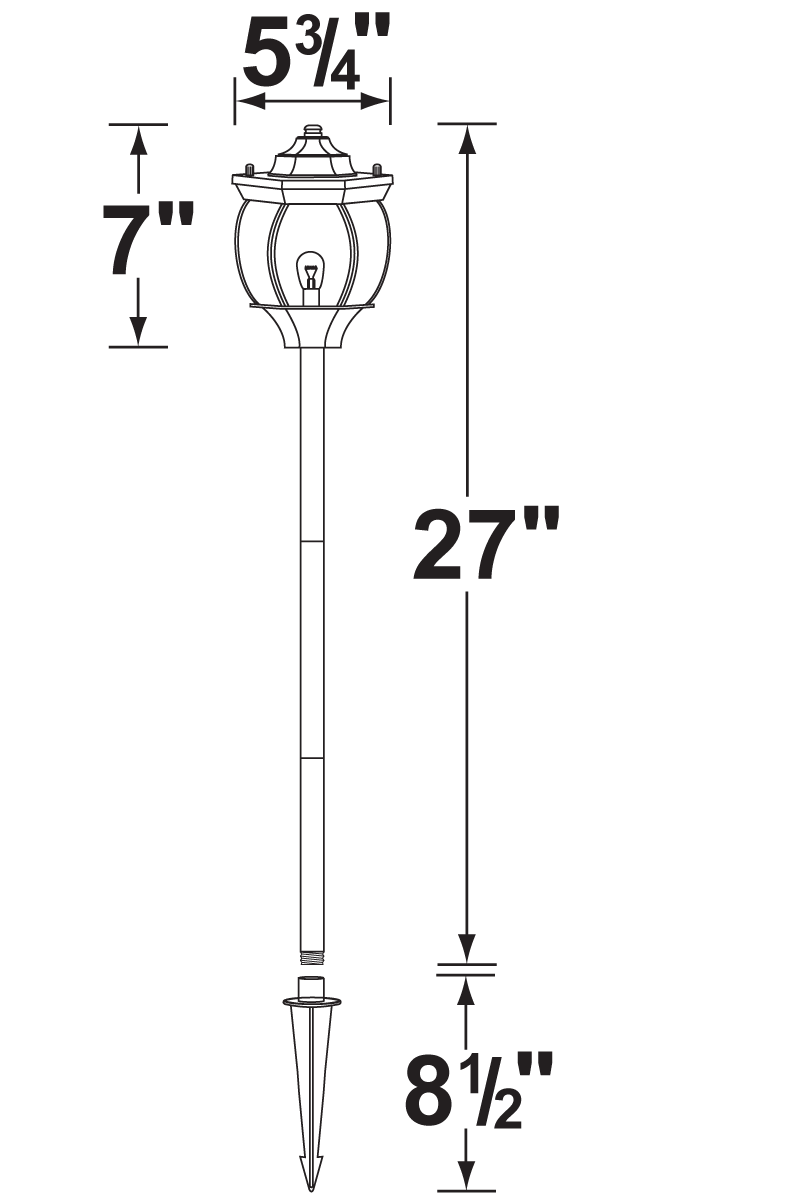

Dimensions
Size: 5¾” Dia x 27” High
Ship Weight LBS: 3
Downloads
Housing : Die-cast Aluminum, with Sectional Stem.
Lens : Clear, beveled glass
Socket : S.C. bayonet socket, with easy tool free lamp access.
Lamp : 12V, SCB, 27W (halogen) max
Wiring : Fixture is prewired with a 3ft 18-2 SPT2-W direct burial cord. Wire connector available seperately. Universal connector (CX-839) or silicone filled wire nut (CX-854) may be ordered.
Knuckle : N/A
Mounting : Standard injection molded with 1/2" NPT threaded male hub.
Electrical : Voltage range with LED lamp is 9-17V. Remote 12 Volt transformer is required. See transformers and accessories for variety of options and choices.
WARRANTY : Five (5) year warranty on fixture housing against manufacturer’s defects. date of Corona Lighting invoice.
| Lamp Number | Watts | Beam Spread | Spread Text | Beam Lumen | Color Temp | Light Color | Rated Hours | Halogen Equiv |
|---|---|---|---|---|---|---|---|---|
| L-EDBA-3W-BT | 0.5 - 3W | 360º | 360 Deg. | 10-200 | 2200K-5700K | Color Changing | 50,000 | |
| L-EDBA-2W | 2 | 360° | 360 Deg. | 200 | 2700K | Warm White | 25,000 | 20 Watt Halogen |
| L-EDBA-2W-3K | 2 | 360° | 360 Deg. | 210 | 3000K | Cool White | 25,000 | 20 Watt Halogen |
| L-EDBA-AM | 2 | 360° | 360 Deg. | 170 | 2000K | Amber | 25,000 | 20 Watt Halogen |
| L-EDBA-2.5W | 2.5 | 180° | 180 Deg. | 240 | 2700K | Warm White | 25,000 | 35 Watt Halogen |
| L-EDBA-2.5W-3K | 2.5 | 180° | 180 Deg. | 250 | 3000K | Cool White | 25,000 | 20 Watt Halogen |
| Fixture | Finish | Finish Color | Lamp |
|---|---|---|---|
| CL-632 | Black | See lamp guide suffix | |
| Verde Green | |||
| Example: | CL-632 | ||
