CL-602
CL-602

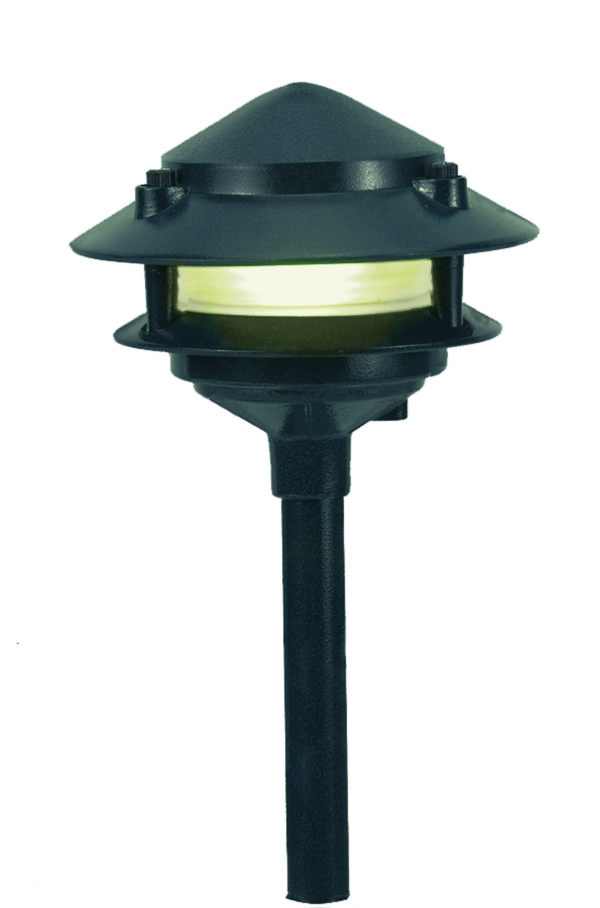

2 Tier Pagoda Light available in Aluminum with Black color finish.
Material: Aluminum
Description: 2 Tier Pagoda Light available in Aluminum with Black color finish.
Lamp Type: T3
Lamp Supplied: No Lamp
Mounting Supplied: Aluminum Ground Spike
Grade: Value
Dimensions
Size: 6” W x 10” High
Ship Weight LBS: 2.5
Downloads
Housing : Interlocking die-cast aluminum sections, assembled with 3 stainless steel screws.
STEM : Die-cast aluminum stem with ½” NPT on bottom.
Lens : Frosted tempered glass with silicone gasket.
Socket : Top grade fixed ceramic bi-pin socket.
Lamp : 12V, T3, 50W (halogen) max.
Wiring : Fixture is prewired with a 3-ft 18-2 SPT2-W direct burial cord. Wire connector available seperately. Universal connector (CX-839) or silicone filled wire nut (CX-854) may be ordered.
Mounting : 6” cast aluminum spike with 1/2" NPT female hub
Electrical : Voltage range with LED lamp is 9-17V. Remote 12 Volt transformer is required. See transformers and accessories for variety of options and choices.
WARRANTY : One (1) year warranty on fixture housing against manufacturer’s defects. date of Corona Lighting invoice.
| Lamp Number | Watts | Beam Spread | Spread Text | Beam Lumen | Color Temp | Light Color | Rated Hours | Halogen Equiv |
|---|---|---|---|---|---|---|---|---|
| L-EDT3-2W-BT (717 Series Only) | 0.5 - 2 | 360º | 360 Deg. | 10-120 | 2200K-5700K | Color Changing | 50,000 | |
| L-EDT3-3W-BT | 0.5 - 3 | 360º | 360 Deg. | 10-200 | 2200K-5700K | Color Changing | 50,000 | |
| L-EDT3-2W | 2 | 360° | 360 Deg. | 200 | 2700K | Warm White | 25,000 | 25 Watt Halogen |
| L-EDT3-2W-3K | 2 | 360° | 360 Deg. | 210 | 3000K | Cool White | 25,000 | 20 Watt Halogen |
| L-EDT3-AM | 2 | 360° | 360 Deg. | 170 | 2000K | Amber | 25,000 | 20 Watt Halogen |
| L-EDT3-2.5W | 2.5 | 180° | 180 Deg. | 240 | 2700K | Warm White | 25,000 | 40 Watt Halogen |
| L-EDT3-2.5W-3K | 2.5 | 180° | 180 Deg. | 250 | 3000K | Cool White | 25,000 | 20 Watt Halogen |
| Fixture | Finish | Finish Color | Lamp |
|---|---|---|---|
| CL-602 | Black | See lamp guide suffix | |
| Example: | CL-602 | ||
