CL-533B
CL-533B

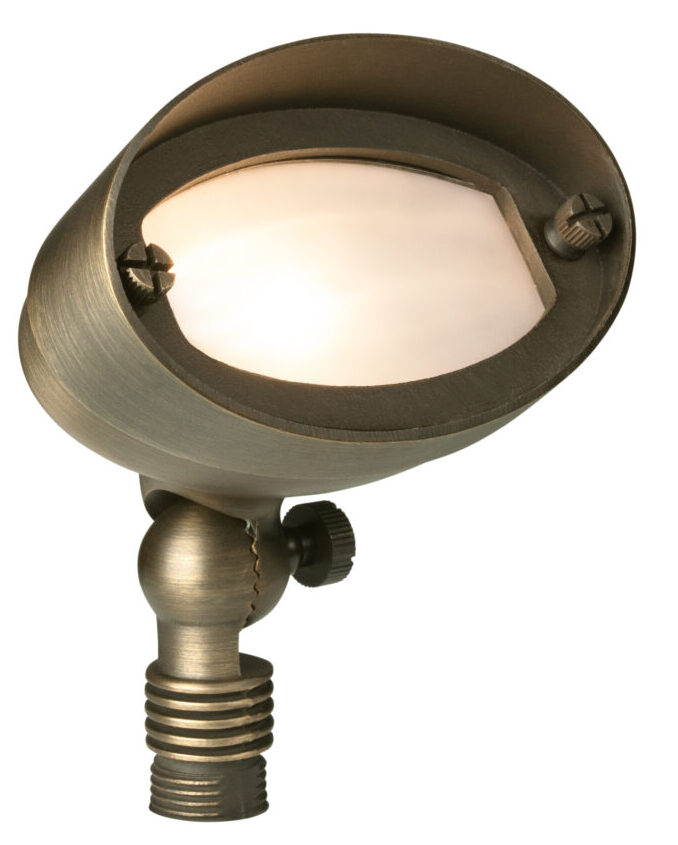

Brass Mini Oval Flood Light Finished in Antique Bronze or Gun Metal.
Material: Brass
Description: Mini Oval Wall Wash Light
Lamp Type: T3
Mounting Supplied: Plastic Ground Spike
Grade: Architectural

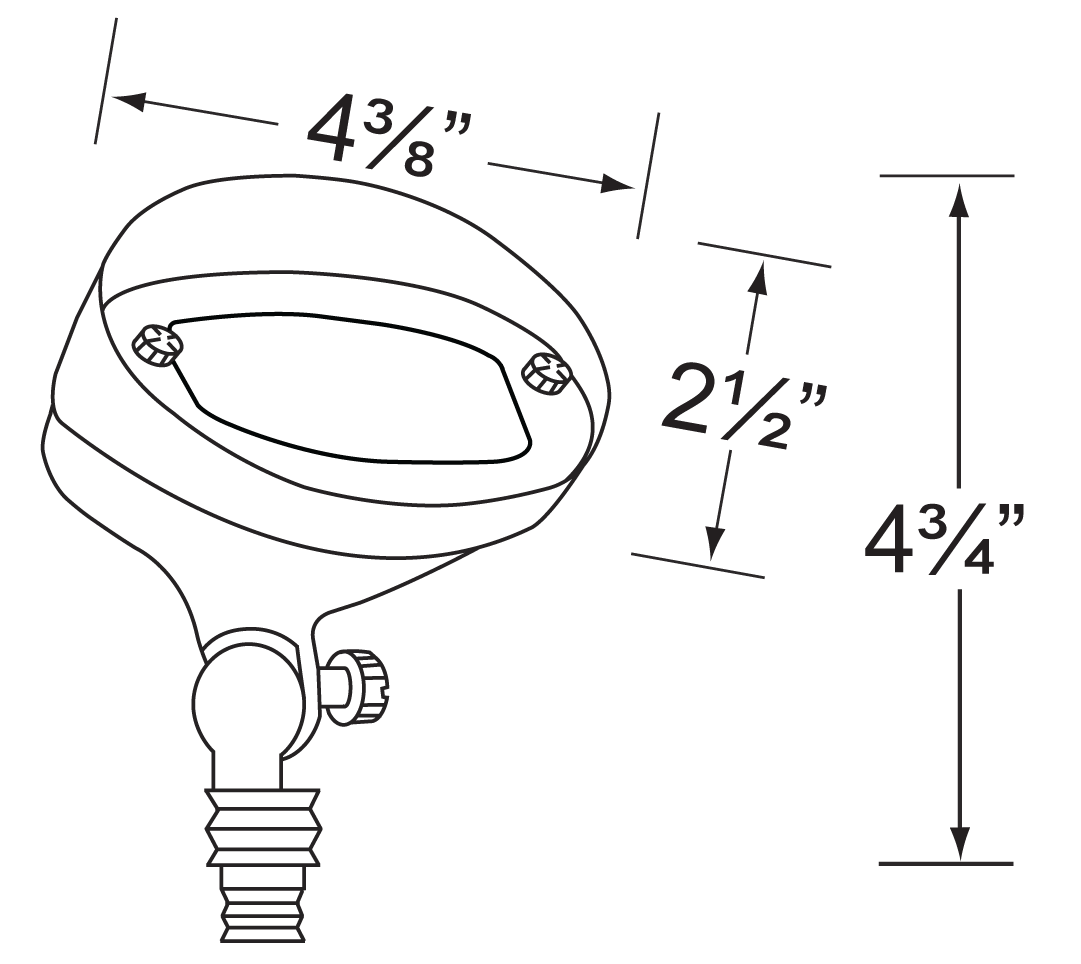

Dimensions
Size: 2½” Dia x 4⅜” Length
Ship Weight LBS: 2
Downloads
Housing : Corrosion resistant cast brass.
Lens : Frosted and heat resistant tempered flat glass, supplied with extra clear glass lens, linear glass lens, and honey comb louver.
Socket : Top grade fixed ceramic bi-pin socket, with retension clip.
Lamp : 12V T3 LED. Available in 3W Bluetooth mesh smart RGB-WW; 2W, 2.5W LED or without lamp. Find the Lamp tab above for more information
Wiring : Fixture is prewired with a 5-ft 18-2 SPT2-W direct burial cord. Wire connector sold separately. Quick-locking connectors (CX-LOC) are available from Corona Lighting. See accessories for details
Knuckle : Adjustable cast brass knuckle with thumb screw and ½" NPT threaded male hub on bottom.
Mounting : Standard injection molded with ½" NPT threaded female hub.
Electrical : Voltage range for BT lamps are 9-17V, LED are 8-21V. A remote 12V transformer is required. Visit the transformers page for our line of options. Proper grease/lubricant is suggested on threaded parts during installation process
WARRANTY : Limited lifetime warranty on fixture housing against manufacturer’s defects.
| Lamp Number | Watts | Beam Spread | Spread Text | Beam Lumen | Color Temp | Light Color | Rated Hours | Halogen Equiv |
|---|---|---|---|---|---|---|---|---|
| L-EDT3-2W-BT (717 Series Only) | 0.5 - 2 | 360º | 360 Deg. | 10-120 | 2200K-5700K | Color Changing | 50,000 | |
| L-EDT3-3W-BT | 0.5 - 3 | 360º | 360 Deg. | 10-200 | 2200K-5700K | Color Changing | 50,000 | |
| L-EDT3-2W | 2 | 360° | 360 Deg. | 200 | 2700K | Warm White | 25,000 | 25 Watt Halogen |
| L-EDT3-2W-3K | 2 | 360° | 360 Deg. | 210 | 3000K | Cool White | 25,000 | 20 Watt Halogen |
| L-EDT3-AM | 2 | 360° | 360 Deg. | 170 | 2000K | Amber | 25,000 | 20 Watt Halogen |
| L-EDT3-2.5W | 2.5 | 180° | 180 Deg. | 240 | 2700K | Warm White | 25,000 | 40 Watt Halogen |
| L-EDT3-2.5W-3K | 2.5 | 180° | 180 Deg. | 250 | 3000K | Cool White | 25,000 | 20 Watt Halogen |
| Fixture | Finish | Finish Color | Lamp |
|---|---|---|---|
| CL-533B | Antique Bronze | See lamp guide suffix | |
| Gun Metal | |||
| Example: | CL-533B | ||
