CL-530B

CL 530B AB scaled e1744672064400
CL 530B GM scaled e1744672021424

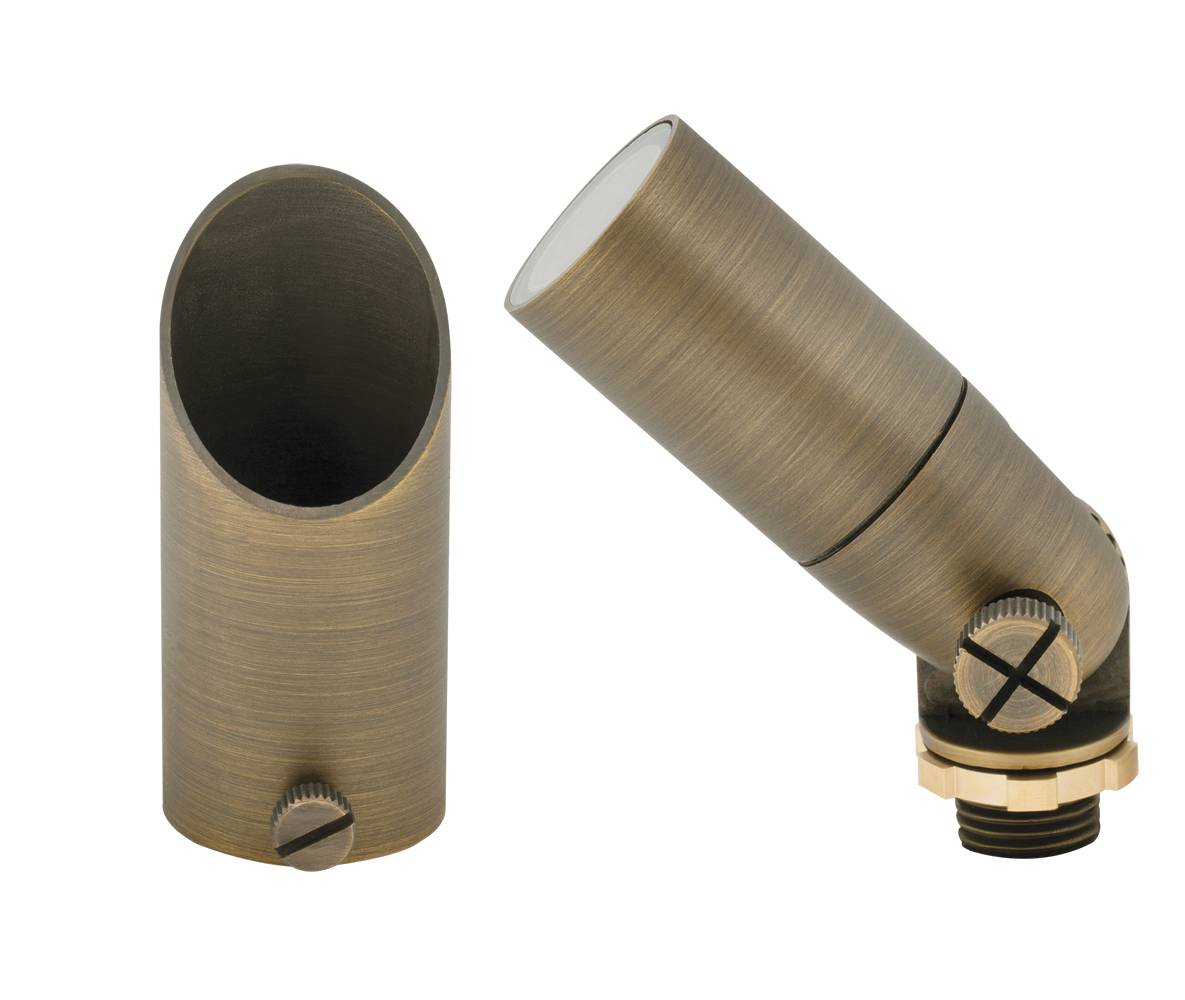

CL 530B AB Desassemble
CL 530B GM Desassemble
CL 530B Line

CL-530B

Brass Adjustable Mini Bullet Spot Light Finished in Antique Bronze or Gun Metal.

Material: Brass
Description: Mini bullet spot light
Lamp Type: MR-8
Mounting Supplied: Plastic Ground Spike
Grade: Architectural

Dimensions

Size: 1⅜” Dia x 4½” Length
Ship Weight LBS: 2

Downloads

Document NamePDF File
CL-530B-AB Specification Sheet download
CL-530B-GM Specification Sheet download
CL-530 Series Installation Instructions download
Fixture
Lamps
Accessories
Housing : Corrosion resistant cast brass. Shroud is adjustable and extendable.
Lens : Clear and heat resistant tempered flat glass
Socket : Top grade fixed ceramic bi-pin socket, with retension clip.
Lamp : 12V MR-8, available in 2.5W LED or without lamp. See the Lamp tab above for more information.
Wiring : Fixture is prewired with a 3-ft 18-2 SPT2-W direct burial cord. Wire connector sold separately. Quick-locking connectors (CX-LOC) are available from Corona Lighting. See accessories for details
Knuckle : Adjustable cast brass knuckle with thumb screw and ½" NPT threaded male hub on bottom.
Mounting : Standard injection molded with ½" NPT threaded female hub.
Electrical : Voltage range with LED lamp is 9-17V. Remote 12 Volt transformer is required. Visit transformers page for our line of options.
WARRANTY : Limited lifetime warranty on fixture housing against manufacturer’s defects.
Lamp NumberWattsBeam SpreadSpread TextBeam LumenColor TempLight ColorRated HoursHalogen Equiv
L-ED8-2.5W2.538° FLFlood1802700KWarm White40,00020 Watt Halogen

Cable Connector

Part #Description
CX-LOCQuick-Locking Wire Connector, 2 pack

Ground Spikes

Part #Description
CX-640-BK6” Aluminum Spike, Male Hub, Finishes: BK
CX-6428½”h x ½”w ABS Spike, Finishes: BK, BZ
CX-643-BZ8½”h x 3”w ABS Spike, Finishes: BZ
CX-6468”h x ½”w ABS Spike, Finishes: BK, BZ
CX-647-BK10½”h x 3”w Heavy Duty ABS Spike Finishes, Finishes: BK
CX-650-BZ8½”h x 3”w Slotted ABS Spike with Brass Threads, Finishes: BZ

Mounting Brackets

Part #Description
CX-679-T-BKAluminum Double Bracket, ½ NPT, Black
CX-679-T-BZAluminum Double Bracket, ½ NPT, Bronze
CX-679-T-SIAluminum Double Bracket, ½ NPT, Silver
CX-679B-T-ABBrass Double Bracket, ½ NPT, Antique Bronze
CX-679B-T-BRBrass Double Bracket, ½ NPT, Natural Brass
CX-679B-T-GMBrass Double Bracket, ½ NPT, Gun Metal
CX-700Aluminum Bracket, ½ NPT, BK– Black, BZ– Bronze, GR– Green, GT– Granite, RT– Rust, VG– Verde Green, WH– White
CX-704Aluminum Bracket, ½ NPT,BK– Black, BZ– Bronze, GR– Green, GT– Granite, RT– Rust, VG– Verde Green, WH– White

Mounting Canopies

Part #Description
CX-705BBrass Flat Canopy, Finishes: AB, BK, BR, GM, SI,
CX-709Aluminum Raised Canopy , Finishes: BK, BZ, GT, SI, WH
CX-709BBrass Canopy, Finishes: AB, BK, BR, GM, SI,
CX-7185” Aluminum Canopy , 3-hole, Finishes: BK, BZ
CX-718B5” Brass Canopy, 3-hole, Finishes: AB, GM, SI
CX-719BBrass Tree Bracket, Finishes: AB, BK, BR, GM, SI
CX-721Aluminum Tree Canopy, w/Rubber strap 15”-22”, Finishes: BK, BZ, GR, GT, RT, VG, WH
CX-721BBrass Tree Canopy, w/ Rubber strap 15”-22”.Finishes: AB, BK
CX-722Aluminum Tree Canopy, w/Rubber Strap, 22"- 33”, Finishes: BK, BZ, GR, GT, RT, VG, WH
CX-722BBrass Tree Canopy, w/Rubber Strap, 22"- 33”, Finishes: AB, BK
CX-723Aluminum Tree Canopy, w/Rubber Strap, 31"- 45”, Finishes: BK, BZ, GR, GT, RT, VG, WH
CX-723BBrass Tree Canopy,w/ Rubber Strap, 31"- 45”, Finishes: AB, BK

Mounting Pedestal

Part #Description
CX-603-BK3" PVC Mounting Pedestal, BK
CX-621-BK1" PVC Cap, BK
CX-622-BK2" PVC Cap, BK
CX-624-BK3" PVC Cap, Female Brass Hub, BK

Mounting Posts

Part #Description
CX-67824” Aluminum Single Head Post, Finishes: BK, BZ, SI
CX-678B24” Brass Single Head Post, Finishes: AB, GM,SI
CX-678C24” Copper Single Head Post, Finishes: RC
CX-67924” Aluminum Double Head Post, Finishes: BK,BZ, SI
CX-679B24” Brass Double Head Post, Finishes: AB, GM, SI
CX-679C24” Copper Double Head Post, RC
CX-69018” Aluminum Single Head Post, Finishes: BK, BZ, SI
CX-690B18” Brass Single Head Post, Finishes: AB, GM, SI
CX-690C18” Copper Single Head Post, Finishes: RC
CX-69318” Aluminum Double Head Post, Finishes: BK, BZ, SI
CX-693B18” Brass Double Head Post, Finishes: AB, GM, SI
CX-693C18” Copper Double Head Post, Finishes: RC

Mounting Risers

Part #Description
CX-6716” Aluminum Riser, Finishes: BK, BZ, GR, GT, RT, VG, WH
CX-67212” Aluminum Riser, Finishes: BK, BZ, GR, GT, RT, VG, WH
CX-67318” Aluminum Riser, Finishes: BK, BZ, GR, GT, RT, VG, WH
CX-682B6” Brass Riser, Finishes: AB, GM
CX-682C6” Copper Riser, Finishes: RC
CX-683B12” Brass Riser, Finishes: AB, GM
CX-683C12” Copper Riser, Finishes: RC
CX-684B18” Brass Riser, Finishes: AB, GM
CX-684C18" Copper Riser, Finishes: RC
CX-685B24” Brass Riser, Finishes: AB, GM
CX-686C24" Copper Riser, Finishes: RC
CX-782B-BK6” Brass Riser, Finishes: BK
CX-783B-BK12” Brass Riser, Finishes: BK
CX-784B-BK18” Brass Riser, Finishes: BK
CX-785B-BK24” Brass Riser, Finishes: BK
FixtureFinishFinish ColorLamp
CL-530BAntique BronzeSee lamp guide suffix
Gun Metal
Example:CL-530B
