CL-521
CL-521

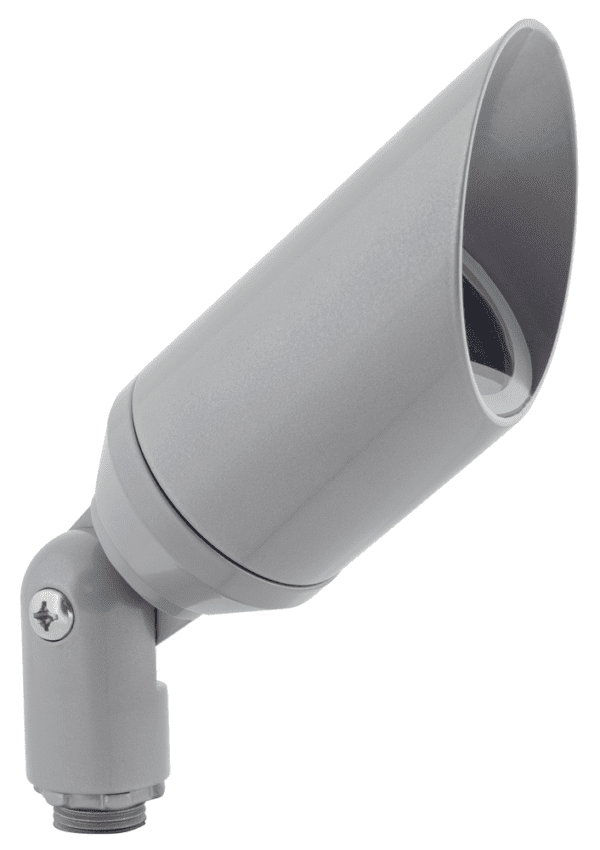

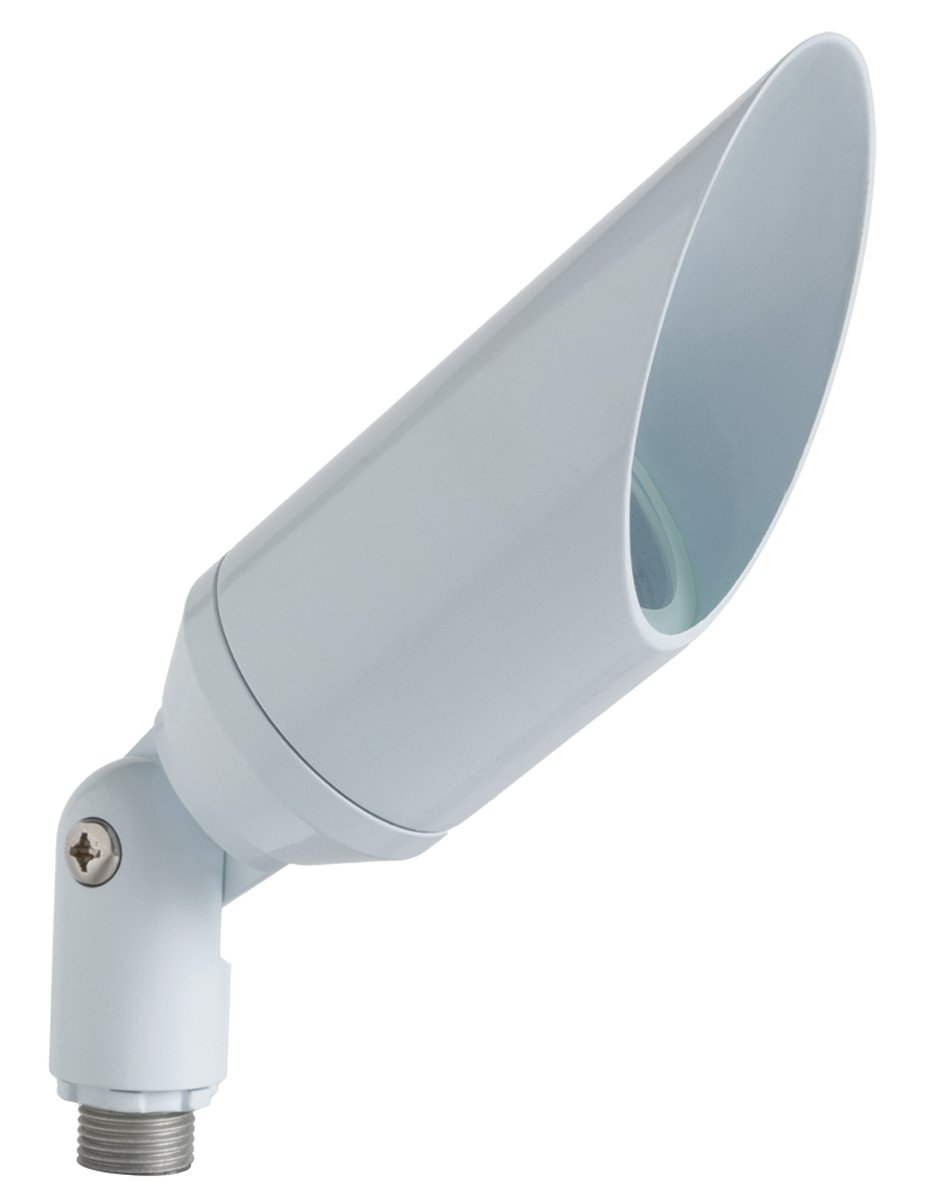

Machined Aluminum Longer Shroud Bullet Directional Light. Black, Bronze, SIlver and White finishes available. Comes with a 10 year warranty
Material: Machined Aluminum.
Style: Long Shroud Bullet
Description: Aluminum Long Shroud Bullet Directional Light
Lamp Type: MR-16
Lamp Supplied: No Lamp
Mounting Supplied: Slotted Black ABS Spike
Grade: Architectural
Dimensions

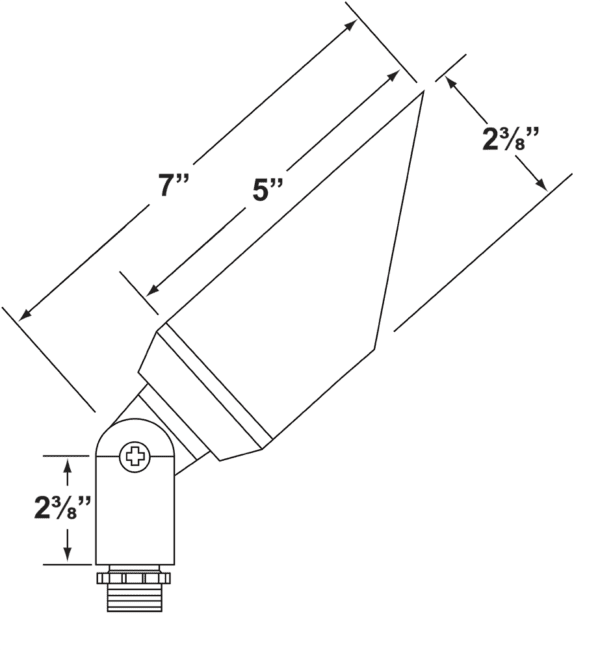

Dimensions: 2⅜”W x 7"L
Ship Weight LBS: 1
Spec Sheets
Housing : Corrosion resistant machined aluminum.
Lens : Clear, tempered, and heat resistant glass.
Fixture Socket : Top grade fixed ceramic bi-pin socket, with lamp retention clip to securely hold lamp in place.
Lamp : 12V, MR-16 LED Available in 3.5W, 5W, 6W or without lamp. See Lamps tab for more information.
Wiring : Fixture is prewired with a 3ft 18-2 SPT1-W direct burial cord and underground connectors.
Gasket: Silicone double gasket for water tight sealing.
Knuckle : Adjustable machined aluminum knuckle with Stainless Steel Philips screw and ½” NPT threaded male hub
Mounting : 8½” slotted black ABS spike with ½” NPT threaded male hub.
Electrical : Voltage range for LED lamps are 9V-17V. A remote 12V transformer is required. See Accessories & Transformers for selection.
| Lamp Number | Watts | Beam Spread | Spread Text | Beam Lumen | Color Temp | Light Color | Rated Hours | Halogen Equiv |
|---|---|---|---|---|---|---|---|---|
| L-ED16-3W-FL | 3.5 | 45° FL | Flood | 270 | 2700K | Warm White | 50,000 | 25 Watt Halogen |
| L-ED16-3W-WF | 3.5 | 60° WF | Wide Flood | 270 | 2700K | Warm White | 50,000 | 25 Watt Halogen |
| L-ED16-3W-SP | 3.5 | 15° SP | Spot | 270 | 2700K | Warm White | 50,000 | 25 Watt Halogen |
| L-ED16-5W-SP | 5 | 15° SP | Spot | 350 | 2700K | Warm White | 50,000 | 40 Watt Halogen |
| L-ED16-5W-FL | 5 | 45° FL | Flood | 350 | 2700K | Warm White | 50,000 | 40 Watt Halogen |
| L-ED16-5W-WF | 5 | 60° WF | Wide Flood | 350 | 2700K | Warm White | 50,000 | 40 Watt Halogen |
| L-ED16-COB5W-SP | 5 | 15° SP | Spot | 450 | 2700K | Warm White | 50,000 | 50 Watt Halogen |
| L-ED16-COB5W-FL | 5 | 38° FL | Flood | 450 | 2700K | Warm White | 50,000 | 50 Watt Halogen |
| L-ED16-COB5W-WF | 5 | 60° WF | Wide Flood | 450 | 2700K | Warm White | 50,000 | 50 Watt Halogen |
| L-ED16-COB5W-SP3K | 5 | 15° SP | Spot | 470 | 3000K | Cool White | 50,000 | 50 Watt Halogen |
| L-ED16-COB5W-FL3K | 5 | 38° FL | Flood | 470 | 3000K | Cool White | 50,000 | 50 Watt Halogen |
| L-ED116-COB5W-WF3K | 5 | 60° WF | Wide Flood | 470 | 3000K | Cool White | 50,000 | 50 Watt Halogen |
| L-ED16-6W-SP | 6 | 15° SP | Spot | 600 | 2700K | Warm White | 50,000 | 75 Watt Halogen |
| L-ED16-6W-FL | 6 | 38° FL | Flood | 600 | 2700K | Warm White | 50,000 | 75 Watt Halogen |
| L-ED16-6W-WF | 6 | 60° WF | Wide Flood | 600 | 2700K | Warm White | 50,000 | 75 Watt Halogen |
| L-ED16-6W-SP-3K | 6 | 15° SP | Spot | 600 | 3000K | Cool White | 50,000 | 75 Watt Halogen |
| L-ED16-6W-FL-3K | 6 | 38° FL | Flood | 600 | 3000K | Cool White | 50,000 | 75 Watt Halogen |
| L-ED16-6W-WF-3K | 6 | 60° WF | Wide Flood | 600 | 3000K | Cool White | 50,000 | 75 Watt Halogen |
| Fixture | Finish | Finish Color | Lamp |
|---|---|---|---|
| CL-521 | Black | See lamp guide suffix | |
| Bronze | |||
| Silver | |||
| White | |||
| Example: | CL-521 | ||
