CL-372B
CL-372B

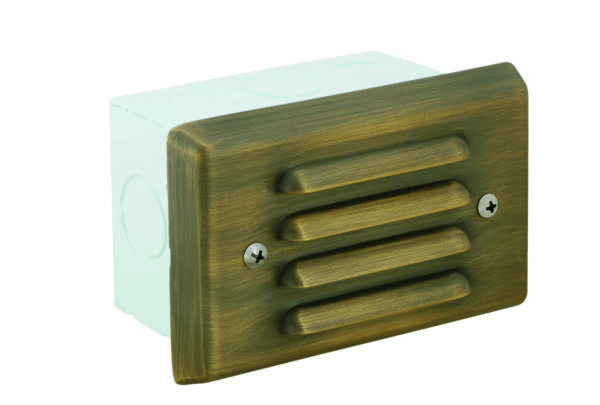

Stamped brass 4-louver Step Light, with a frosted lens, and a white powder coated self-levelling heavy duty steel mount box, faceplate is finished in Antique Bronze.
Material: Brass faceplate or steel mount box
Description: Brass 4 Louver Step Light
Lamp Type: SCB
Mounting Supplied: Surface Mount
Grade: Architectural

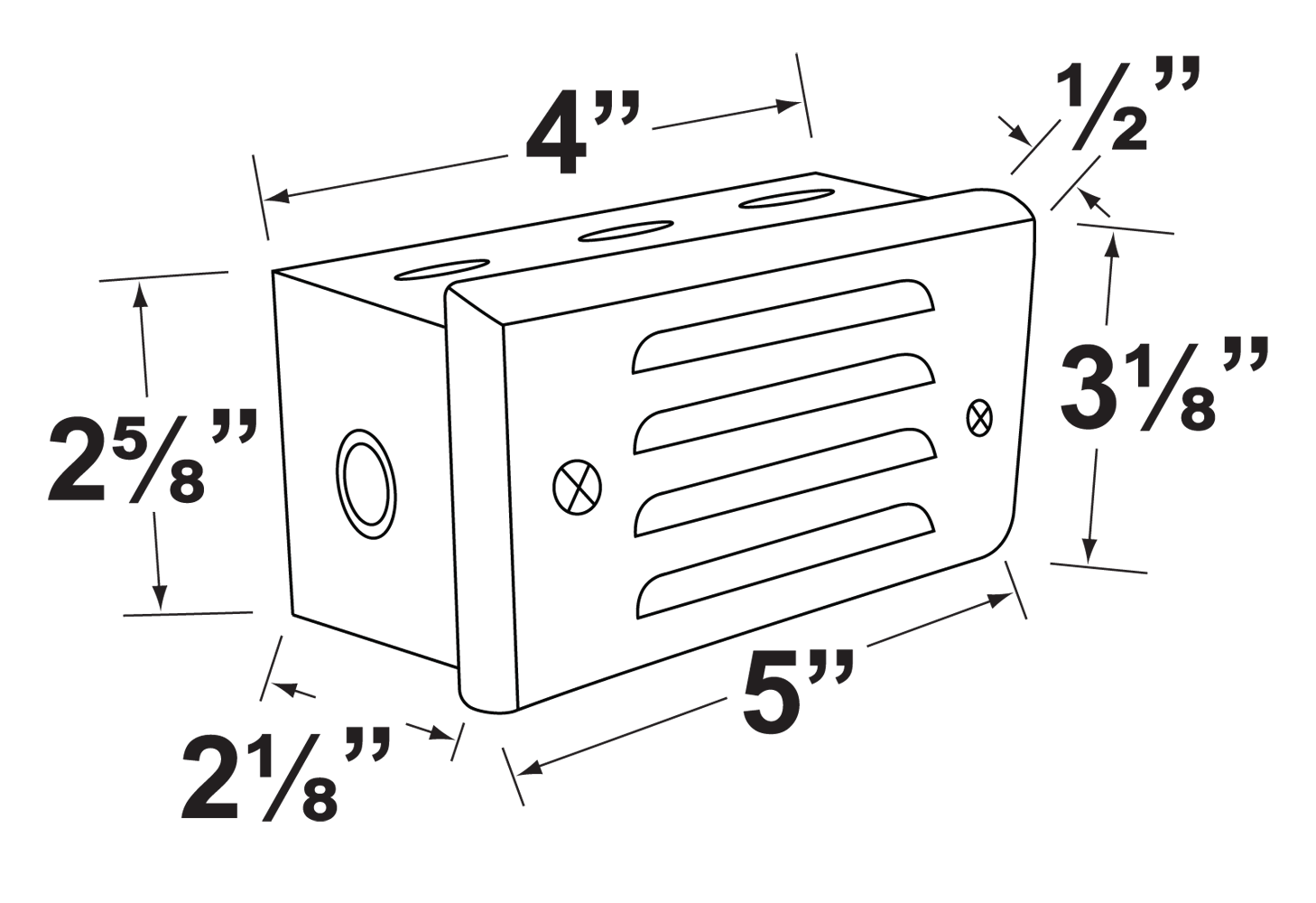

Dimensions
Size: 5” W x 3⅛” H (Faceplate)
Ship Weight LBS: 2
Downloads
Housing : White powder coated, heavy duty corrosion resistant galvanized steel with self-leveling adjustable bars
Lens : Frosted and heated resistant glass.
Socket : S.C. Bayonet socket, attached to housing.
Lamp : 12V S.C Bayonet LED. Available in 3W Bluetooth Mesh smart RGB-WW; 2W, 2.5W LED or without lamp. Find the lamp tab above for more information.
Wiring : Fixture is prewired with a 3ft 18-2 SPT1-W direct burial cord. Wire connector sold separately.
Quick-locking connectors (CX-LOC) are available from Corona Lighting. See accessories for details
Mounting : Recessed mount back box, with 5x½" NPT inlets.
APPLICATIONS : Best used in concrete, brick and other masonry surfaces.
Electrical : Voltage range for BT lamps are 9-17V, LED are 8-21V. Remote 12 Volt transformer is required. Visit the transformers page for our line of options.
WARRANTY : Limited lifetime warranty on fixture housing against manufacturer’s defects.
| Lamp Number | Watts | Beam Spread | Spread Text | Beam Lumen | Color Temp | Light Color | Rated Hours | Halogen Equiv |
|---|---|---|---|---|---|---|---|---|
| L-EDBA-3W-BT | 0.5 - 3W | 360º | 360 Deg. | 10-200 | 2200K-5700K | Color Changing | 50,000 | |
| L-EDBA-2W | 2 | 360° | 360 Deg. | 200 | 2700K | Warm White | 25,000 | 20 Watt Halogen |
| L-EDBA-2W-3K | 2 | 360° | 360 Deg. | 210 | 3000K | Cool White | 25,000 | 20 Watt Halogen |
| L-EDBA-AM | 2 | 360° | 360 Deg. | 170 | 2000K | Amber | 25,000 | 20 Watt Halogen |
| L-EDBA-2.5W | 2.5 | 180° | 180 Deg. | 240 | 2700K | Warm White | 25,000 | 35 Watt Halogen |
| L-EDBA-2.5W-3K | 2.5 | 180° | 180 Deg. | 250 | 3000K | Cool White | 25,000 | 20 Watt Halogen |
| Fixture | Finish | Finish Color | Lamp |
|---|---|---|---|
| CL-372B | Antique Bronze | See lamp guide suffix | |
| Example: | CL-372B | ||
