CL-367C
CL-367C

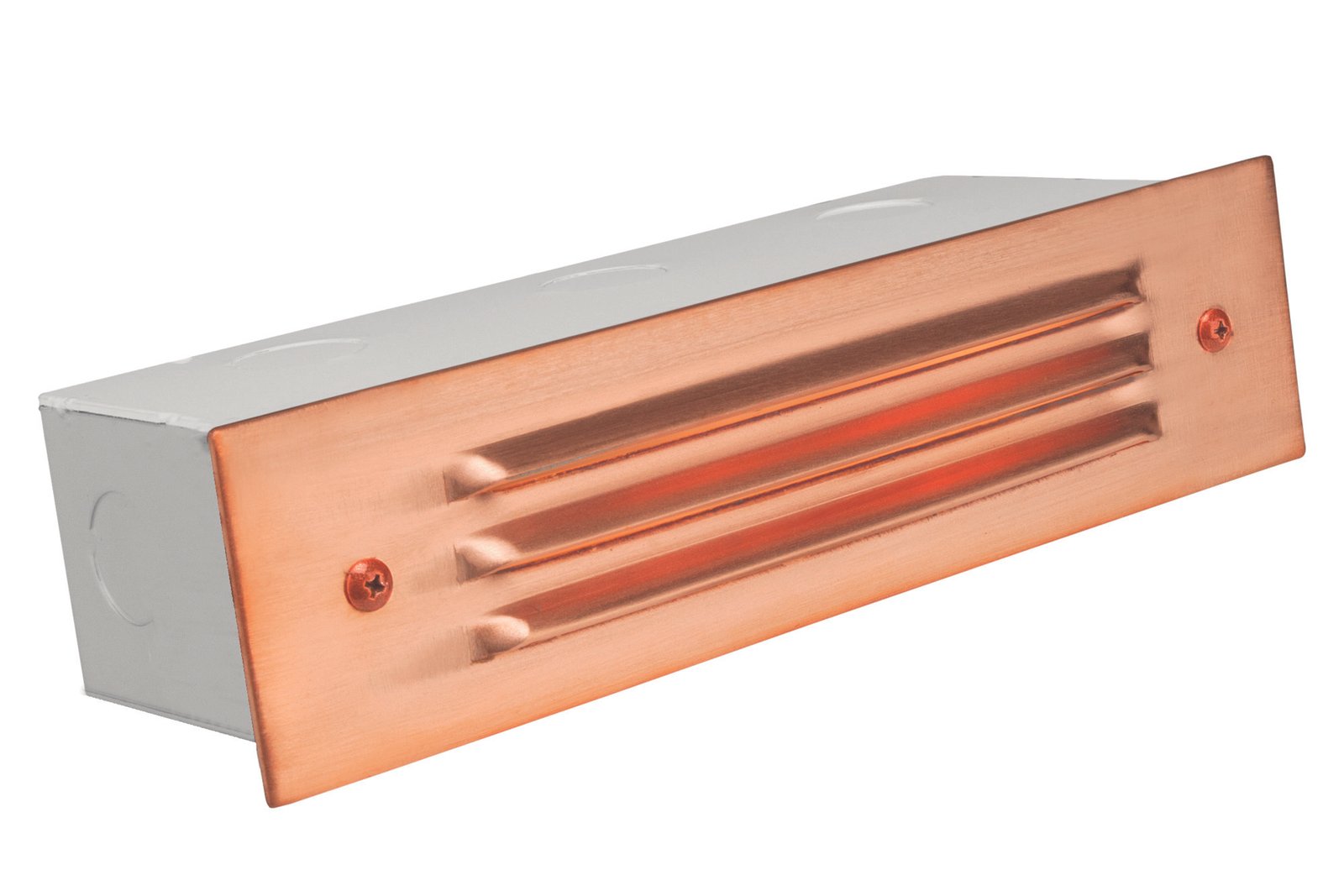

3 Louver Brick Light available in Copper with Raw Copper color finish.
Material: Copper
Style: 3 Louver Brick Light
Description: 3 Louvered Boxed Step Light
Lamp Type: SCB
Lamp Supplied: No Lamp
Mounting Supplied: Surface Mount
Grade: Architectural
Product Name | Spec Sheet |
---|---|
CL-367C | download |
Housing : White powder coated steel mount box with double S.C. bayonet sockets.
Lens : High impact white polycarbonate sealed and secured to faceplate.
Fixture Socket : Two S.C. Bayonet socket, attached to aluminum reflector.
Lamp : 12V, SCB, 27W (halogen) max.
Wiring : Fixture is prewired with a 3ft 18-2 SPT1-W direct burial cord. Wire connector sold seperately. Silicone filled wire nut (CX-854) are availble.
Gasket: Silicone gasket seals faceplate to housing. Providing weather tight protection.
Mounting : Recessed mount back box, with 5x1/2" NPT inlets. Best used in concrete, brick and other masonry surfaces.
Electrical : Voltage range with LED lamp is 9-17V. Remote 12 Volt transformer is required. See transformers and accessories for variety of options and choices.
Lamp Number | Watts | Beam Spread | Spread Text | Beam Lumen | Color Temp | Light Color | Rated Hours | Halogen Equiv |
---|---|---|---|---|---|---|---|---|
L-EDBA-2W | 2 | 360° | 360 Deg. | 200 | 2700K | Warm White | 25,000 | 20 Watt Halogen |
L-EDBA-2W-3K | 2 | 360° | 360 Deg. | 210 | 3000K | Cool White | 25,000 | 20 Watt Halogen |
L-EDBA-AM | 2 | 360° | 360 Deg. | 170 | 2000K | Amber | 25,000 | 20 Watt Halogen |
L-EDBA-2.5W | 2.5 | 180° | 180 Deg. | 240 | 2700K | Warm White | 25,000 | 35 Watt Halogen |
L-EDBA-2.5W-3K | 2.5 | 180° | 180 Deg. | 250 | 3000K | Cool White | 25,000 | 20 Watt Halogen |
Fixture | Finish | Finish Color | Lamp |
---|---|---|---|
CL-367C | Raw Copper | See lamp guide suffix | |
Example: | CL-367C |
