CL-360

CL-360

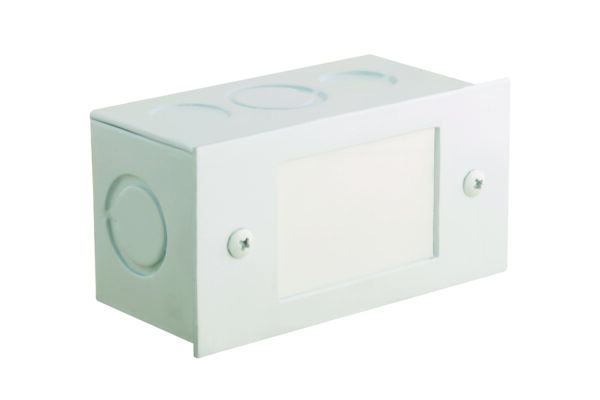

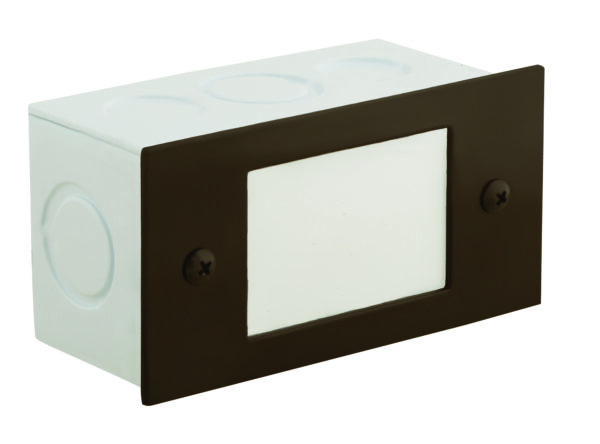

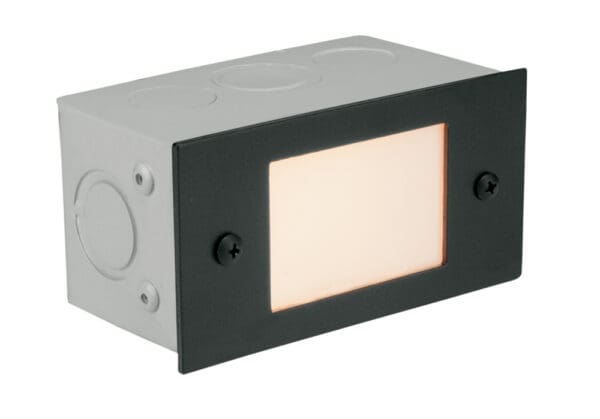

Lensed Step Light available in Aluminum with Black, Bronze, Rust, & White color finishes.

Material: Aluminum
Style: Lensed Step Light
Description: Lensed Boxed Step Light
Lamp Type: SCB
Lamp Supplied: No Lamp
Mounting Supplied: Surface Mount
Grade: Architectural

Dimensions

Dimensions: 4⅜” W x 2¼” H (Faceplate)
Ship Wight LBS: 2

Spec Sheet

Product NameSpec Sheet
CL-360 download
Housing : White powder coated steel mount box with S.C. bayonet socket.
Lens : High impact white polycarbonate sealed and secured to faceplate.
Fixture Socket : Top grade fixed S.C. Bayonet socket
Lamp : 12V, SCB, 27W (halogen) max.
Wiring : Fixture is prewired with a 12 inch direct burial cord. Wire connector available seperately. Universal connector (CX-839) or silicone filled wire nut (CX-854) may be ordered.
Gasket: Silicone gasket, seals faceplate to housing. Providing weather tight protection.
Mounting : Recessed mount back box, with 3x1/2" NPT inlets. Best used in concrete, brick and other masonry surfaces.
Electrical : Voltage range with LED lamp is 9-17V. Remote 12 Volt transformer is required. See transformers and accessories for variety of options and choices.
Lamp NumberWattsBeam SpreadSpread TextBeam LumenColor Temp Light Color Rated Hours Halogen Equiv
L-EDBA-2W2360°360 Deg.2002700KWarm White25,00020 Watt Halogen
L-EDBA-2W-3K2360°360 Deg.2103000KCool White25,00020 Watt Halogen
L-EDBA-AM2360°360 Deg.1702000KAmber25,00020 Watt Halogen
L-EDBA-2.5W2.5180°180 Deg.2402700KWarm White25,00035 Watt Halogen
L-EDBA-2.5W-3K2.5180°180 Deg.2503000KCool White25,00020 Watt Halogen
Fixture Finish Finish Color Lamp
CL-360BlackSee lamp guide suffix
Bronze
Rust
White
Example: CL-360
