CL-353
CL-353

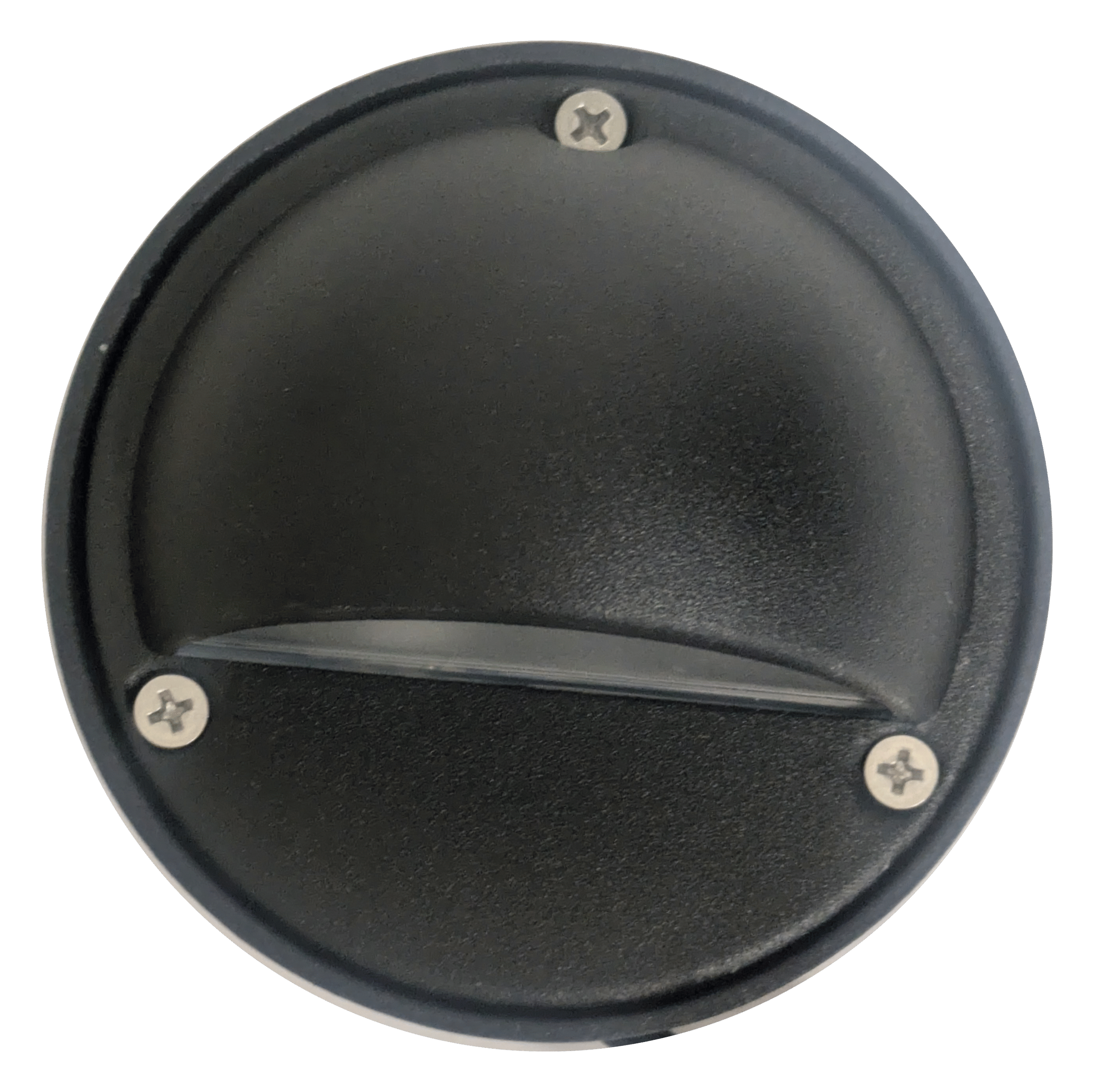

Aluminum Half-Moon Step Light, with a polyester UV powder coated steel mounting box. Finished in Black.
Material: Aluminum
Description: Half-Moon Step Light
Lamp Type: T5
Mounting Supplied: Surface mounted
Grade: Value
Dimensions

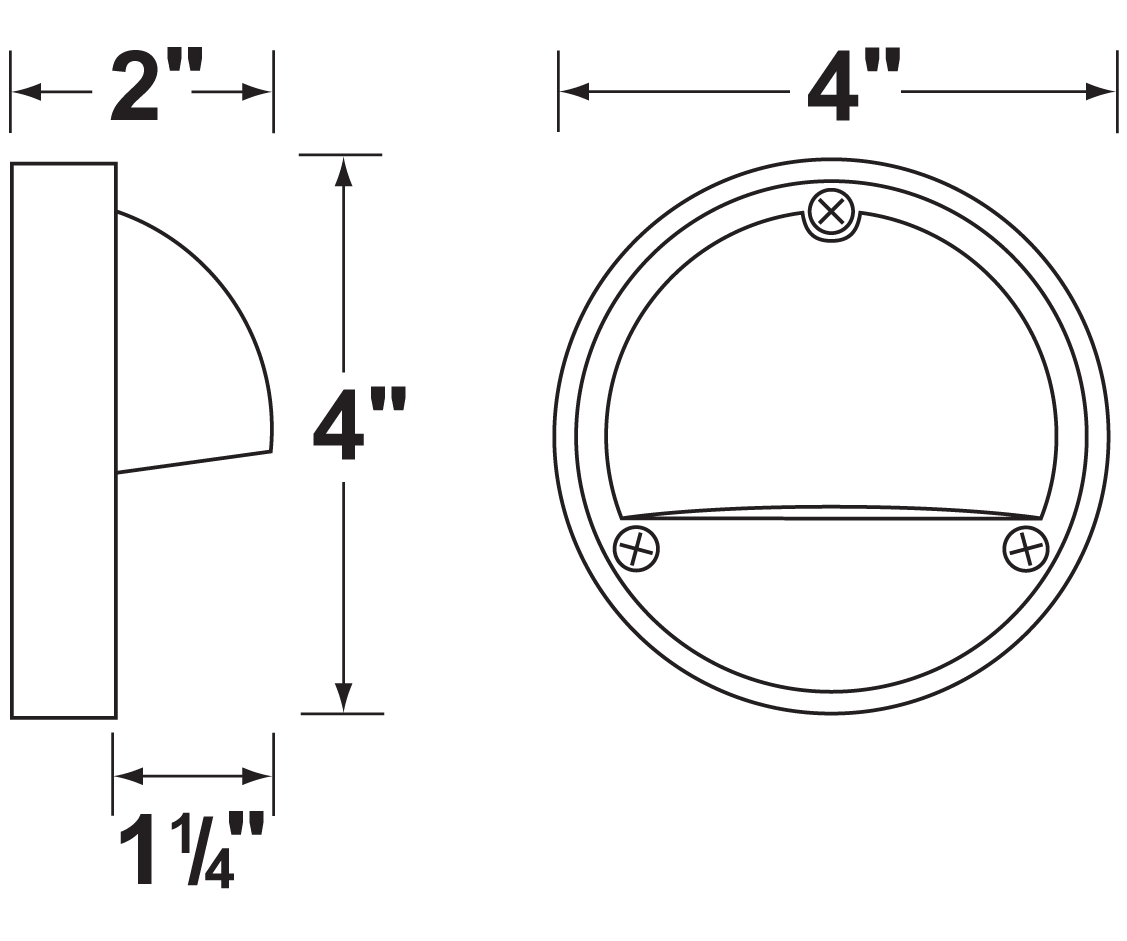

Size: 4” Dia x 2” Deep
Ship Weight LBS: 1.5
Downloads
Housing : Diecast aluminum.
Lens : Frosted, tempered and heat resistant glass sealed and secured to face plates, including gasket.
Socket : Top grade fixed T5 wedge socket.
Lamp : 12V T5 Wedge LED. Available in 1.5W LED or without lamp. Find the Lamp tab above for more information.
Wiring : Fixture is prewired with a 3ft 18-2 SPT2-W direct burial cord. Wire connector sold separately. Quick-locking connectors (CX-LOC) are available from Corona Lighting. See accessories for details
Mounting : Surface mounted, mounting plate is included. Outdoor use only.
Electrical : Voltage range for BT/LED lamps are 9V-17V. Remote 12 Volt transformer is required. Visit the transformers page for our line of options
WARRANTY : One (1) year warranty on fixture housing against manufacturer’s defects. date of Corona Lighting invoice.
| Lamp Number | Watts | Beam Spread | Spread Text | Beam Lumen | Color Temp | Light Color | Rated Hours | Halogen Equiv |
|---|---|---|---|---|---|---|---|---|
| L-EDT5-1.5W | 1.5 | 180° | 180 Deg. | 120 | 2700K | Warm White | 12,000 | 20 Watt Halogen |
Cable Connector
| Part # | Description |
|---|---|
| CX-LOC | Quick-Locking Wire Connector, 2 pack |
Mounting Tools
| Part # | Description |
|---|---|
| CX-237 | Concrete Pour Kit used with CL-216, CL-217, CL-218, CL-316B, CL-317B, CL-318B, CL-319B, CL-337, CL-338, CL-339, CL-340 |
| Fixture | Finish | Finish Color | Lamp |
|---|---|---|---|
| CL-353 | Black | See lamp guide suffix | |
| Example: | CL-353 | ||
