CL-345
CL-345

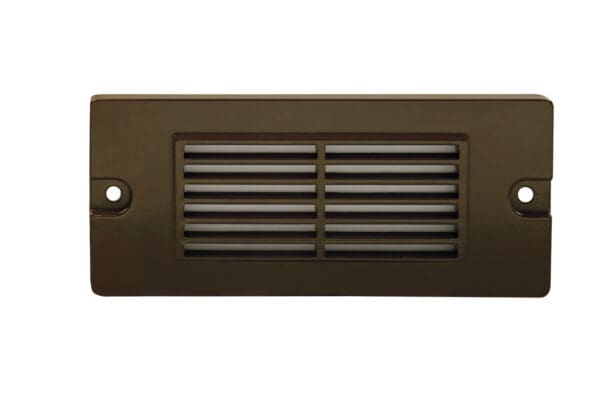

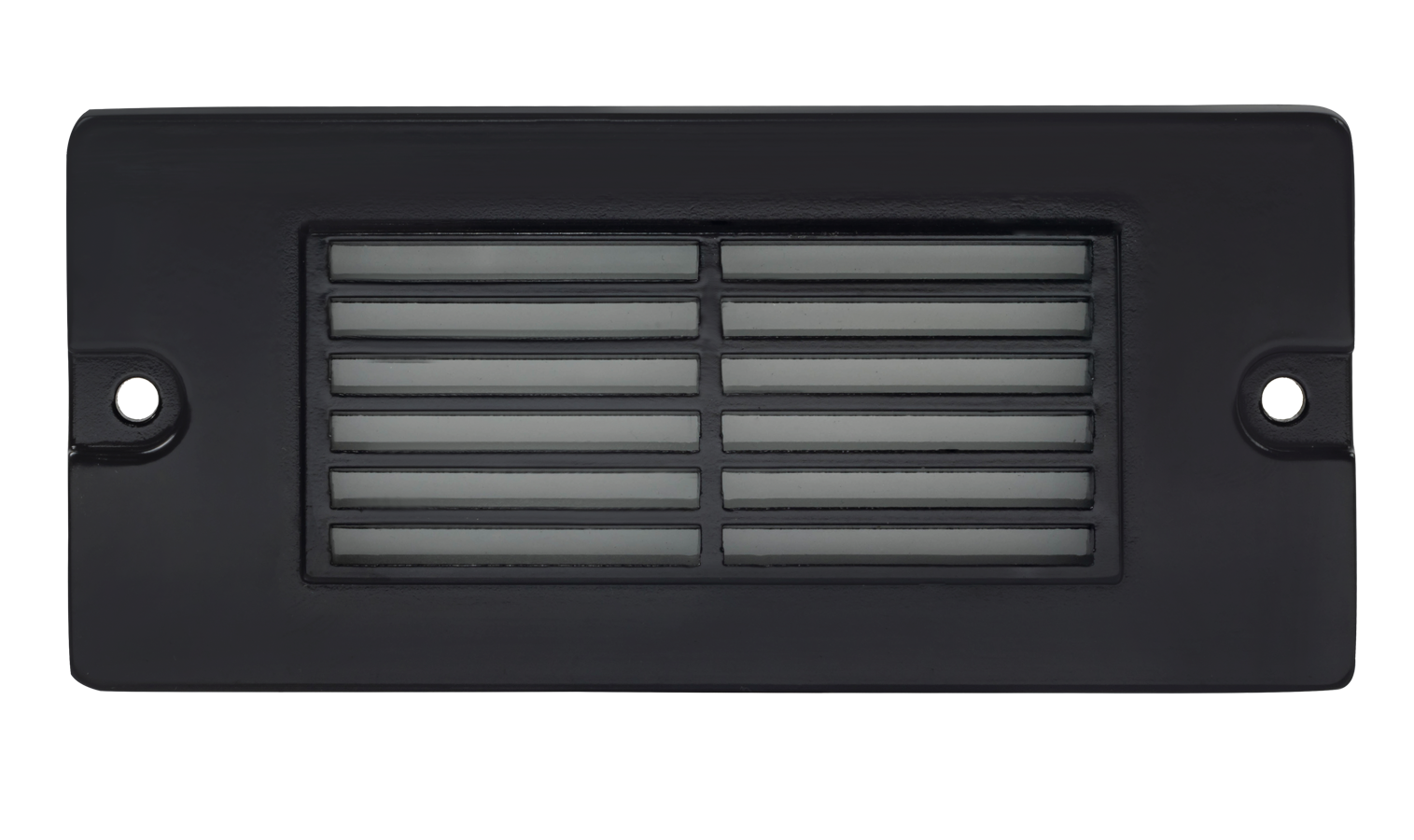

5½” Small aluminum louvered backless box Step Light, finished with Black or Bronze.
Material: Aluminum
Description: Small louvered integrated LED backless box Step Light
Lamp Type: Integrated LED
Light Source : 2.5W Integrated LED
Mounting Supplied: Surface
Grade: Architectural
Dimensions
Size: 5½” W x 2½” H x ½” D
Ship Weight LBS: 1.1
Downloads
Housing : Premium corrosion resistant diecast Aluminum. NO BACKBOX REQUIRED.
Lens : Frosted lens, fitted to stainless steel backplate.
Socket : Removable 2.5W LED module.
Lamp : 12V, 2.5 Watt, 250 lumens, 3000K, 20W halogen equivalent. Rated hours 30,000.
Wiring : Fixture is prewired with a 25ft 18-2 SPT2-W direct burial cord. Wire connector sold separately. Quick-locking connectors (CX-LOC) are available from Corona Lighting. See accessories for details
Mounting : Surface mounted on walls or steps. Two screws and anchors are provided.
APPLICATIONS : Best used on concrete, brick, or other masonry surfaces.
Electrical : Integrated LED module is dimmable. A remote 12V magnetic transformer is required. See transformers page for our line of options. Not for use with electronic transformers.
WARRANTY : Ten (10) years warranty on fixture housing against manufacturer’s defects.
No matching lamps found.
Cable Connector
| Part # | Description |
|---|---|
| CX-LOC | Quick-Locking Wire Connector, 2 pack |
Mounting Tools
| Part # | Description |
|---|---|
| CX-237 | Concrete Pour Kit used with CL-216, CL-217, CL-218, CL-316B, CL-317B, CL-318B, CL-319B, CL-337, CL-338, CL-339, CL-340 |
| Fixture | Finish | Finish Color | Lamp |
|---|---|---|---|
| CL-345 | Black | See lamp guide suffix | |
| Bronze | |||
| Example: | CL-345 | ||
