CL-337
CL-337

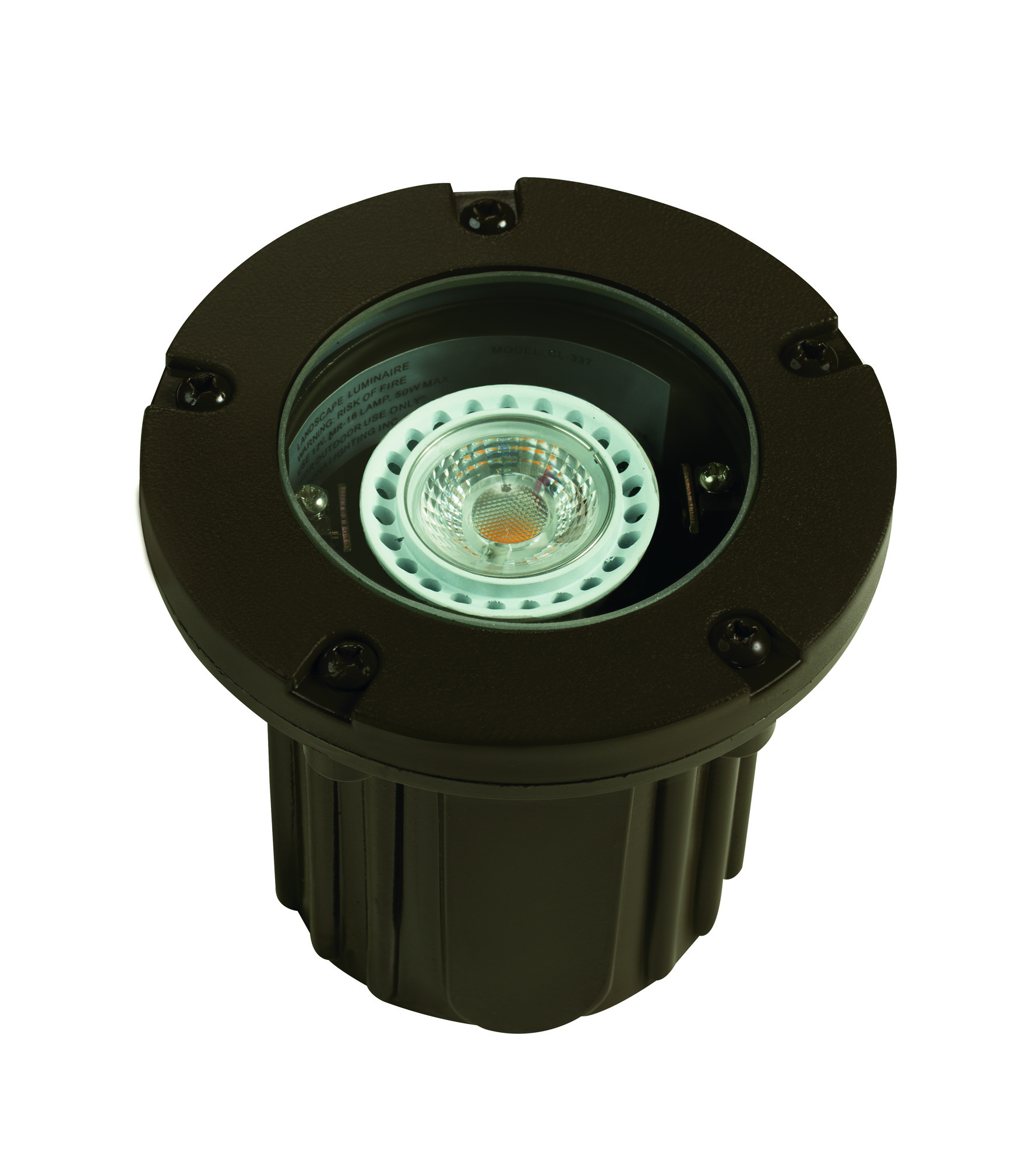

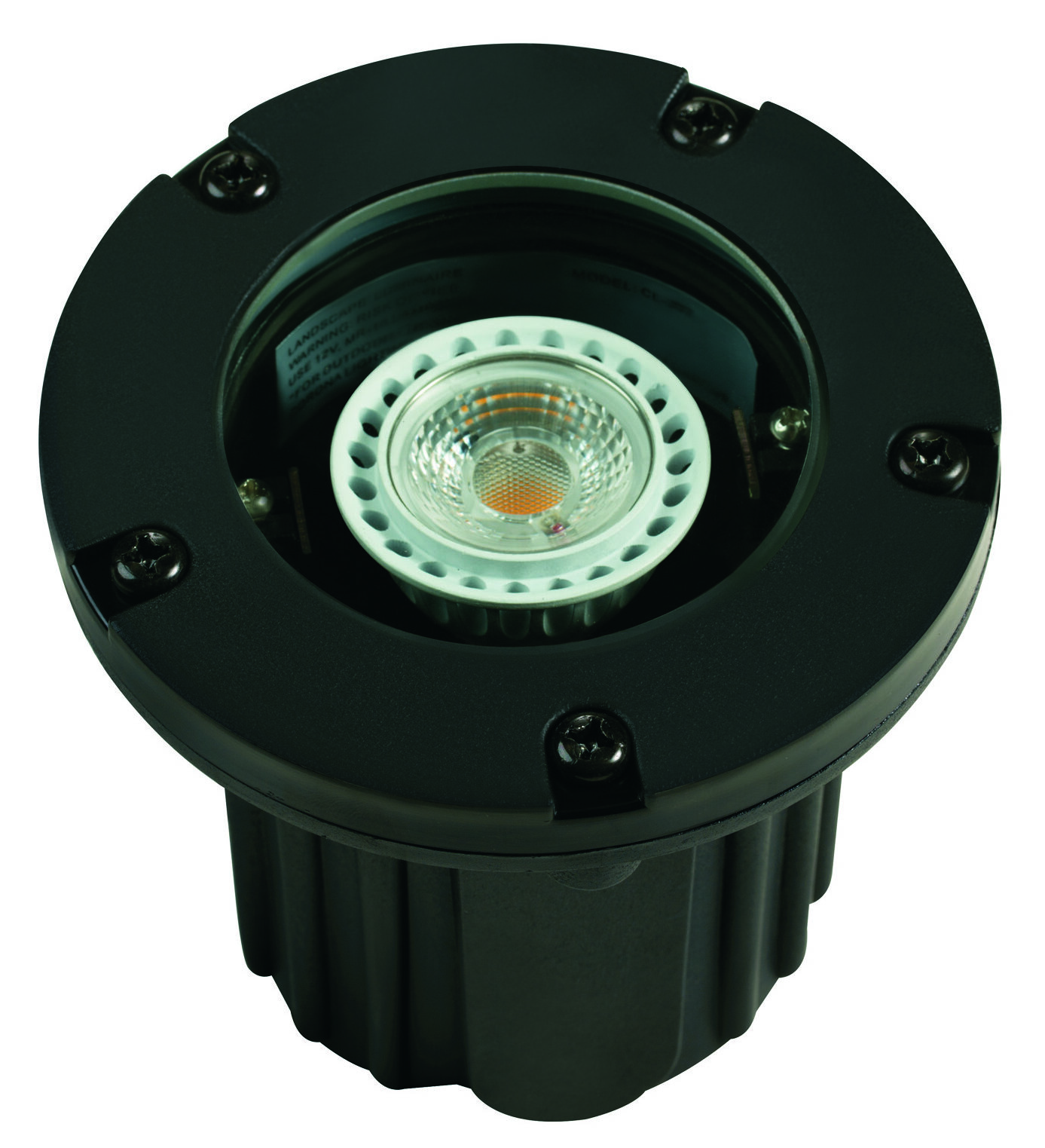

Adjustable Lensed Well Light available in Composite with 316 Marine Stainless Steel color finishes.
Material: Composite
Style: Adjustable Lensed Well Light
Description: Adjustable Flood Well Light Light with PVC Sleeve
Lamp Type: PAR-36
Lamp Supplied: No Lamp
Mounting Supplied: Direct Burial
Grade: Architectural
Dimensions
Dimensions: 4⅞” Dia x 4⅝” Deep
Ship Wight LBS: 2
Spec Sheet
Housing : Injection molded composite for high UV stability.
Lens : Clear and heat resistant flat glass.
Fixture Socket : Top grade adjustable ceramic bi-pin socket with retention clip and teflon-jacketed wire lead.
Lamp : 12V MR-16, 50W (halogen) max.
Wiring : Fixture is prewired with a 3ft 18-2 SJT-W direct burial cord. Wire connector available seperately. Universal connector (CX-839) or silicone filled wire nut (CX-854) may be ordered.
Gasket: Silicone o-ring gasket, tightly sealing lens to housing to provide weather-tight protection.
Mounting : PVC Sleeve for In-ground direct burial or concrete encasement.
Electrical : Voltage range with LED lamp is 9-17V. Remote 12 Volt transformer is required. See transformers and accessories for variety of options and choices.
| Lamp Number | Watts | Beam Spread | Spread Text | Beam Lumen | Color Temp | Light Color | Rated Hours | Halogen Equiv |
|---|---|---|---|---|---|---|---|---|
| L-ED36-6W-FL | 6 | 45° FL | Flood | 610 | 2700K | Warm White | 50,000 | 35 Watt Halogen |
| L-ED36-6W-WF | 6 | 60° WF | Wide Flood | 610 | 2700K | Warm White | 50,000 | 35 Watt Halogen |
| L-ED36-10W-WF | 10 | 60° WF | Wide Flood | 800 | 2700K | Warm White | 50,000 | 50 Watt Halogen |
| L-ED36-10W-FL | 10 | 45° FL | Flood | 800 | 2700K | Warm White | 50,000 | 50 Watt Halogen |
| L-ED36-13W-FL | 13 | 45° FL | Flood | 1150 | 2700K | Warm White | 50,000 | 75 Watt Halogen |
| L-ED36-13W-WF | 13 | 60° WF | Wide Flood | 1150 | 2700K | Warm White | 50,000 | 75 Watt Halogen |
| Fixture | Finish | Finish Color | Lamp |
|---|---|---|---|
| CL-337 | Black | See lamp guide suffix | |
| Bronze | |||
| Example: | CL-337 | ||
