CL-336
CL-336

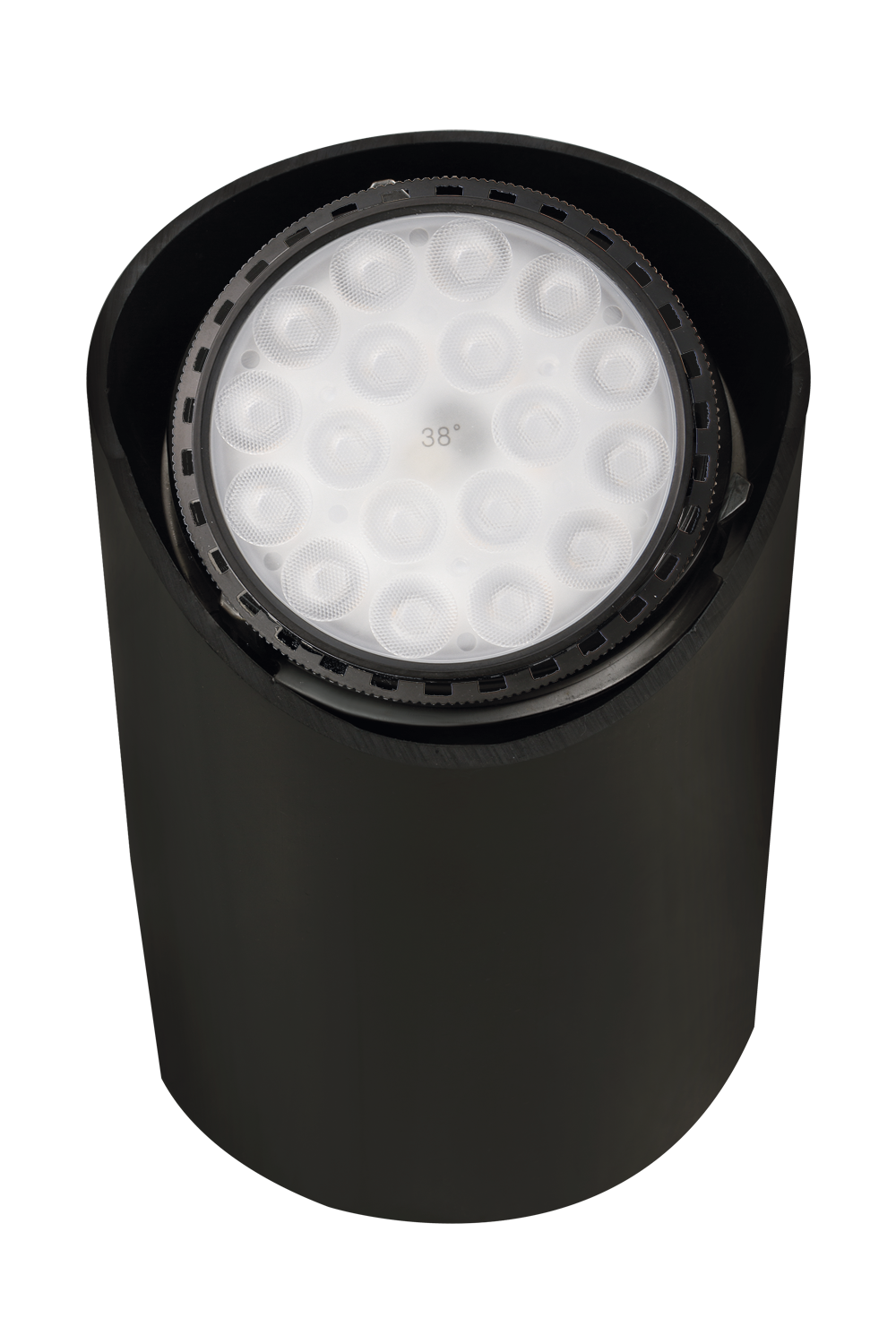

Adjustable 316 Marine Grade Stainless Steel PAR36 Well Light with a Black finish, housed in a reversible (flat and angle cut) PVC sleeve.
Material: Stainless Steel
Description: Adjustable Stainless Steel, lensed PAR36 Well Light
Lamp Type: PAR-36
Mounting Supplied: PVC Sleeve
Grade: Architectural

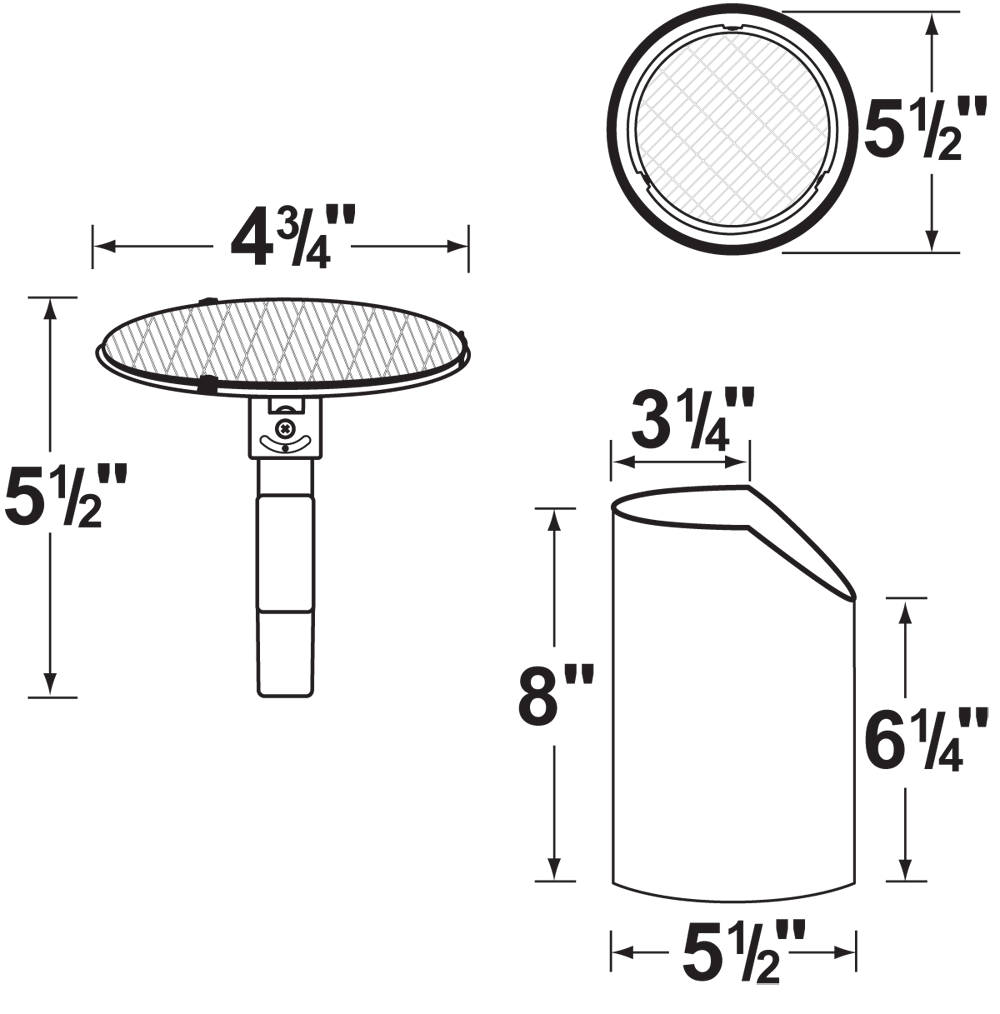

Dimensions
Size: 5½” Dia x 8” Deep
Ship Weight LBS: 3.5
Downloads
Housing : Stainless steel adjustable fixture, suspended inside a reversible PVC sleeve with both flat and angle-cut options on either end.
Lens : Clear, tempered, and heat resistant glass.
Socket : Top grade adjustable (25 deg. tilt), screw-in terminal.
Lamp : 12V, PAR36 LED
Available in 15W Bluetooth mesh smart RGB-WW, or CCT; 5 / 10 / 15W (adjustable), 6W economy LED or without lamp. See Lamp tab for more information.
Wiring : Fixture is prewired with a 5-ft 18-2 SPT2-W direct burial cord. Wire connector sold separately.
Quick-locking connectors (CX-LOC) are available from Corona Lighting. See accessories for details.
Mounting : PVC Sleeve for In-ground direct burial or concrete encasement.
Electrical : A remote 12V transformer is required. Visit the transformers page for our line of options. Voltage range for lamps are 9-17V. Proper grease/lubricant is suggested on threaded parts during installation process.
WARRANTY : Limited lifetime warranty on fixture housing against manufacturer’s defects.
| Lamp Number | Watts | Beam Spread | Spread Text | Beam Lumen | Color Temp | Light Color | Rated Hours | Halogen Equiv |
|---|---|---|---|---|---|---|---|---|
| L-ED36-15W-CCT | 0.2W-15W | 38º (15º/60º/100º) | Flood (Spot/Wide Flood) | 25-1200 | 2200K-5700K CCT | Tunable White | 50,000 | 10 Watts Halogen |
| L-ED36-15W-BT | 1-15 | 38º (15º/60º/100º) | Flood (Spot/Wide Flood) | 25-1200 | 2200K-5700K | Color Changing | 50,000 | 100 Watts Halogen |
| L-ED36-15W-ADJ | 5/10/15 | 38º (15º/60º/100º) | Flood (Spot/Wide Flood) | 450/800/1200 | 2000K-3000K | White | 50,000 | 40/75/100 Watt Halogen |
| L-ED36-6WEC-FL-3K | 6W | 38º FL | Flood | 700LM | 3000K | Cool White | 50,000 | 35W |
| L-ED36-6WEC-FL | 6W | 38º FL | Flood | 630 | 2700K | Warm White | 50,000 | 35W |
| L-ED36-6W-FL | 6 | 45° FL | Flood | 610 | 2700K | Warm White | 50,000 | 35 Watt Halogen |
| L-ED36-6W-WF | 6 | 60° WF | Wide Flood | 610 | 2700K | Warm White | 50,000 | 35 Watt Halogen |
| L-ED36-13W-FL | 13 | 45° FL | Flood | 1150 | 2700K | Warm White | 50,000 | 75 Watt Halogen |
| L-ED36-13W-WF | 13 | 60° WF | Wide Flood | 1150 | 2700K | Warm White | 50,000 | 75 Watt Halogen |
Cable Connector
| Part # | Description |
|---|---|
| CX-LOC | Quick-Locking Wire Connector, 2 pack |
| Fixture | Finish | Finish Color | Lamp |
|---|---|---|---|
| CL-336 | Antique Bronze | See lamp guide suffix | |
| Example: | CL-336 | ||
