CL-324
CL-324

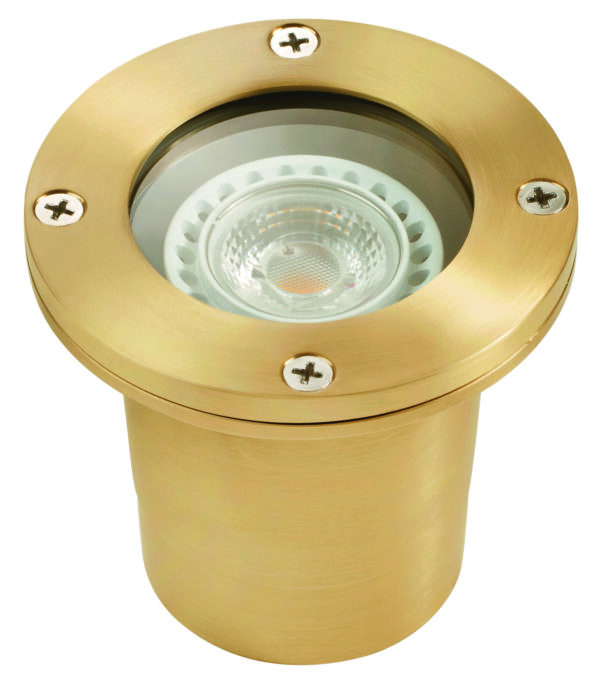

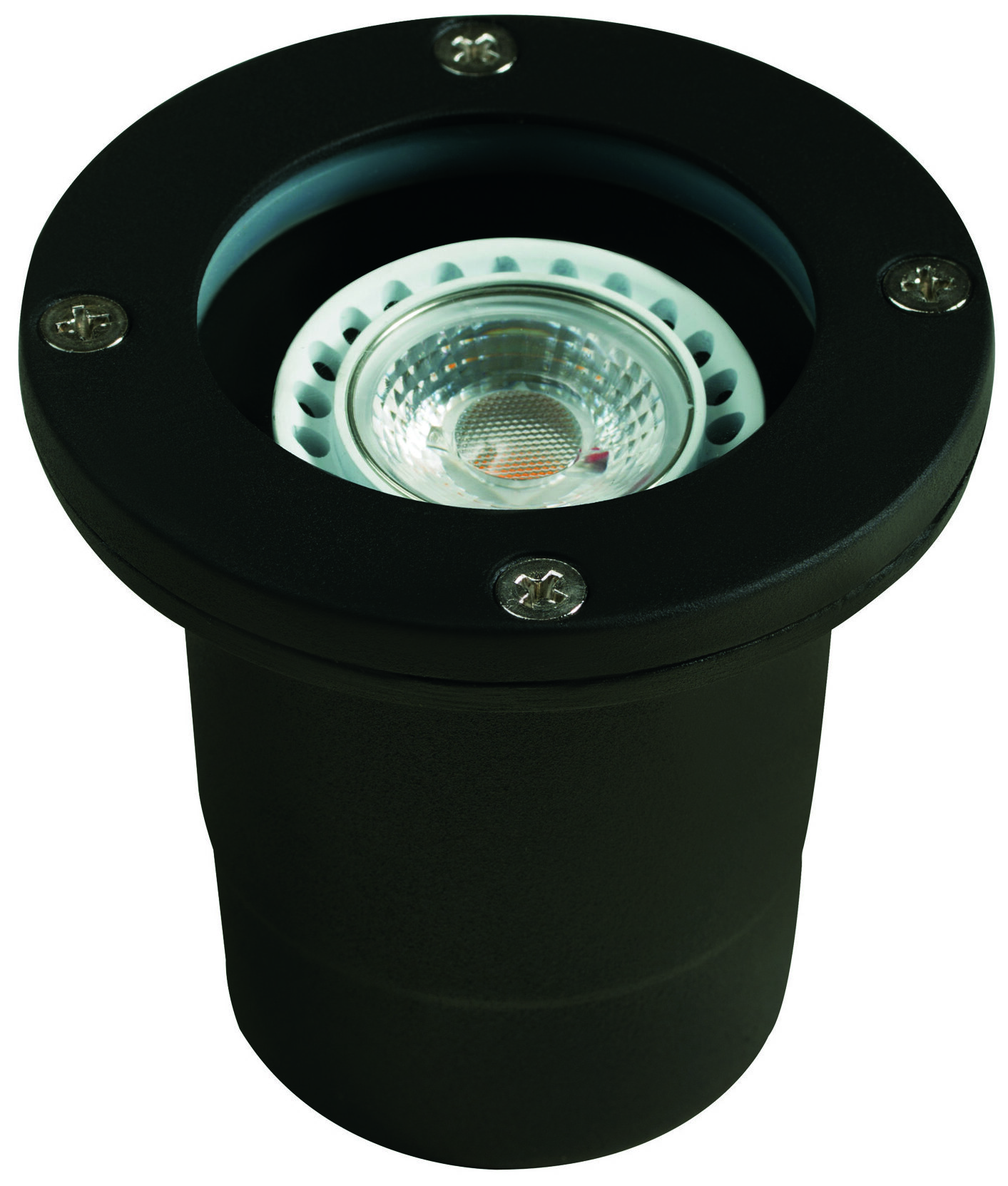

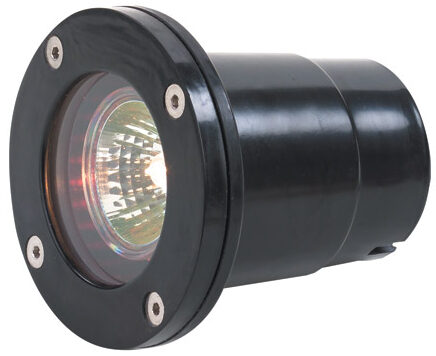

Lensed Well Light available in Aluminum, Composite or Natural Brass housing. Finished in Black or Natural Brass.
Material: Aluminum, Composite or Natural Brass
Description: Lensed Well Light
Lamp Type: MR-16
Mounting Supplied: Direct Burial
Grade: Value

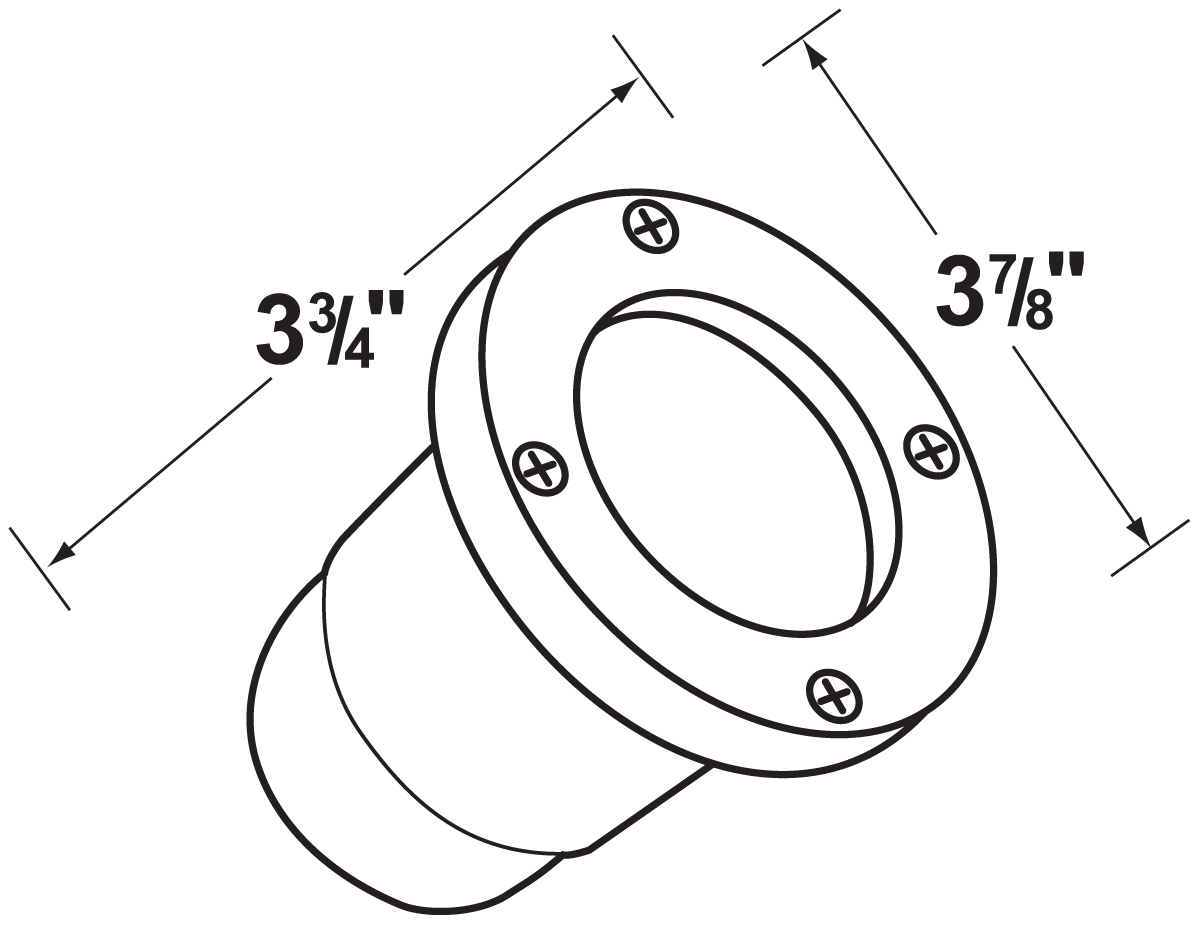

Dimensions
Size: 3⅞” Dia x 3¾” Deep
Ship Weight LBS: 2
Downloads
Housing : Die-cast aluminum.
Lens : Clear, tempered and heat resistant glass with a silicone gasket.
Socket : Top grade ceramic bi-pin socket with retention clip.
Lamp : 12V, MR-16 LED
Available in 5W Bluetooth mesh smart RGB-WW; 3.5W, 5W, 6W LED or without lamp.
Find lamp tab above for more information
Wiring : Fixture is prewired with a 3-ft 18-2 SPT2-W direct burial cord.
Wire connector sold separately. Quick-locking connectors (CX-LOC) are available from Corona Lighting. See accessories for details
Mounting : PVC Sleeve for in-ground direct burial or concrete encasement.
Electrical : Voltage range for BT/LED lamps are 9V-17V. Remote 12 Volt transformer is required. Visit transformers for our line of options.
WARRANTY : One (1) year warranty on fixture housing against manufacturer’s defects. date of Corona Lighting invoice.
| Lamp Number | Watts | Beam Spread | Spread Text | Beam Lumen | Color Temp | Light Color | Rated Hours | Halogen Equiv |
|---|---|---|---|---|---|---|---|---|
| L-ED16-5W-BT | 1W-5W (7.5VA) | 38º (15º / 60º incld) | Flood standard (SP/ WF incld) | 25-530 | 2200K-5700K | Color Changing | 50,000 | |
| L-ED16-3W-SP | 3.5 | 15° SP | Spot | 270 | 2700K | Warm White | 50,000 | 25 Watt Halogen |
| L-ED16-3W-FL | 3.5 | 45° FL | Flood | 270 | 2700K | Warm White | 50,000 | 25 Watt Halogen |
| L-ED16-3W-WF | 3.5 | 60° WF | Wide Flood | 270 | 2700K | Warm White | 50,000 | 25 Watt Halogen |
| L-ED16-5W-VT | 5 | 45° FL | Flood | 200 | NULL | Violet | 50,000 | 25 Watt Halogen |
| L-ED16-5W-SP | 5 | 15° SP | Spot | 350 | 2700K | Warm White | 50,000 | 40 Watt Halogen |
| L-ED16-5W-FL | 5 | 45° FL | Flood | 350 | 2700K | Warm White | 50,000 | 40 Watt Halogen |
| L-ED16-5W-WF | 5 | 60° WF | Wide Flood | 350 | 2700K | Warm White | 50,000 | 40 Watt Halogen |
| L-ED16-COB5W-SP | 5 | 15° SP | Spot | 450 | 2700K | Warm White | 50,000 | 50 Watt Halogen |
| L-ED16-COB5W-FL | 5 | 38° FL | Flood | 450 | 2700K | Warm White | 50,000 | 50 Watt Halogen |
| L-ED16-COB5W-WF | 5 | 60° WF | Wide Flood | 450 | 2700K | Warm White | 50,000 | 50 Watt Halogen |
| L-ED16-COB5W-SP3K | 5 | 15° SP | Spot | 470 | 3000K | Cool White | 50,000 | 50 Watt Halogen |
| L-ED16-COB5W-FL3K | 5 | 38° FL | Flood | 470 | 3000K | Cool White | 50,000 | 50 Watt Halogen |
| L-ED16-COB5W-WF3K | 5 | 60° WF | Wide Flood | 470 | 3000K | Cool White | 50,000 | 50 Watt Halogen |
| L-ED16-6W-SP | 6 | 15° SP | Spot | 600 | 2700K | Warm White | 50,000 | 75 Watt Halogen |
| L-ED16-6W-FL | 6 | 38° FL | Flood | 600 | 2700K | Warm White | 50,000 | 75 Watt Halogen |
| L-ED16-6W-WF | 6 | 60° WF | Wide Flood | 600 | 2700K | Warm White | 50,000 | 75 Watt Halogen |
| L-ED16-6W-SP-3K | 6 | 15° SP | Spot | 600 | 3000K | Cool White | 50,000 | 75 Watt Halogen |
| L-ED16-6W-FL-3K | 6 | 38° FL | Flood | 600 | 3000K | Cool White | 50,000 | 75 Watt Halogen |
| L-ED16-6W-WF-3K | 6 | 60° WF | Wide Flood | 600 | 3000K | Cool White | 50,000 | 75 Watt Halogen |
Cable Connector
| Part # | Description |
|---|---|
| CX-LOC | Quick-Locking Wire Connector, 2 pack |
Mounting Tools
| Part # | Description |
|---|---|
| CX-237 | Concrete Pour Kit used with CL-216, CL-217, CL-218, CL-316B, CL-317B, CL-318B, CL-319B, CL-337, CL-338, CL-339, CL-340 |
| Fixture | Finish | Finish Color | Lamp |
|---|---|---|---|
| CL-324 | Black | See lamp guide suffix | |
| Natural Brass | |||
| Example: | CL-324 | ||
