CL-289
CL-289

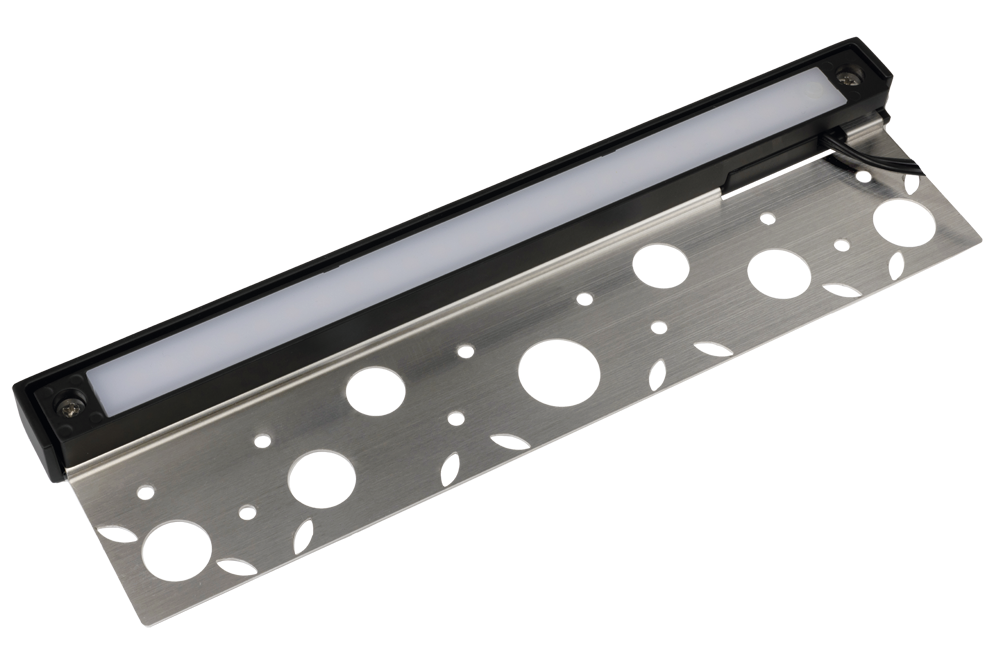

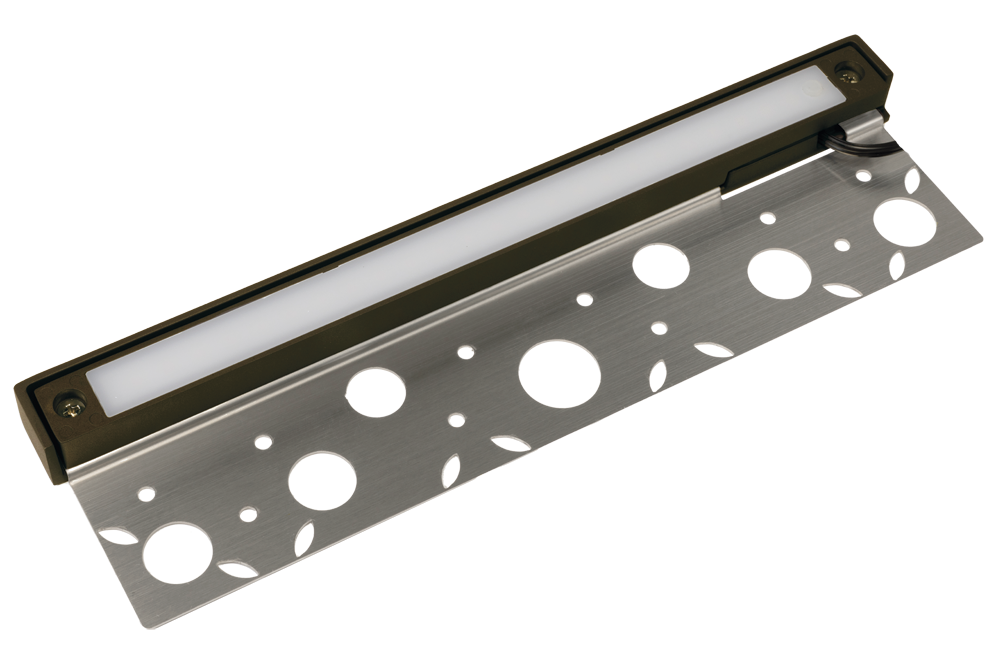

12″ Aluminum 3W LED Rail Light, with a color temperature control switch 2700K/3000K. Available in Black and Bronze
Material: Die-Cast Aluminum
Description: 12" Rail Light 2700K/3000K Color Temp, available in Black or Bronze. Integrated LED. 2700K/3000K Switch
Lamp Type: Replaceable LED Capsule.
Lamp Supplied: 4W LED Module
Mounting Supplied: Stainless Steel Mounting Bracket. Additional shorter Mounting Brackets (Small and “L” Shape) provided.
Grade: Architectural

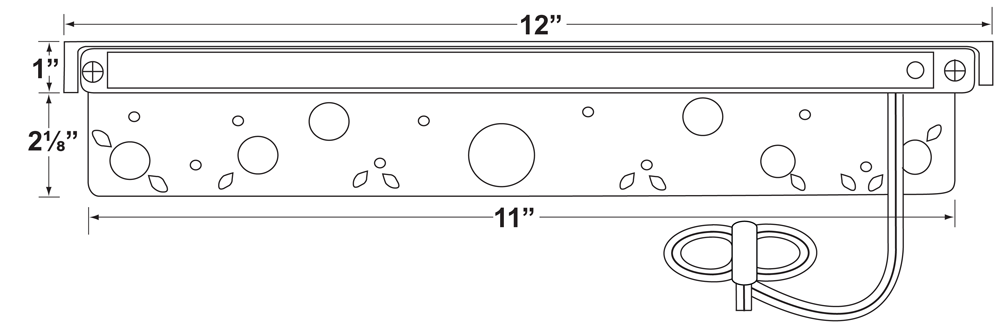

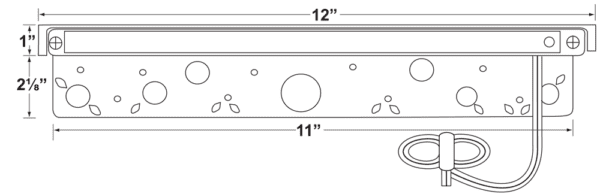

Dimensions
Size: 12" W x 3" L
Ship Weight LBS: 1.38
Downloads
Housing : Die-Cast Aluminum. Fully Potted.
Lens : Frosted Plastic Lens
Socket : Replaceable LED Capsule
Lamp : Integrated LED Strip (24 Chips), Wattage: 4W, Beam Spread: 120 Degrees. Light Output: 320 Lumens, Color Temperature: 2700K/3000K adjustable with Push button. Halogen Equivalent: 35W.
Wiring : Fixture is prewired with a 10-ft 18-2 direct burial cord, pre-stripped for easy connection, wire connector sold separately. Silicone filled wire nuts (CX-854) and quick-locking connectors (CX-LOC) are available from Corona Lighting. See 'Accessories' for more information
Mounting : Stainless Steel Mounting Bracket is removable for further applications. Break off corners for easy installation. Additional shorter Mounting Brackets (Small and “L” Shape) provided. Supplied with Wall Anchors and Screws.
Electrical : 4W LED is dimmable. A remote 12V magnetic transformer is required. See 'Transformers' for options. Not for use with electronic transformers. Operating Voltage: 9-17V AC & DC. CRI >80. Ambient Temperature: -22º F - +131º F
Proper grease/lubricant is suggested on threaded parts during installation process.
WARRANTY : 10 year warranty, with a rated life of 50,000 hours
No matching lamps found.
| Fixture | Finish | Finish Color | Lamp |
|---|---|---|---|
| CL-289 | Black | See lamp guide suffix | |
| Bronze | |||
| Example: | CL-289 | ||
