CL-132B
CL-132B

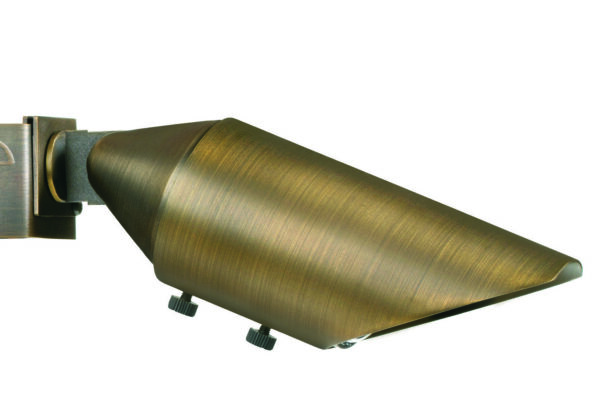

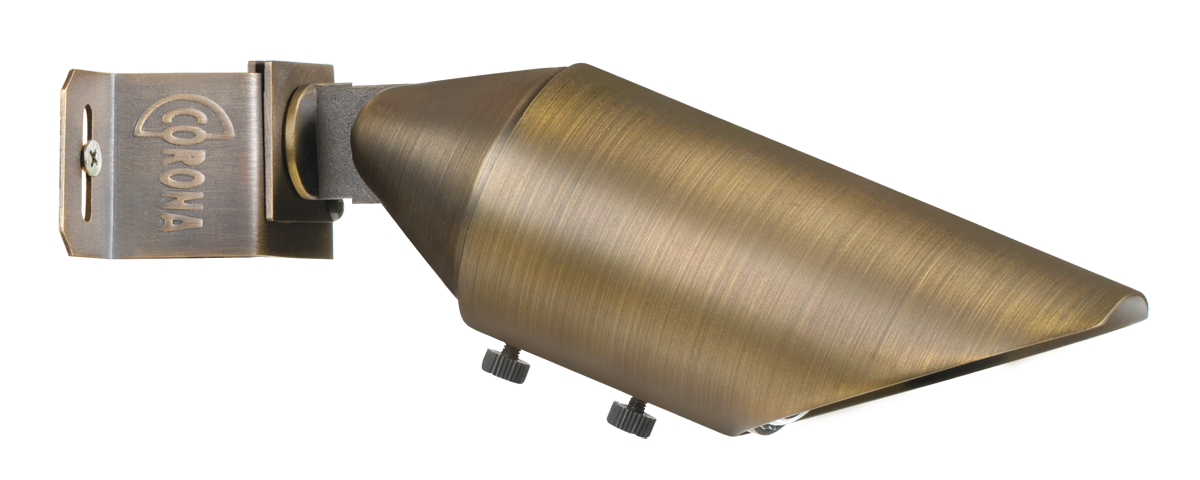

Adjustable Brass Down Light, Finished in Antique Bronze or Gun Metal.
Material: Brass
Description: Brass Tree Mount Adjustable Bullet Light
Lamp Type: MR-16
Mounting Supplied: Brass Tree Mount Bracket
Grade: Architectural
Dimensions
Size: 2⅜” Dia x 7½” Length
Ship Weight LBS: 3
Downloads
Housing : Corrosion resistant solid brass. Shroud is adjustable and extendable.
Lens : Clear and heat resistant tempered flat glass.
Socket : Top-grade ceramic bi-pin socket, with retension clip.
Lamp : 12V, MR-16 LED Available in 5W Bluetooth mesh smart RGB-WW; 3.5W, 5W, 6W LED or without lamp. Find lamps tab above for more information.
Wiring : Fixture is prewired with a 5-ft 18-2 SPT2-W direct burial cord. Wire connector sold separately. Quick-locking connectors (CX-LOC) are available from Corona Lighting. See accessories for details
Knuckle : Adjustable cast brass knuckle with thumb screw.
Mounting : Brass Bracket with ½" NPT threaded female hub. CX-709B Brass Canopy mounting is also available.
Electrical : Voltage range with LED lamp is 9-17V. Remote 12 Volt transformer is required. Visit transformers page for our line of options.
WARRANTY : Limited lifetime warranty on fixture housing against manufacturer’s defects.
| Lamp Number | Watts | Beam Spread | Spread Text | Beam Lumen | Color Temp | Light Color | Rated Hours | Halogen Equiv |
|---|---|---|---|---|---|---|---|---|
| L-ED16-5W-BT | 1W-5W (7.5VA) | 38º (15º / 60º incld) | Flood standard (SP/ WF incld) | 25-530 | 2200K-5700K | Color Changing | 50,000 | |
| L-ED16-3W-SP | 3.5 | 15° SP | Spot | 270 | 2700K | Warm White | 50,000 | 25 Watt Halogen |
| L-ED16-3W-FL | 3.5 | 45° FL | Flood | 270 | 2700K | Warm White | 50,000 | 25 Watt Halogen |
| L-ED16-3W-WF | 3.5 | 60° WF | Wide Flood | 270 | 2700K | Warm White | 50,000 | 25 Watt Halogen |
| L-ED16-5W-VT | 5 | 45° FL | Flood | 200 | NULL | Violet | 50,000 | 25 Watt Halogen |
| L-ED16-5W-SP | 5 | 15° SP | Spot | 350 | 2700K | Warm White | 50,000 | 40 Watt Halogen |
| L-ED16-5W-FL | 5 | 45° FL | Flood | 350 | 2700K | Warm White | 50,000 | 40 Watt Halogen |
| L-ED16-5W-WF | 5 | 60° WF | Wide Flood | 350 | 2700K | Warm White | 50,000 | 40 Watt Halogen |
| L-ED16-COB5W-SP | 5 | 15° SP | Spot | 450 | 2700K | Warm White | 50,000 | 50 Watt Halogen |
| L-ED16-COB5W-FL | 5 | 38° FL | Flood | 450 | 2700K | Warm White | 50,000 | 50 Watt Halogen |
| L-ED16-COB5W-WF | 5 | 60° WF | Wide Flood | 450 | 2700K | Warm White | 50,000 | 50 Watt Halogen |
| L-ED16-COB5W-SP3K | 5 | 15° SP | Spot | 470 | 3000K | Cool White | 50,000 | 50 Watt Halogen |
| L-ED16-COB5W-FL3K | 5 | 38° FL | Flood | 470 | 3000K | Cool White | 50,000 | 50 Watt Halogen |
| L-ED16-COB5W-WF3K | 5 | 60° WF | Wide Flood | 470 | 3000K | Cool White | 50,000 | 50 Watt Halogen |
| L-ED16-6W-SP | 6 | 15° SP | Spot | 600 | 2700K | Warm White | 50,000 | 75 Watt Halogen |
| L-ED16-6W-FL | 6 | 38° FL | Flood | 600 | 2700K | Warm White | 50,000 | 75 Watt Halogen |
| L-ED16-6W-WF | 6 | 60° WF | Wide Flood | 600 | 2700K | Warm White | 50,000 | 75 Watt Halogen |
| L-ED16-6W-SP-3K | 6 | 15° SP | Spot | 600 | 3000K | Cool White | 50,000 | 75 Watt Halogen |
| L-ED16-6W-FL-3K | 6 | 38° FL | Flood | 600 | 3000K | Cool White | 50,000 | 75 Watt Halogen |
| L-ED16-6W-WF-3K | 6 | 60° WF | Wide Flood | 600 | 3000K | Cool White | 50,000 | 75 Watt Halogen |
Cable Connector
| Part # | Description |
|---|---|
| CX-LOC | Quick-Locking Wire Connector, 2 pack |
Mounting Canopies
| Part # | Description |
|---|---|
| CX-705B | Brass Flat Canopy, Finishes: AB, BK, BR, GM, SI, |
| CX-709 | Aluminum Raised Canopy , Finishes: BK, BZ, GT, SI, WH |
| CX-709B | Brass Canopy, Finishes: AB, BK, BR, GM, SI, |
| CX-718 | 5” Aluminum Canopy , 3-hole, Finishes: BK, BZ |
| CX-718B | 5” Brass Canopy, 3-hole, Finishes: AB, GM, SI |
| CX-719B | Brass Tree Bracket, Finishes: AB, BK, BR, GM, SI |
| CX-721 | Aluminum Tree Canopy, w/Rubber strap 15”-22”, Finishes: BK, BZ, GR, GT, RT, VG, WH |
| CX-721B | Brass Tree Canopy, w/ Rubber strap 15”-22”.Finishes: AB, BK |
| CX-722 | Aluminum Tree Canopy, w/Rubber Strap, 22"- 33”, Finishes: BK, BZ, GR, GT, RT, VG, WH |
| CX-722B | Brass Tree Canopy, w/Rubber Strap, 22"- 33”, Finishes: AB, BK |
| CX-723 | Aluminum Tree Canopy, w/Rubber Strap, 31"- 45”, Finishes: BK, BZ, GR, GT, RT, VG, WH |
| CX-723B | Brass Tree Canopy,w/ Rubber Strap, 31"- 45”, Finishes: AB, BK |
| Fixture | Finish | Finish Color | Lamp |
|---|---|---|---|
| CL-132B | Antique Bronze | See lamp guide suffix | |
| Gun Metal | |||
| Example: | CL-132B | ||
