CL-131B
CL-131B

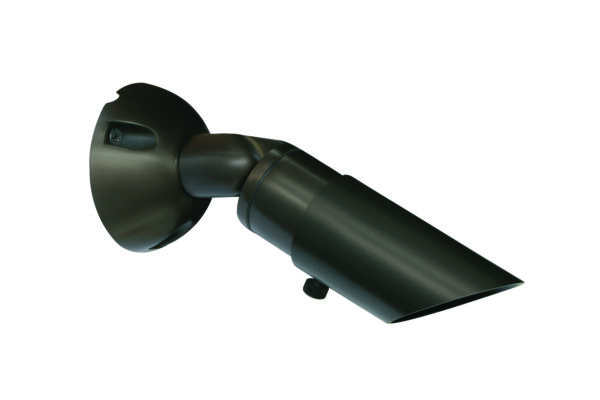

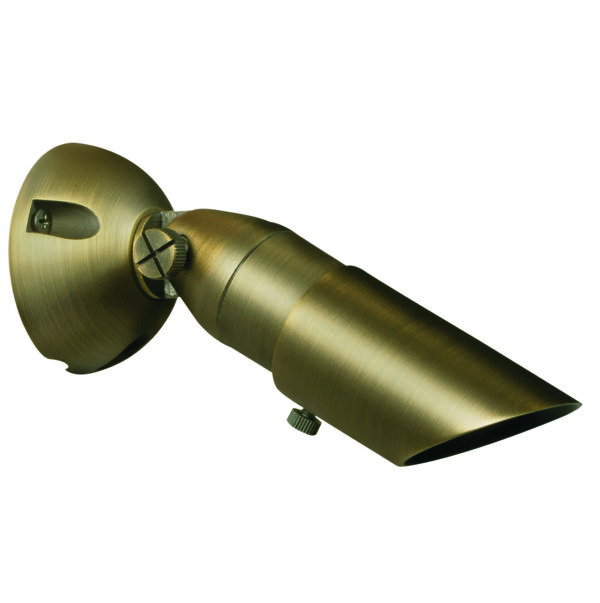

Adjustable Brass Down Light, Finished with Antique Bronze or Gun Metal.
Material: Brass
Description: Wall Mount Canopy Mini Bullet Light
Lamp Type: MR-11
Lamp Supplied: No Lamp
Mounting Supplied: Brass Wall Mount Canopy
Grade: Architectural

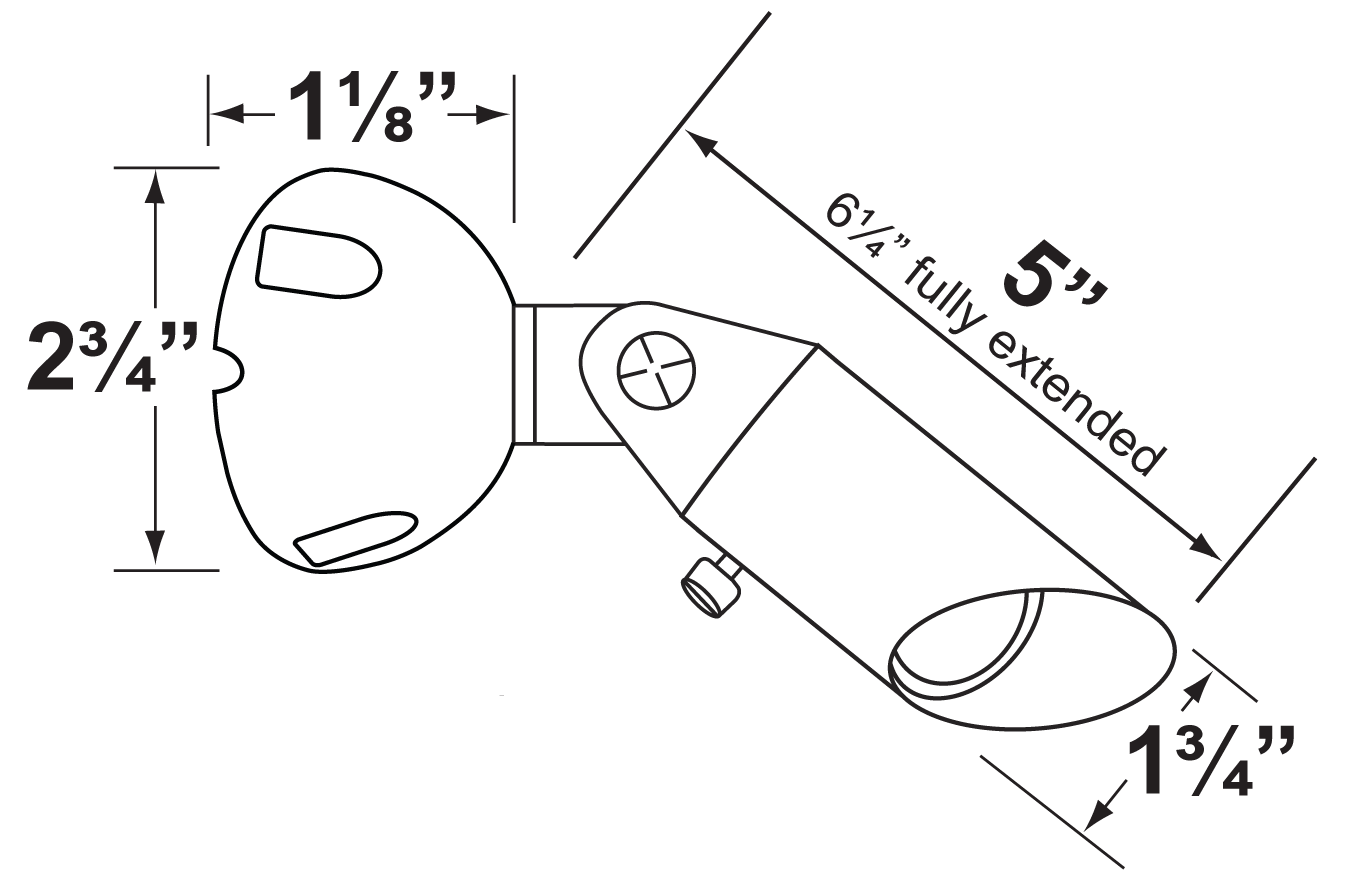

Dimensions
Size: 1¾”Dia x 5¼” Length
Ship Weight LBS: 2
Downloads
Housing : Corrosion resistant solid brass. Shroud is adjustable and extendable.
Lens : Clear and heat resistant tempered flat glass.
Socket : Top-grade ceramic bi-pin socket, with retension clip.
Lamp : 12V MR-11, Available in 2.5W LED or without lamp. See Lamp tab above for more information.
Wiring : Fixture is prewired with a 5-ft 18-2 SPT2-W direct burial cord. Wire connector sold separately. Quick-locking connectors (CX-LOC) are available from Corona Lighting. See accessories for details
Knuckle : Adjustable cast brass knuckle with thumb screw.
Mounting : Brass round canopy with ½" NPT threaded female hub. CX-719B Brass mounting bracket is also available.
Electrical : Voltage range with LED lamp is 9-17V. Remote 12 Volt transformer is required. See transformers and accessories for variety of options and choices.
WARRANTY : Limited lifetime warranty on fixture housing against manufacturer’s defects.
| Lamp Number | Watts | Beam Spread | Spread Text | Beam Lumen | Color Temp | Light Color | Rated Hours | Halogen Equiv |
|---|---|---|---|---|---|---|---|---|
| L-ED11-2.5W | 2.5 | 38° FL | Flood | 180 | 2700K | Warm White | 40,000 | 20 Watt Halogen |
Cable Connector
| Part # | Description |
|---|---|
| CX-LOC | Quick-Locking Wire Connector, 2 pack |
Mounting Canopies
| Part # | Description |
|---|---|
| CX-705B | Brass Flat Canopy, Finishes: AB, BK, BR, GM, SI, |
| CX-709 | Aluminum Raised Canopy , Finishes: BK, BZ, GT, SI, WH |
| CX-709B | Brass Canopy, Finishes: AB, BK, BR, GM, SI, |
| CX-718 | 5” Aluminum Canopy , 3-hole, Finishes: BK, BZ |
| CX-718B | 5” Brass Canopy, 3-hole, Finishes: AB, GM, SI |
| CX-719B | Brass Tree Bracket, Finishes: AB, BK, BR, GM, SI |
| CX-721 | Aluminum Tree Canopy, w/Rubber strap 15”-22”, Finishes: BK, BZ, GR, GT, RT, VG, WH |
| CX-721B | Brass Tree Canopy, w/ Rubber strap 15”-22”.Finishes: AB, BK |
| CX-722 | Aluminum Tree Canopy, w/Rubber Strap, 22"- 33”, Finishes: BK, BZ, GR, GT, RT, VG, WH |
| CX-722B | Brass Tree Canopy, w/Rubber Strap, 22"- 33”, Finishes: AB, BK |
| CX-723 | Aluminum Tree Canopy, w/Rubber Strap, 31"- 45”, Finishes: BK, BZ, GR, GT, RT, VG, WH |
| CX-723B | Brass Tree Canopy,w/ Rubber Strap, 31"- 45”, Finishes: AB, BK |
| Fixture | Finish | Finish Color | Lamp |
|---|---|---|---|
| CL-131B | Antique Bronze | See lamp guide suffix | |
| Gun Metal | |||
| Example: | CL-131B | ||
