CL-106-BT
CL-106-BT

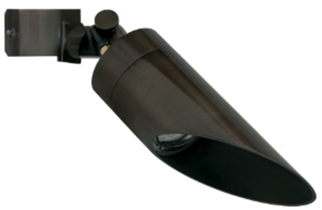

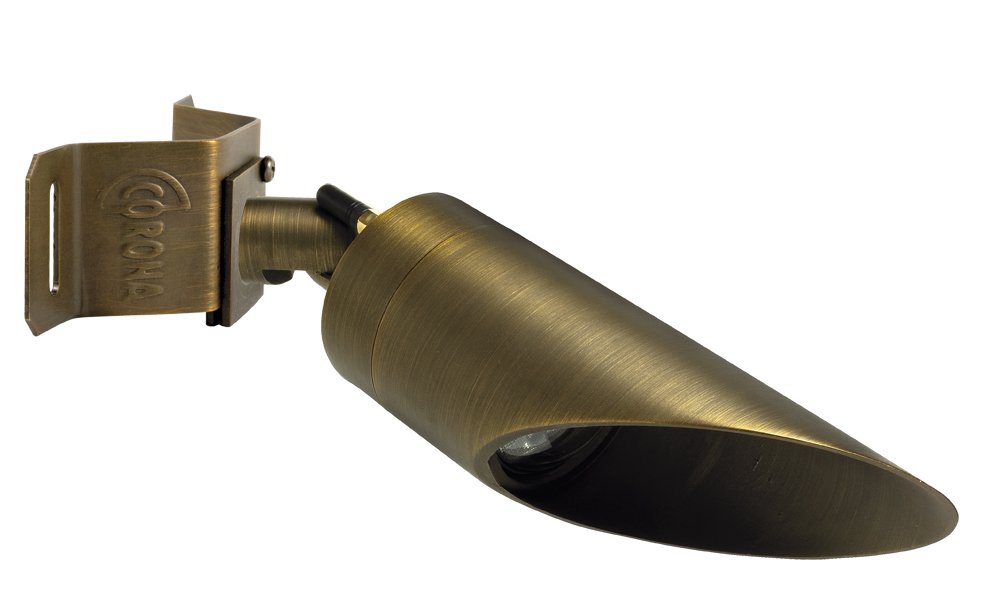

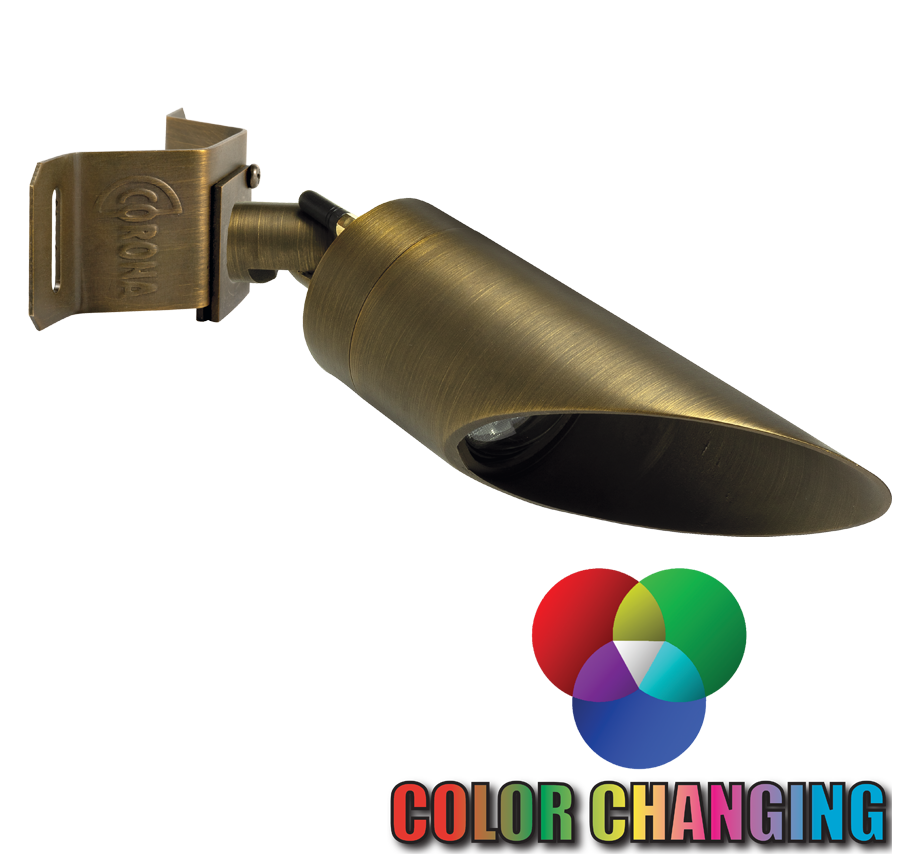

RGB-WW Bluetooth Brass Down Light w/ Tree Mounting Bracket Finished in Antique Bronze or Gun Metal.
Material: Brass
Description: Smart RGB-WW Bluetooth Long Shroud Down Light
Lamp Type: Integrated LED
Light Source : Replacable 1-6W RGB LED module. Lumen output is
between 15LM - 450LM. Standard 38º beam spread,
with 15º & 60º options also included.
Mounting Supplied: Tree Mounting Bracket
Grade: Architectural
Dimensions
Size: 2½"W x 7" L (Head)
Ship Weight LBS: 5
Downloads
Housing : Corrosion Resistant Cast Brass.
Lens : Clear, convex glass lens. standard 38º beam spread reflector, with 15º & 60º options also included.
Socket : Replacable 1-6W RGB-CCT LED module.
Lamp : 12V, 6 Watt, 15-450 lumens, CCT: 2700K, 3000K, 4000K, 5000K, Unlimited RGB
Wiring : Fixture is prewired with a 10ft 18-2 SPT2-W direct burial cord. Wire connector sold separately. Quick-locking connectors (CX-LOC) are available from Corona Lighting. See accessories for details
Knuckle : Swivel cast brass knuckle with thumb screw and ½" NPT threaded male hub on bottom.
Mounting : Standard injection molded 8½" large spike with ½" NPT threaded female hub on bottom.
Electrical : Voltage range with LED module is 10-15V (10VA). Remote 12 Volt transformer is required. Visit the transformers page for our line of options.
WARRANTY : Ten (10) years warranty on fixture housing against manufacturer’s defects.
No matching lamps found.
Cable Connector
| Part # | Description |
|---|---|
| CX-LOC | Quick-Locking Wire Connector, 2 pack |
Mounting Canopies
| Part # | Description |
|---|---|
| CX-705B | Brass Flat Canopy, Finishes: AB, BK, BR, GM, SI, |
| CX-709 | Aluminum Raised Canopy , Finishes: BK, BZ, GT, SI, WH |
| CX-709B | Brass Canopy, Finishes: AB, BK, BR, GM, SI, |
| CX-718 | 5” Aluminum Canopy , 3-hole, Finishes: BK, BZ |
| CX-718B | 5” Brass Canopy, 3-hole, Finishes: AB, GM, SI |
| CX-719B | Brass Tree Bracket, Finishes: AB, BK, BR, GM, SI |
| CX-721 | Aluminum Tree Canopy, w/Rubber strap 15”-22”, Finishes: BK, BZ, GR, GT, RT, VG, WH |
| CX-721B | Brass Tree Canopy, w/ Rubber strap 15”-22”.Finishes: AB, BK |
| CX-722 | Aluminum Tree Canopy, w/Rubber Strap, 22"- 33”, Finishes: BK, BZ, GR, GT, RT, VG, WH |
| CX-722B | Brass Tree Canopy, w/Rubber Strap, 22"- 33”, Finishes: AB, BK |
| CX-723 | Aluminum Tree Canopy, w/Rubber Strap, 31"- 45”, Finishes: BK, BZ, GR, GT, RT, VG, WH |
| CX-723B | Brass Tree Canopy,w/ Rubber Strap, 31"- 45”, Finishes: AB, BK |
| Fixture | Finish | Finish Color | Lamp |
|---|---|---|---|
| CL-106-BT | Antique Bronze | See lamp guide suffix | |
| Gun Metal | |||
| Example: | CL-106-BT | ||
