T-LT75

T-LT75

T-LT75

Model Numbers: T-LT75, T-LT75-TP
Material : Stainless Steel Enclosure
Transformer Finish: Stainless Steel
Transformer Style: 75W, 12 and 15V Single Circuit Transformer, w/ Integrated Mechanical Timer
Features:

• Easy removable stainless steel hinged cover door, allowing great access during installation.
• Moisture resistant gasket cover door.
• Over-sized wiring terminal block for easy multiple low voltage cable connections.
• Removable bottom plate with prepunched knockouts 3X½” or 3X¾” conduits and 1X1¾” cable feeder for easy entrance of multiple low voltage cables during installation.
• Mounting slots on top and bottom for quick mounting without templates.
• 6-foot, heavy gauge, grounded and water resistant power cord with molded plug. The power cord gets through an open hatch, on the right side of the enclosure interior.
• Built-in mechanical timer included.
• Optional photocell is available for use with timer or stand alone. Photocell is attached to enclosure, easy knockout. (Supplied Separately)
• ETL listed to U.S. safety standards for landscape lighting transformers (T-LT75), Pool and Spa ready, suitable for use with submersible fixtures.
•

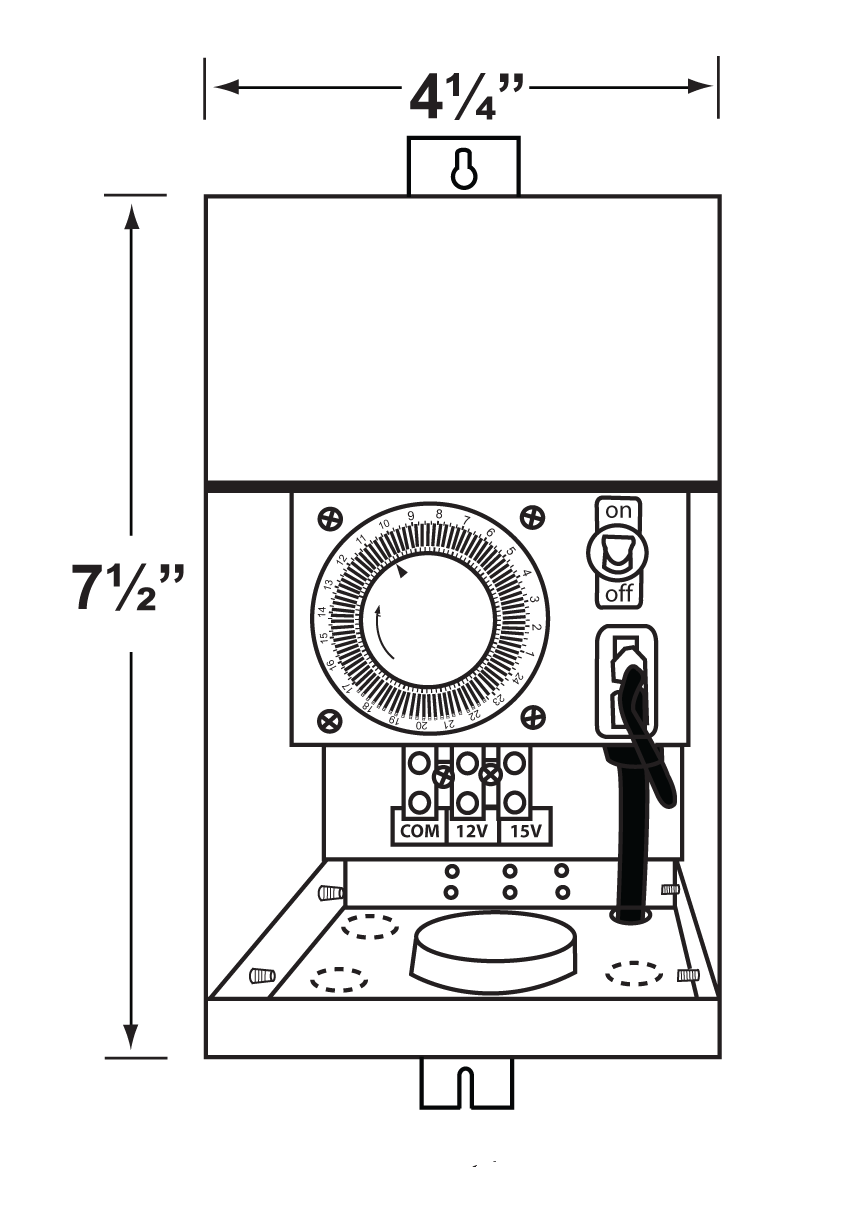

Dimensions

Dimensions: 4¼" W x 7½" H
Ship Wight LBS: 9

Spec Sheet

IIS Sheet

Product NameSpec Sheets
T-LT75 download
IIS Sheet download
IIS Sheet download
Product NameIIS Sheet
T-LT75 download
Description : Stainless Steel Enclosure 75W, 12 and 15V Single Circuit Transformer, w/ Integrated Mechanical Timer, Stainless Steel
Transformer Options Accessories: T-TR-FIP Photocell & CX-DIM_100 Inline Dimmer. See Accessories for more information and ordering.
Wattage: 150 Watts
Primary Voltage 120 Volts
Secondary Voltage 12, 13, 14, 15 Volts
Primary Protection: Thermal shut-off
Secondary Protection High performance magnetic circuit breaker. May also be used as on/off rocker switch.
Terminal Block : Large terminal block for multiple low voltage cable connections.
Warranty: Ten (10) years warranty on coils. One (1) year warranty on timers, photocells, and accessories. Lifetime warranty on stainless steel enclosures. All warranties are valid from date of Corona Lighting invoice.
