T-LT150-Z
T-LT150-Z
Model Numbers: T-LT150-Z
Material : Stainless Steel Enclosure
Transformer Finish: Stainless Steel
Transformer Style: Smart Zoning Single Circuit Transformer
Features:
- Supports 2.4Ghz Wi-Fi Networks
- Built-In Dual Onboard Antennas
- Control & Schedule 3 Separate Zones
- Manual or App control via the Corona BT App
Dimensions
Dimensions: 5⅝”Wx13¾”H
Ship Wight LBS: 19
Spec Sheet
IIS Sheet
| Document Name | PDF File |
|---|---|
| T-LT150-Z Specification Sheet | download |
| Document Name | PDF File |
|---|---|
| T-LT150-Z Installation Sheet | download |

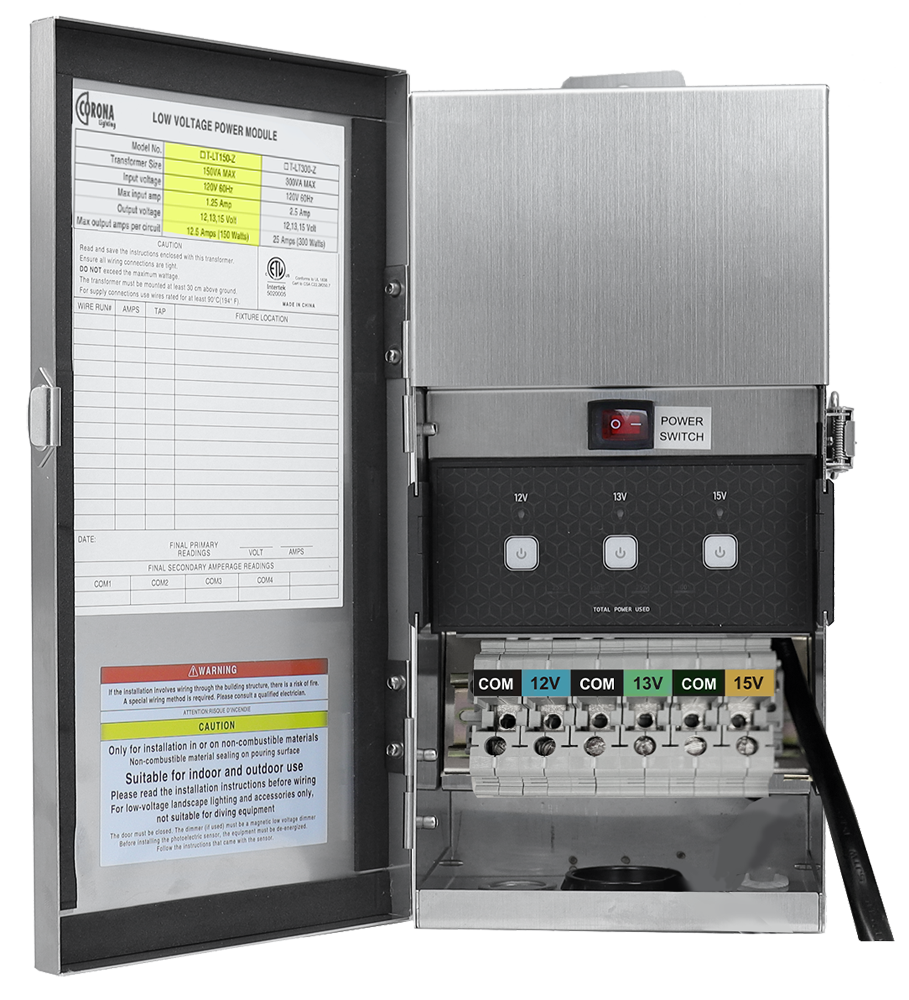

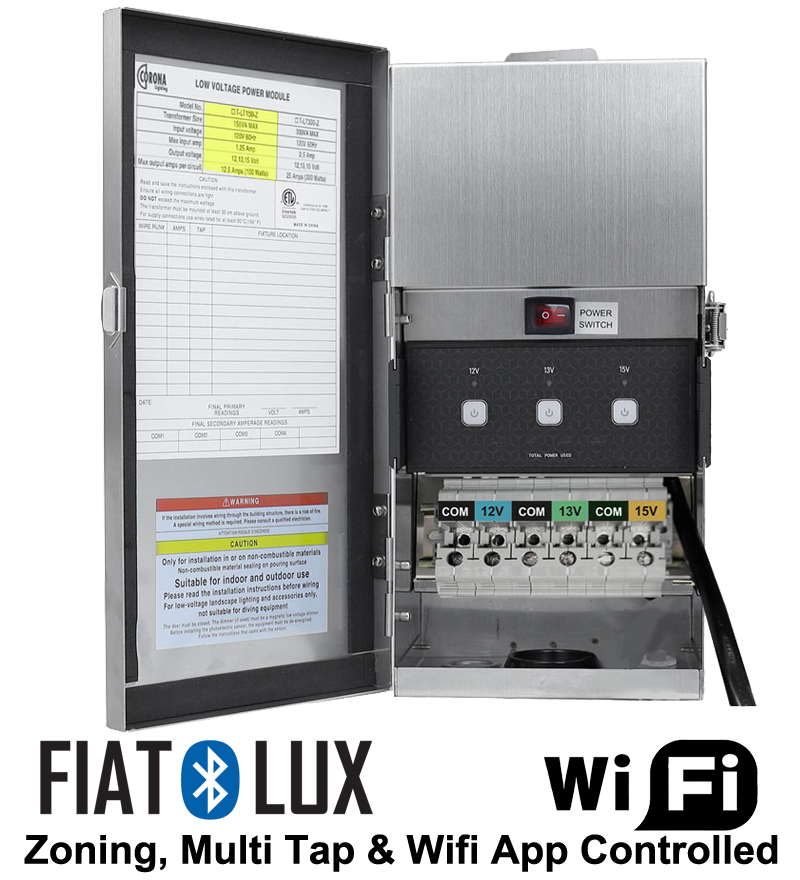

Description : 150W, 12-15V Smart Zoning Single Circuit Transformer
Wattage: 150W
Primary Voltage 120 Volts
Secondary Voltage 3 taps of 12, 13 or 15V
Primary Protection: Thermal shut-off
Terminal Block : Large terminal block for multiple low voltage cable connections.
Warranty: Limited lifetime warranty on coil and enclosure.
