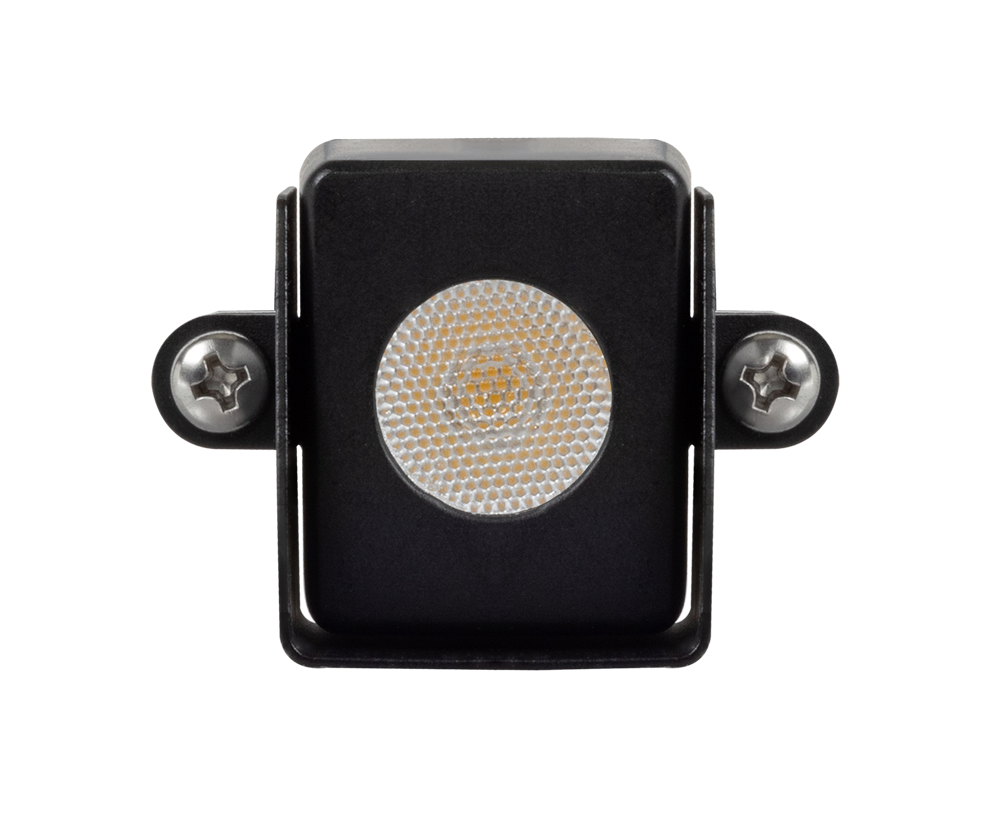

Brass Mini Beam Light, with optional 6″ stainless steel stake, black brass finish.

Material: Corrosion resistant cast brass
Description: Brass Adjustable CCT Mini Beam Light, 2700K/3000K
Lamp Type: Integrated LED
Lamp Supplied: 3W LED Module

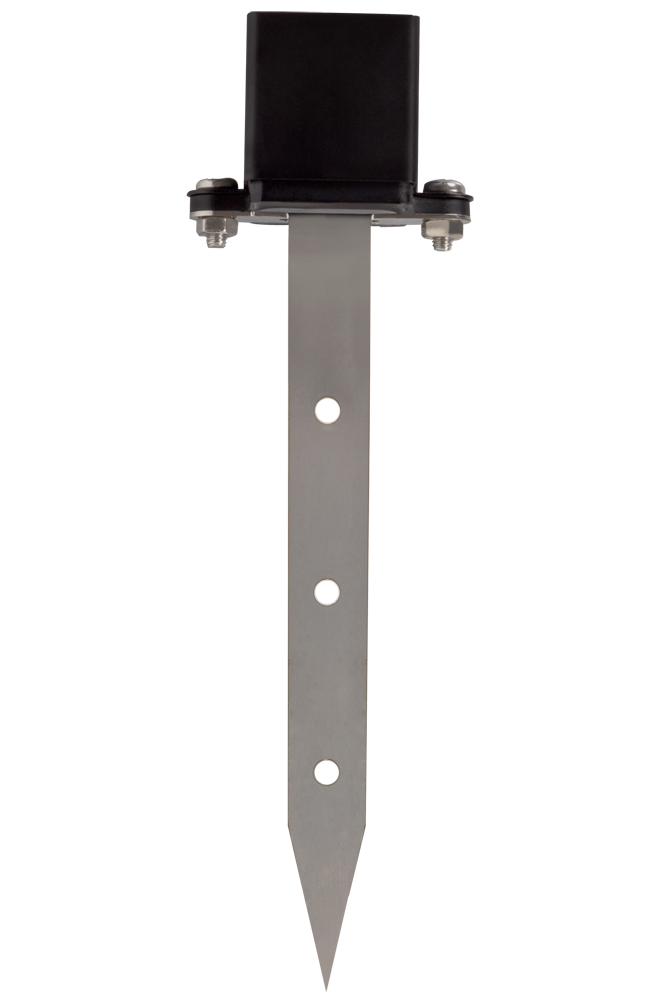

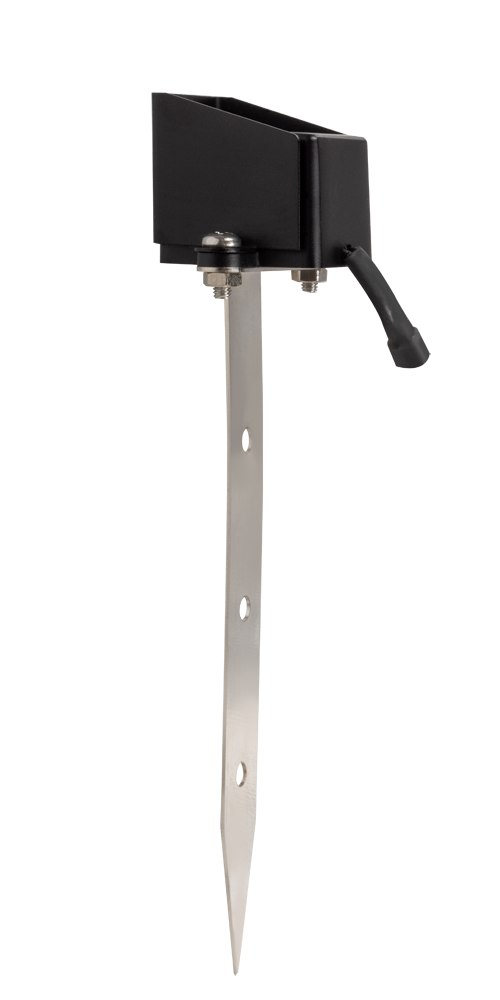

Mounting Supplied: Optional 6” stainless steel stake
Grade: Architectural

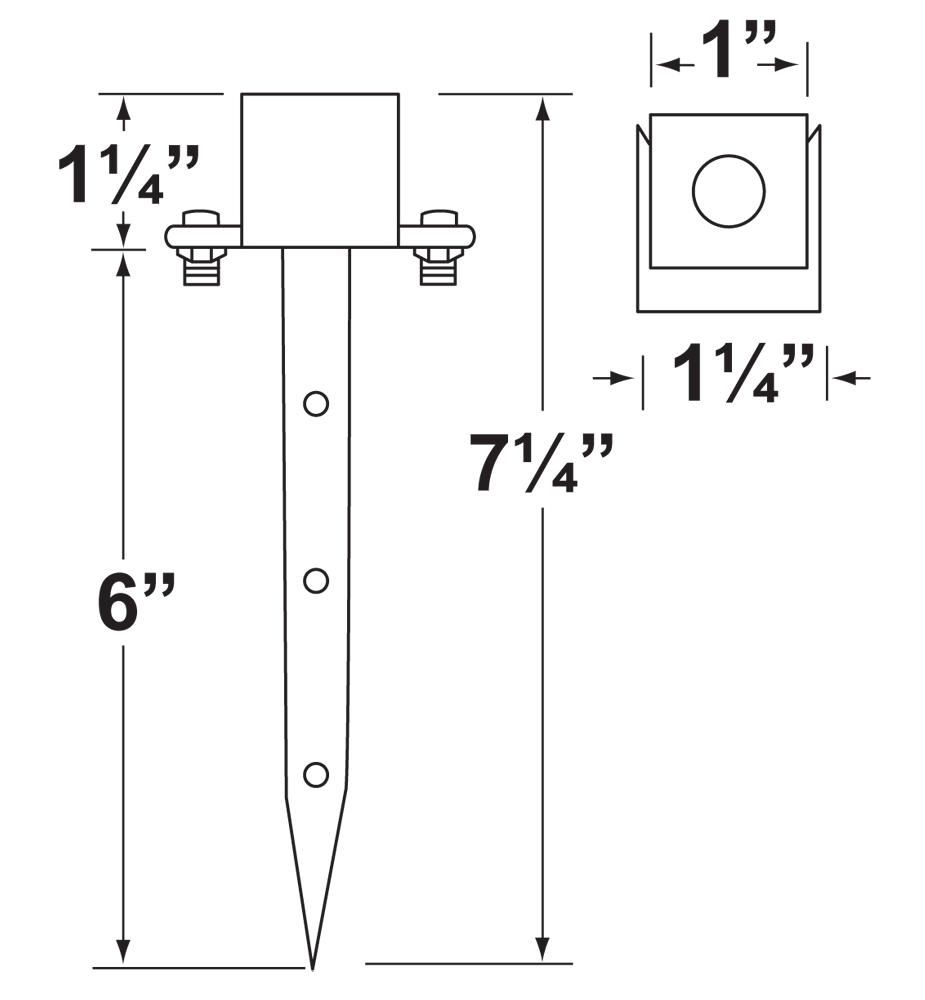

Dimensions

Size: 1¼ W x 7" L
Ship Weight LBS: 1

Downloads

Document NamePDF File
CL-MINI-BK Specification Sheet download
CL-MINI-BK Installation Instructions download
Fixture
Lamps
Accessories
Housing : Corrosion resistant cast brass
Socket : Integrated LED module

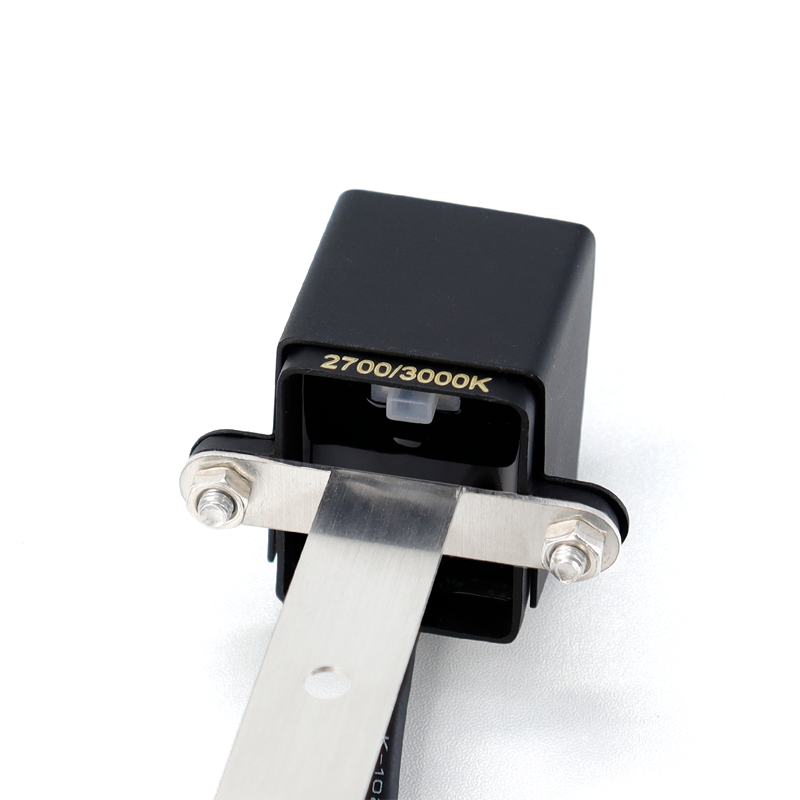

Lamp : 3W LED: Beam Spread: 45º. Light Output: 230 Lumens. Color Temperature 2700K/3000K adjustable with switch button.
RATING : IP68
Wiring : Fixture is prewired with a 10ft SPT-1W wire. Wire connector sold separately. Quick-locking connectors (CX-LOC) are available from Corona Lighting. See accessories for details
Mounting : Optional 6” stainless steel stake Fixture Applications: Suitable for fountains, ponds, waterfalls, stone lanterns, rock beds, underneath steps, etc. Any place a small beam of light is needed. Do not use in Swimming pools, lakes or spas.Glare shield is included.
APPLICATIONS : Suitable for fountains, ponds, waterfalls, stone lanterns, rock beds, underneath steps, etc. Any place a small beam of light is needed. Do not use in Swimming pools, lakes or spas.
Electrical : 3W LED is dimmable. A remote 12V magnetic transformer is required. Visit 'Transformers' page for the available options. Not for use with electronic transformers. Voltage range for LED module is: 9-17V Ambient temperature: -22ºF to 176ºF CRI: >85 Rating: IP68
WARRANTY : 10 year warranty, with a rated life of 50,000 hours.

No matching lamps found.

Cable Connector

Part #Description
CX-LOCQuick-Locking Wire Connector, 2 pack

Ground Spikes

Part #Description
CX-640-BK6” Aluminum Spike, Male Hub, Finishes: BK
CX-6428½”h x ½”w ABS Spike, Finishes: BK, BZ
CX-643-BZ8½”h x 3”w ABS Spike, Finishes: BZ
CX-6468”h x ½”w ABS Spike, Finishes: BK, BZ
CX-647-BK10½”h x 3”w Heavy Duty ABS Spike Finishes, Finishes: BK
CX-650-BZ8½”h x 3”w Slotted ABS Spike with Brass Threads, Finishes: BZ

Mini Beam Brackets

Part #Description
CX-MINI-BASEStainless Steel, Directional/Underwater Bracket, Compatible with the CL-MINI & CL-MINI-BT Only
CX-GUTT-BASEStainless Steel, Degree & Position Adjustable Bracket, Black. Compatible with the CL-MINI & CL-MINI-BT Only

Mounting Brackets

Part #Description
CX-679-T-BKAluminum Double Bracket, ½ NPT, Black
CX-679-T-BZAluminum Double Bracket, ½ NPT, Bronze
CX-679-T-SIAluminum Double Bracket, ½ NPT, Silver
CX-679B-T-ABBrass Double Bracket, ½ NPT, Antique Bronze
CX-679B-T-BRBrass Double Bracket, ½ NPT, Natural Brass
CX-679B-T-GMBrass Double Bracket, ½ NPT, Gun Metal
CX-700Aluminum Bracket, ½ NPT, BK– Black, BZ– Bronze, GR– Green, GT– Granite, RT– Rust, VG– Verde Green, WH– White
CX-704Aluminum Bracket, ½ NPT,BK– Black, BZ– Bronze, GR– Green, GT– Granite, RT– Rust, VG– Verde Green, WH– White

Mounting Canopies

Part #Description
CX-705BBrass Flat Canopy, Finishes: AB, BK, BR, GM, SI,
CX-709Aluminum Raised Canopy , Finishes: BK, BZ, GT, SI, WH
CX-709BBrass Canopy, Finishes: AB, BK, BR, GM, SI,
CX-7185” Aluminum Canopy , 3-hole, Finishes: BK, BZ
CX-718B5” Brass Canopy, 3-hole, Finishes: AB, GM, SI
CX-719BBrass Tree Bracket, Finishes: AB, BK, BR, GM, SI
CX-721Aluminum Tree Canopy, w/Rubber strap 15”-22”, Finishes: BK, BZ, GR, GT, RT, VG, WH
CX-721BBrass Tree Canopy, w/ Rubber strap 15”-22”.Finishes: AB, BK
CX-722Aluminum Tree Canopy, w/Rubber Strap, 22"- 33”, Finishes: BK, BZ, GR, GT, RT, VG, WH
CX-722BBrass Tree Canopy, w/Rubber Strap, 22"- 33”, Finishes: AB, BK
CX-723Aluminum Tree Canopy, w/Rubber Strap, 31"- 45”, Finishes: BK, BZ, GR, GT, RT, VG, WH
CX-723BBrass Tree Canopy,w/ Rubber Strap, 31"- 45”, Finishes: AB, BK

Mounting Pedestal

Part #Description
CX-603-BK3" PVC Mounting Pedestal, BK
CX-621-BK1" PVC Cap, BK
CX-622-BK2" PVC Cap, BK
CX-624-BK3" PVC Cap, Female Brass Hub, BK

Mounting Posts

Part #Description
CX-67824” Aluminum Single Head Post, Finishes: BK, BZ, SI
CX-678B24” Brass Single Head Post, Finishes: AB, GM,SI
CX-678C24” Copper Single Head Post, Finishes: RC
CX-67924” Aluminum Double Head Post, Finishes: BK,BZ, SI
CX-679B24” Brass Double Head Post, Finishes: AB, GM, SI
CX-679C24” Copper Double Head Post, RC
CX-69018” Aluminum Single Head Post, Finishes: BK, BZ, SI
CX-690B18” Brass Single Head Post, Finishes: AB, GM, SI
CX-690C18” Copper Single Head Post, Finishes: RC
CX-69318” Aluminum Double Head Post, Finishes: BK, BZ, SI
CX-693B18” Brass Double Head Post, Finishes: AB, GM, SI
CX-693C18” Copper Double Head Post, Finishes: RC

Mounting Risers

Part #Description
CX-6716” Aluminum Riser, Finishes: BK, BZ, GR, GT, RT, VG, WH
CX-67212” Aluminum Riser, Finishes: BK, BZ, GR, GT, RT, VG, WH
CX-67318” Aluminum Riser, Finishes: BK, BZ, GR, GT, RT, VG, WH
CX-682B6” Brass Riser, Finishes: AB, GM
CX-682C6” Copper Riser, Finishes: RC
CX-683B12” Brass Riser, Finishes: AB, GM
CX-683C12” Copper Riser, Finishes: RC
CX-684B18” Brass Riser, Finishes: AB, GM
CX-684C18" Copper Riser, Finishes: RC
CX-685B24” Brass Riser, Finishes: AB, GM
CX-686C24" Copper Riser, Finishes: RC
CX-782B-BK6” Brass Riser, Finishes: BK
CX-783B-BK12” Brass Riser, Finishes: BK
CX-784B-BK18” Brass Riser, Finishes: BK
CX-785B-BK24” Brass Riser, Finishes: BK
FixtureFinishFinish ColorLamp
CL-MINI-BKBlack BrassSee lamp guide suffix
Example:CL-MINI-BK
