CL-755-BT-T

CL-755-BT-T
CL 755 BT T Line 1
CL 755 BT T AB 1
CL 755 BT T GM 1 scaled

CL-755-BT-T

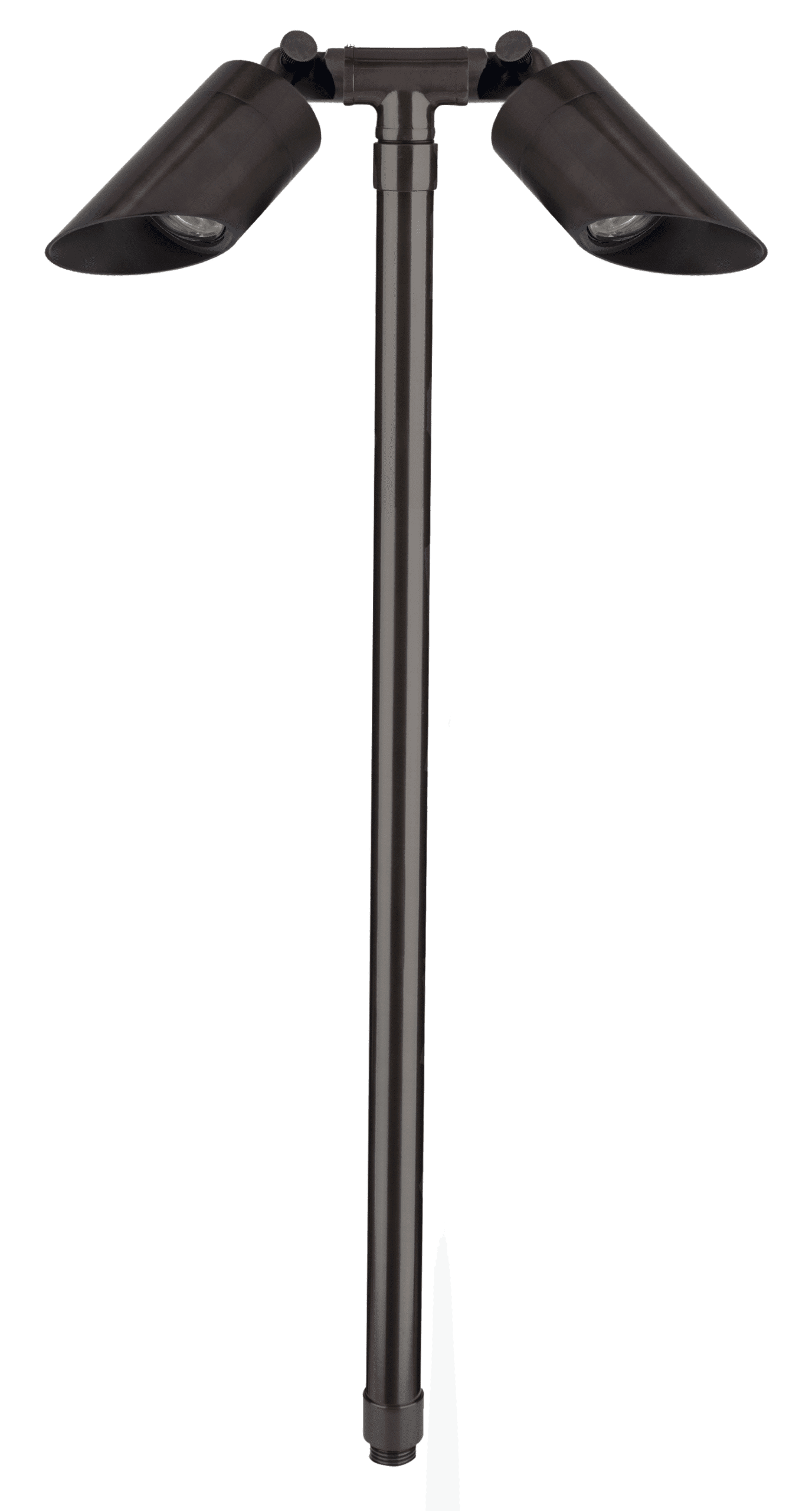

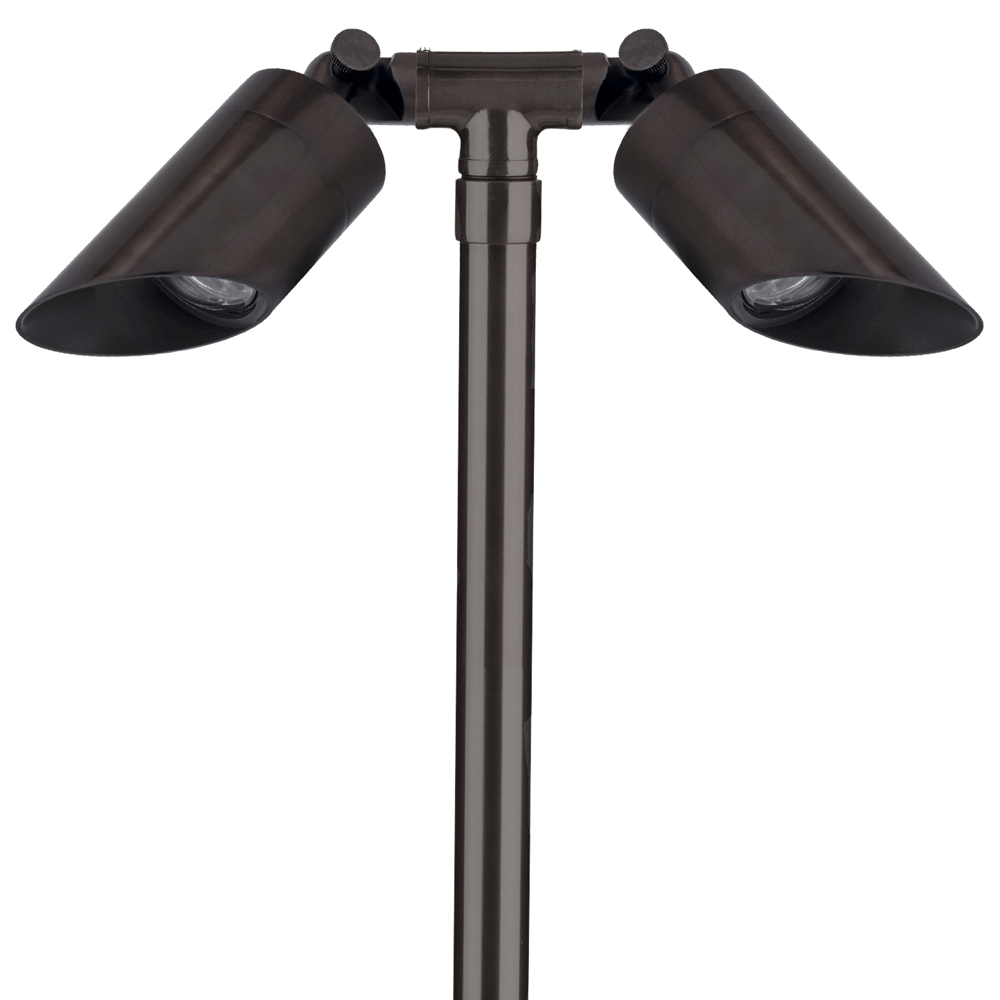

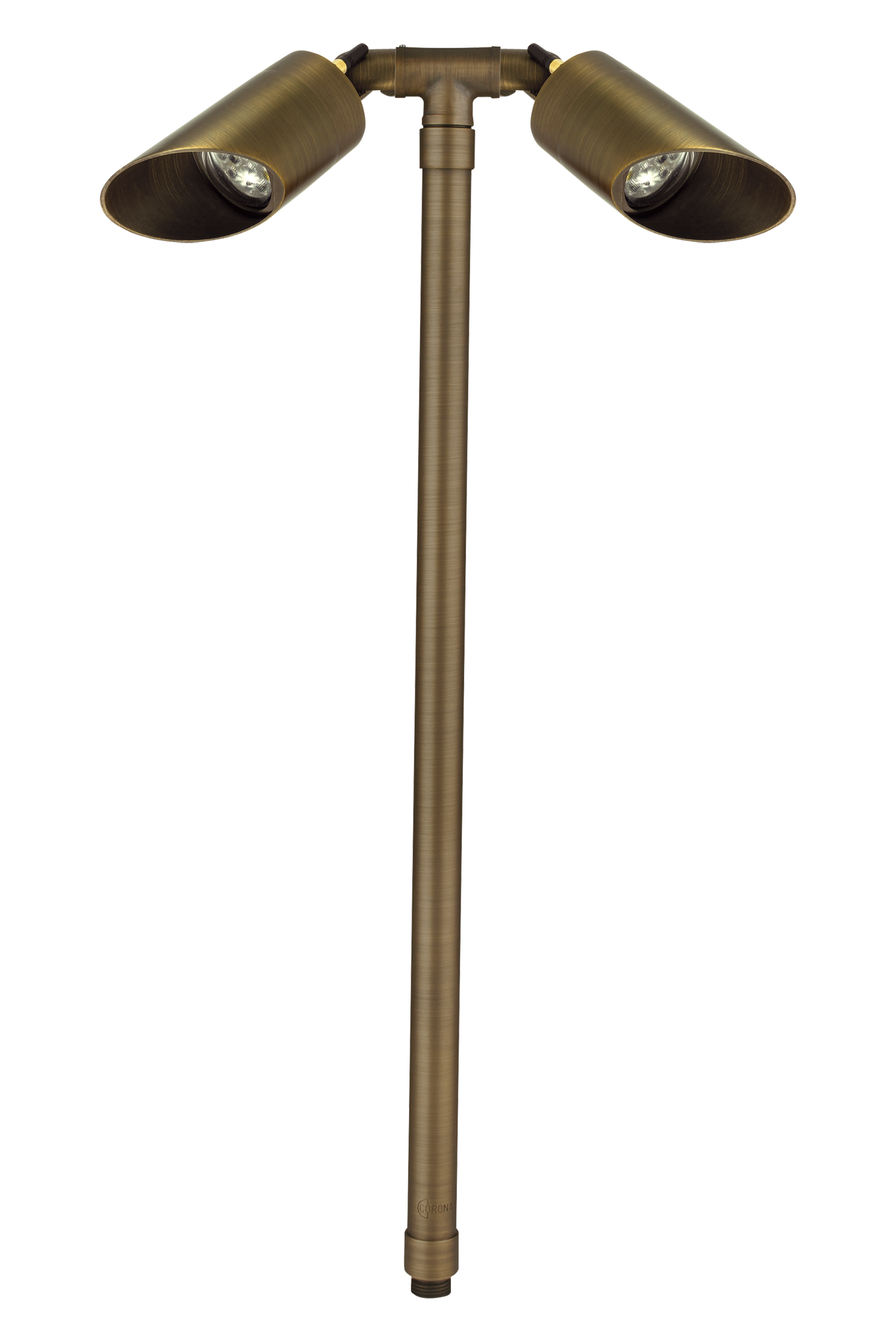

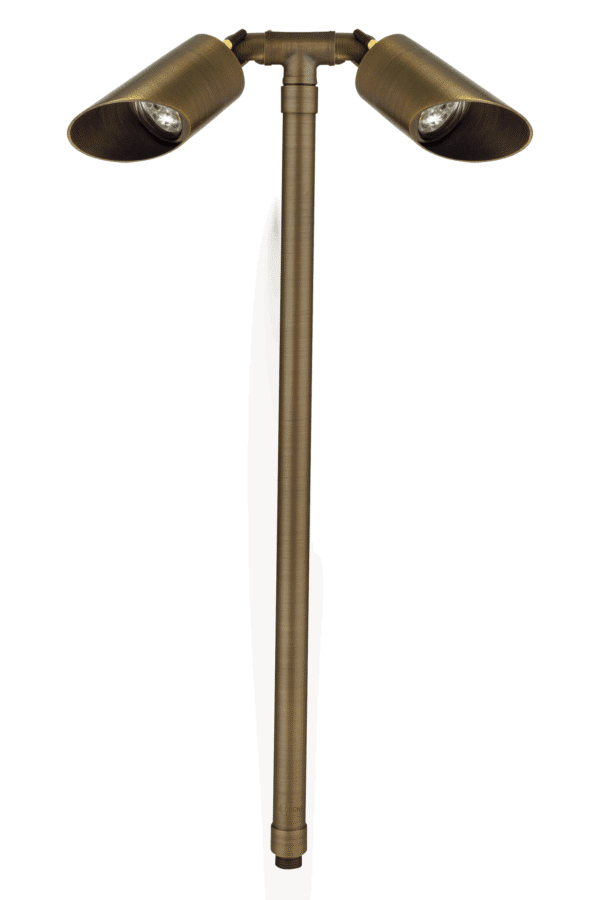

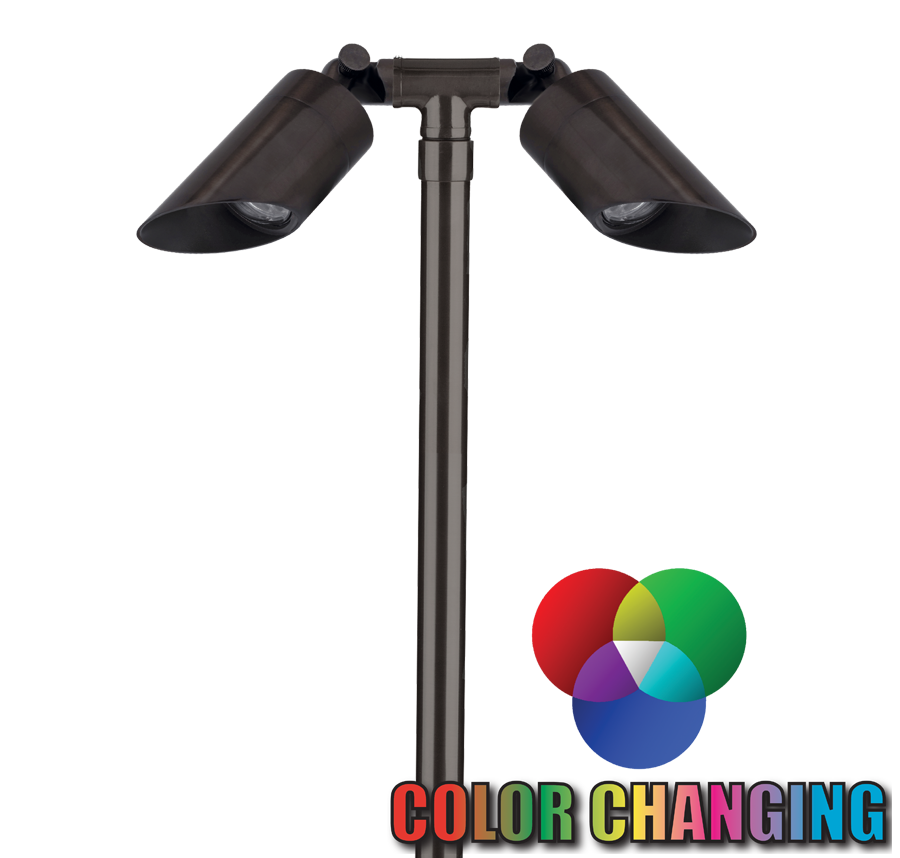

Brass Fiat Lux Bluetooth mesh smart WW-RGB double head path light with either 18″ or 24″ Stem, finished in Antique Bronze or Gun Metal.

Material: Brass
Description: Smart RGB Bluetooth Shrouded Path Light
Lamp Type: LED module
Light Source: Two replaceable 1-6W RGB LED modules. Lumen output is between 15LM - 450LM each. Standard 38º beam spread, with 15º & 60º options also included.
Mounting Supplied: Plastic ground spike
Grade: Architectural

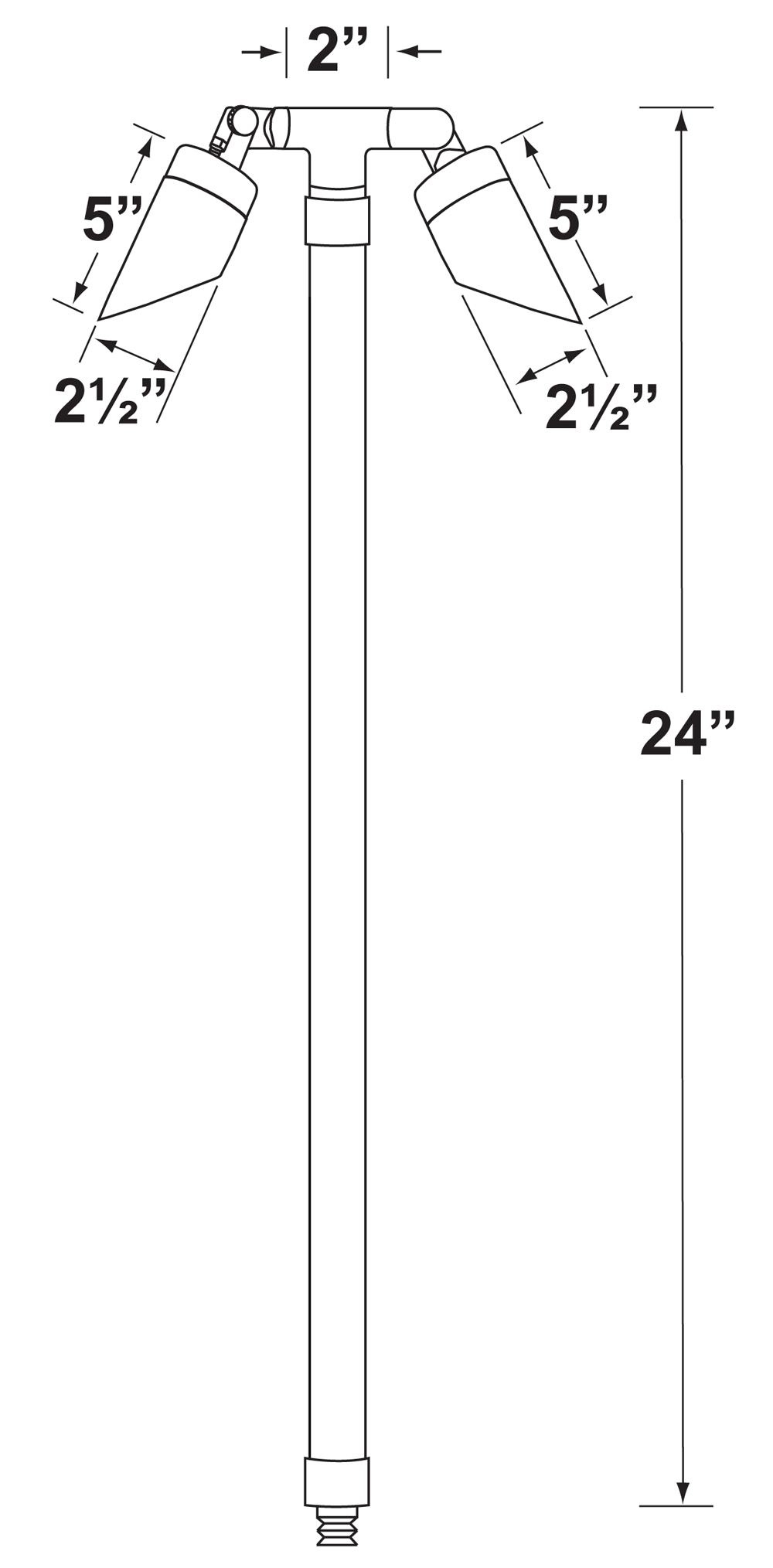

Dimensions

Size: 2½"W x 5" L (Head)
Ship Weight LBS: 4

Downloads

Document NamePDF File
CL-755-BT-T-AB Specification Sheet download
CL-755-BT-T-GM Specification Sheet download
CL-755-BT-T Series Quick Start Guide download
Fixture
Lamps
Accessories
Housing : Corrosion resistant cast brass
Lens : Clear, convex glass lens
Socket : LED module
Lamp : Two replaceable 1-6W RGB LED modules. Lumen output is between 15LM - 450LM each. Standard 38º beam spread, with 15º & 60º options also included.
CONNECTION: Bluetooth Mesh Technology, Range Extender (CX-BTE) is highly recommended. See Accessories tab for information
Wiring : Fixture is prewired with a 10ft 18-2 SPT-2W direct burial cord. Wire connector sold separately. Quick-locking connectors (CX-LOC) are available from Corona Lighting. See accessories for details.
Knuckle : Swivel cast brass knuckle with thumb screw and ½" NPT threaded male hub on bottom.
Mounting : Standard injection molded 8½” large spike with ½" NPT threaded female hub on bottom.
Electrical : A remote 12V transformer is required. Visit 'Transformers' page for our line of options. Voltage range for LED module is 2x10V-15V (2x10VA).
WARRANTY : Lifetime limited warranty on fixture housing. Ten (10) years warranty on LED module.

No matching lamps found.

Cable Connector

Part #Description
CX-LOCQuick-Locking Wire Connector, 2 pack

Fiat Lux Accessories

Part #Description
CX-BTEBluetooth Mesh Range Extender, transmission range: 260 ft
CX-BTGWireless Bluetooth Mesh Gateway

Ground Spikes

Part #Description
CX-640-BK6” Aluminum Spike, Male Hub, Finishes: BK
CX-6428½”h x ½”w ABS Spike, Finishes: BK, BZ
CX-643-BZ8½”h x 3”w ABS Spike, Finishes: BZ
CX-6468”h x ½”w ABS Spike, Finishes: BK, BZ
CX-647-BK10½”h x 3”w Heavy Duty ABS Spike Finishes, Finishes: BK
CX-650-BZ8½”h x 3”w Slotted ABS Spike with Brass Threads, Finishes: BZ

Mounting Canopies

Part #Description
CX-705BBrass Flat Canopy, Finishes: AB, BK, BR, GM, SI,
CX-709Aluminum Raised Canopy , Finishes: BK, BZ, GT, SI, WH
CX-709BBrass Canopy, Finishes: AB, BK, BR, GM, SI,
CX-7185” Aluminum Canopy , 3-hole, Finishes: BK, BZ
CX-718B5” Brass Canopy, 3-hole, Finishes: AB, GM, SI
CX-719BBrass Tree Bracket, Finishes: AB, BK, BR, GM, SI
CX-721Aluminum Tree Canopy, w/Rubber strap 15”-22”, Finishes: BK, BZ, GR, GT, RT, VG, WH
CX-721BBrass Tree Canopy, w/ Rubber strap 15”-22”.Finishes: AB, BK
CX-722Aluminum Tree Canopy, w/Rubber Strap, 22"- 33”, Finishes: BK, BZ, GR, GT, RT, VG, WH
CX-722BBrass Tree Canopy, w/Rubber Strap, 22"- 33”, Finishes: AB, BK
CX-723Aluminum Tree Canopy, w/Rubber Strap, 31"- 45”, Finishes: BK, BZ, GR, GT, RT, VG, WH
CX-723BBrass Tree Canopy,w/ Rubber Strap, 31"- 45”, Finishes: AB, BK

Mounting Pedestal

Part #Description
CX-603-BK3" PVC Mounting Pedestal, BK
CX-621-BK1" PVC Cap, BK
CX-622-BK2" PVC Cap, BK
CX-624-BK3" PVC Cap, Female Brass Hub, BK

Mounting Posts

Part #Description
CX-67824” Aluminum Single Head Post, Finishes: BK, BZ, SI
CX-678B24” Brass Single Head Post, Finishes: AB, GM,SI
CX-678C24” Copper Single Head Post, Finishes: RC
CX-67924” Aluminum Double Head Post, Finishes: BK,BZ, SI
CX-679B24” Brass Double Head Post, Finishes: AB, GM, SI
CX-679C24” Copper Double Head Post, RC
CX-69018” Aluminum Single Head Post, Finishes: BK, BZ, SI
CX-690B18” Brass Single Head Post, Finishes: AB, GM, SI
CX-690C18” Copper Single Head Post, Finishes: RC
CX-69318” Aluminum Double Head Post, Finishes: BK, BZ, SI
CX-693B18” Brass Double Head Post, Finishes: AB, GM, SI
CX-693C18” Copper Double Head Post, Finishes: RC

Mounting Risers

Part #Description
CX-6716” Aluminum Riser, Finishes: BK, BZ, GR, GT, RT, VG, WH
CX-67212” Aluminum Riser, Finishes: BK, BZ, GR, GT, RT, VG, WH
CX-67318” Aluminum Riser, Finishes: BK, BZ, GR, GT, RT, VG, WH
CX-682B6” Brass Riser, Finishes: AB, GM
CX-682C6” Copper Riser, Finishes: RC
CX-683B12” Brass Riser, Finishes: AB, GM
CX-683C12” Copper Riser, Finishes: RC
CX-684B18” Brass Riser, Finishes: AB, GM
CX-684C18" Copper Riser, Finishes: RC
CX-685B24” Brass Riser, Finishes: AB, GM
CX-686C24" Copper Riser, Finishes: RC
CX-782B-BK6” Brass Riser, Finishes: BK
CX-783B-BK12” Brass Riser, Finishes: BK
CX-784B-BK18” Brass Riser, Finishes: BK
CX-785B-BK24” Brass Riser, Finishes: BK
