CL-744-BT
CL-744-BT

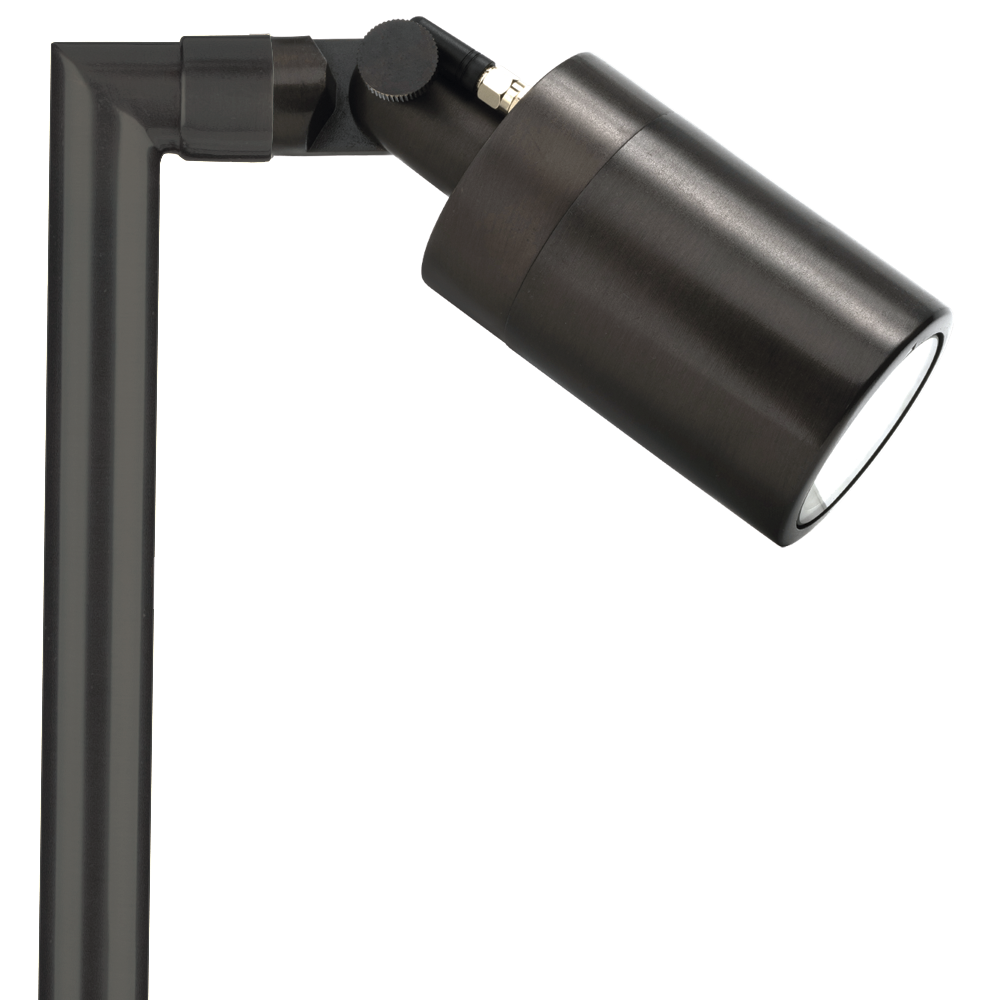

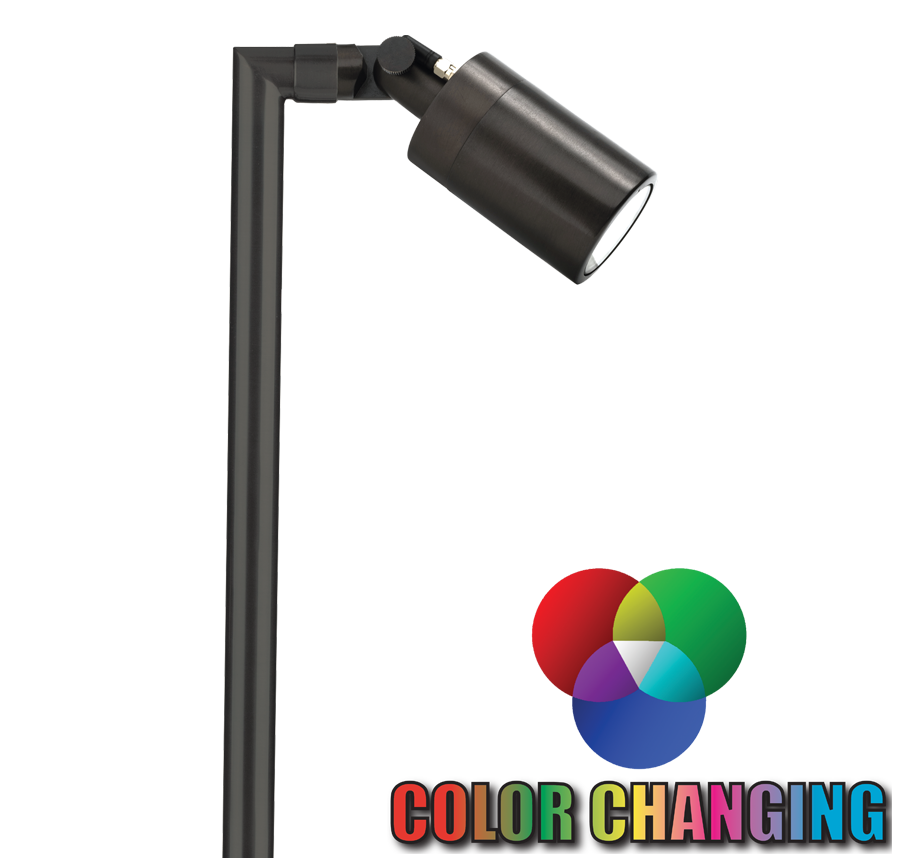

Smart RGB-WW Bluetooth Brass Single Head Path Light, with either 24” or 18″ Stem. Finished in Antique Bronze or Gun Metal.
Material: Brass
Description: Smart RGB-WW Bluetooth Single Head Flat Path Light
Lamp Type: Integrated LED
Light Source: Replaceable 1-6W RGB LED module. Lumen output is between 15LM - 450LM. Standard 38º beam spread, with 15º & 60º options also included.
Lamp Supplied: 1-6W RGB LED module. Lumen output is between 15LM - 450LM. Standard 38º beam spread, with 15º & 60º options also included.
Mounting Supplied: Standard injection molded 8½” large spike with ½" NPT threaded female hub on bottom.
Grade: Architectural

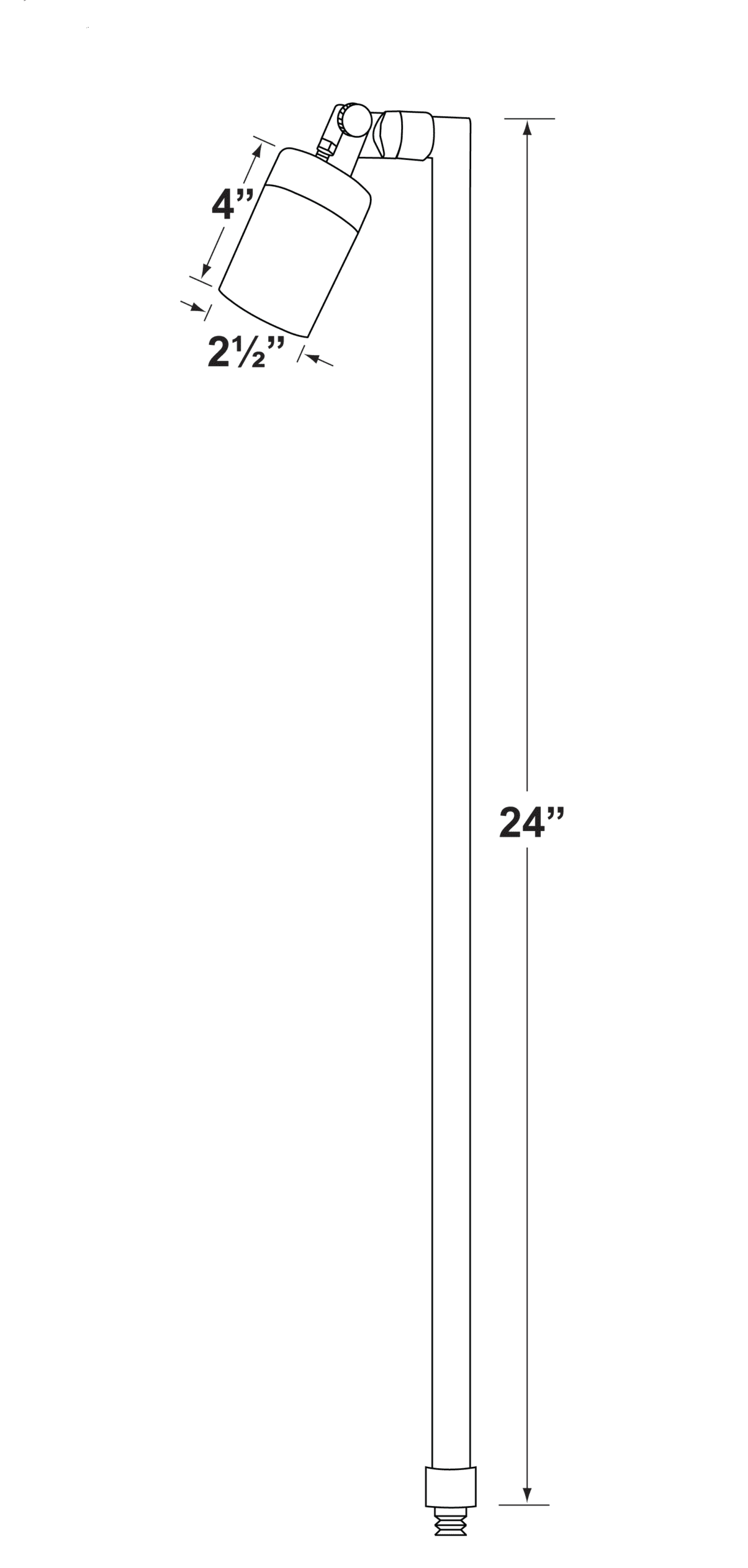

Dimensions
Size: 2½"W x 4" L (Head)
Ship Weight LBS: 4
Downloads
Housing : Corrosion resistant cast brass.
STEM : 24” cast brass pipe with ½” NPT on bottom. Stem is also available in 18”.
Lens : Clear, tempered, flat glass lens. standard 38º. beam spread reflector, with 15º & 60º options also included.
Socket : LED module.
Lamp : 1-6W RGB LED module. Lumen output is between 15LM - 450LM. Standard 38º beam spread, with 15º & 60º options also included.
CONNECTION: Bluetooth Mesh Technology, Range Extender (CX-BTE) is highly recommended. See Accessories tab for information
Wiring : Fixture is prewired with a 10ft 18-2 SPT2-W direct burial cord. Wire connector sold separately. Quick-locking connectors (CX-LOC) are available from Corona Lighting. See accessories for details
Knuckle : Adjustable cast brass knuckle with thumb screw and ½" NPT threaded male hub on bottom.
Mounting : Standard injection molded 8½" large spike with ½" NPT threaded female hub on bottom.
Electrical : Voltage range with LED module is 10-15V (10VA). Remote 12 Volt transformer is required. Visit the transformers page for our line of options.
WARRANTY : Lifetime limited warranty on fixture housing. Ten (10) years warranty on LED module.
No matching lamps found.
Cable Connector
| Part # | Description |
|---|---|
| CX-LOC | Quick-Locking Wire Connector, 2 pack |
Fiat Lux Accessories
| Part # | Description |
|---|---|
| CX-BTE | Bluetooth Mesh Range Extender, transmission range: 260 ft |
| CX-BTG | Wireless Bluetooth Mesh Gateway |
Ground Spikes
| Part # | Description |
|---|---|
| CX-640-BK | 6” Aluminum Spike, Male Hub, Finishes: BK |
| CX-642 | 8½”h x ½”w ABS Spike, Finishes: BK, BZ |
| CX-643-BZ | 8½”h x 3”w ABS Spike, Finishes: BZ |
| CX-646 | 8”h x ½”w ABS Spike, Finishes: BK, BZ |
| CX-647-BK | 10½”h x 3”w Heavy Duty ABS Spike Finishes, Finishes: BK |
| CX-650-BZ | 8½”h x 3”w Slotted ABS Spike with Brass Threads, Finishes: BZ |
Mounting Canopies
| Part # | Description |
|---|---|
| CX-705B | Brass Flat Canopy, Finishes: AB, BK, BR, GM, SI, |
| CX-709 | Aluminum Raised Canopy , Finishes: BK, BZ, GT, SI, WH |
| CX-709B | Brass Canopy, Finishes: AB, BK, BR, GM, SI, |
| CX-718 | 5” Aluminum Canopy , 3-hole, Finishes: BK, BZ |
| CX-718B | 5” Brass Canopy, 3-hole, Finishes: AB, GM, SI |
| CX-719B | Brass Tree Bracket, Finishes: AB, BK, BR, GM, SI |
| CX-721 | Aluminum Tree Canopy, w/Rubber strap 15”-22”, Finishes: BK, BZ, GR, GT, RT, VG, WH |
| CX-721B | Brass Tree Canopy, w/ Rubber strap 15”-22”.Finishes: AB, BK |
| CX-722 | Aluminum Tree Canopy, w/Rubber Strap, 22"- 33”, Finishes: BK, BZ, GR, GT, RT, VG, WH |
| CX-722B | Brass Tree Canopy, w/Rubber Strap, 22"- 33”, Finishes: AB, BK |
| CX-723 | Aluminum Tree Canopy, w/Rubber Strap, 31"- 45”, Finishes: BK, BZ, GR, GT, RT, VG, WH |
| CX-723B | Brass Tree Canopy,w/ Rubber Strap, 31"- 45”, Finishes: AB, BK |
Mounting Pedestal
| Part # | Description |
|---|---|
| CX-603-BK | 3" PVC Mounting Pedestal, BK |
| CX-621-BK | 1" PVC Cap, BK |
| CX-622-BK | 2" PVC Cap, BK |
| CX-624-BK | 3" PVC Cap, Female Brass Hub, BK |
Mounting Posts
| Part # | Description |
|---|---|
| CX-678 | 24” Aluminum Single Head Post, Finishes: BK, BZ, SI |
| CX-678B | 24” Brass Single Head Post, Finishes: AB, GM,SI |
| CX-678C | 24” Copper Single Head Post, Finishes: RC |
| CX-679 | 24” Aluminum Double Head Post, Finishes: BK,BZ, SI |
| CX-679B | 24” Brass Double Head Post, Finishes: AB, GM, SI |
| CX-679C | 24” Copper Double Head Post, RC |
| CX-690 | 18” Aluminum Single Head Post, Finishes: BK, BZ, SI |
| CX-690B | 18” Brass Single Head Post, Finishes: AB, GM, SI |
| CX-690C | 18” Copper Single Head Post, Finishes: RC |
| CX-693 | 18” Aluminum Double Head Post, Finishes: BK, BZ, SI |
| CX-693B | 18” Brass Double Head Post, Finishes: AB, GM, SI |
| CX-693C | 18” Copper Double Head Post, Finishes: RC |
Mounting Risers
| Part # | Description |
|---|---|
| CX-671 | 6” Aluminum Riser, Finishes: BK, BZ, GR, GT, RT, VG, WH |
| CX-672 | 12” Aluminum Riser, Finishes: BK, BZ, GR, GT, RT, VG, WH |
| CX-673 | 18” Aluminum Riser, Finishes: BK, BZ, GR, GT, RT, VG, WH |
| CX-682B | 6” Brass Riser, Finishes: AB, GM |
| CX-682C | 6” Copper Riser, Finishes: RC |
| CX-683B | 12” Brass Riser, Finishes: AB, GM |
| CX-683C | 12” Copper Riser, Finishes: RC |
| CX-684B | 18” Brass Riser, Finishes: AB, GM |
| CX-684C | 18" Copper Riser, Finishes: RC |
| CX-685B | 24” Brass Riser, Finishes: AB, GM |
| CX-686C | 24" Copper Riser, Finishes: RC |
| CX-782B-BK | 6” Brass Riser, Finishes: BK |
| CX-783B-BK | 12” Brass Riser, Finishes: BK |
| CX-784B-BK | 18” Brass Riser, Finishes: BK |
| CX-785B-BK | 24” Brass Riser, Finishes: BK |
| Fixture | Finish | Finish Color | Lamp |
|---|---|---|---|
| CL-744-BT | Antique Bronze | See lamp guide suffix | |
| Gun Metal | |||
| Example: | CL-744-BT | ||
