CL-731B

CL 731B 1
CL 731B AB
CL 731B GM
CL 731B Line

CL-731B

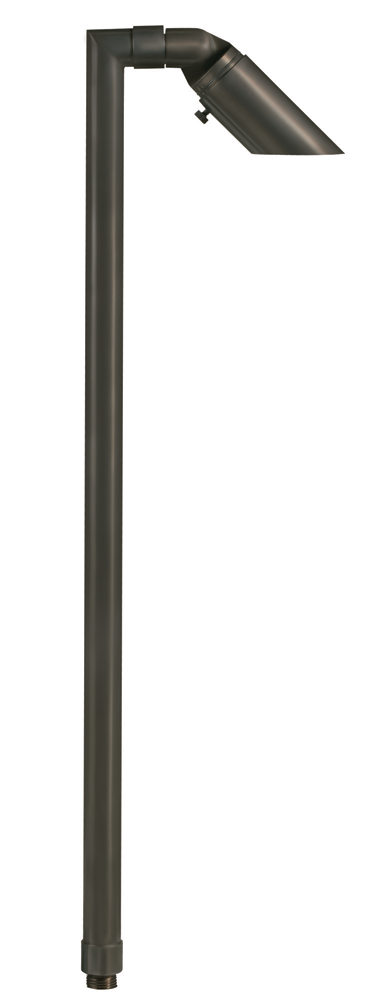

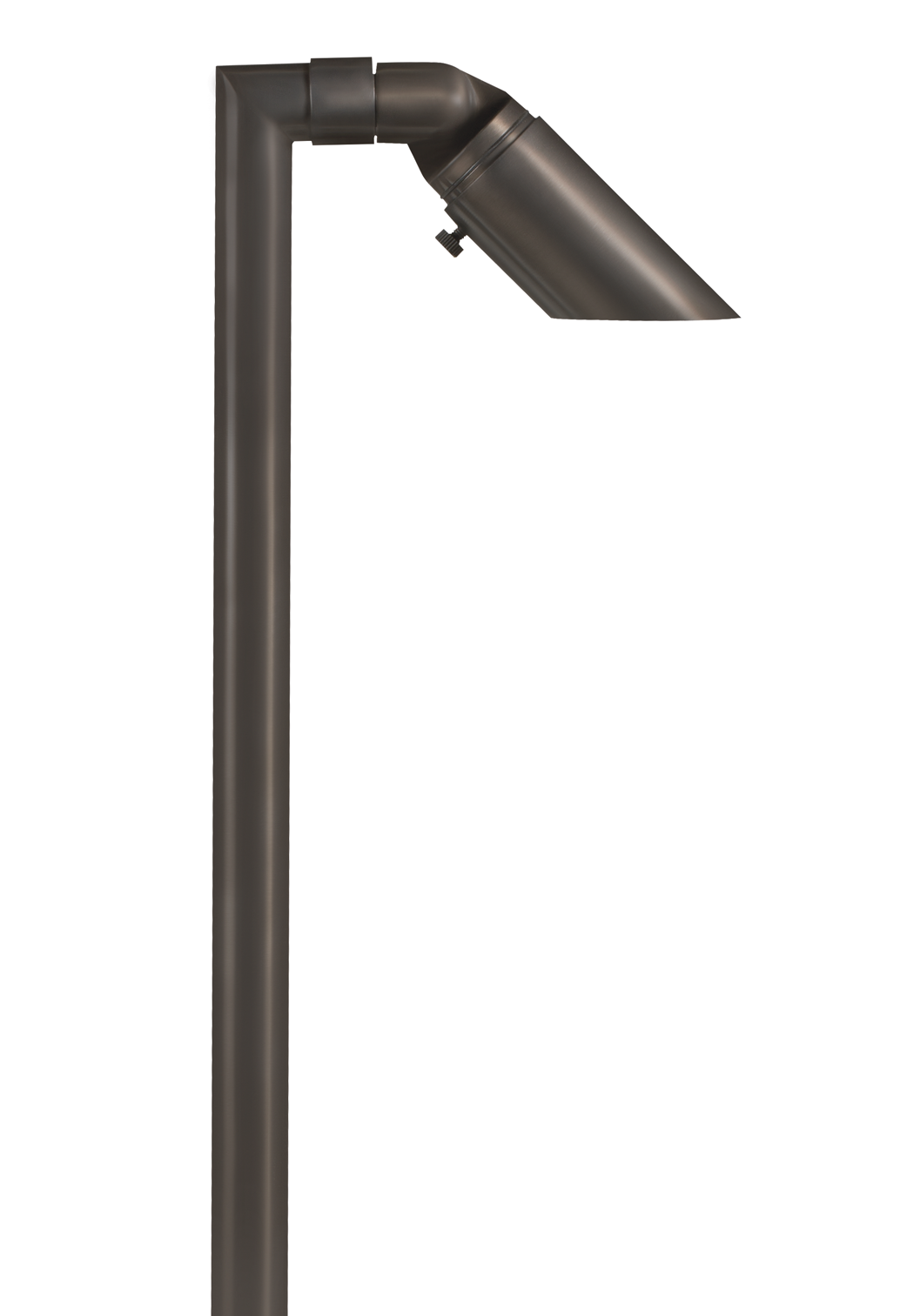

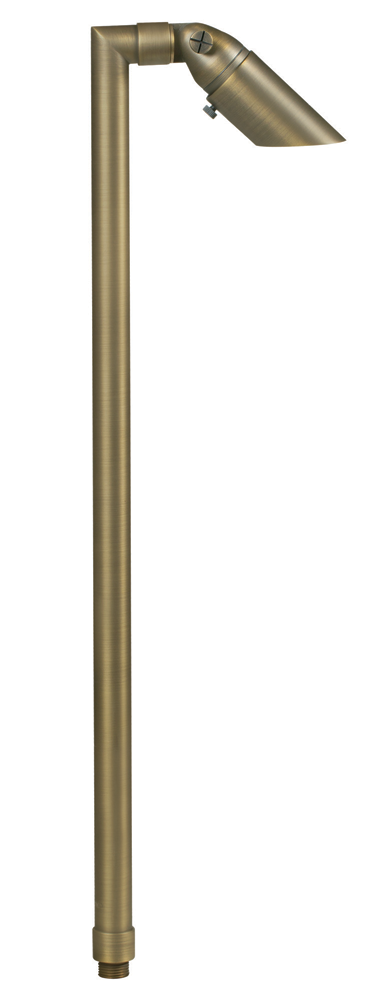

Brass Single Head 24″ or 18″ Stem Path Light, Finished in Antique Bronze or Gun Metal.

Material: Brass
Description: Single Head Path Light
Lamp Type: MR-11
Mounting Supplied: Plastic Ground Spike
Grade: Architectural

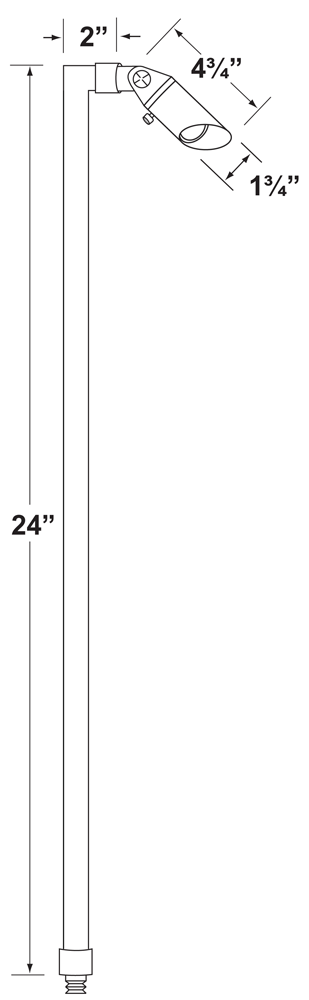

Dimensions

Size: 2⅜” Dia x 24” High
Ship Weight LBS: 4

Downloads

Document NamePDF File
CL-731B-AB Specification Sheet download
CL-731B-GM Specification Sheet download
Fixture
Lamps
Accessories
Housing : Solid Brass Single head, with 24" Standard Stem. Shroud is adjustable and extendable.
STEM : Cast Brass 24" pipe, 18" stem also available
Lens : Clear and heat resistant flat glass.
Socket : Top grade fixed ceramic bi-pin socket, with retension clip.
Lamp : 12V MR-11, 35W max. Available in 2.5W LED or without lamp. See Lamp tab above for more information.
Wiring : Fixture is prewired with a 3ft 18-2 SPT2-W direct burial cord. Wire connector sold separately. Quick-locking connectors (CX-LOC) are available from Corona Lighting. See accessories for details
Knuckle : Adjustable cast brass knuckle with thumb screw.
Mounting : Standard injection molded with ½" NPT threaded female hub.
Electrical : Voltage range with LED lamp is 9-17V. Remote 12 Volt transformer is required. Visit the transformers page for our line of options.
WARRANTY : Limited lifetime warranty on fixture housing against manufacturer’s defects.
Lamp NumberWattsBeam SpreadSpread TextBeam LumenColor TempLight ColorRated HoursHalogen Equiv
L-ED11-2.5W2.538° FLFlood1802700KWarm White40,00020 Watt Halogen
FixtureFinishFinish ColorLamp
CL-731BAntique BronzeSee lamp guide suffix
Gun Metal
Example:CL-731B
