CL-721-T

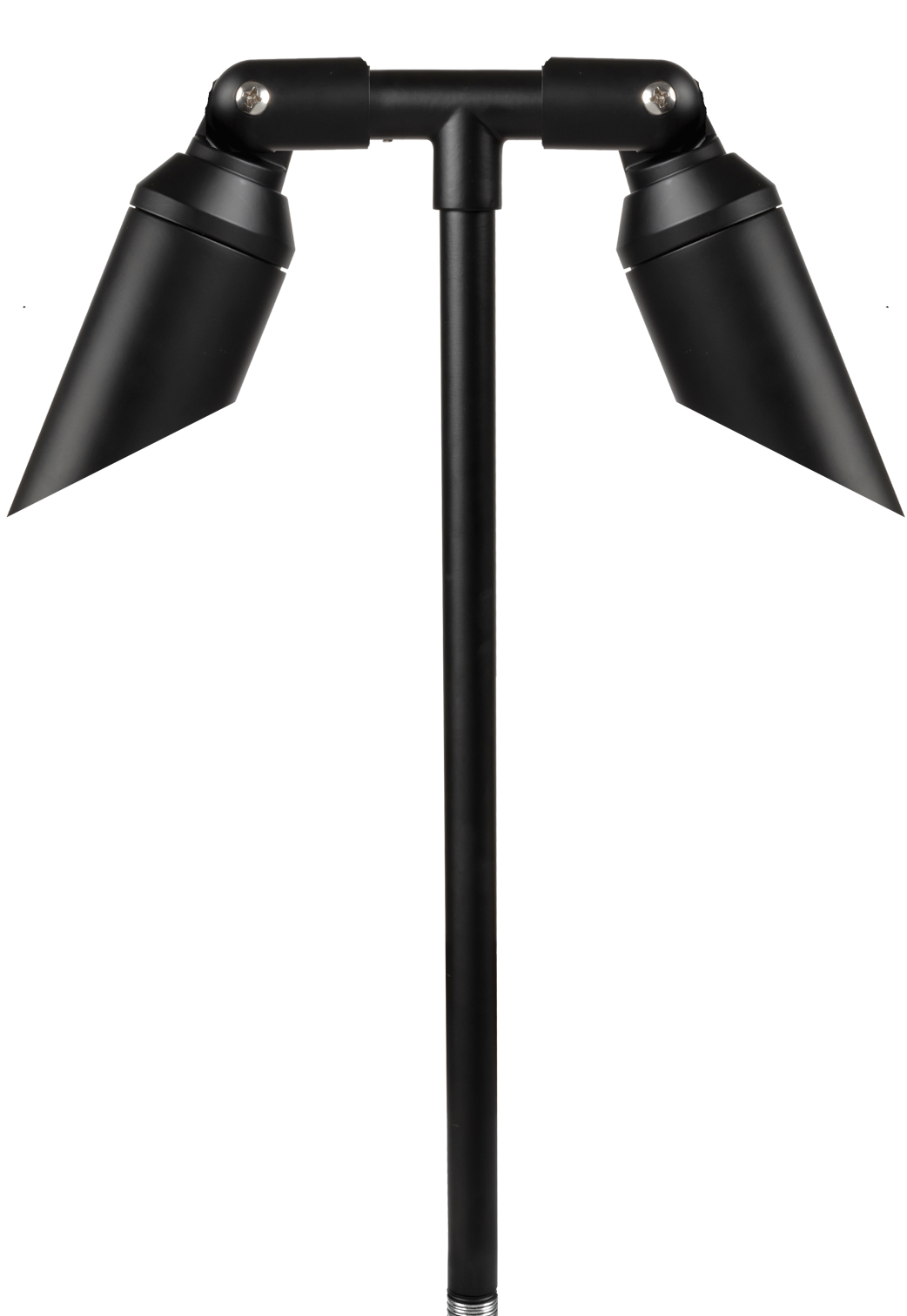

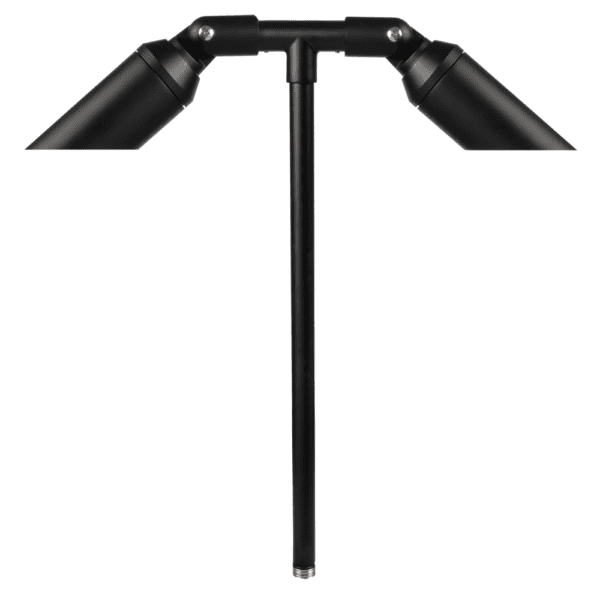

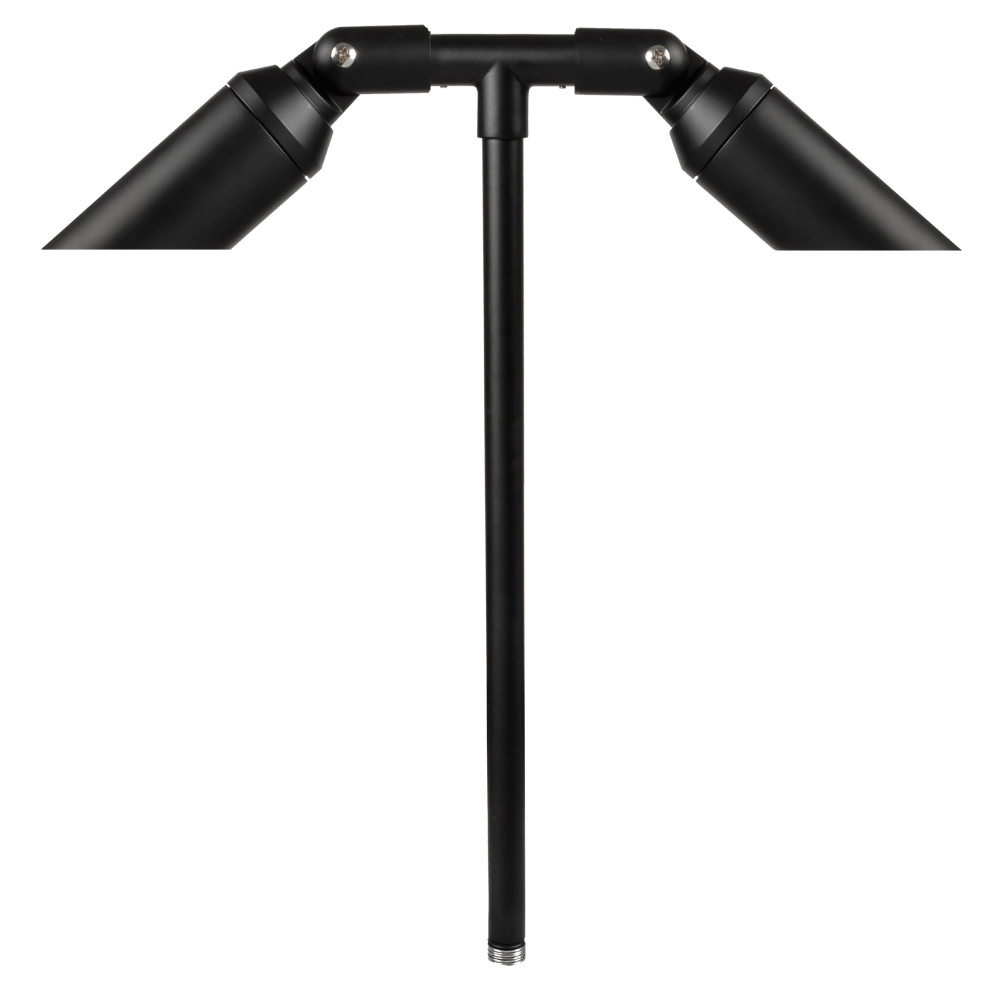

Machined Aluminum double head long-shroud, Path Light with either 24″ or 18″ stem, finished in Black or Bronze.

Material: Machined aluminum.
Description: Double Head Path Light
Lamp Type: MR-16
Mounting Supplied: Slotted Black ABS spike
Grade: Architectural

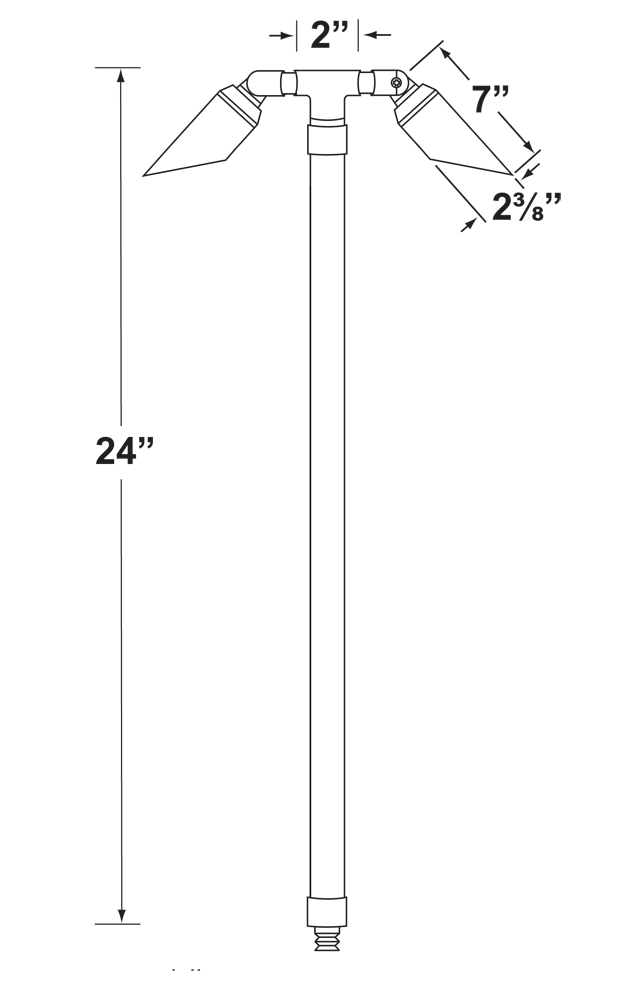

Dimensions

Size: 16" Span x 24" or 18" High
Ship Weight LBS: 3

Downloads

Document NamePDF File
CL-721-T-BK Specifications download
CL-721-T-BZ Specifications download
CL-721-T-SI Specificatons download
Fixture
Lamps
Accessories
Housing : Corrosion resistant machined aluminum.
Lens : Clear and heat resistant tempered flat glass.
Socket : Top grade fixed ceramic bi-pin socket, with lamp retention clip to securely hold lamp in place.
Lamp : Two 12V, MR-16 LED Available in 5W Bluetooth mesh RGB-WW; 3.5W, 5W, 6W LED or without lamp. Find lamp tab above for more information.
Wiring : Fixture is prewired with a 3ft 18-2 SPT1-W direct burial cord and underground connectors.
Knuckle : Adjustable machined aluminum knuckle with Stainless Steel philips screw and ½” NPT threaded male hub
Mounting : 8½” slotted Black ABS spike with ½” NPT threaded male hub.
Electrical : A remote 12V transformer is required. Visit the 'Transformers' page for our line of options. Voltage range for BT/LED lamps are 9V-17V.
WARRANTY : Ten (10) year warranty on fixture housing against manufacturer’s defects.
Lamp NumberWattsBeam SpreadSpread TextBeam LumenColor TempLight ColorRated HoursHalogen Equiv
L-ED16-6W-CCT0.2-636º (24º/60º/100º)Flood (Spot/Wide Flood)25-5502200K-5700KWhite50,00050 Watt Halogen
L-ED16-5W-BT1-538º (15º/60º/100º)Flood (Spot/Wide Flood)25-5302200K-5700KColor Changing50,00035 Watt Halogen
L-ED16-5W-ADJ2/3/538º (15º/60º/100º)Flood (Spot / Wide Flood)180/270/4502700K-3000K CCTTunable White50,00020/30/35 Watt Halogen
L-ED16-3W-SP3.515° SPSpot2702700KWarm White50,00025 Watt Halogen
L-ED16-3W-FL3.545° FLFlood2702700KWarm White50,00025 Watt Halogen
L-ED16-3W-WF3.560° WFWide Flood2702700KWarm White50,00025 Watt Halogen
L-ED16-5W-VT545° FLFlood200NULLViolet50,00025 Watt Halogen
L-ED16-5W-SP515° SPSpot3502700KWarm White50,00040 Watt Halogen
L-ED16-5W-FL545° FLFlood3502700KWarm White50,00040 Watt Halogen
L-ED16-5W-WF560° WFWide Flood3502700KWarm White50,00040 Watt Halogen
L-ED16-COB5W-SP515° SPSpot4502700KWarm White50,00050 Watt Halogen
L-ED16-COB5W-FL538° FLFlood4502700KWarm White50,00050 Watt Halogen
L-ED16-COB5W-WF560° WFWide Flood4502700KWarm White50,00050 Watt Halogen
L-ED16-COB5W-SP3K515° SPSpot4703000KCool White50,00050 Watt Halogen
L-ED16-COB5W-FL3K538° FLFlood4703000KCool White50,00050 Watt Halogen
L-ED16-COB5W-WF3K560° WFWide Flood4703000KCool White50,00050 Watt Halogen
L-ED16-6W-SP615° SPSpot6002700KWarm White50,00075 Watt Halogen
L-ED16-6W-FL638° FLFlood6002700KWarm White50,00075 Watt Halogen
L-ED16-6W-WF660° WFWide Flood6002700KWarm White50,00075 Watt Halogen
L-ED16-6W-SP-3K615° SPSpot6003000KCool White50,00075 Watt Halogen
L-ED16-6W-FL-3K638° FLFlood6003000KCool White50,00075 Watt Halogen
L-ED16-6W-WF-3K660° WFWide Flood6003000KCool White50,00075 Watt Halogen

Cable Connector

Part #Description
CX-LOCQuick-Locking Wire Connector, 2 pack

Ground Spikes

Part #Description
CX-640-BK6” Aluminum Spike, Male Hub, Finishes: BK
CX-6428½”h x ½”w ABS Spike, Finishes: BK, BZ
CX-643-BZ8½”h x 3”w ABS Spike, Finishes: BZ
CX-6468”h x ½”w ABS Spike, Finishes: BK, BZ
CX-647-BK10½”h x 3”w Heavy Duty ABS Spike Finishes, Finishes: BK
CX-650-BZ8½”h x 3”w Slotted ABS Spike with Brass Threads, Finishes: BZ

Mounting Canopies

Part #Description
CX-705BBrass Flat Canopy, Finishes: AB, BK, BR, GM, SI,
CX-709Aluminum Raised Canopy , Finishes: BK, BZ, GT, SI, WH
CX-709BBrass Canopy, Finishes: AB, BK, BR, GM, SI,
CX-7185” Aluminum Canopy , 3-hole, Finishes: BK, BZ
CX-718B5” Brass Canopy, 3-hole, Finishes: AB, GM, SI
CX-719BBrass Tree Bracket, Finishes: AB, BK, BR, GM, SI
CX-721Aluminum Tree Canopy, w/Rubber strap 15”-22”, Finishes: BK, BZ, GR, GT, RT, VG, WH
CX-721BBrass Tree Canopy, w/ Rubber strap 15”-22”.Finishes: AB, BK
CX-722Aluminum Tree Canopy, w/Rubber Strap, 22"- 33”, Finishes: BK, BZ, GR, GT, RT, VG, WH
CX-722BBrass Tree Canopy, w/Rubber Strap, 22"- 33”, Finishes: AB, BK
CX-723Aluminum Tree Canopy, w/Rubber Strap, 31"- 45”, Finishes: BK, BZ, GR, GT, RT, VG, WH
CX-723BBrass Tree Canopy,w/ Rubber Strap, 31"- 45”, Finishes: AB, BK

Mounting Pedestal

Part #Description
CX-603-BK3" PVC Mounting Pedestal, BK
CX-621-BK1" PVC Cap, BK
CX-622-BK2" PVC Cap, BK
CX-624-BK3" PVC Cap, Female Brass Hub, BK

Mounting Posts

Part #Description
CX-67824” Aluminum Single Head Post, Finishes: BK, BZ, SI
CX-678B24” Brass Single Head Post, Finishes: AB, GM,SI
CX-678C24” Copper Single Head Post, Finishes: RC
CX-67924” Aluminum Double Head Post, Finishes: BK,BZ, SI
CX-679B24” Brass Double Head Post, Finishes: AB, GM, SI
CX-679C24” Copper Double Head Post, RC
CX-69018” Aluminum Single Head Post, Finishes: BK, BZ, SI
CX-690B18” Brass Single Head Post, Finishes: AB, GM, SI
CX-690C18” Copper Single Head Post, Finishes: RC
CX-69318” Aluminum Double Head Post, Finishes: BK, BZ, SI
CX-693B18” Brass Double Head Post, Finishes: AB, GM, SI
CX-693C18” Copper Double Head Post, Finishes: RC

Mounting Risers

Part #Description
CX-6716” Aluminum Riser, Finishes: BK, BZ, GR, GT, RT, VG, WH
CX-67212” Aluminum Riser, Finishes: BK, BZ, GR, GT, RT, VG, WH
CX-67318” Aluminum Riser, Finishes: BK, BZ, GR, GT, RT, VG, WH
CX-682B6” Brass Riser, Finishes: AB, GM
CX-682C6” Copper Riser, Finishes: RC
CX-683B12” Brass Riser, Finishes: AB, GM
CX-683C12” Copper Riser, Finishes: RC
CX-684B18” Brass Riser, Finishes: AB, GM
CX-684C18" Copper Riser, Finishes: RC
CX-685B24” Brass Riser, Finishes: AB, GM
CX-686C24" Copper Riser, Finishes: RC
CX-782B-BK6” Brass Riser, Finishes: BK
CX-783B-BK12” Brass Riser, Finishes: BK
CX-784B-BK18” Brass Riser, Finishes: BK
CX-785B-BK24” Brass Riser, Finishes: BK
FixtureFinishFinish ColorLamp
CL-721-TBlackSee lamp guide suffix
Bronze
Silver
Example:CL-721-T
