CL-717
CL-717

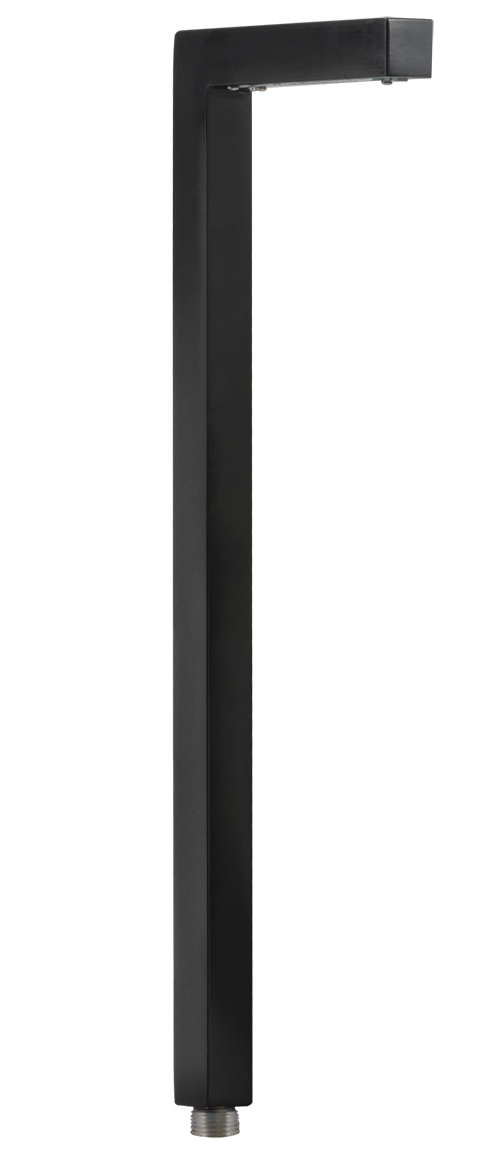

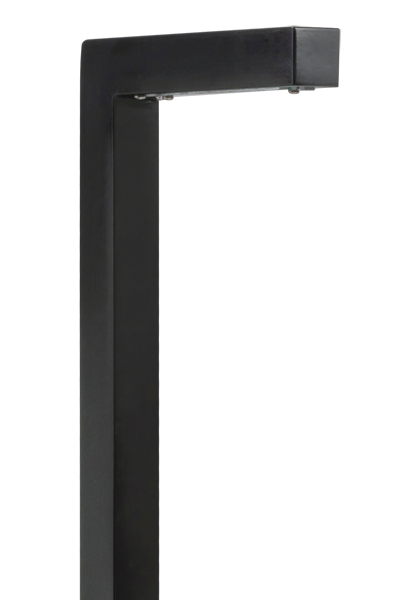

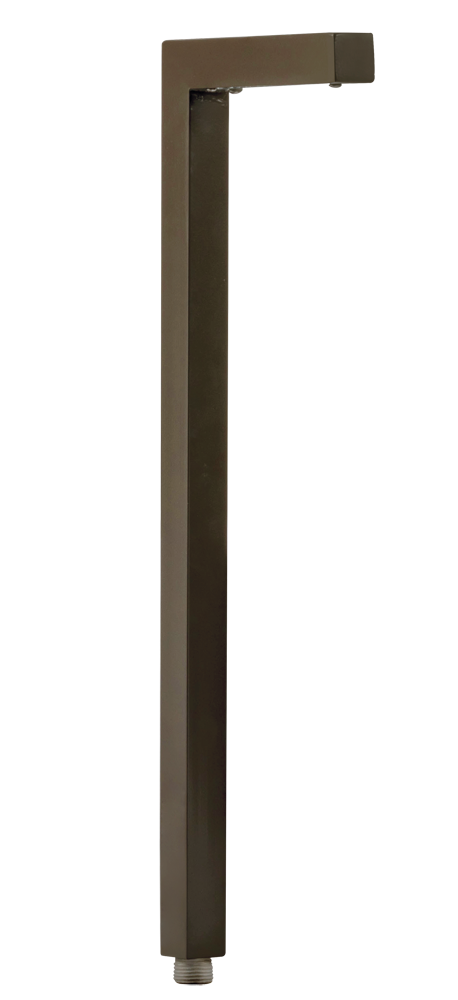

Aluminum L-Shaped Modern Path Light Finished in Black or Bronze.
Material: Aluminum
Description: L-Shaped Modern Path Light
Lamp Type: T3
Mounting Supplied: Plastic Ground Spike
Grade: Architectural
Dimensions
Size: 6” Dia x 18” High
Ship Weight LBS: 1.5
Downloads
Housing : Corrosion resistant extruded aluminum L-shaped design.
Lens : High impact, sandblasted, heat resistant, clear glass. Extra frosted and linear lenses included.
Socket : Top grade fixed ceramic bi-pin socket.
Lamp : Designed to use a 12V, T3 LED lamp only. Available in 2W Bluetooth mesh smart RGB-WW; 2W, 2.5W or without lamp. Find Lamps tab above for more information
Wiring : Fixture is prewired with a 3ft 18-2 SPT2-W direct burial cord. Wire connector sold separately. Quick-locking connectors (CX-LOC) are available from Corona Lighting. See accessories for details
Mounting : Standard injection molded with ½" NPT threaded female hub.
Electrical : Voltage range for BT lamps are 9-17V, LED are 8-21V. Remote 12 Volt transformer is required. Visit the transformers page for our line of options.
WARRANTY : Ten (10) year warranty on fixture housing against manufacturer’s defects.
| Lamp Number | Watts | Beam Spread | Spread Text | Beam Lumen | Color Temp | Light Color | Rated Hours | Halogen Equiv |
|---|---|---|---|---|---|---|---|---|
| L-EDT3-2W-BT (717 Series Only) | 0.5 - 2 | 360º | 360 Deg. | 10-120 | 2200K-5700K | Color Changing | 50,000 | |
| L-EDT3-3W-BT | 0.5 - 3 | 360º | 360 Deg. | 10-200 | 2200K-5700K | Color Changing | 50,000 | |
| L-EDT3-2W | 2 | 360° | 360 Deg. | 200 | 2700K | Warm White | 25,000 | 25 Watt Halogen |
| L-EDT3-2W-3K | 2 | 360° | 360 Deg. | 210 | 3000K | Cool White | 25,000 | 20 Watt Halogen |
| L-EDT3-AM | 2 | 360° | 360 Deg. | 170 | 2000K | Amber | 25,000 | 20 Watt Halogen |
| L-EDT3-2.5W | 2.5 | 180° | 180 Deg. | 240 | 2700K | Warm White | 25,000 | 40 Watt Halogen |
| L-EDT3-2.5W-3K | 2.5 | 180° | 180 Deg. | 250 | 3000K | Cool White | 25,000 | 20 Watt Halogen |
| Fixture | Finish | Finish Color | Lamp |
|---|---|---|---|
| CL-717 | Black | See lamp guide suffix | |
| Bronze | |||
| Example: | CL-717 | ||
